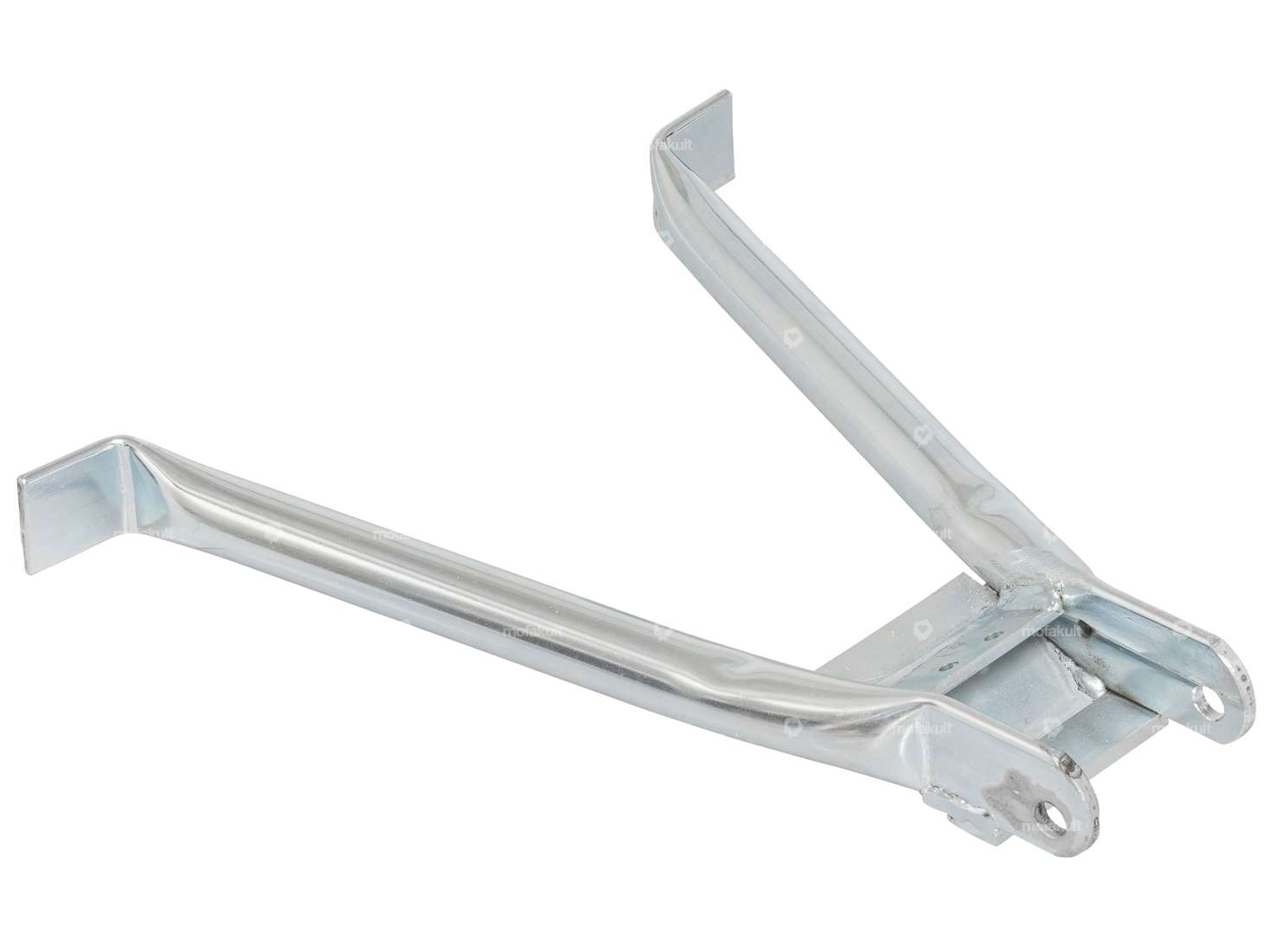

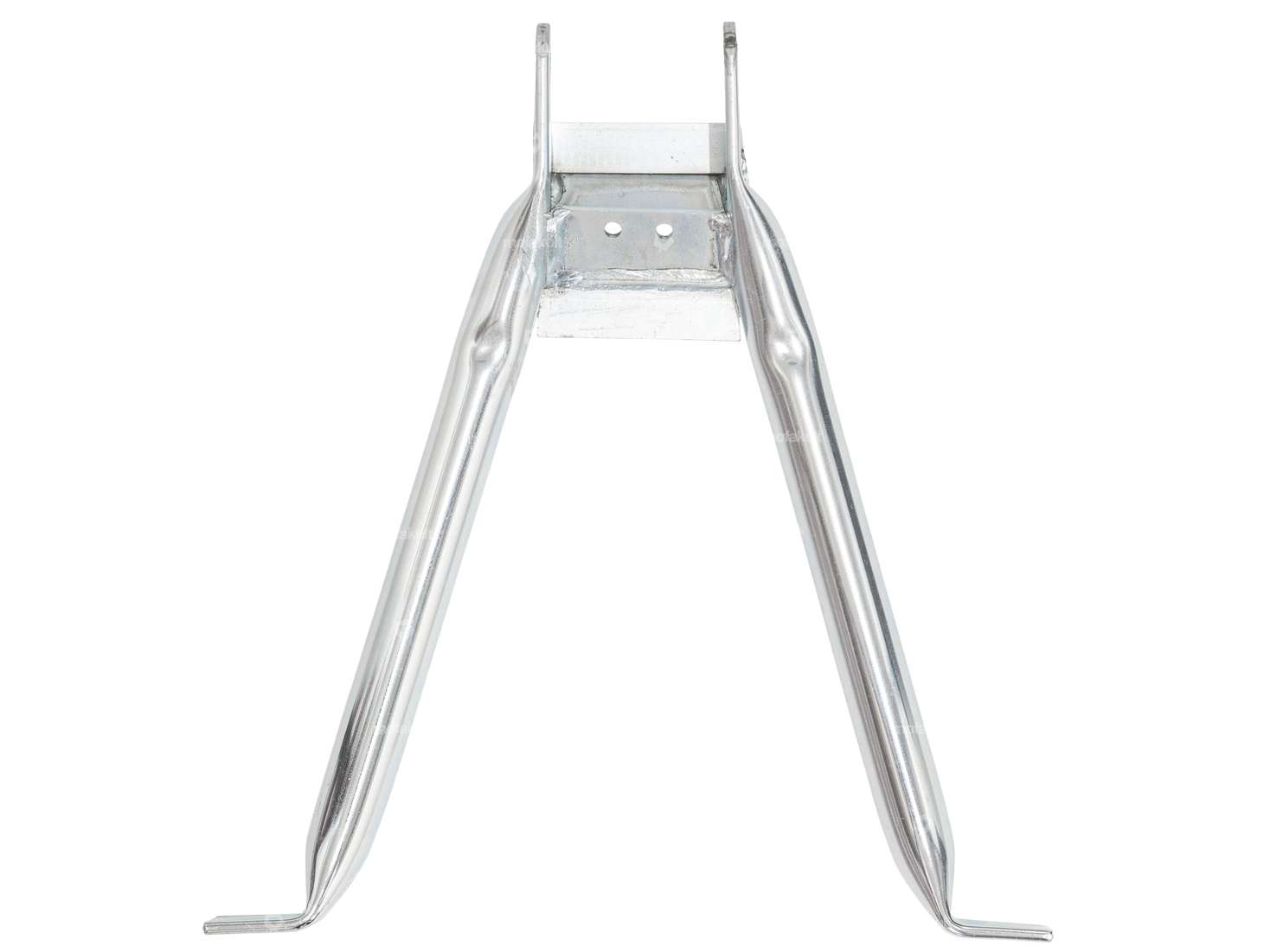

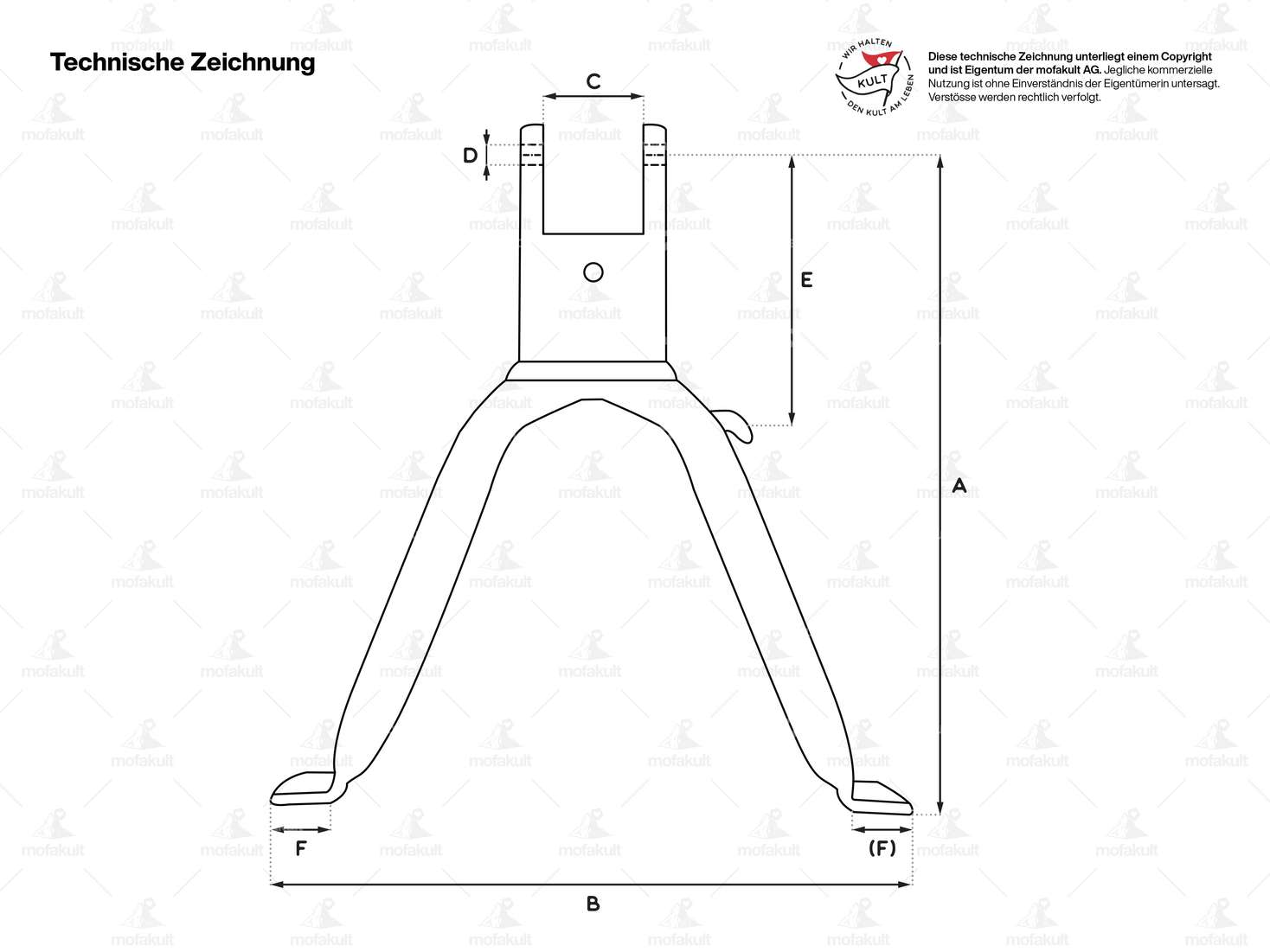

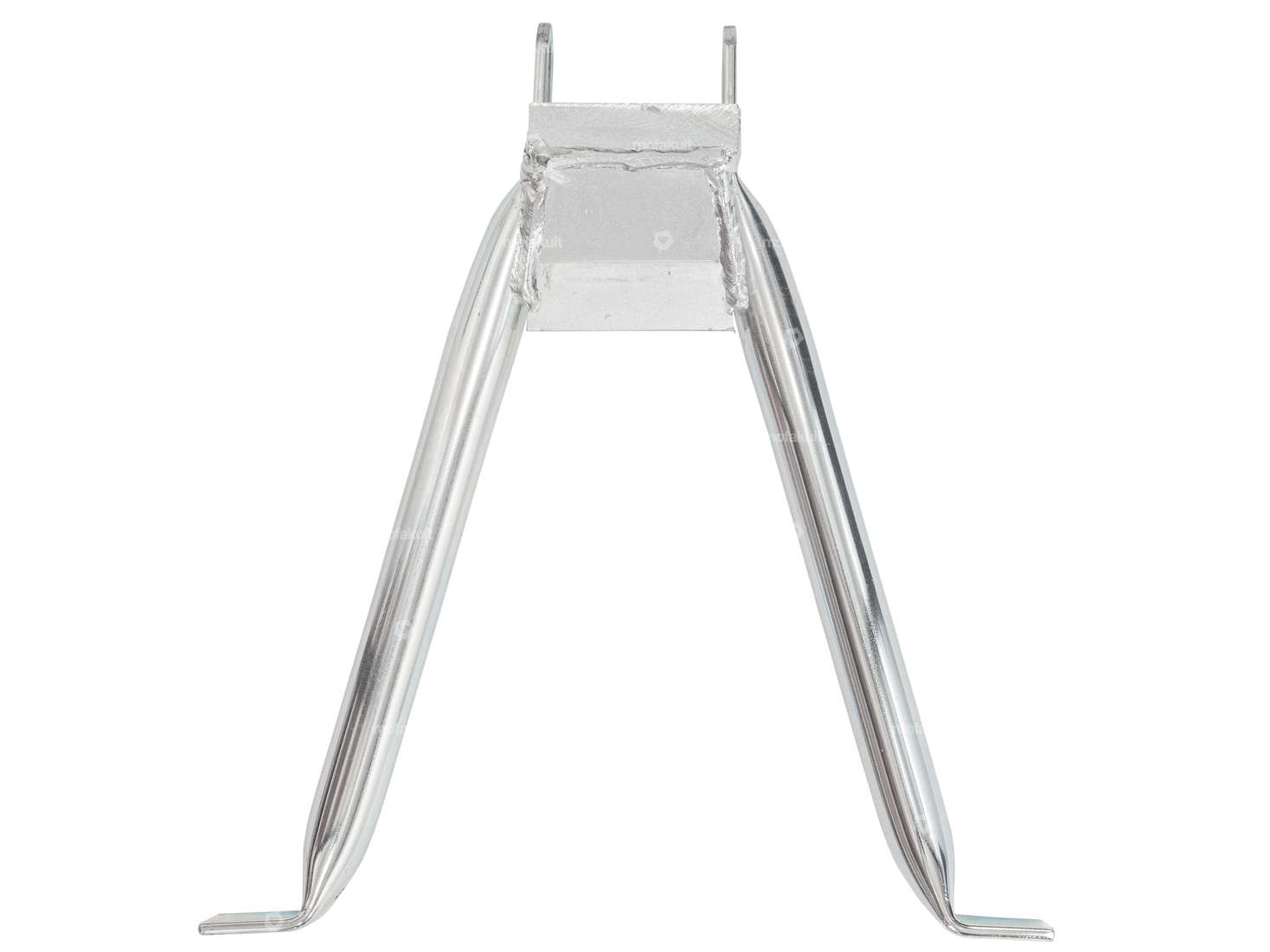

Main stand short version | Hercules 623

Magura cable clamp Ø 8 x 15 mm

Ø Bundle: 6 mm · Manufacturer: Magura · Material: Brass · Area of application: Standard · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Ø Cable bushing: 2.3 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats SW: 7 mm · Ø outside: 8 mm · Total length: 15 mm · Thread length: 7 mm

Main stand black | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Surface: varnished · Stand base - center mount (A): 207 mm · Color: black · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

Rear light black - red

Material: Plastic · Color: black · Color: red · Bulb holder: BA9s · Mounting type: Nuts & bolts · Ø Receptacle: 3.5 mm · Test mark: none · Battery operated: No · Width: 65 mm · Depth: 55 mm · Number of fixing points: 1 pcs

Spotlight round Ø 13 cm chrome / black

Depth: 80 mm · Material: Sheet metal (steel) · Area of application: Standard · Housing material: Metal · Thread size: M6 · Lens material: Plastic · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Color: transparent · Ø outside: 130 mm · Speedometer recording: None · Bulb holder: BA15d · Mounting type: Screws · Number of fixing points: 2 pcs · Test mark: none · Switch included: No · Battery operated: No · Width: 134 mm · Height: 147 mm

Magura set screw M6x34 mm lock nut SW8

Width across flats Screw: 8 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Ø cable holder: 3.05 mm · Thread type: M6x1 (standard thread) · Slotted: No · Ø Receptacle: 7.05 mm · Total length: 34 mm · Width across flats nut: 8 mm · Thread length: 24 mm

Magura adjusting screw brake long

Manufacturer: Magura · Material: Brass · Color: silver · Surface: nickel-plated · Thread type: MF6x0.75 (fine pitch thread) · Drive: Knurled screw · Total length: 47 mm · Total length: 65 mm · Ø External head: 9.1 mm · Ø shaft: 6 mm · Shank length: 11 mm · Thread length: 24 mm

Union pedals aluminum

Manufacturer: Union · Material: Aluminum · Surface: rubberized · Color: silver · Width: 69 mm · Thread type: FG14.3 (9/16" 20G) · Height: 29 mm · Total length: 122 mm · Drive: Outer edge · Width across flats SW: 15 mm · Reflectors: Yes

swiing® revival plain bearing clutch basket | Puch E50

Nominal diameter: 15 mm · Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 17 mm · Material: special bearing bronze · Total height: 21.75 mm

swiing® revival stand black | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Steel · Surface: varnished · Stand base - center mount (A): 230 mm · Color: black · Total width of stand base (B): 245 mm · Wide receptacle (C): 68 mm · Ø Receptacle (D): 14.2 mm · Spring nipple distance - center pivot axis (E): 100 mm · Wide upright foot (F): 30 mm · Total height: 245 mm

swiing® revival spring main stand Inox | Hercules

Spring design: Tension spring · Ø wire: 2 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Total length: 80 mm
