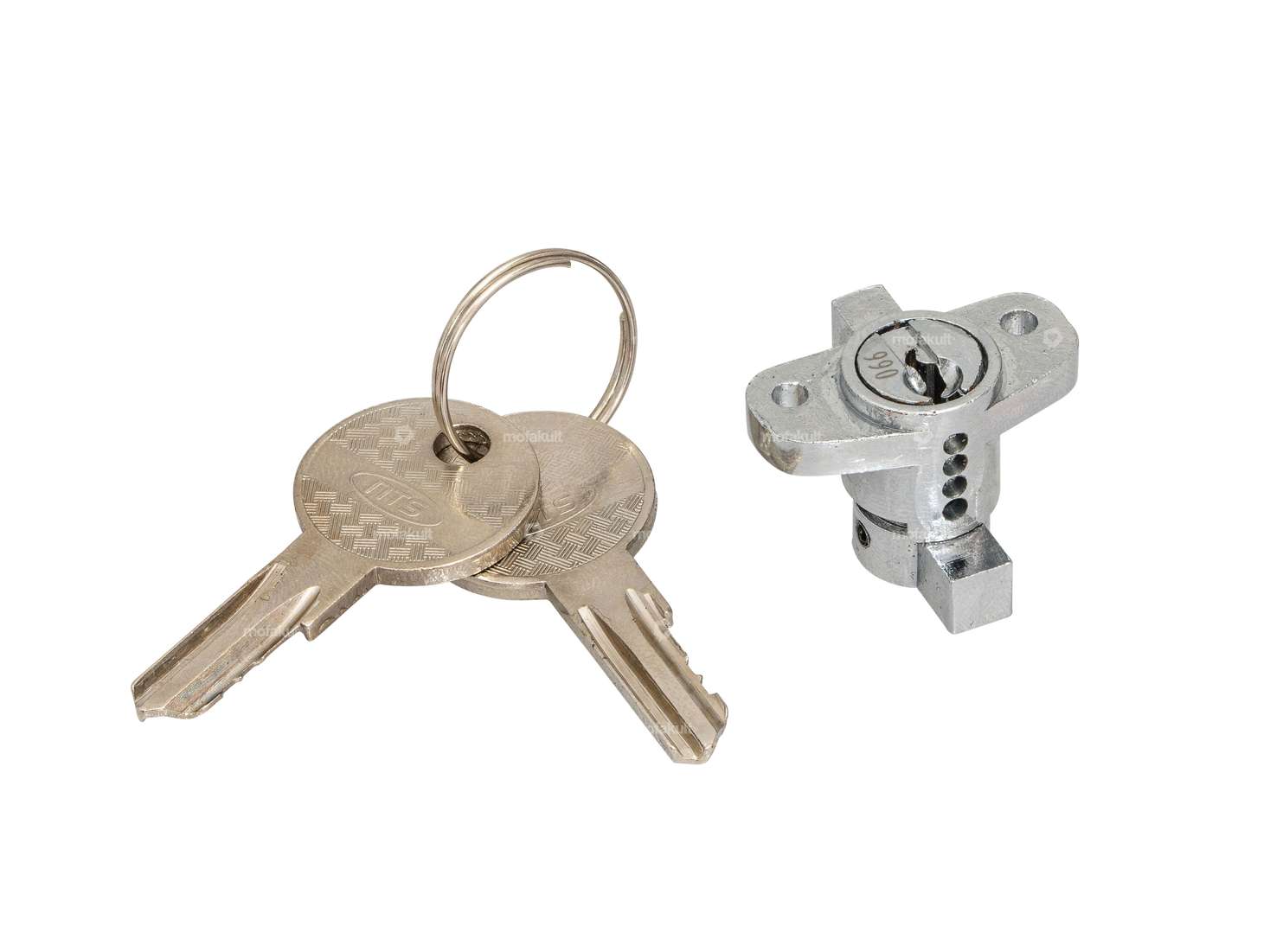

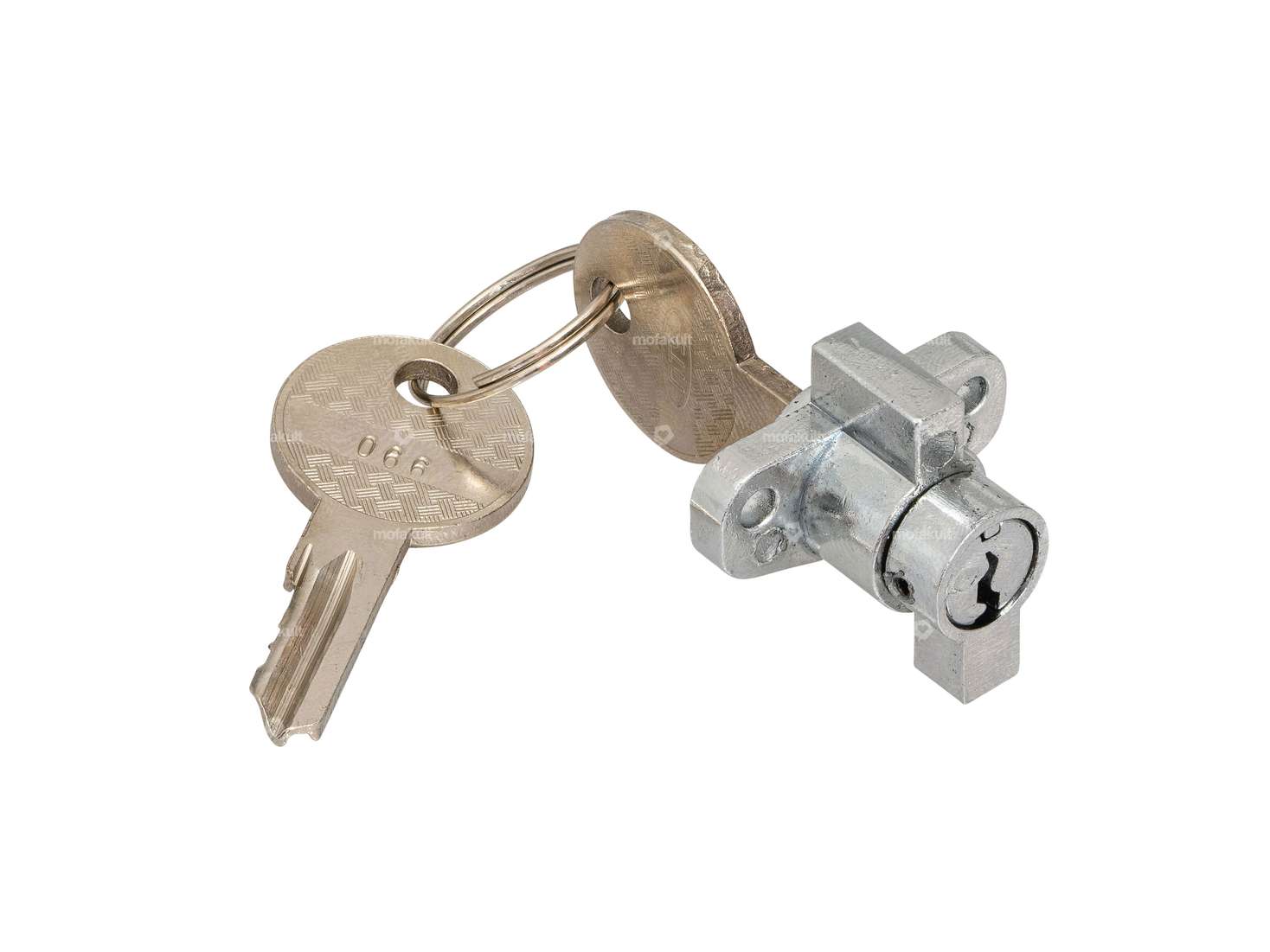

Lock for tool compartment | Puch VZ50, VZ50M & VZ50V

Engine gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Color: black · Material: Rubber

Air filter Puch X50-4 | Duett | MK II

Camouflaged: Yes · Color: black · Material: Plastic · Filter type: Standard sieve · Mounting type: Plug connection · Area of application: Security

40 mm cylinder kit aluminum | Puch Monza, X50

Nominal diameter: 40 mm · Material: Aluminum · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Silentblock 10/22/33 mm

Material: Rubber · Material: Steel · Total length: 33 mm · Ø inside: 10 mm · Ø outside: 22 mm

Silentblock engine mount | Puch MS50, VS50, MV50

Ø inside: 8 mm · Ø outside: 20 mm · Total length: 17 mm · Material: Rubber · Material: Steel

Silentblock swingarm bearing | Puch VZ50, MC50, X50, Monza

Ø inside: 12 mm · Ø outside: 25 mm · Total length: 36 mm · Material: Rubber · Material: Steel

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Spring design: Torsion spring · Material: Spring steel · Surface: galvanized (blue)

Lock toolbox & luggage compartment seat bench | Kreidler / Hercules

Material: Aluminum · Material: Steel · Width: 30 mm · Height: 19.4 mm · Thickness: 21 mm · Ø outside: 13.8 mm · Mounting type: Rivets · Number of fixing points: 2 pcs · Hole spacing: 22.3 mm · Ø mounting hole: 2.7 mm · Kreidler OEM number: 27.77.98

Magura cable holder

Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Ø Cable bushing: 4 mm · Total length: 14.5 mm · Ø outside: 8 mm · Area of application: Standard · Ø Bundle: 10 mm · Color: silver

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Area of application: Standard · Number of components: 1 pcs · Nipple length: 5 mm

Petrol hose clamp (Ø 8.8 - 9.3 mm) Standard

Outer width: 5.3 mm · Material: Spring steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9.5 mm · Ø inside: 7.5 mm · Clamping range: 7.6 - 9.3 mm · Mounting type: Plug connection clamped

Karcoma fuel tap M16x1 vertical | Puch X30 Velux

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF16x1 (fine pitch thread) · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm

Cork seal for fuel filler cap (1A quality) | Velux

Manufacturer: Made in Netherlands · Material: Cork · Ø inside: 28 mm · Ø outside: 42 mm · Color: brown · Mounting type: Plug connection clamped

Karcoma fuel filter 24 mm plastic / paper

Manufacturer: Karcoma · Material: Paper · Material: Plastic · Color: transparent · Color: yellow · Filter type: Filter paper · demountable: No · Ø outside: 24 mm · Ø inside: 4.7 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7.3 mm · Total length: 35 mm · Total length: 60 mm

Tank cap M44x4 ivory

Material: Plastic · Color: ivory · Fuel filler cap: M44 x 4 · Lockable: No · Vented: Yes

Magura grip Old School 24 - 26 mm ivory

Manufacturer: Magura · Color: beige · Color: cream · Color: ivory · Material: Rubber · Ø inside: 24 mm

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Color: black · Material: Rubber

BING SSE carburetor 12 mm cable choke | ILO / Puch MV, MS, DS

Carburetor type: SSE · Nominal diameter: 12 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø fuel hose connection: 6 mm · Choke control: Cable choke · Nozzle size: 50 · Mounting type: Flange · Hole spacing inlet: 32 mm · Area of application: Standard · Area of application: Tuning
