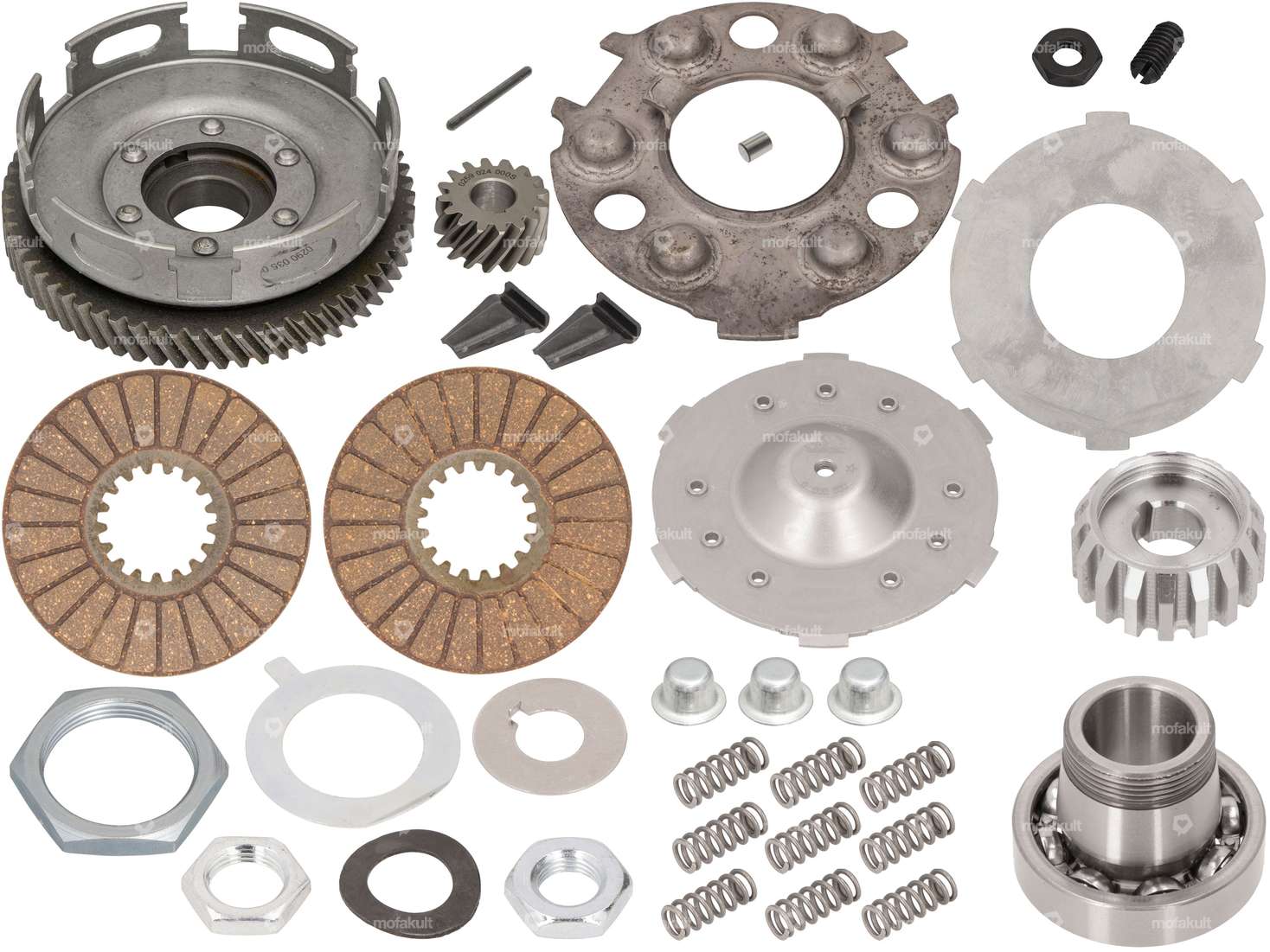

Large revision set for the clutch of hand-shifted Sachs 50/2 and 503 2AL / 2BL engines.
For a closer look, all individual parts are listed below in the accessories section.
When purchasing this complete set, you will receive a large percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Material: Steel · Area of application: Standard · Pony OEM number: A4023 · Sachs OEM number: 0686 018 005
Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony OEM number: A1908 · Sachs OEM number: 0259 015 000
Manufacturer: swiing® revival parts · Material: Steel, Composite materials · Recording type: Interlocking · Ø inside: 29.7 mm, 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony OEM number: A3887 · Sachs OEM number: 0659 010 006
Manufacturer: swiing® revival parts · Spring design: Pressure spring · Pony OEM number: A1325 · Sachs OEM number: 0239 015 000
Pony OEM number: A3884 · Sachs OEM number: 0659 006 000
Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread) · Width across flats SW: 17 mm
Thread type: M6x1 (standard thread) · Thread length: 12 mm · Alternative version of the Pony OEM number: A1371 · Alternative version of the Sachs OEM number: 0240 043 002
Material: Steel · Surface: galvanized (blue) · Number of lobes: 1 pcs · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm
Recording type: Wedge connection · Number of teeth: 17 pcs · Area of application: Standard · Pony OEM number: A1911 · Sachs OEM number: 0259 024 000
Material: Steel · Area of application: Standard · Pony OEM number: A1907 · Sachs OEM number: 0259 014 000
Ø outside: 4.8 mm · Total length: 47 mm · Pony OEM number: A1792 · Sachs OEM number: 0249 047 000
Material: Steel · Surface: Hardened · Diameter: 4.5 mm · Width: 6 mm · Pony OEM number: A1162 · Sachs OEM number: 0232 107 000
Material: Steel · Color: graphite colors · Recording type: Interlocking · Toothing type: helical toothed · Number of teeth: 16 pcs, 62 pcs · Ø inside: 22.5 mm · Ø outside: 110 mm, 100 mm · Height: 41.5 mm · Area of application: Standard · Pony OEM number: A1201, A2947 · Sachs OEM number: 0234 068 000, 0290 035 005
Material: Steel · Ø inside: 39 mm · Ø outside: 90 mm, 98.5 mm · Height: 9.1 mm · Area of application: Standard · Pony OEM number: A3882 · Sachs OEM number: 0659 004 000
Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard, High End · Bearing type: Deep groove ball bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM number: 0286 079 105
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony OEM number: A1717 · Sachs OEM number: 0246 049 000, A1717
Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Height: 5 mm · Width across flats SW: 17 mm · Pony OEM number: A1493, A1513 · Sachs OEM number: 0242 000 001, 0242 102 001
Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats SW: 26 mm · Pony OEM number: A1504 · Sachs OEM number: 0242 030 005, 0242 030 105
Details
| Area of application | Standard |
| Number of slats | 2 pcs |
| Number of springs | 9 pcs |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - 2AL / 2BL |
Accessories & related products
GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)
Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Width: 25.6 mm · Manufacturer: GPO · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20x1 (fine pitch thread) · Material: Steel · Surface: blank / oiled · Area of application: Standard · Pony OEM number: A2531 · Sachs OEM number: 0286 079 105
EUR 40,90

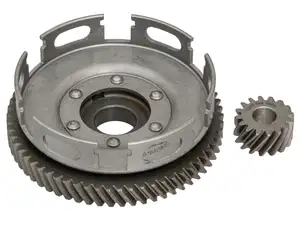

Clutch basket & hub | Sachs 50/2, 503 (A2508/A2947)
