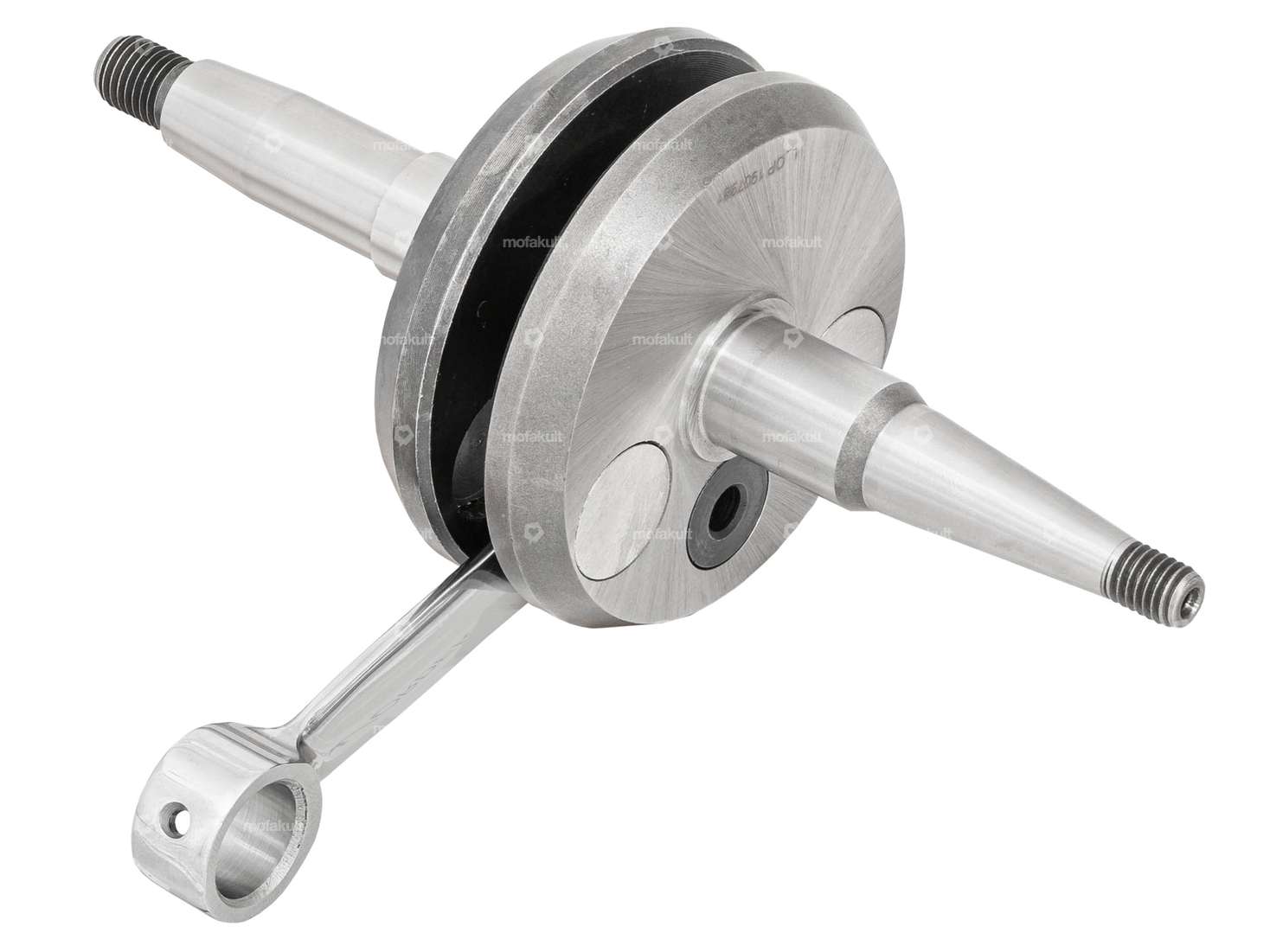

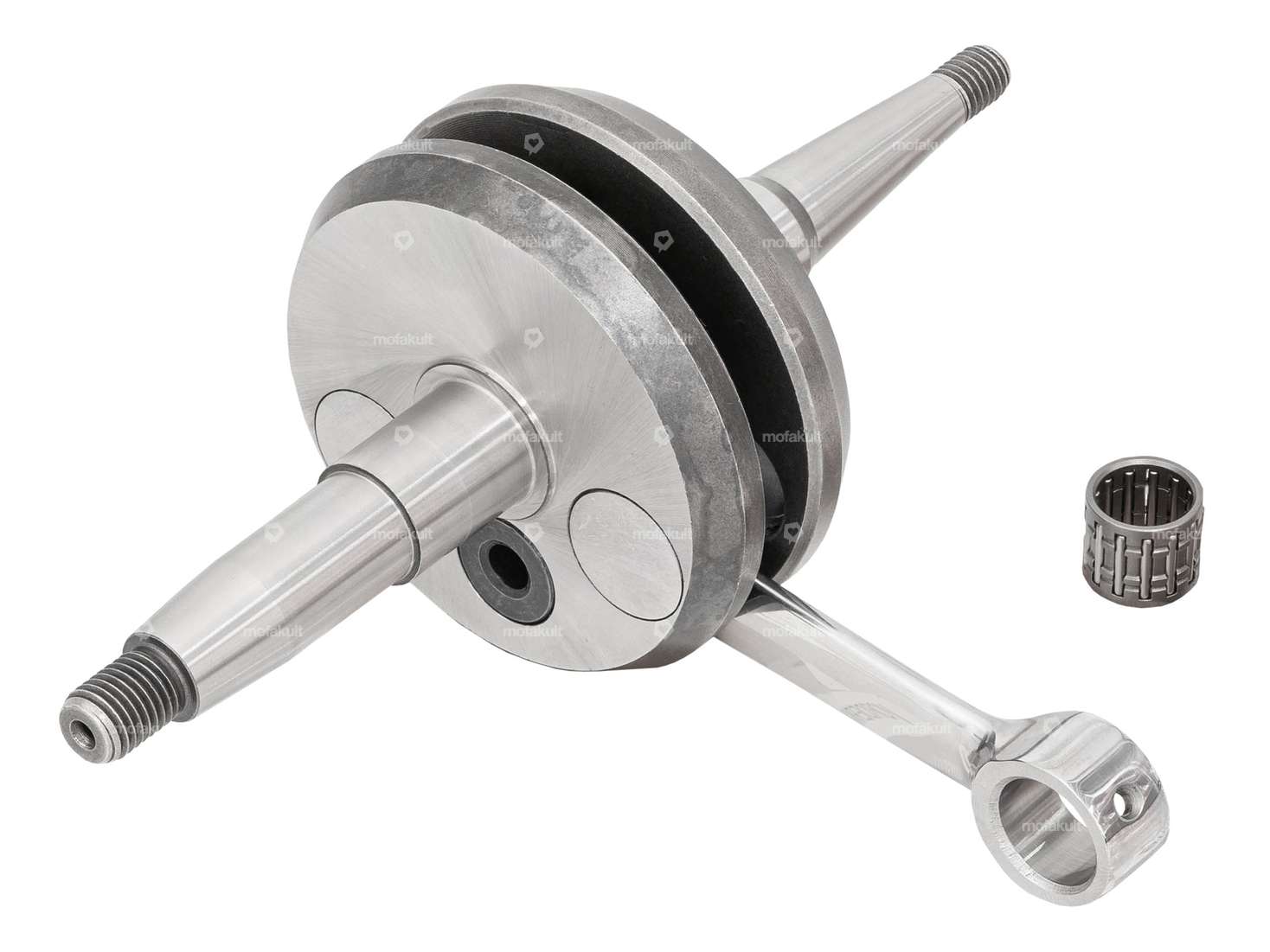

High-quality full cheek crankshaft for Morini M0, M01 and M1 engines which is installed on Alpa Turbo / Chopper and Malaguti Fifty mopeds, among others.
The connecting rod is highly polished. In addition, the rear connecting rod bearing is a silver bearing, which has excellent emergency running properties. The balancing bores of the racing crankshaft are sealed with aluminum inserts for greater pre-compression.
Note: The crankshaft does not fit FMT1 CH engines.
Corresponding bearings, oil seals, racing cylinders etc. can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Cheek type | Full cheeks |
| Crankshaft stroke | 39 mm |
| Total length of crankpin on clutch side | 71 mm |
| Total length crankpin ignition side | 67.25 mm |
| Area of application | Racing |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
Suitable for the following models
| Alpa Chopper / Turbo | |
| Malaguti |
