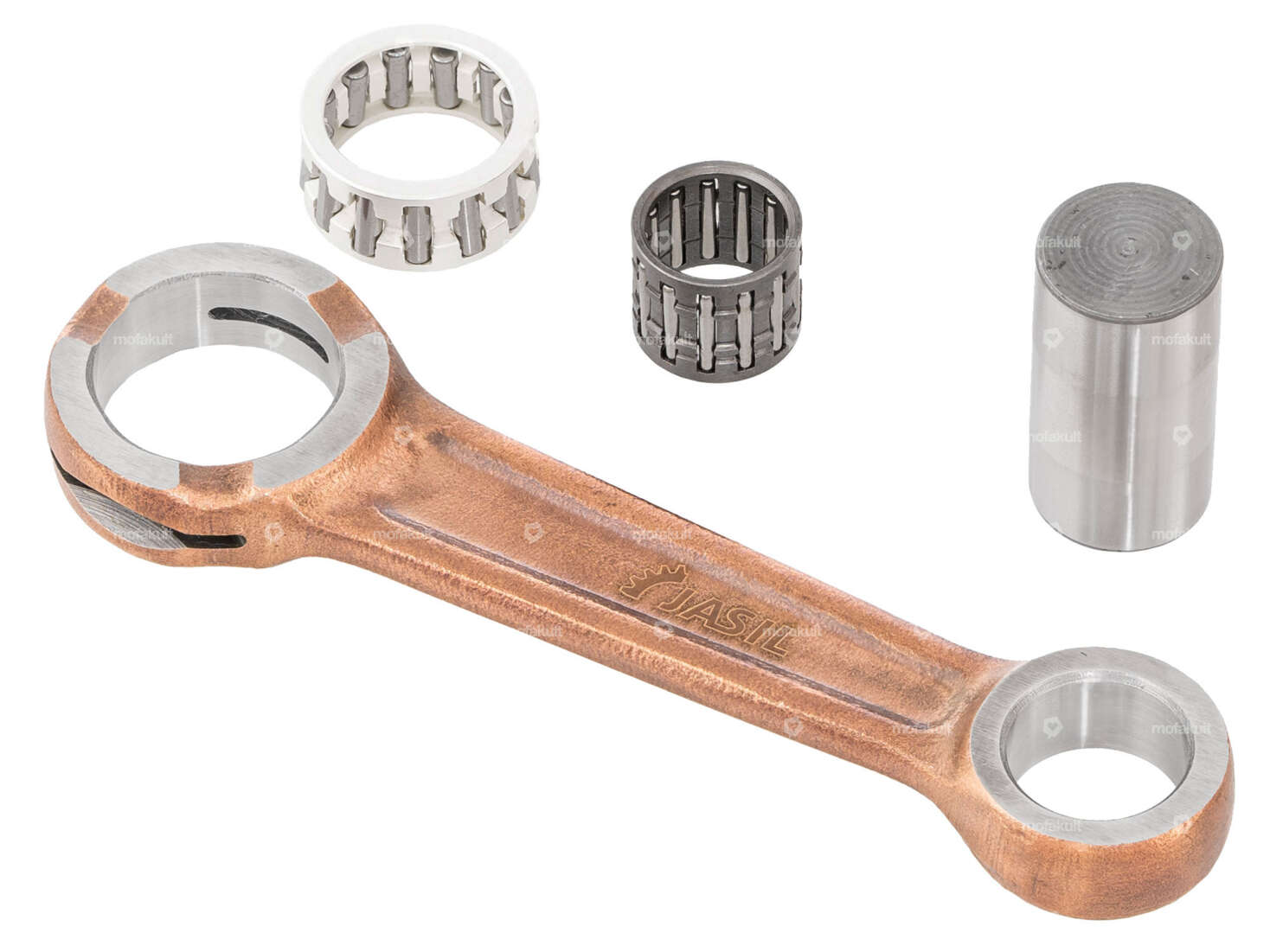

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Sachs engines.
The connecting rod pin at the bottom is conical. In addition, this connecting rod requires a 16 mm piston pin.
Branded product from Portuguese manufacturer Jasil under the Top Racing brand.
Details
Manufacturer | Jasil |
Material | Steel |
Area of application | Standard, Tuning |
Surface | copper-coated |
Connecting rod length center-center | 85 mm |
Ø Connecting rod bolt | 16 mm |
Ø lower connecting rod eye outside | 24.75 mm |
Ø upper connecting rod eye outside | 20.85 mm |
Ø piston pin (B) | 12 mm |
Ø lower bearing inside | 21 mm |
Thickness | 10 mm |
Total length | 107.4 mm |
Ø inside upper bearing | 15 mm |
Dimension lower bearing | 16/21 x 9.75 mm |
Dimension upper bearing | 12/15 x 12.7 mm |
Connecting rod pin length | 30 mm |
Suitable for the following models
Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) |
Moped fans like you also bought:
Oil seal NBR 12.96/31.5/3.5 Pinion shaft | Sachs 50/2 (A1137)
Manufacturer: Sachs · Material: NBR · Place of use: Pinion shaft · Width: 3.5 mm · Temperature resistance (min.): -30 - 100 °C · Ø inside: 12.96 mm · Ø outside: 31.5 mm · Pony spare part no.: A1137 · Sachs spare part no.: 0230 014 100
EUR 9,60
Meteor piston 38 mm type D | Sachs 504
Manufacturer: Meteor · Ø outside piston (A): 38 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: D
EUR 63,60
Not in stock
ESJOT sprocket 37 teeth coaster brake galvanized
Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Color: silver · Chain type: 415H · Chain pitch: 1/2" x 3/16" · Number of teeth: 37 pcs · Thickness: 4.1 mm · Ø inside: 94 mm · Number of fixing points: 4 pcs · Ø bolt circle: 105.5 mm · Hole spacing: 74 mm · Ø mounting hole: 6.5 mm
EUR 54,00

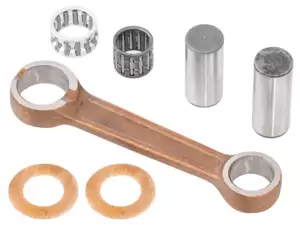

Jasil connecting rod axe 14 mm | Sachs
