Name: Jamarcol exhaust 22 mm 2-piece replica (with number & logo) | Puch
Brand: Jamarcol
SKU: 30016
Price: 115.30 EUR
Availability: InStock

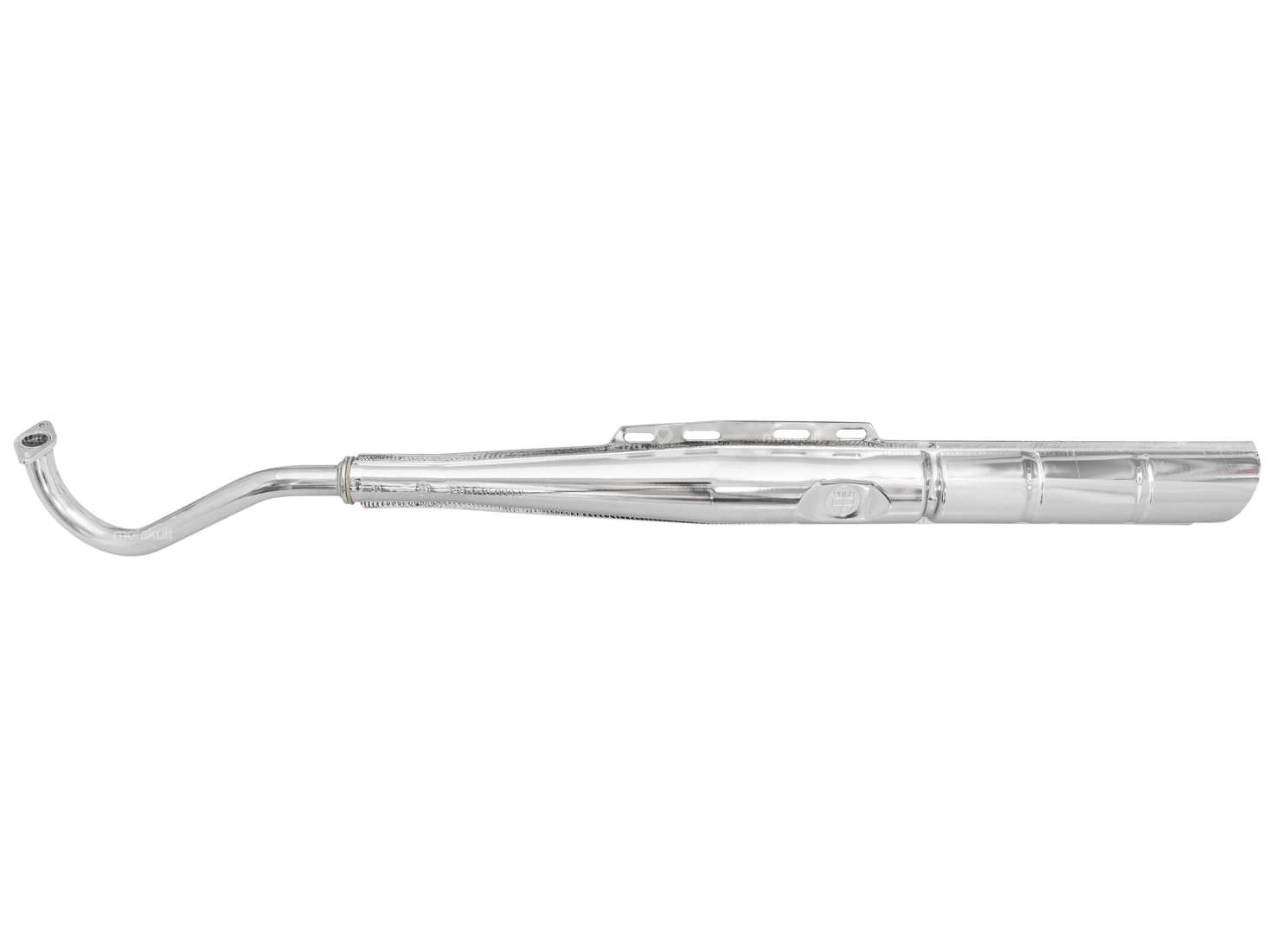

22 mm reproduction exhaust suitable for Puch Maxi S & N, Puch X30 Sport NS / NL and Supermaxi LG1 / LG2 mopeds / mopeds (if Puch Maxi cylinder is mounted).

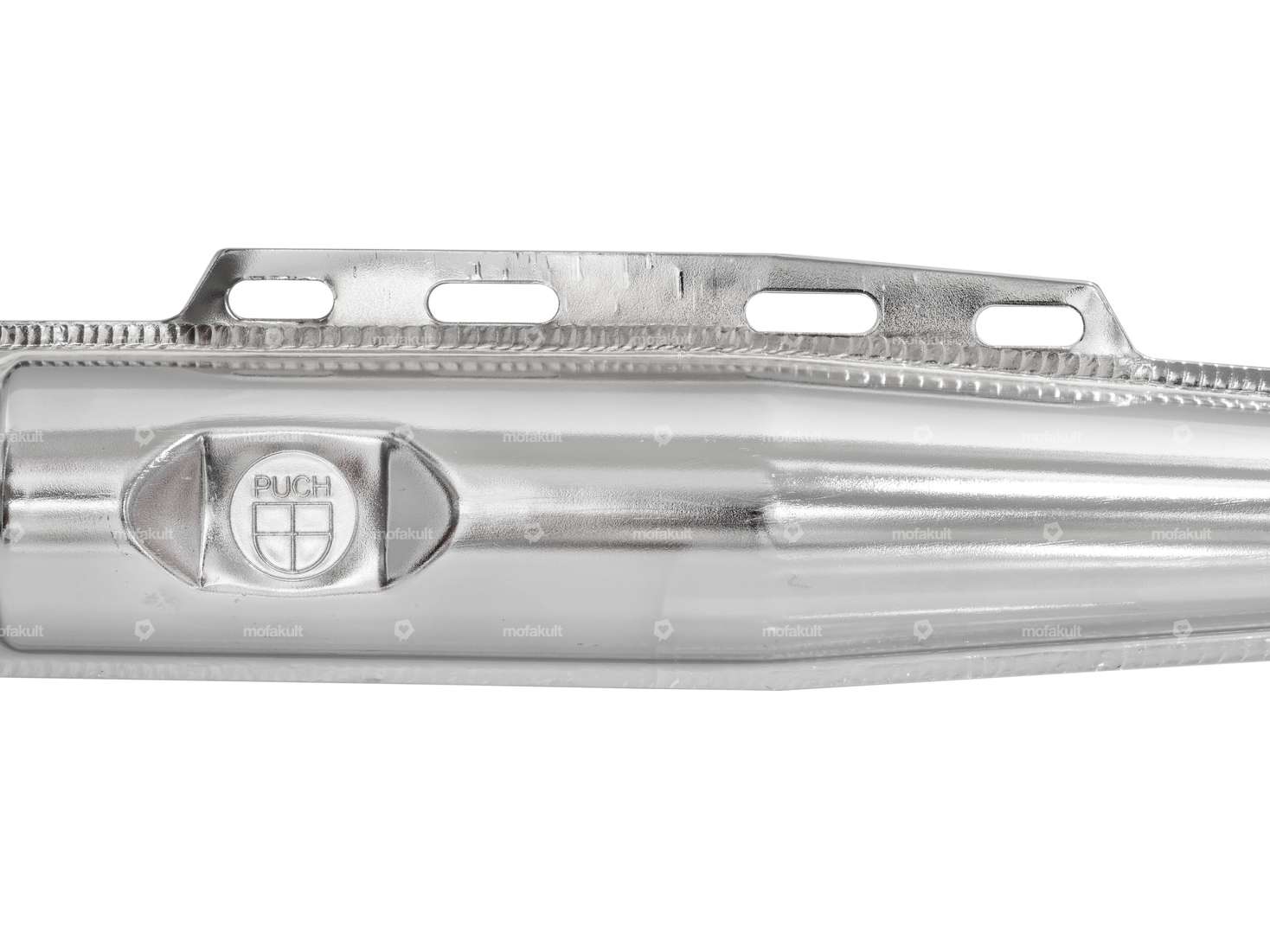

The exhaust is a 2-piece, bolted, with corresponding Puch number and stamped logo.

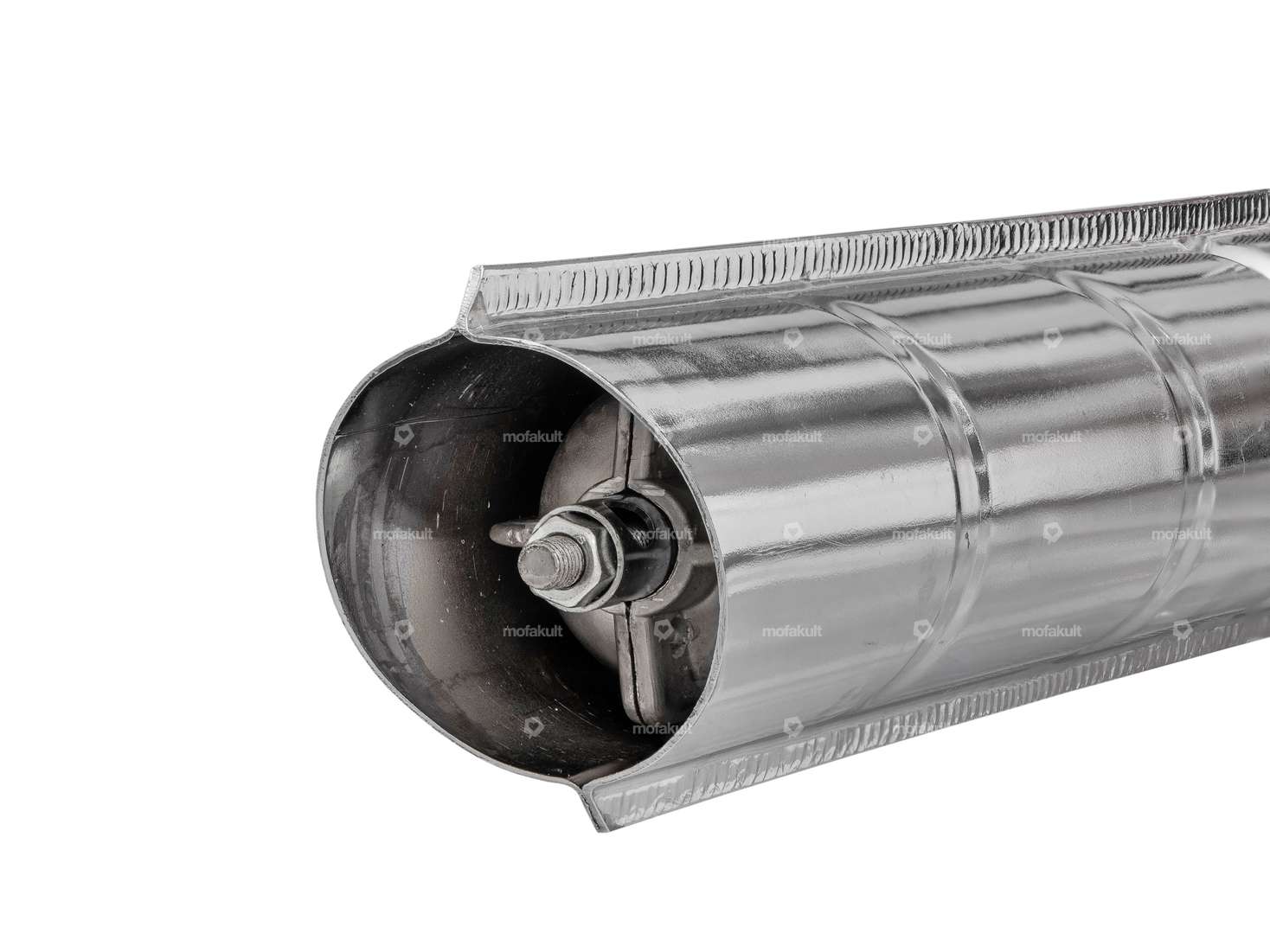

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.
We also recommend replacing the mounted gasket between the flame tube and the muffler. You can find a high-quality replacement product in the accessories section.

Attention: The sound of the reproduction exhausts can be slightly louder than the originals. This can be remedied by wrapping insulation wool around the muffler. You can find this in the accessories section.

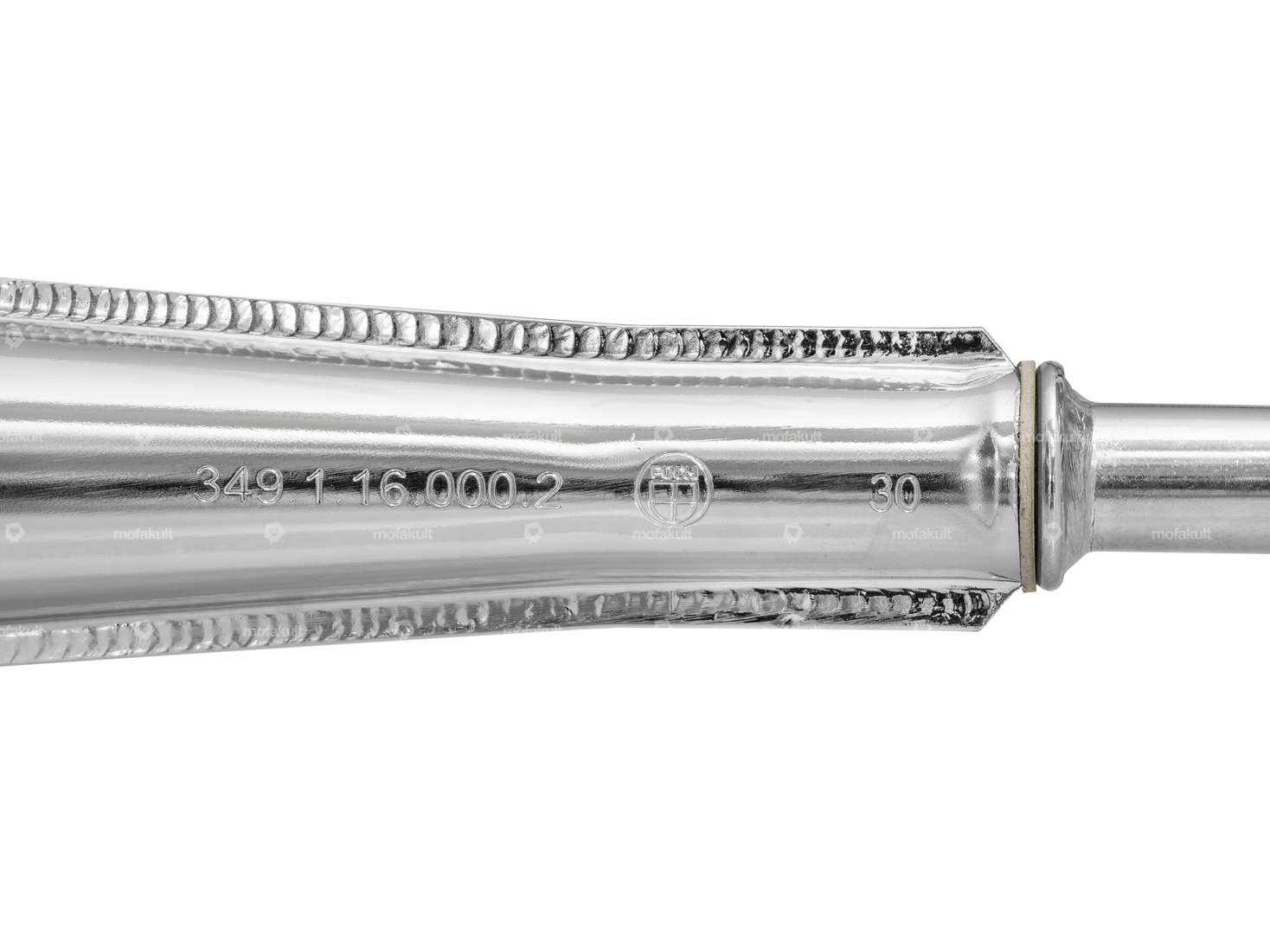

Original Puch spare part number: 349.1.16.000.2

Branded product from the Portuguese manufacturer Jamarcol.

Details

Ø outside	59 mm
Total length	920 mm
Manufacturer	Jamarcol
Material	Steel
Surface	chrome-plated
Color	Chrome
Ø Flame tube outside	22 mm
Exhaust type	Flute

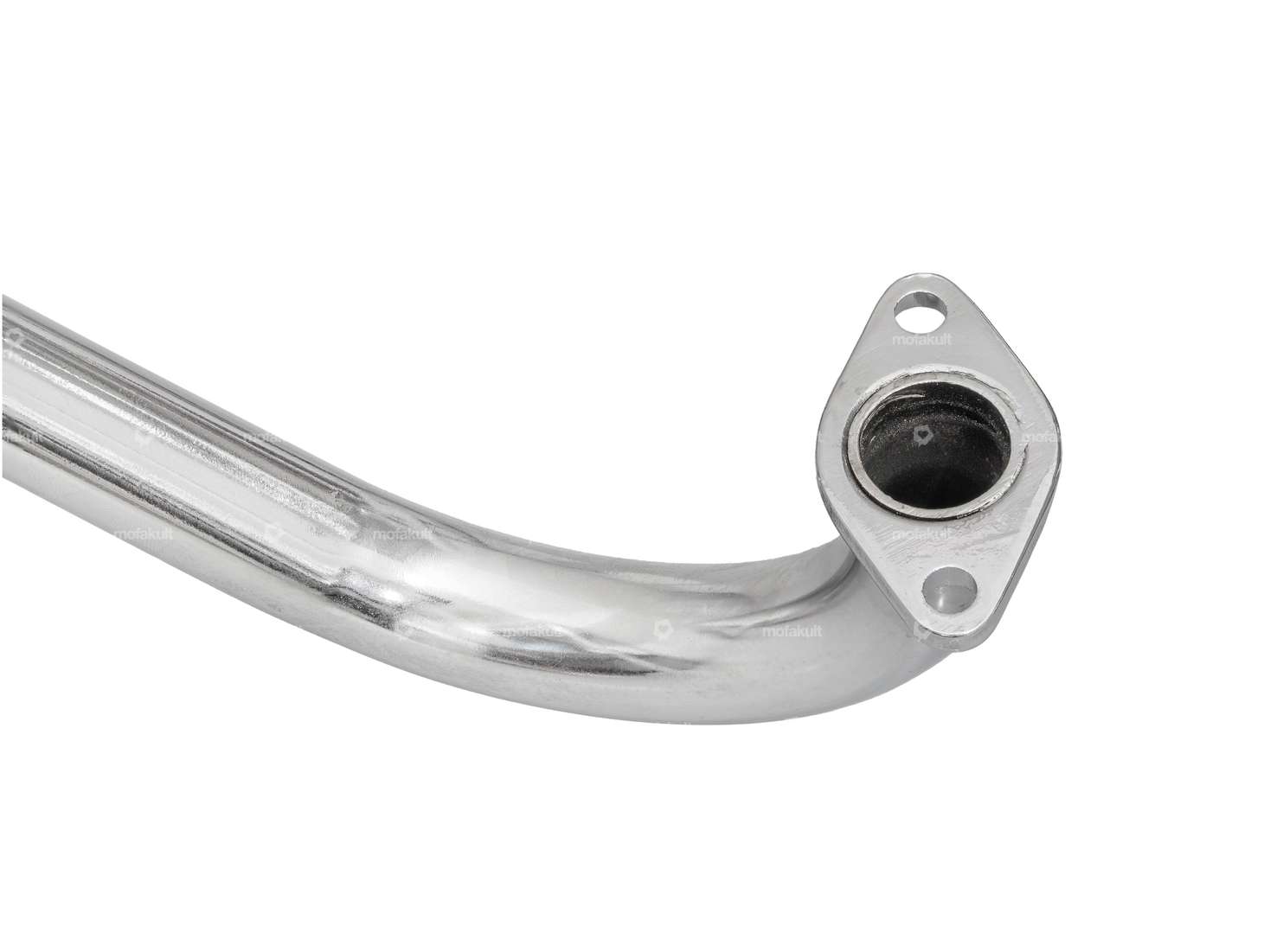

Flame tube attachment	Flange
Mounting type	Welded lug, Stud bolts & nuts

Number of fixing points

4 pcs

Suitable for the following models

Puch

E50
