For the economical repair of damaged or worn threads (of all materials) and as a design element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, the result is a gauge-containing internal thread that can be used on both sides.

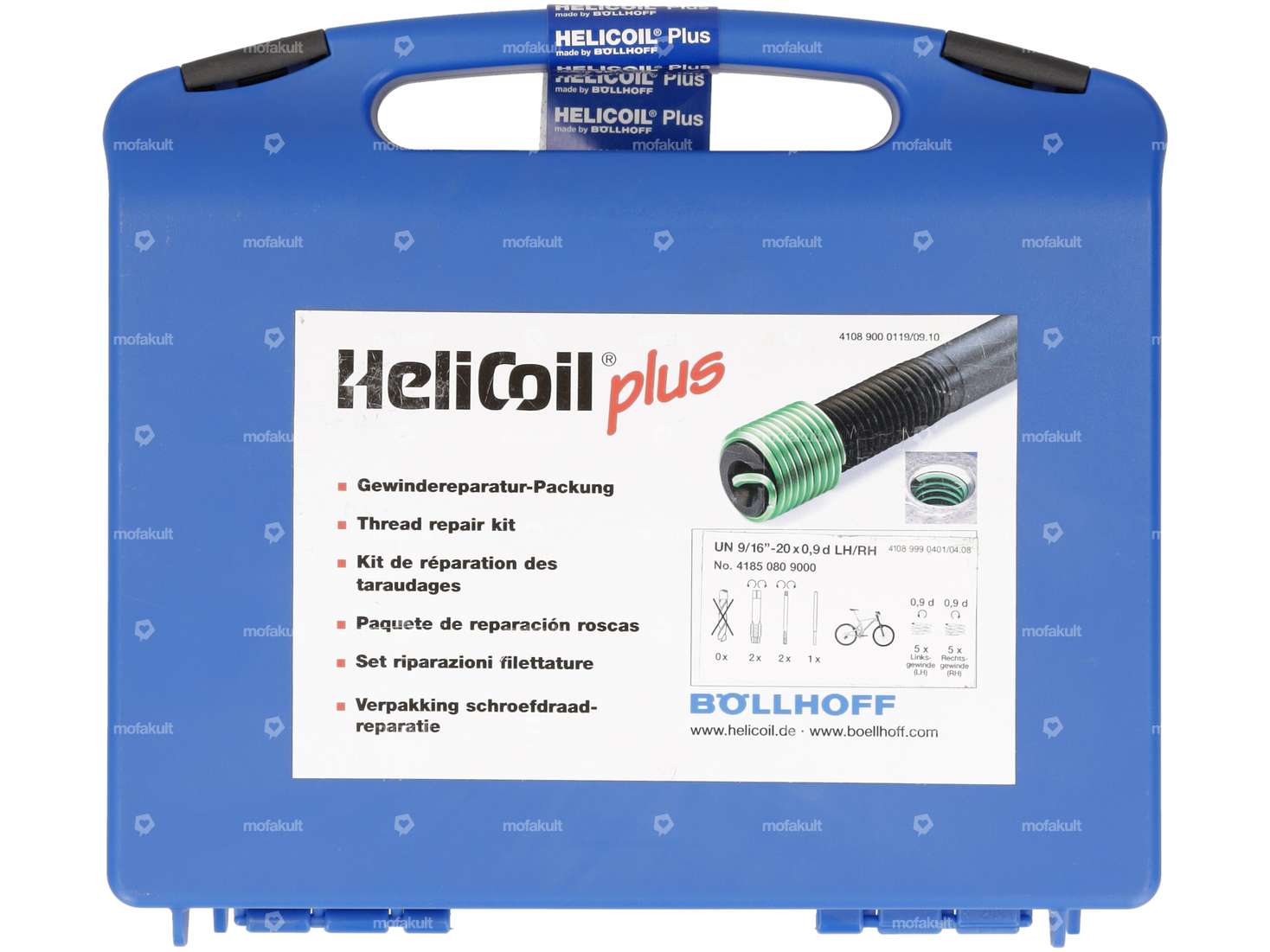

Complete repair kit for cranks and pedal mounts with UN 9/16" 20G LH & RH (left-hand and right-hand threads).
Application:
1. Check the tap and threaded bolt.
2. Use the special HeliCoil tap to cut the holding thread (the tap has two offsets, so nothing needs to be pre-drilled and the defective thread can be cut directly).
3. Turn the thread insert into the holding thread using the installation tool.
4. Remove the tang with the tang breaker.
Scope of delivery
- 1 pc. Tap 9/16 inch 20 G LH (left-hand thread)
- 1 pc. Tap 9/16 inch 20 G RH (right-hand thread)
- 2 pcs. Installation tool
- 1 pc. Tang breaker
- 5 pcs. HeliCoil thread insert left-hand thread (0.9D / 13 mm)
- 5 pcs. HeliCoil thread insert right-hand thread (0.9D / 13 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
Details
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Material | Chrome steel (stainless steel) |
| Area of application | Workshop accessories |
| Total length | 13 mm |
| Number of components | 16 pcs |
