For the economical repair of damaged or worn threads (of all materials) and as a design element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil®plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface strength as well as corrosion resistance and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that is true to gauge and can be used on both sides.
Complete repair kit for M3 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker
Scope of delivery
- 1 pc. twist drill Ø3.2 mm
- 1 pc. Tap
- 1 pc. Installation tool
- 1 pc. Stud breaker
- 20 pcs. HeliCoil thread insert (1×D)
- 20 pcs. HeliCoil threaded insert (1.5×D)
- 20 pcs. HeliCoil threaded insert (2×D)
- 1 pc. Plastic case 180×165×45 mm (L×B×H)
Note
Adetailed instruction is included.
Original HeliCoil product from the German manufacturer Böllhoff.
Details
| Storage method | Suitcase |
| Dimension storage box | 180 x 165 x 45 mm |
| Manufacturer | HeliCoil |
| Material | Chrome steel (stainless steel) |
| Area of application | Workshop accessories |
| Thread type | M3x0.5 (standard thread) |
| Nominal diameter (thread) | 3 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Total length | 3 mm, 4.5 mm, 6 mm |
| Ø bore | 3.2 mm |
| Number of components | 60 pcs |
Moped fans like you also bought:
HeliCoil thread repair set M6 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Surface: coated · Thread type: M6x1 (standard thread) · Number of components: 60 pcs · Ø bore: 6.3 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 6 mm · Total length: 9 mm · Total length: 12 mm · Nominal diameter (thread): 6 mm · Storage method: Suitcase · Dimension storage box: 180 x 165 x 45 mm · Area of application: Workshop accessories
EUR 90,10
HeliCoil thread repair case M5 - M12 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Dimension storage box: 420 x 345 x 120 mm · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Number of components: 300 pcs
EUR 383,10
HeliCoil thread repair set M4 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Dimension storage box: 180 x 165 x 45 mm · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M4x0.7 (standard thread) · Nominal diameter (thread): 4 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 4 mm · Total length: 6 mm · Total length: 8 mm · Ø bore: 4.2 mm · Number of components: 60 pcs
EUR 94,60
HeliCoil thread repair set M5 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Dimension storage box: 180 x 165 x 45 mm · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M5x0.8 (standard thread) · Nominal diameter (thread): 5 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 5 mm · Total length: 7.5 mm · Total length: 10 mm · Ø bore: 5.2 mm · Number of components: 60 pcs
EUR 94,60
HeliCoil thread repair set M10x1 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Dimension storage box: 180 x 165 x 45 mm · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: MF10x1 (fine pitch thread) · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm · Ø bore: 10.2 mm · Number of components: 30 pcs
EUR 112,60

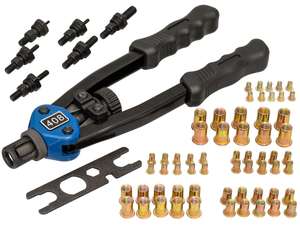

BGS rivet nut pliers set 68 pcs.
