For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, the result is an internal thread that can be used on both sides.

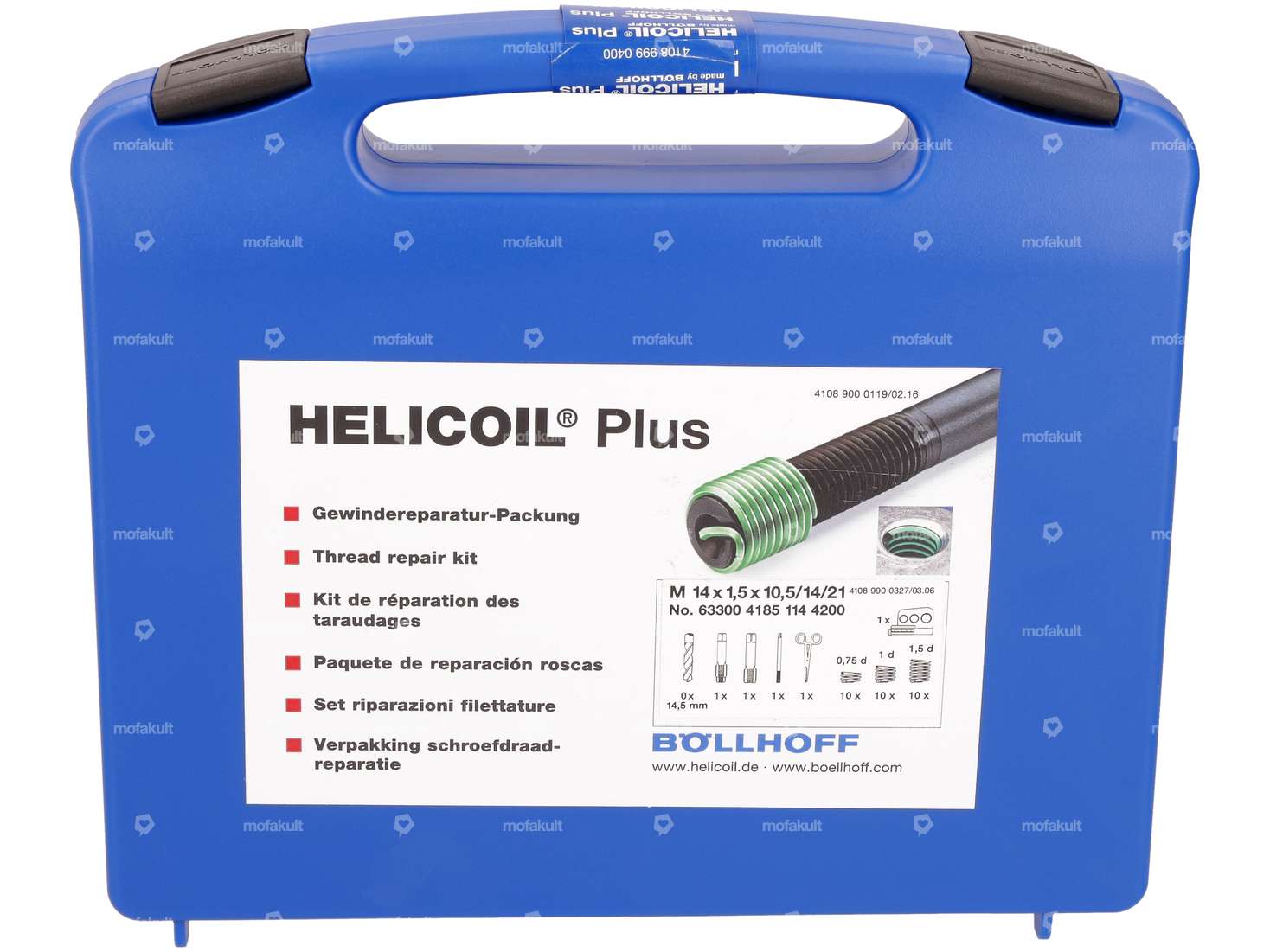

Complete repair kit for M14x1.50 thread sizes in a plastic case.
Application:
1. Check the tap and threaded bolt.
2. Use the special HeliCoil tap to cut the holding thread (the tap has two offsets, so nothing needs to be pre-drilled and the defective thread can be cut directly).
3. Rework the rod contours if necessary
4. Determine the required number of turns using a thread gauge
5. Turn the thread insert into the mounting thread using the installation tool.
6. Remove the tang.

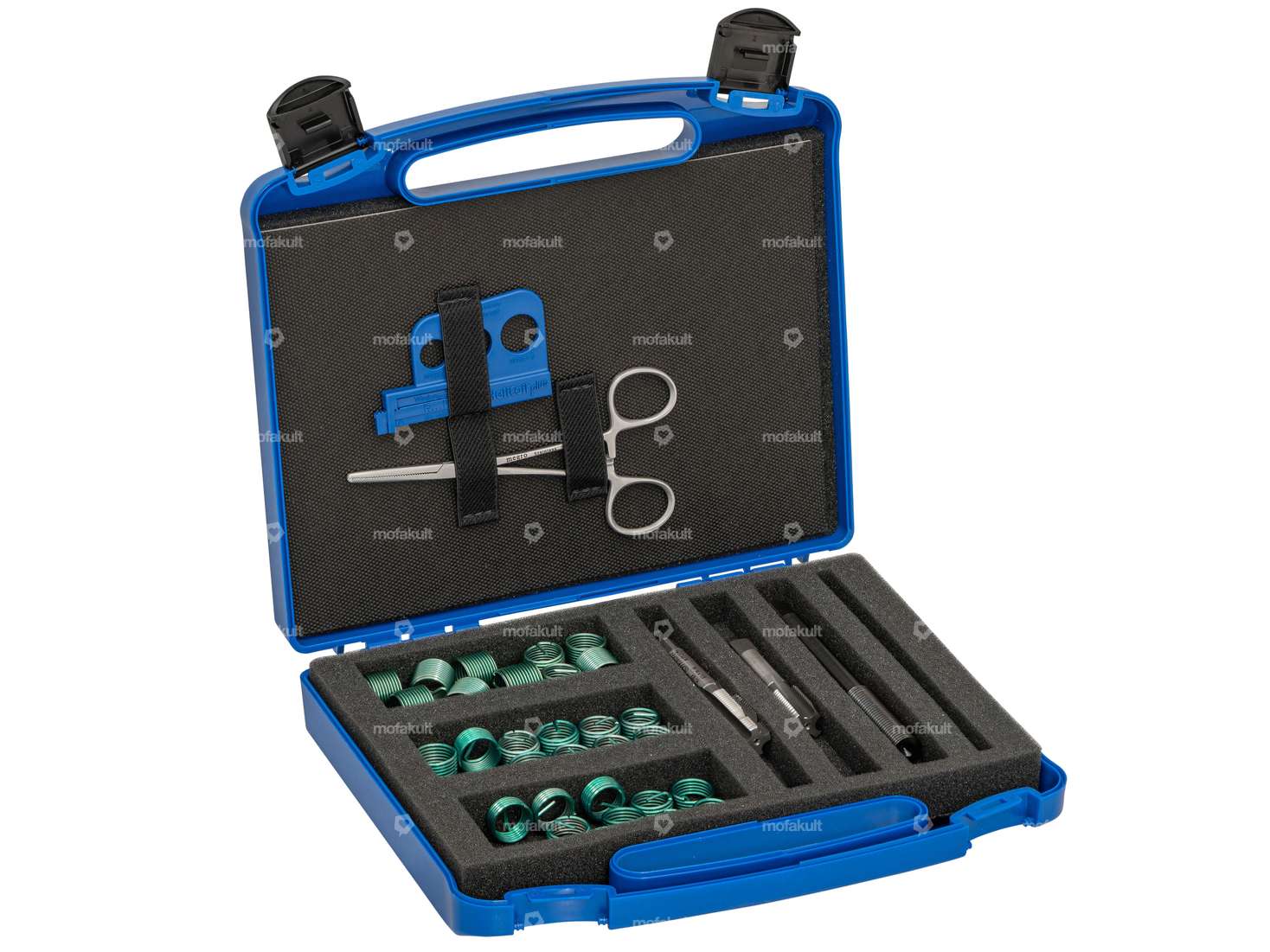

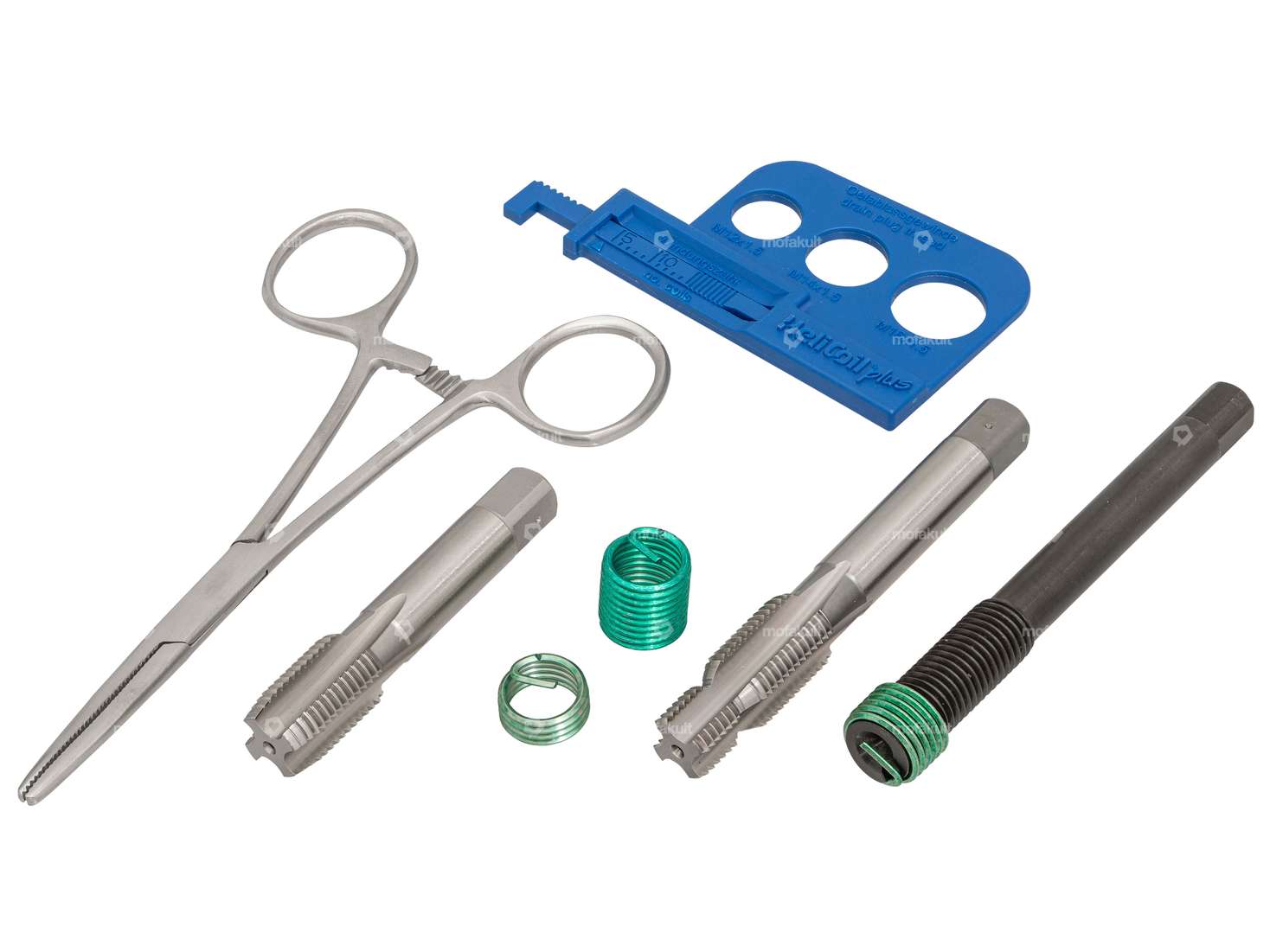

Scope of delivery
- 1 piece. Combined drilling & cutting tool
- 1 pc. Hand tap (for rod contours)
- 1 pc. Installation tool
- 1 pc. Tenon breaker pliers
- 1 pc. Thread gauge
- 10 pcs. HeliCoil thread insert (0.75D / 10.5 mm)
- 10 pcs. HeliCoil thread insert (1D / 14 mm)
- 10 pcs. HeliCoil threaded insert (1.5D / 21 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
Details
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Total length | 10.5 mm, 14 mm, 21 mm |
| Area of application | Workshop accessories |
| Material | Chrome steel (stainless steel) |
| Number of components | 35 pcs |
| Dimension thread insert | 0.75D, 1D, 1.5D |
| Thread type | MF14x1.5 (fine pitch thread) |
| Nominal diameter (thread) | 14 mm |
Accessories & related products

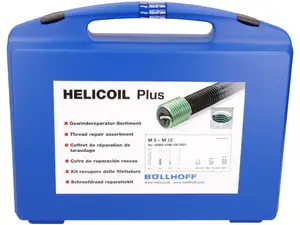

HeliCoil thread repair case M5 - M12 (professional tool)
Material: Chrome steel (stainless steel) · Manufacturer: HeliCoil · Storage method: Suitcase · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Number of components: 300 pcs · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Dimension storage box: 420 x 345 x 120 mm
EUR 383,10
Autosol Brake Cleaner 500 ml
Manufacturer: Autosol · Contents [ml]: 500 ml · Hazard warning: Causes skin irritation · Hazard warning: Extremely flammable aerosol · Hazard warning: May be fatal if swallowed and enters the respiratory tract · Hazard warning: May cause drowsiness and dizziness · Hazard warning: Pressurized container: may burst when heated · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Danger · Hazard pictogram: GHS02 - Highly flammable · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Area of application: Cleaner
EUR 15,70
EUR 31,40/l

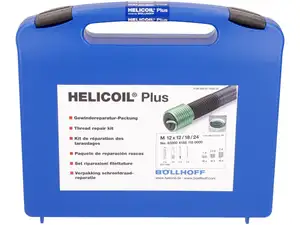

HeliCoil thread repair set M12 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M12x1.75 (standard thread) · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 12.5 mm · Total length: 12 mm · Total length: 18 mm · Total length: 24 mm · Number of components: 30 pcs · Dimension storage box: 180 x 165 x 45 mm
EUR 104,70
HeliCoil thread repair set M12x1.5 oil spigot hole (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: MF12x1.5 (fine pitch thread) · Nominal diameter (thread): 12 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Total length: 9 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 35 pcs
EUR 214,00

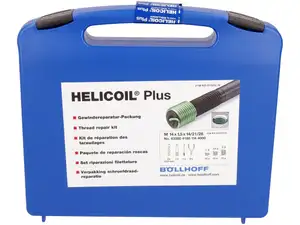

HeliCoil thread repair set M14x1.5 (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: MF14x1.5 (fine pitch thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 14.5 mm · Total length: 14 mm · Total length: 21 mm · Total length: 28 mm · Number of components: 32 pcs
EUR 148,70
Not in stock

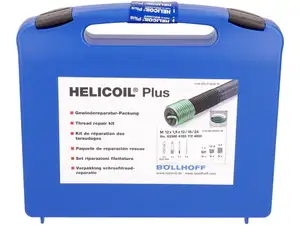

HeliCoil thread repair set M12x1.5 (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: MF12x1.5 (fine pitch thread) · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 12 mm · Total length: 18 mm · Total length: 24 mm · Number of components: 34 pcs
EUR 139,70

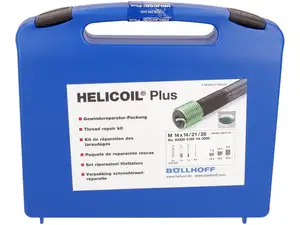

HeliCoil thread repair set M14 (professional tool)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M14x2 (standard thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 14.5 mm · Total length: 14 mm · Total length: 21 mm · Total length: 28 mm · Number of components: 32 pcs
EUR 135,10

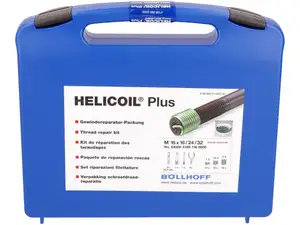

HeliCoil thread repair set M16
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: M16x2 (standard thread) · Nominal diameter (thread): 16 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 16.5 mm · Total length: 16 mm · Total length: 24 mm · Total length: 32 mm · Number of components: 32 pcs
EUR 152,00
HeliCoil thread repair set M16x1.5 (fine thread)
Storage method: Plastic box · Manufacturer: HeliCoil · Material: Chrome steel (stainless steel) · Area of application: Workshop accessories · Thread type: MF16x1.5 (fine pitch thread) · Nominal diameter (thread): 16 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 16.5 mm · Total length: 16 mm · Total length: 24 mm · Total length: 32 mm · Number of components: 32 pcs
EUR 163,30

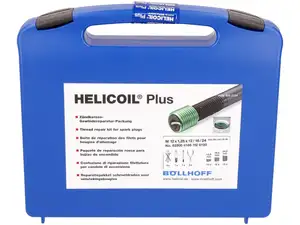

HeliCoil thread repair set M12x1.25 (fine thread)
