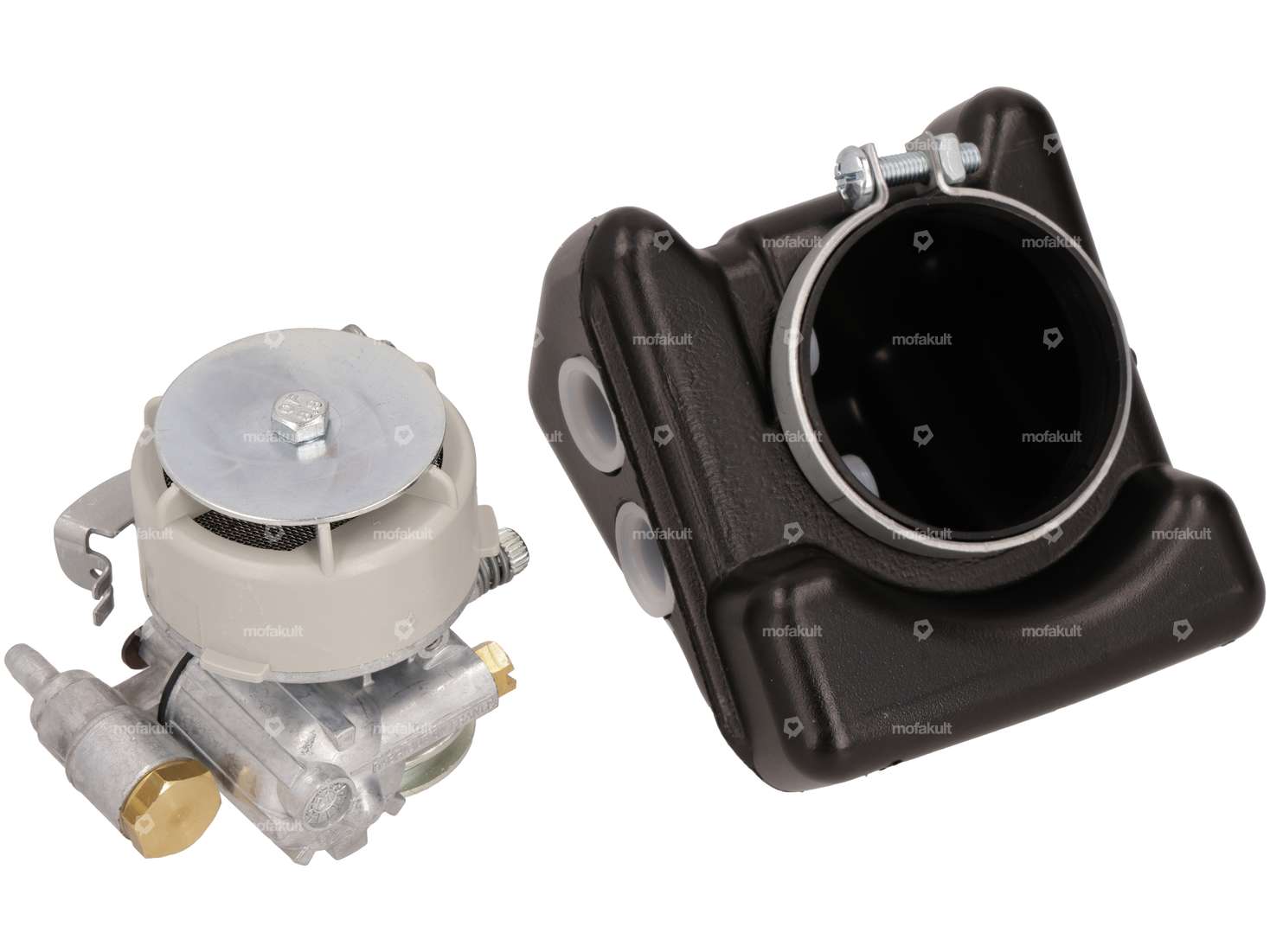

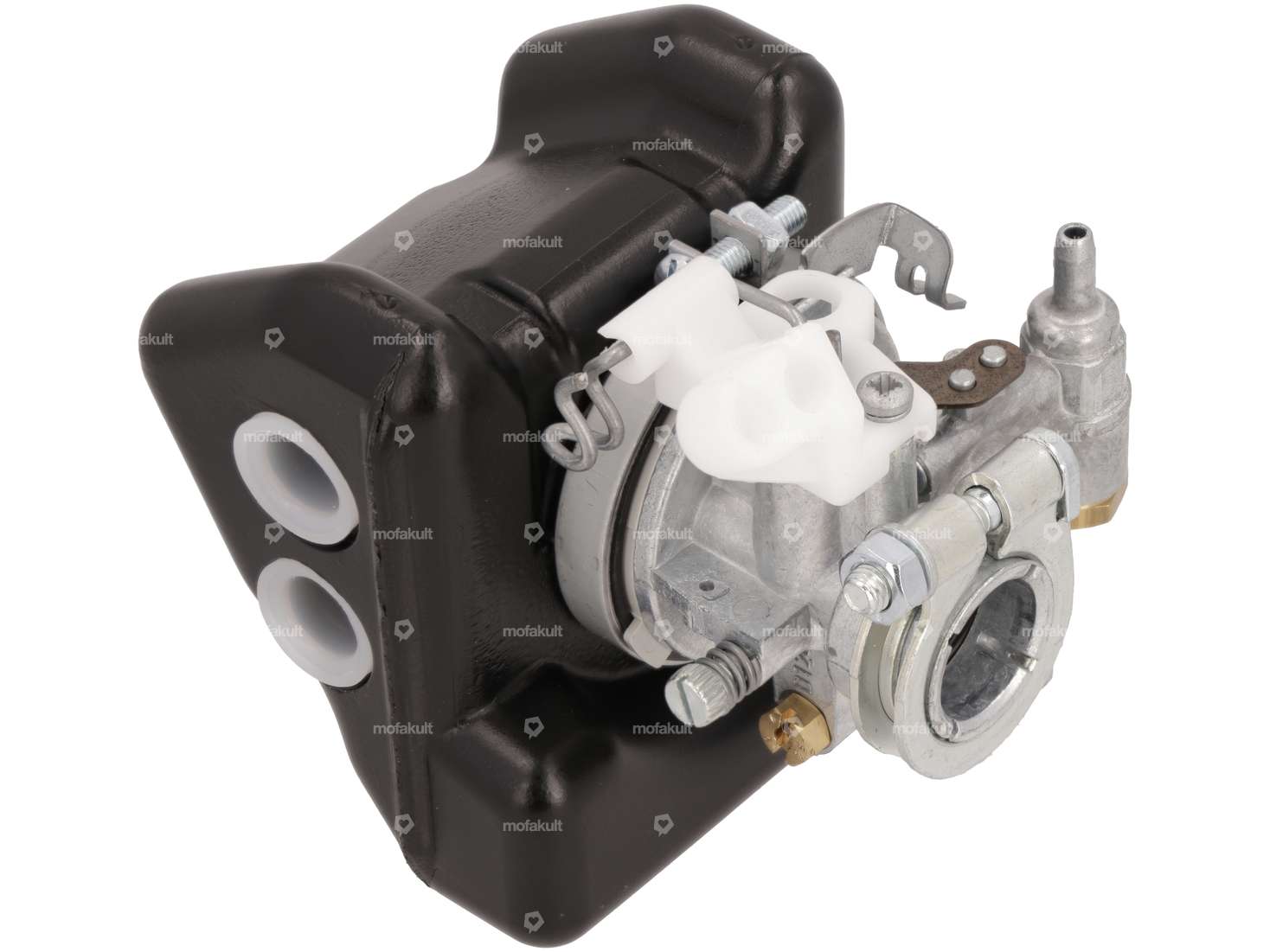

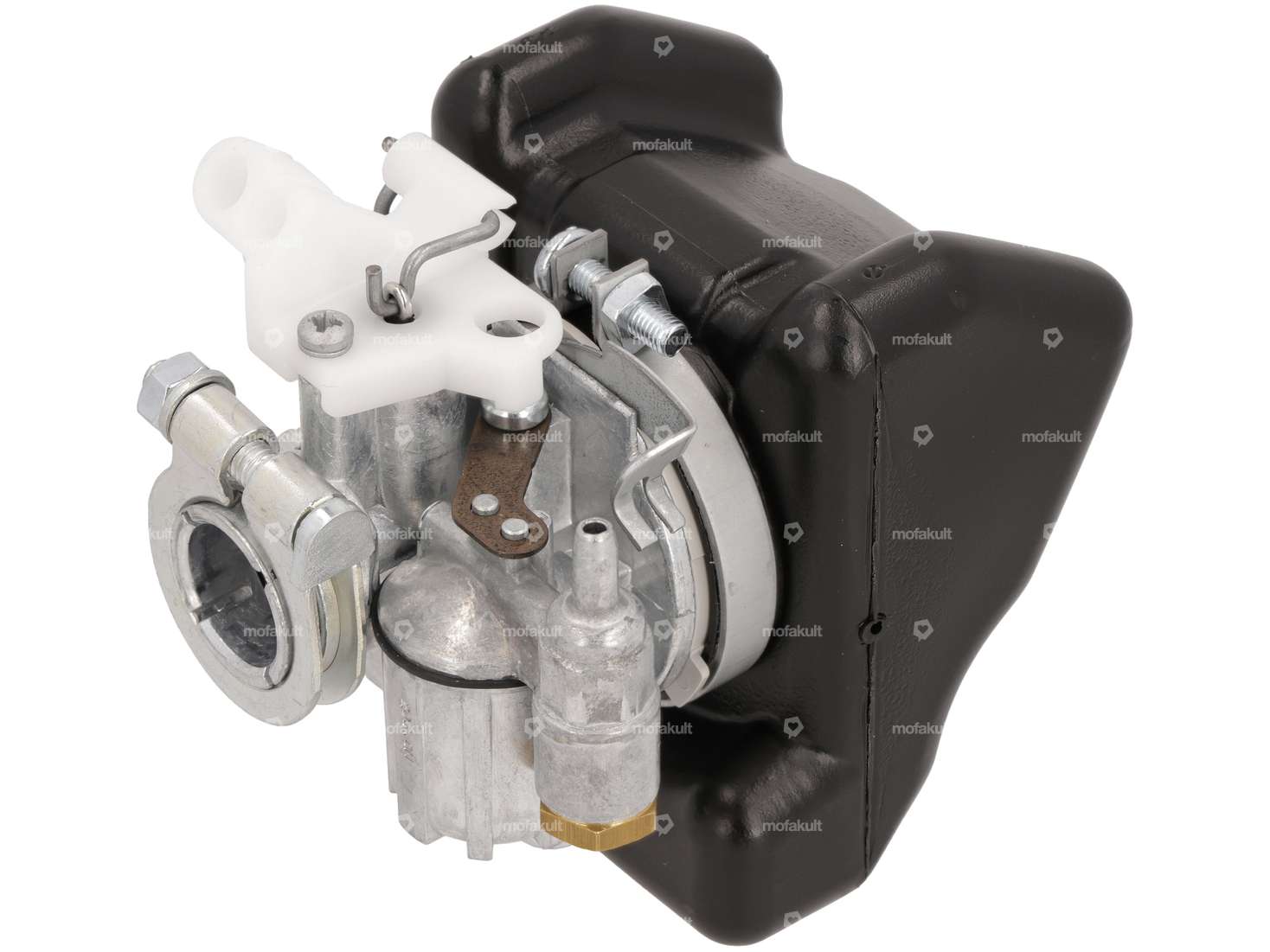

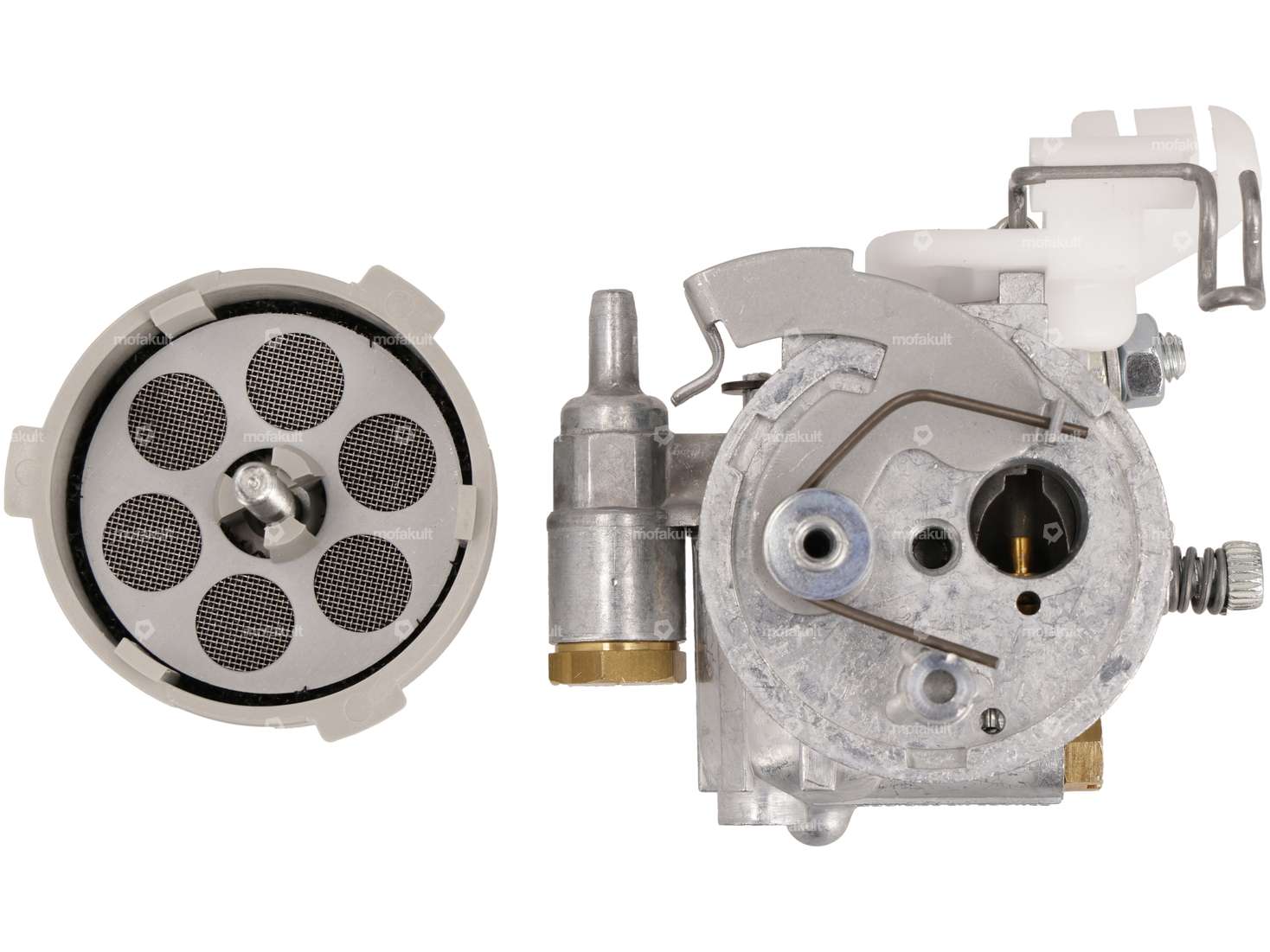

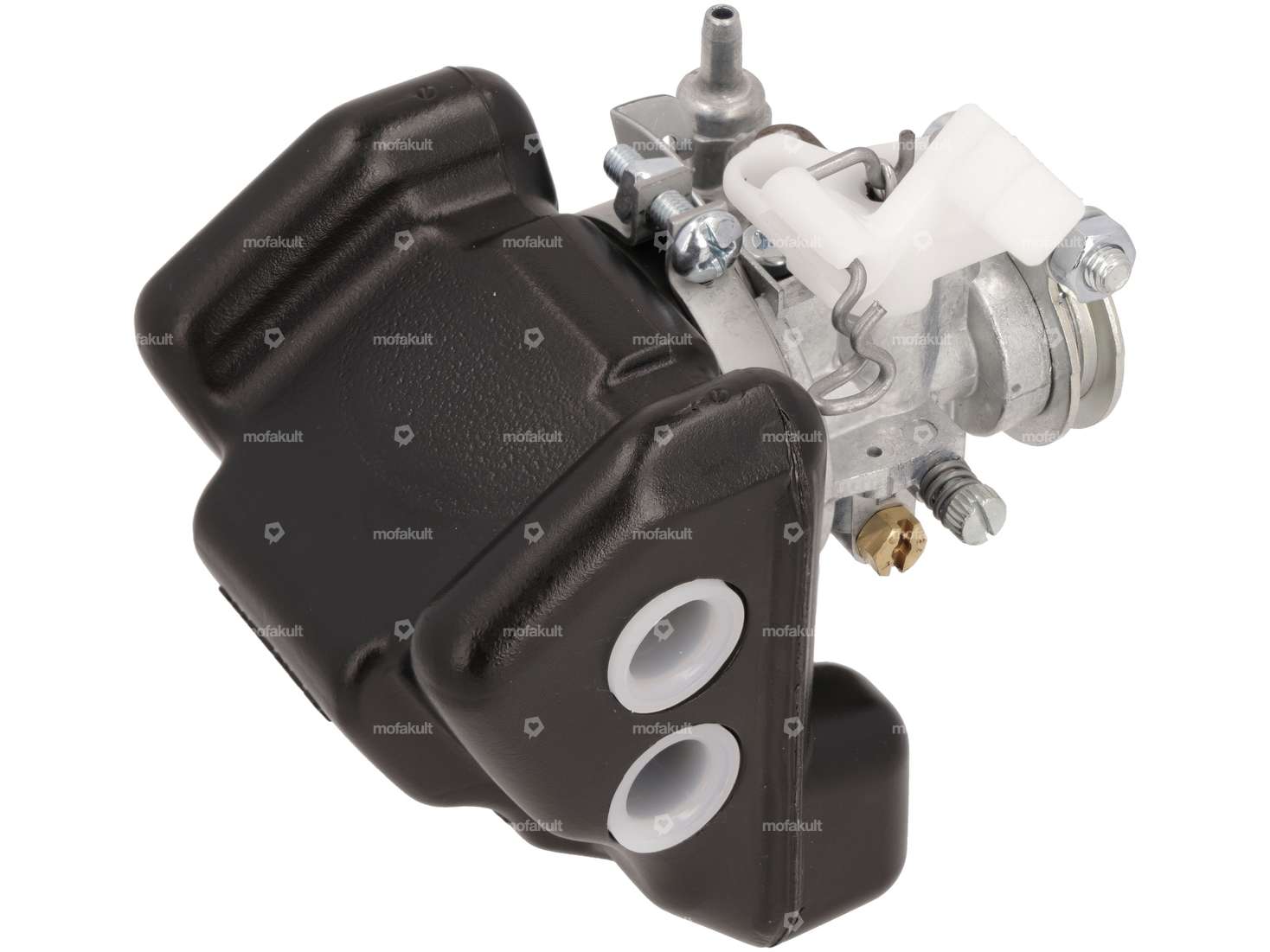

Complete D12G carburetor incl. air filter box suitable for your Peugeot 103 Vogue and 103 Z moped
.The scope of delivery includes the complete set as shown.
Stamped number on carburetor: 206.0M
Other carburetors and air filters can be found in the accessories section.
French quality product from the manufacturer Gurtner in original equipment quality.
Details
Manufacturer | Gurtner |
Total length | 115 mm |
Material | Aluminum |
Nominal diameter | 12 mm |
Ø Internal connection | 19 mm |
Ø Inside entrance | 12 mm |
Width | 94 mm |
Ø Output inside | 12 mm |
Ø Air filter connection | 50 mm |
Height | 87 mm |
Mounting type | Plug connection clamped |
Ø fuel hose connection | 6 mm |
Area of application | Original, Standard |
Choke control | Cable choke |
Nozzle size | 64 |
Suitable for the following models
Peugeot |
