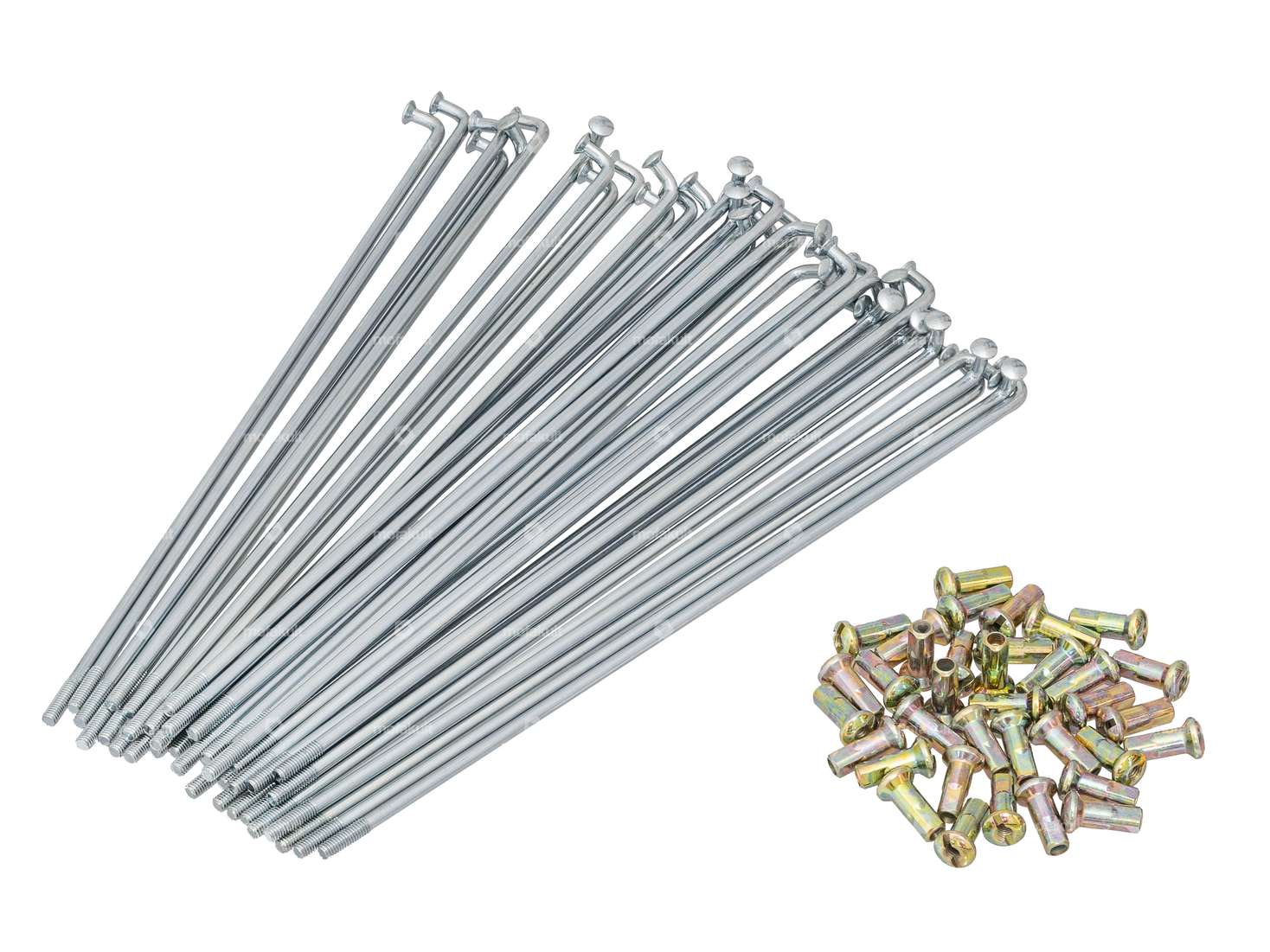

Complete spoke set suitable for the spoke front wheel for Piaggio Ciao, Bravo and Boxer mopeds / mopeds.
The kit consists of 36 spokes and 36 nipples made of galvanized steel.

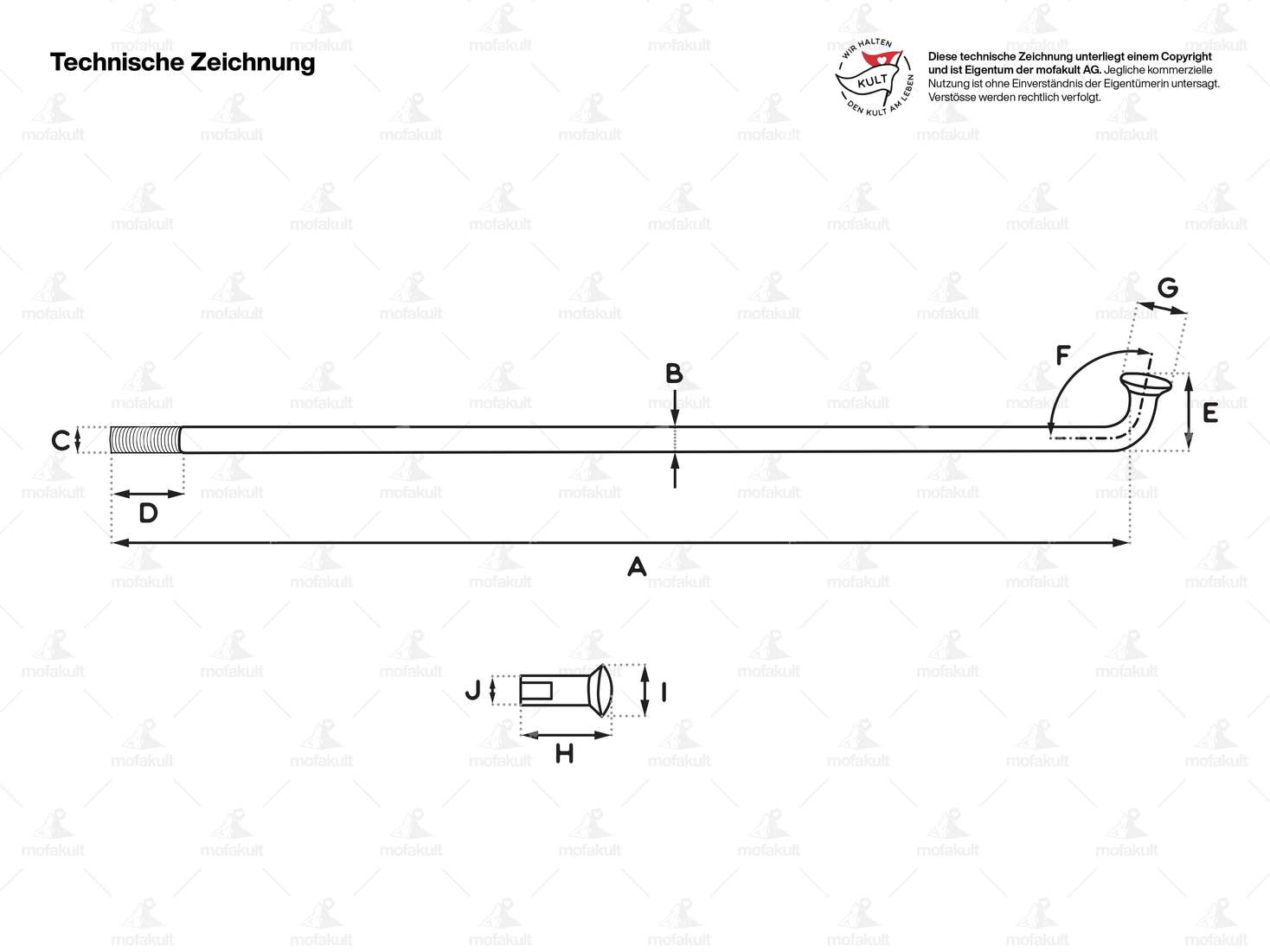

Spoke dimensions:
Length from inside of hook (A): 178 mm
Ø Spoke (B): 2.9 mm
Ø Thread (C): 3.15 mm
Hook length (D): 10 mm
Thread length (E): 11.5 mm
Hook angle (F): 90°
Ø spoke head (G): 5.45 mm
Material: galvanized steel
Dimension spoke nipple:
Total length (H): 15 mm
Ø nipple head (I): 8 mm
Ø nipple neck (J): 5.0 mm
Material: Galvanized steel
You can find suitable fitting tools, rim tapes, etc. in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Piaggio spare part number: 142826
Details
| Manufacturer | GPO |
| Material | Steel |
| Surface | galvanized (blue), galvanized (yellow) |
| Quantity | 36 pcs |
| Length from hook | 178 mm |
| Nominal diameter (thread) | 3.15 mm |
| Ø spoke | 2.9 mm |
| Ø spoke head | 5.45 mm |
| Thread length | 11.5 mm |
| Nipple length | 15 mm |
| Ø nipple head | 8 mm |
| Ø Nipple neck | 5 mm |
| Hook length | 10 mm |
| Hook angle | 90 ° |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao Bravo/Superbravo Boxer |
