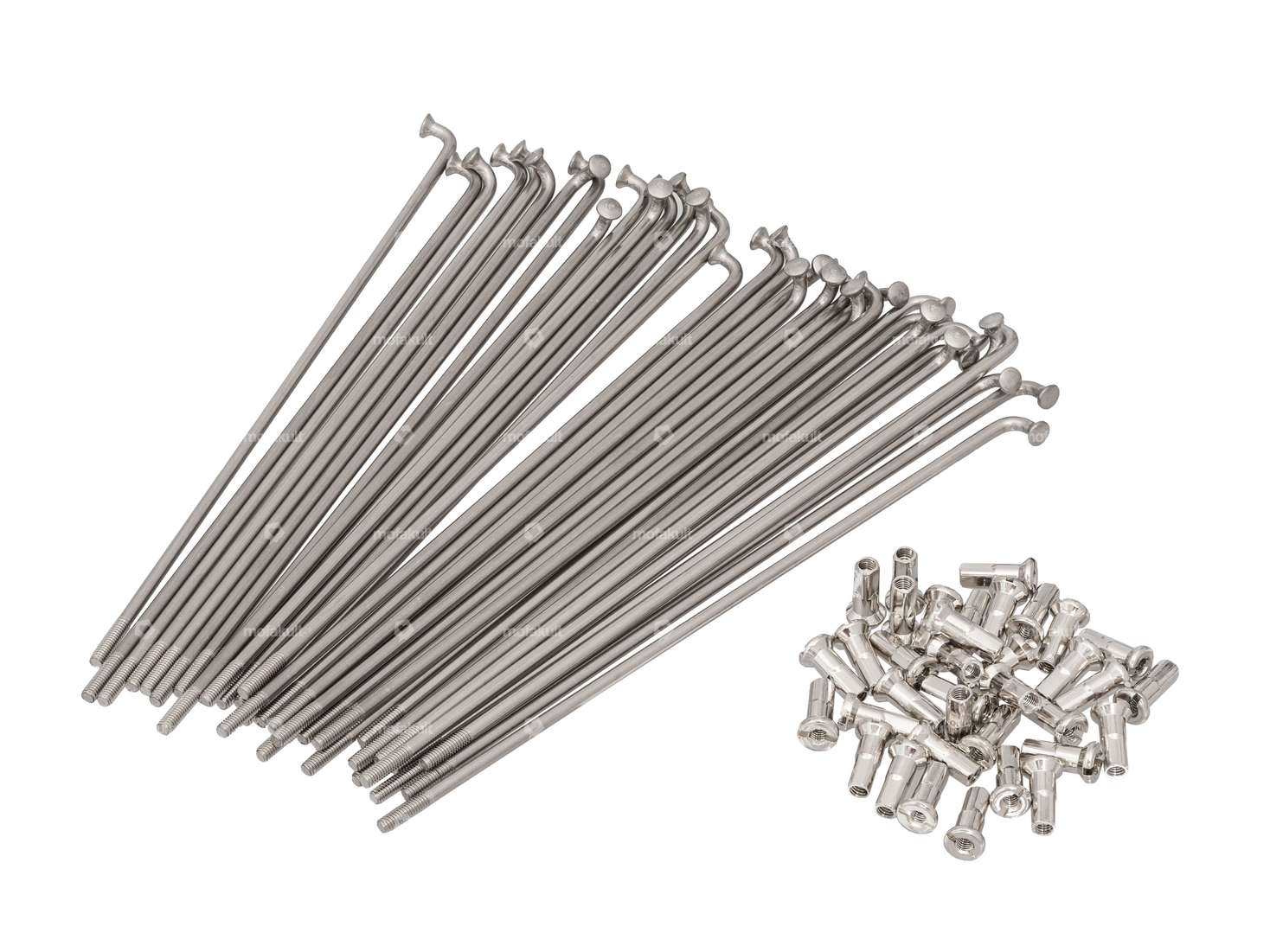

Complete spoke set suitable for the spoke rear wheel for Piaggio Ciao, Bravo and Boxer mopeds / mopeds.
The kit consists of 36 stainless steel spokes and 36 nickel-plated brass nipples.

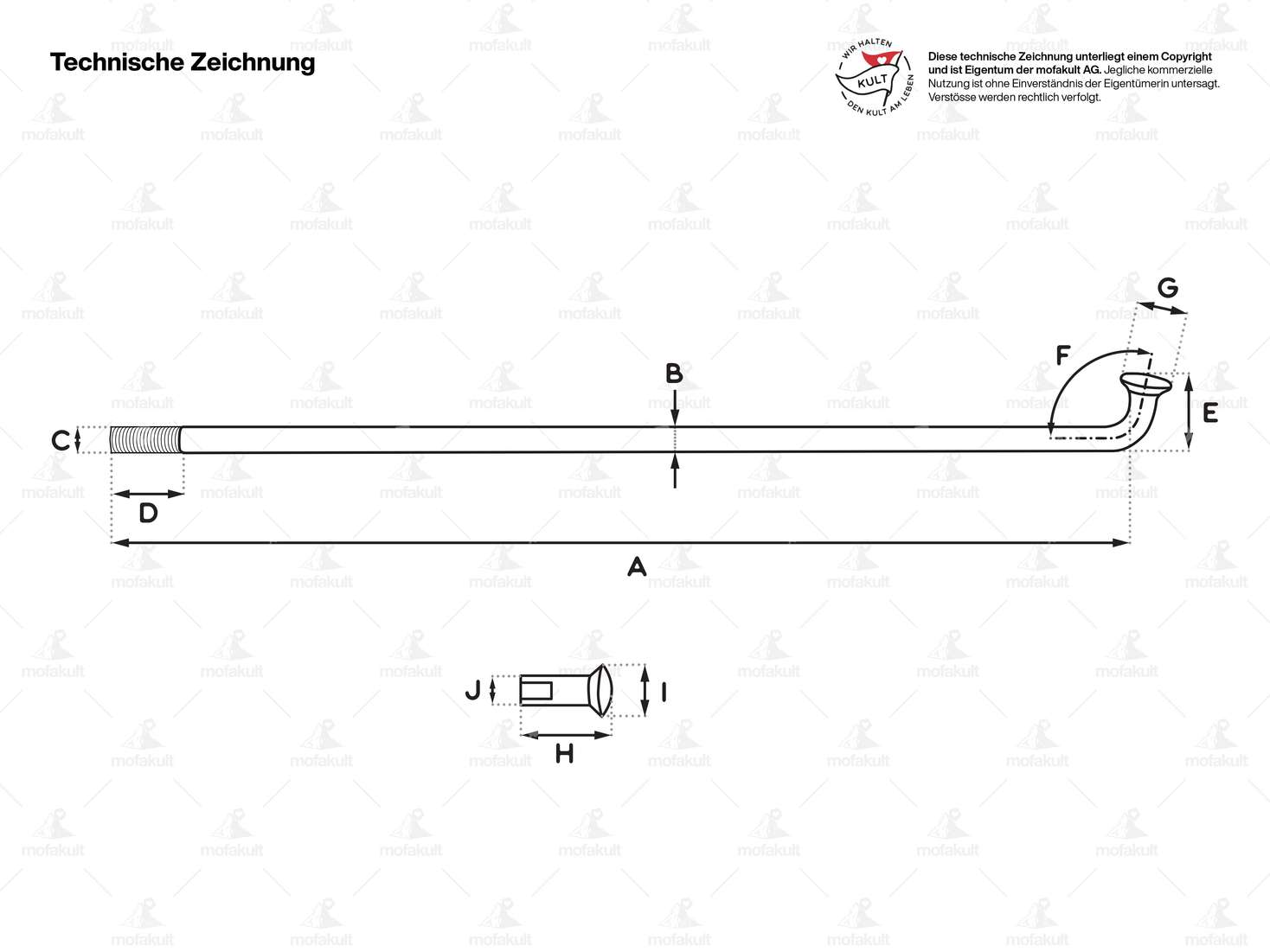

Spoke dimensions:
Length from hook inside (A): 157 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.15 mm
Hook length (D): 9.5 mm
Thread length (E): 11 mm
Hook angle (F): 90°
Ø spoke head (G): 5.3 mm
Material: stainless steel
Dimension spoke nipple:
Total length (H): 14.3 mm
Ø nipple head (I): 7.75 mm
Ø nipple neck (J): 5.0 mm
Material: Brass, nickel-plated
You can find suitable fitting tools, rim tapes, etc. in the accessories section.
Original Piaggio spare part number: 114501
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Nipple length | 14.3 mm |
| Manufacturer | GPO |
| Material | Chrome steel (stainless steel) |
| Color | silver |
| Quantity | 36 pcs |
| Length from hook | 157 mm |
| Nominal diameter (thread) | 3.15 mm |
| Surface | raw |
| Ø spoke head | 5.3 mm |
| Ø spoke | 2.9 mm |
| Thread length | 11 mm |
| Ø nipple head | 7.75 mm |
| Ø Nipple neck | 5 mm |
| Hook length | 9.5 mm |
| Hook angle | 90 ° |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao Bravo/Superbravo Boxer |
