41.0 mm piston with two 1.5 mm rectangular piston rings with internal fuse (IS) to fit your moped / moped with Sachs 50/2, 50/3 and 50/4 engine.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston skirt is shortened by 4 mm on the inlet side.
We recommend installing a piston clearance of 0.06 mm, so the cylinder should have a bore of 40.98 mm.

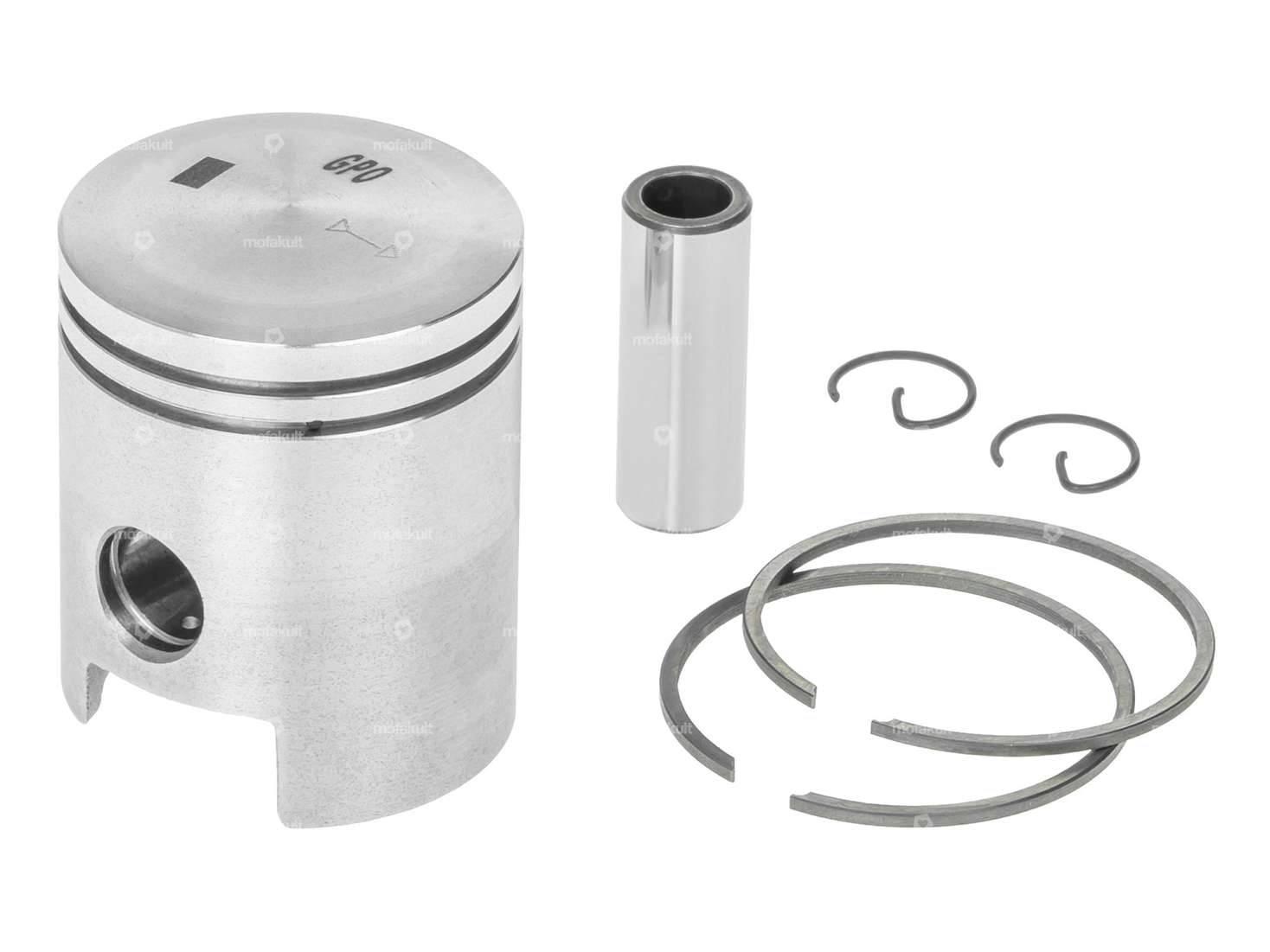

The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate installation tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Ø outside piston (A) | 40.92 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2.5 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 41 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Weight | 91 g |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL |
