Chrome-plated bottom bracket shaft with bottom bracket rim suitable for Puch Maxi S and N mopeds.

Shaft diameter: 15.9 mm
Shaft length from rim: 183 or 40 mm
Number of teeth: 28
Ø rim: 120 mm

The pedal cranks with item number 11981 are suitable for this pedal shaft. To eliminate the axial play, we recommend using a 0.5 mm thick spacer washer (item no. 20530) in combination with a spring washer (item no. 11862). A cover washer (item no. 11864) should also be fitted to the weld seam that connects the bottom bracket axle and bottom bracket shell.
All these parts can be found in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Details

Manufacturer	GPO
Material	Steel
Color	Chrome
Surface	chrome-plated
Number of teeth	28 pcs
Wavelength from wreath	183 mm, 40 mm
Ø outside	15.9 mm
Ø Outer sprocket	120 mm

Suitable for the following models

Puch

E50

Accessories & related products

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

For: Puch

10275

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Bearing type: Plain bearing · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Surface: blank · Ø outside: 20.2 mm · Ø inside: 16.2 mm · Total length: 19 mm · Ø Bundle: 24.1 mm · Puch OEM number: 349.1.42.005.1

EUR 2,90

swiing® revival spring washer pedal axle 0.6 mm

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Alpa Chopper / Turbo · Cilo

11862

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 29 mm · Ø inside: 17 mm · Total length: 1.7 mm · Material thickness: 0.6 mm

EUR 4,55

Inox

For: Puch

11864

swiing® revival thrust washer tread axle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Color: Chrome · Surface: blank · Ø outside: 39.6 mm · Ø inside: 16.3 mm · Total length: 4.3 mm · Ø Bundle: 27 mm

EUR 5,70

For: Puch · Sachs

11981

GPO pedal cranks pair chrome | Puch

Manufacturer: GPO · Material: Steel · Color: Chrome · Surface: chrome-plated · Crank length (center-center): 156 mm · Wide intake: 28 mm · Total length: 180 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm · Thread type: FG14.3 (9/16" 20G)

EUR 87,60

For: Universal · Puch · Sachs

20530

Bottom bracket washer 16x28x0.5 mm

Ø outside: 28 mm · Thickness: 0.5 mm · Nominal diameter (thread): 16 mm · Ø inside: 16.1 mm

EUR 1,50

Set

For: Puch

24039

GPO pedal set | Puch Maxi

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome

EUR 197,40

Not in stock

swiing® revival bottom bracket bushing nylon | Puch Supermaxi

For: Puch

24333

swiing® revival bottom bracket bushing nylon | Puch Supermaxi

Bearing type: Plain bearing · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Total length: 19 mm · Ø outside: 21 mm · Ø inside: 16 mm

EUR 3,40

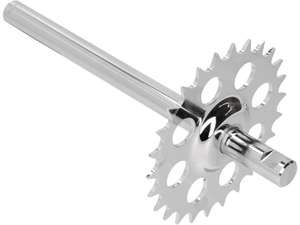

Pedal axle with crown 26 teeth chrome | Puch Maxi S, N
