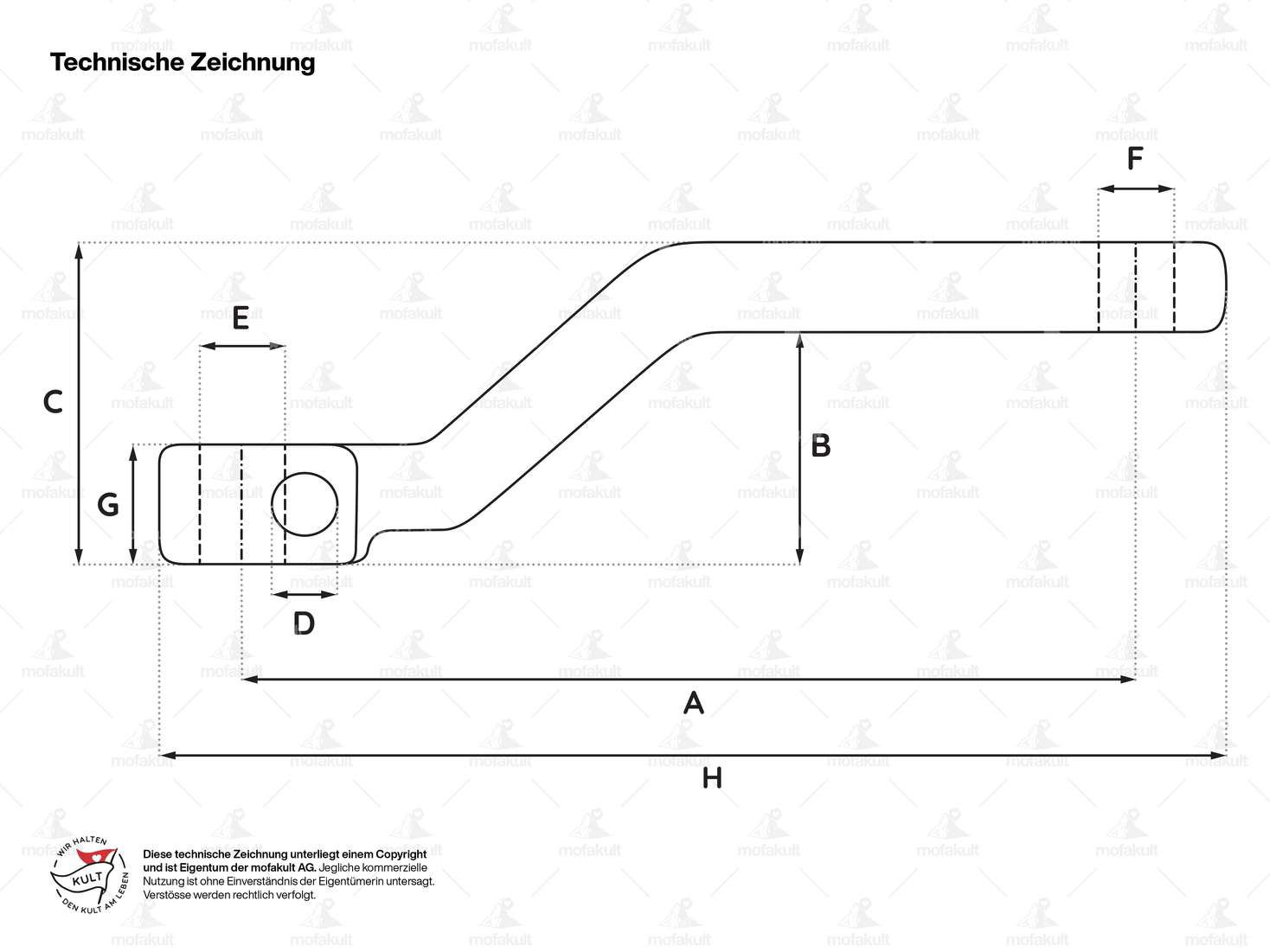

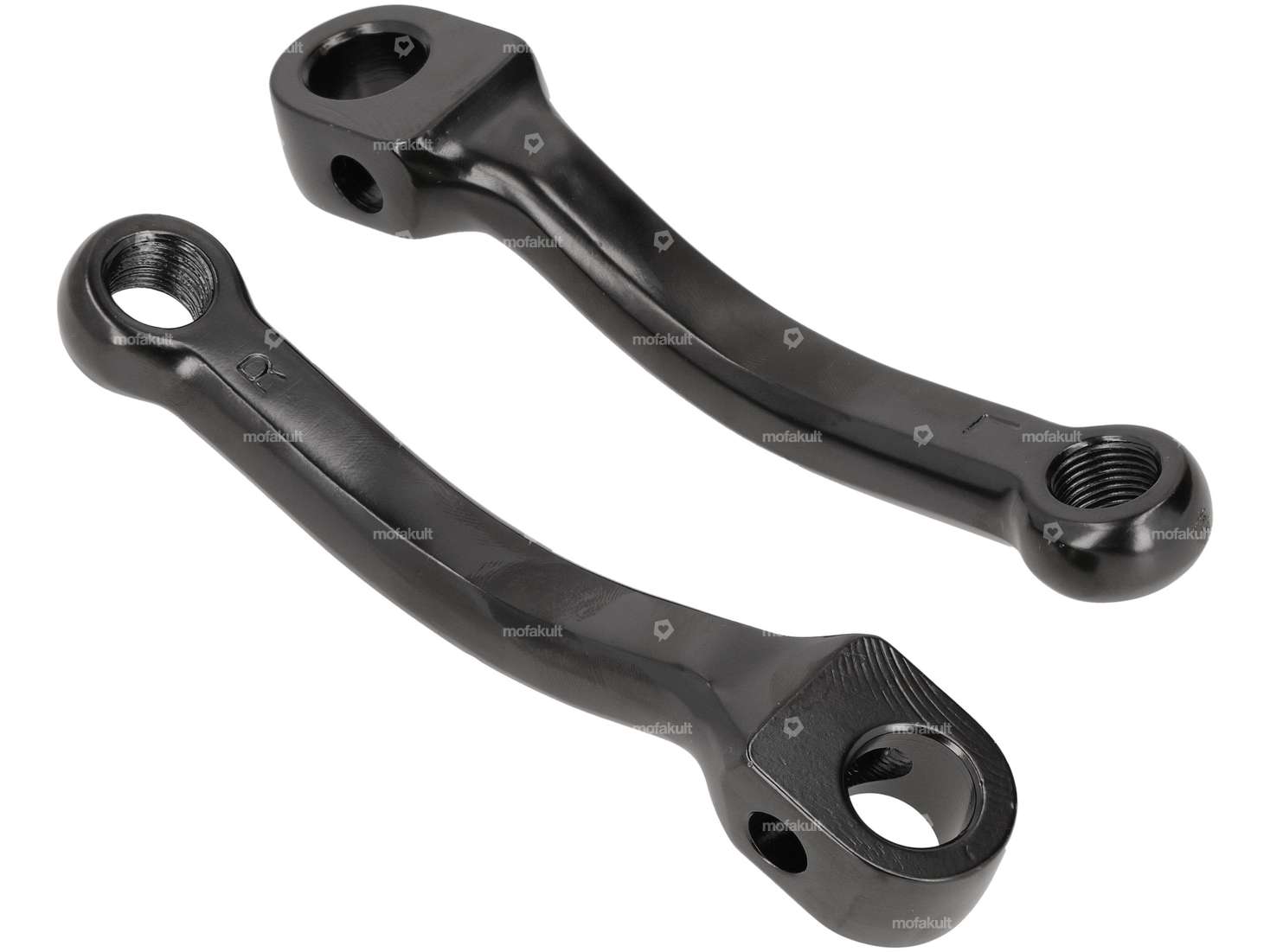

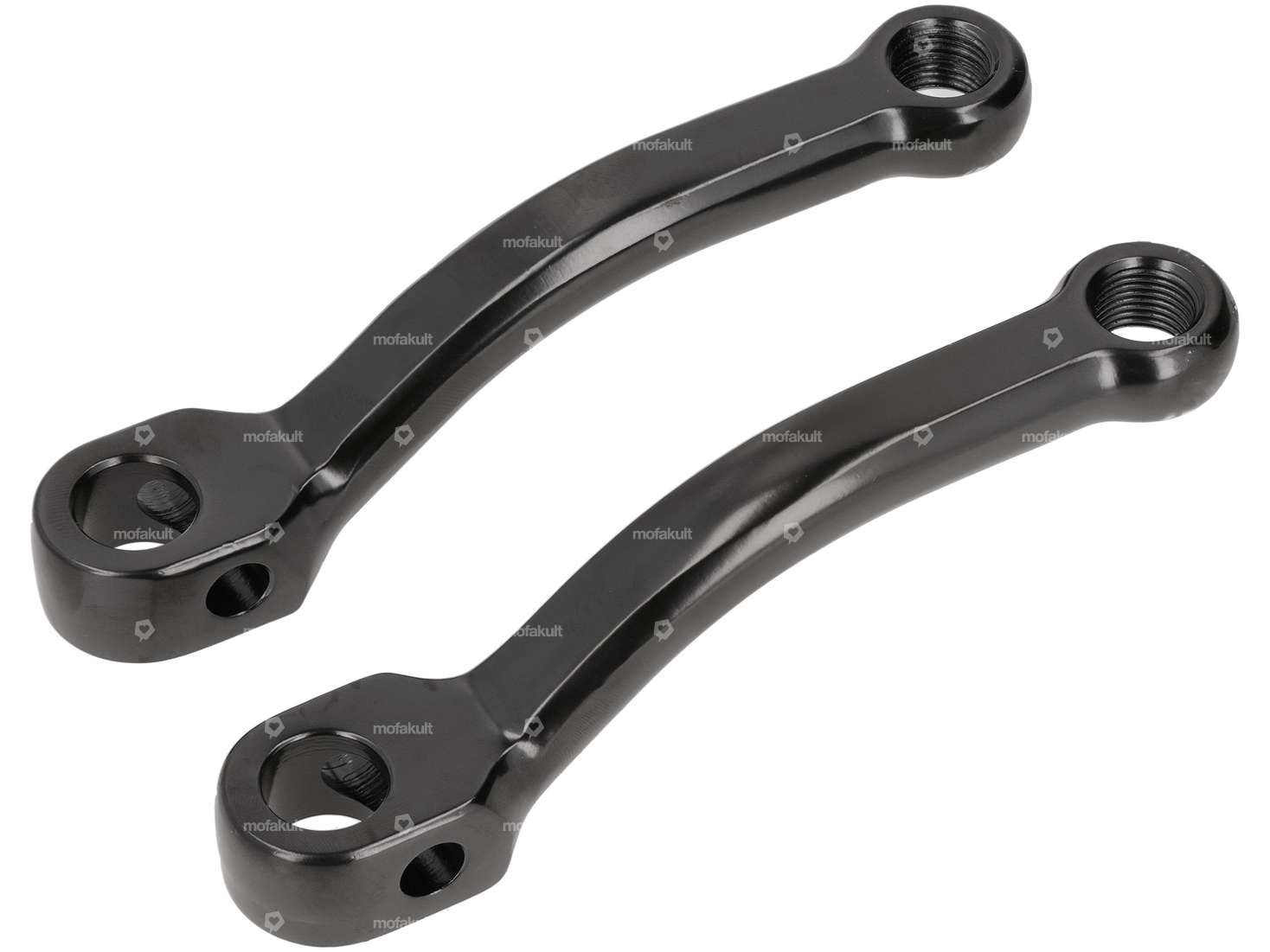

GPO cranks black 148 mm pair

Union pedals aluminum

Manufacturer: Union · Material: Aluminum · Surface: rubberized · Color: silver · Width: 69 mm · Width across flats SW: 15 mm · Total length: 122 mm · Drive: Outer edge · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Color: black · Surface: rubberized · Width: 77 mm · Width across flats SW: 15 mm · Total length: 129 mm · Drive: Hexagon socket · Drive: Outer edge · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9 mm · Angle crank wedge: 3.5° · Total length: 43 mm · Thread type: M7x1 (standard thread)

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Color: black · Surface: ribbed · Width: 51 mm · Width across flats SW: 15 mm · Total length: 118 mm · Drive: Outer edge · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Ø 9 mm wedge 3.5° pedal crank galvanized

Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9 mm · Angle crank wedge: 3.5° · Total length: 43 mm · Thread type: M6x1 (standard thread)

swiing® revival Ø 9 mm wedge 3.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Ø outside: 9 mm · Angle crank wedge: 3.5° · Total length: 44 mm · Thread type: M7x1 (standard thread)

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 29 mm · Ø inside: 17 mm · Total length: 1.7 mm · Material thickness: 0.6 mm

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9 mm · Angle crank wedge: 3.5° · Total length: 43 mm · Thread type: M7x1 (standard thread)

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Color: black · Surface: ribbed · Width: 51 mm · Width across flats SW: 15 mm · Total length: 118 mm · Drive: Outer edge · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Ø 9 mm wedge 3.5° pedal crank galvanized

Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9 mm · Angle crank wedge: 3.5° · Total length: 43 mm · Thread type: M6x1 (standard thread)

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Side stand black | Piaggio Ciao PX, C24

Manufacturer: Made in Portugal · Material: Steel · Color: black · Surface: powder-coated · Adjustable: No · Length pivot point - floor: 190 mm · Total length: 250 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs

Headlight black | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Bulb holder: P26s · Housing material: Plastic · Color: black · Tension: 6 V · Tension: 12 V · Width: 125 mm · Lens material: Plastic · Height: 90 mm · Mounting type: Screws · Area of application: Original · Area of application: Standard · Test mark: none · Speedometer recording: 48 mm · Depth: 147 mm · Switch included: Yes · Battery operated: No · Number of fixing points: 2 pcs · Ø External connection: 6.3 mm · Piaggio OEM number: 584240

swiing® ingenious axle swing arm set | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Material: Brass · Material: Chrome steel (stainless steel) · Color: gold · Ø outside: 16 mm · Ø outside: 22 mm · Total length: 50 mm · Drive: External hexagon · Ø Bearing inside: 12.85 mm · Thread type: M8x1.25 (standard thread) · Thread length: 22 mm

swiing® ingenious bottom bracket bushing brass | Piaggio Ciao

Bearing type: Plain bearing · Manufacturer: swiing® ingenious parts · Material: Brass · Ø outside: 21 mm · Ø inside: 16 mm · Total length: 15 mm · Ø Bundle: 26 mm

GPO pedal axle 28 T. keyway black | Piaggio Ciao

Manufacturer: GPO · Material: Steel · Color: black · Surface: varnished · Ø outside: 125 mm · Chain pitch: 1/2" x 1/8" · Number of teeth: 28 pcs · Wavelength from wreath: 46 mm · Wavelength from wreath: 186 mm · Total length: 234 mm · Ø Outer sprocket: 120 mm · Ø Pedal arm holder: 16 mm · Crank (wreath): 3 mm · Piaggio OEM number: 813424
