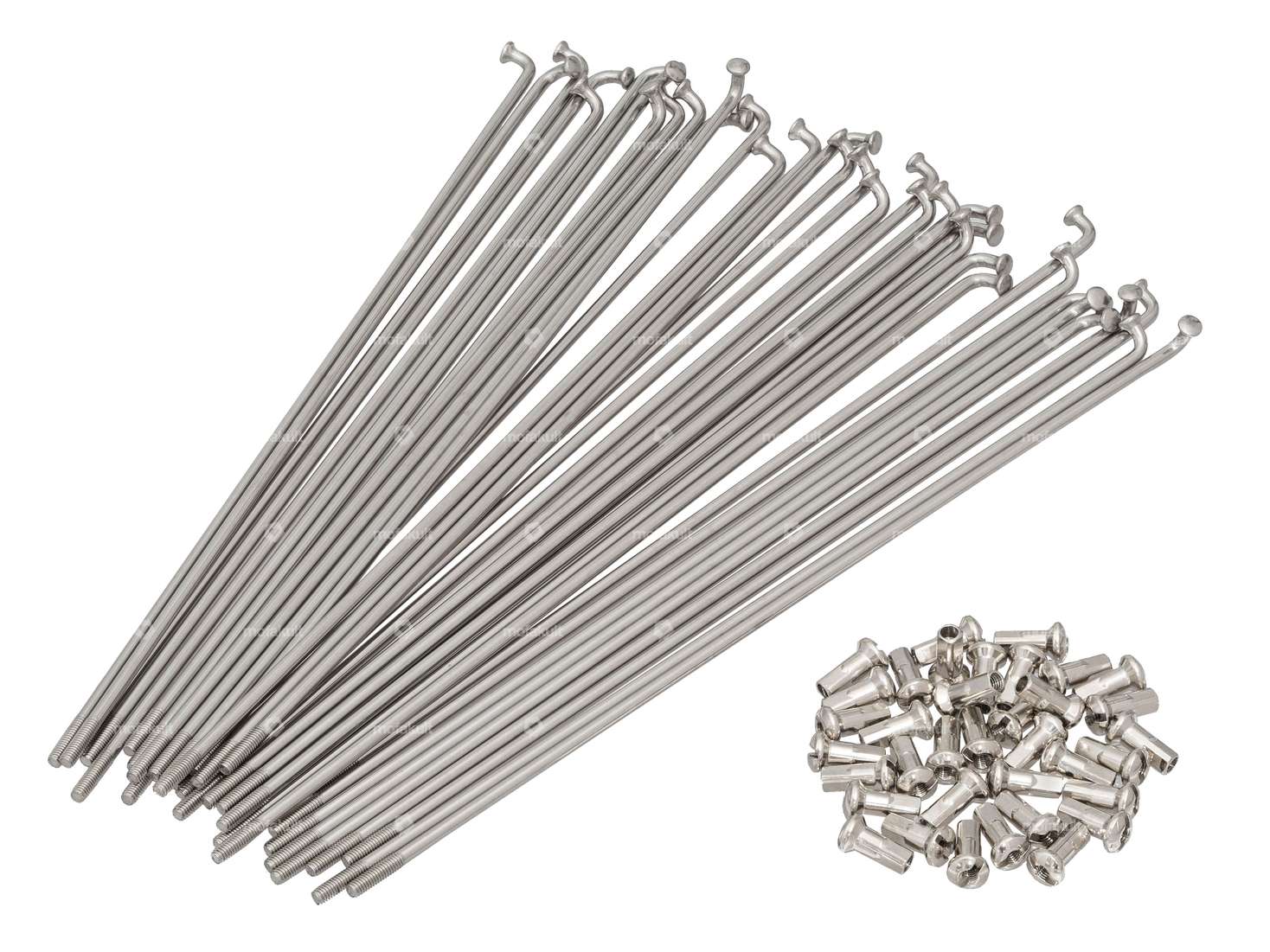

Complete spoke set for 19 inch rims of various mopeds, mopeds and small motorcycles.
The kit consists of 36 spokes made of stainless steel (chrome steel) and 36 nickel-plated brass nipples. nickel-plated brass nipple.
Spoke dimensions:
Length from inside of hook (A): 212 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.15 mm
Hook length (D): 9.8 mm
Thread length (E): 11 mm
Hook angle (F): 95°
Ø spoke head (G): 5.35 mm
Material: stainless steel (Nirosta)
Dimension spoke nipple:
Total length (H): 14 mm
Ø nipple head (I): 8.1 mm
Ø nipple neck (J): 5.0 mm
Material: brass, nickel-plated
You can find suitable fitting tools, rim tapes, etc. in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
Nipple length | 14 mm |
Manufacturer | GPO |
Material | Chrome steel (stainless steel) |
Surface | raw |
Color | silver |
Quantity | 36 pcs |
Length from hook | 212 mm |
Nominal diameter (thread) | 3.15 mm |
Ø spoke head | 5.35 mm |
Ø spoke | 2.9 mm |
Thread length | 11 mm |
Ø nipple head | 8.1 mm |
Ø Nipple neck | 5 mm |
Hook length | 9.8 mm |
Hook angle | 95 ° |
Suitable for the following models
Universal | |
Puch | |
Sachs |
