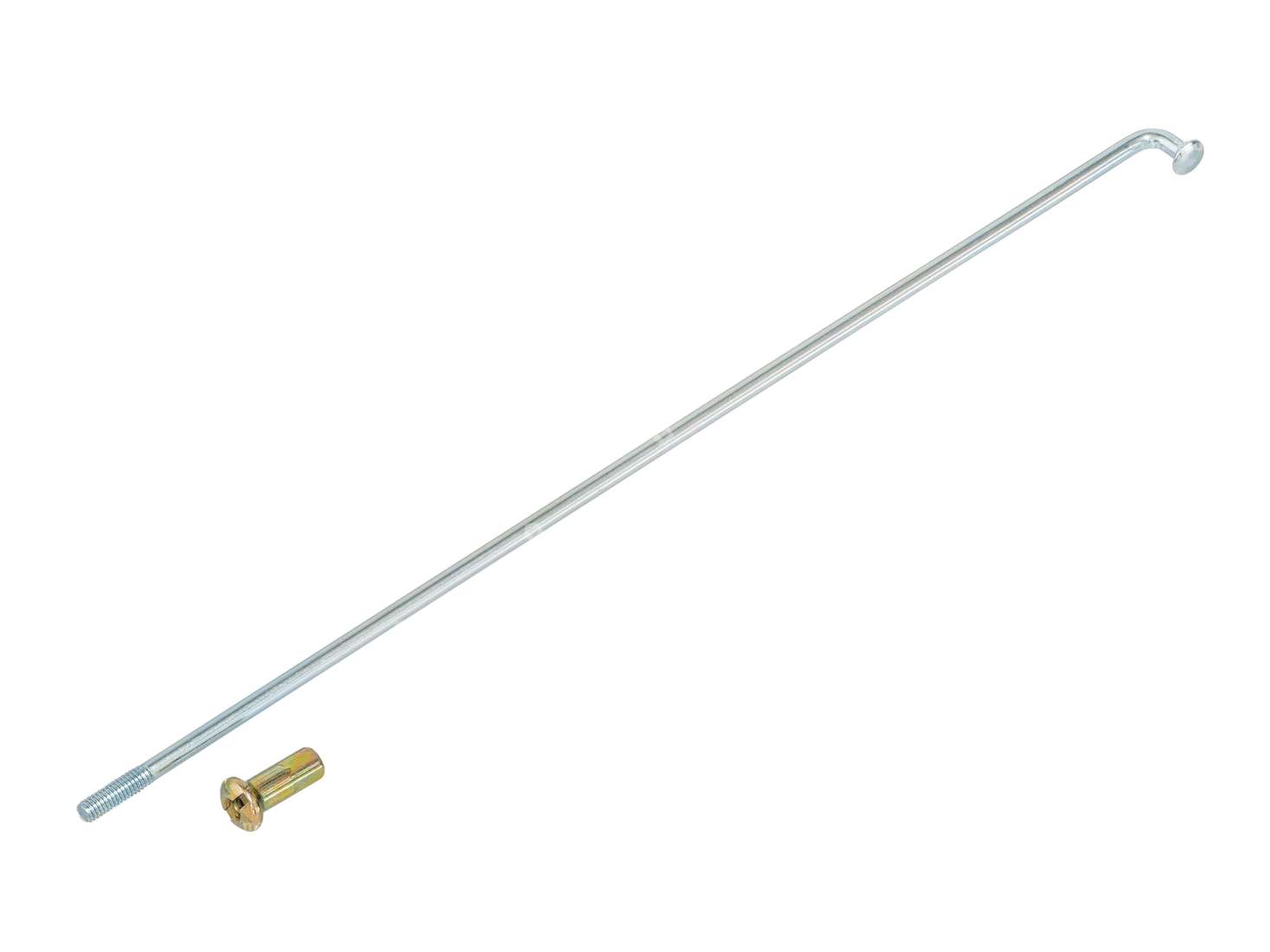

Single, galvanized spoke including nipple.
Suitable for 17" spoke wheels of various mopeds, mopeds and small motorcycles.

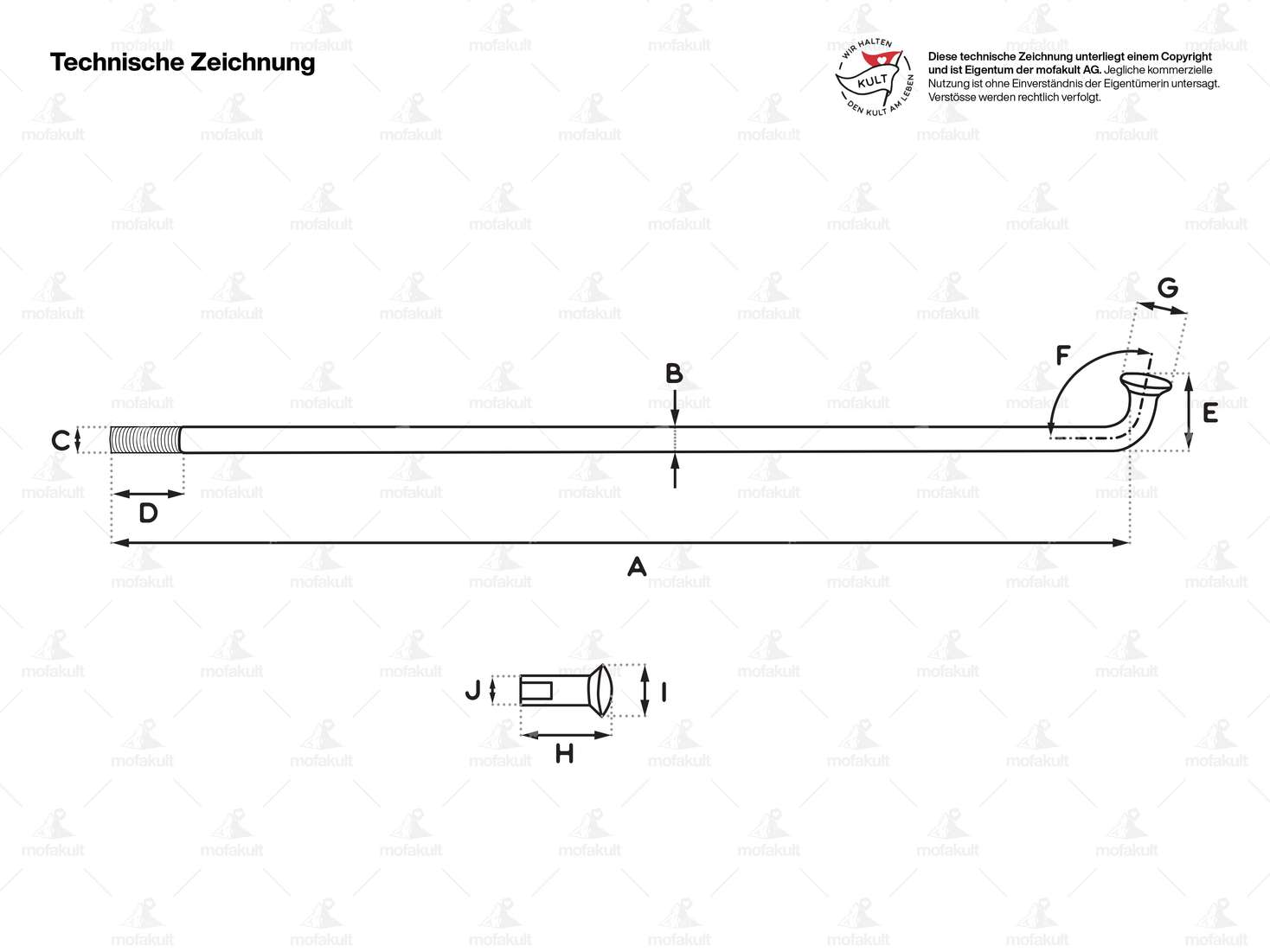

Spoke dimensions:
Length from hook inside (A): 188 mm
Ø spoke (B): 2.9 mm
Ø thread (C): 3.2 mm
Thread length (D): 11 mm
Hook length (E): 10.5 mm
Hook angle (F): 92°
Ø spoke head (G): 5.7 mm
Material: galvanized steel
Dimension spoke nipple:
Total length (H): 14.7 mm
Ø nipple head (I): 8 mm
Ø nipple neck (J): 5.0 mm
Material: Galvanized steel
You can find suitable fitting tools, rim tapes and complete spoke sets in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
Nipple length | 14.7 mm |
Manufacturer | GPO |
Material | Steel |
Surface | blue galvanized, galvanized |
Length from hook | 188 mm |
Nominal diameter (thread) | 3.2 mm |
Thread length | 11 mm |
Ø spoke head | 5.7 mm |
Ø spoke | 2.9 mm |
Ø nipple head | 8 mm |
Ø Nipple neck | 5 mm |
Hook length | 10.5 mm |
Hook angle | 92 ° |
Suitable for the following models
Universal | |
Puch | |
Sachs | |
Zündapp Belmondo |
