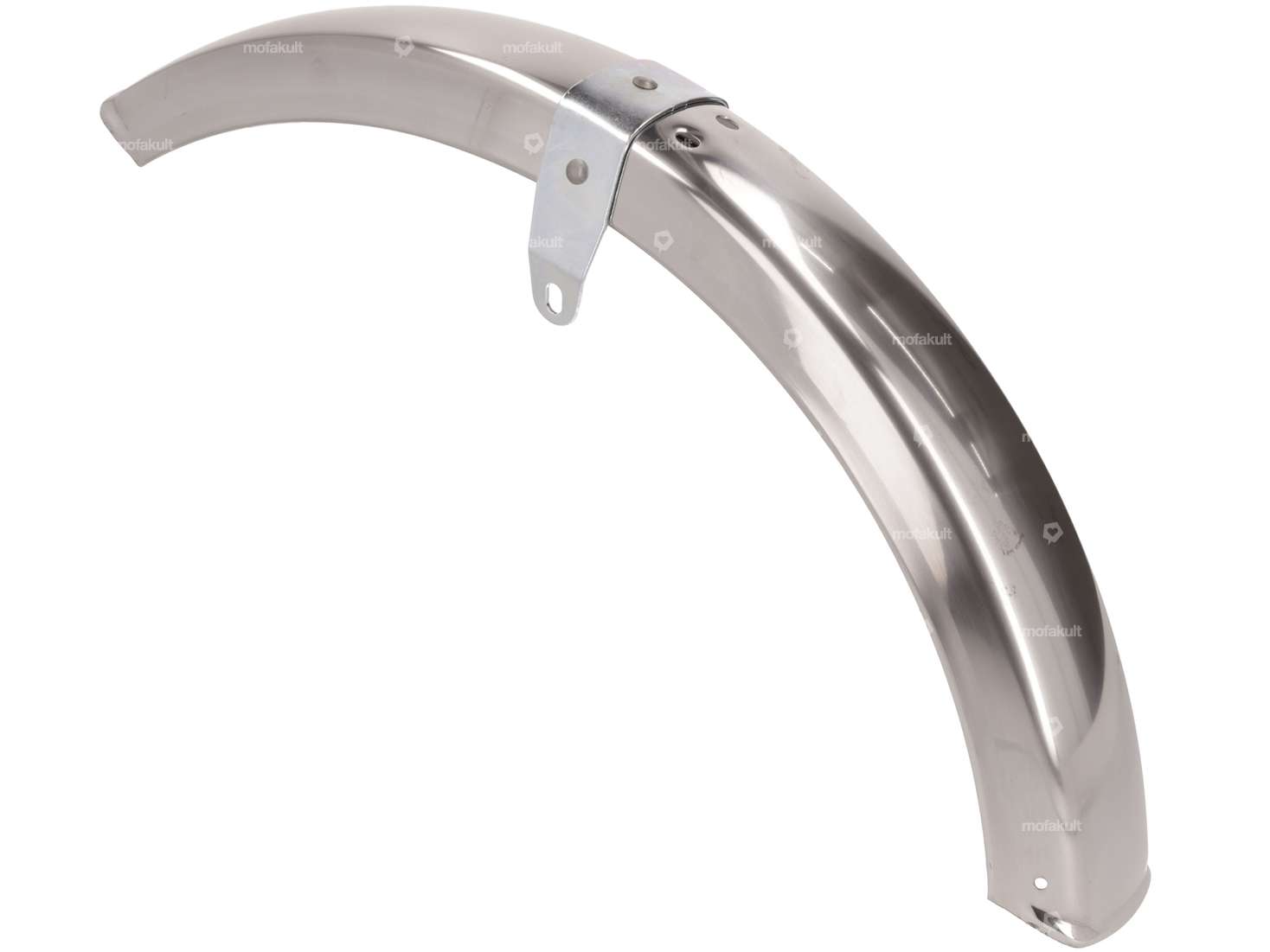

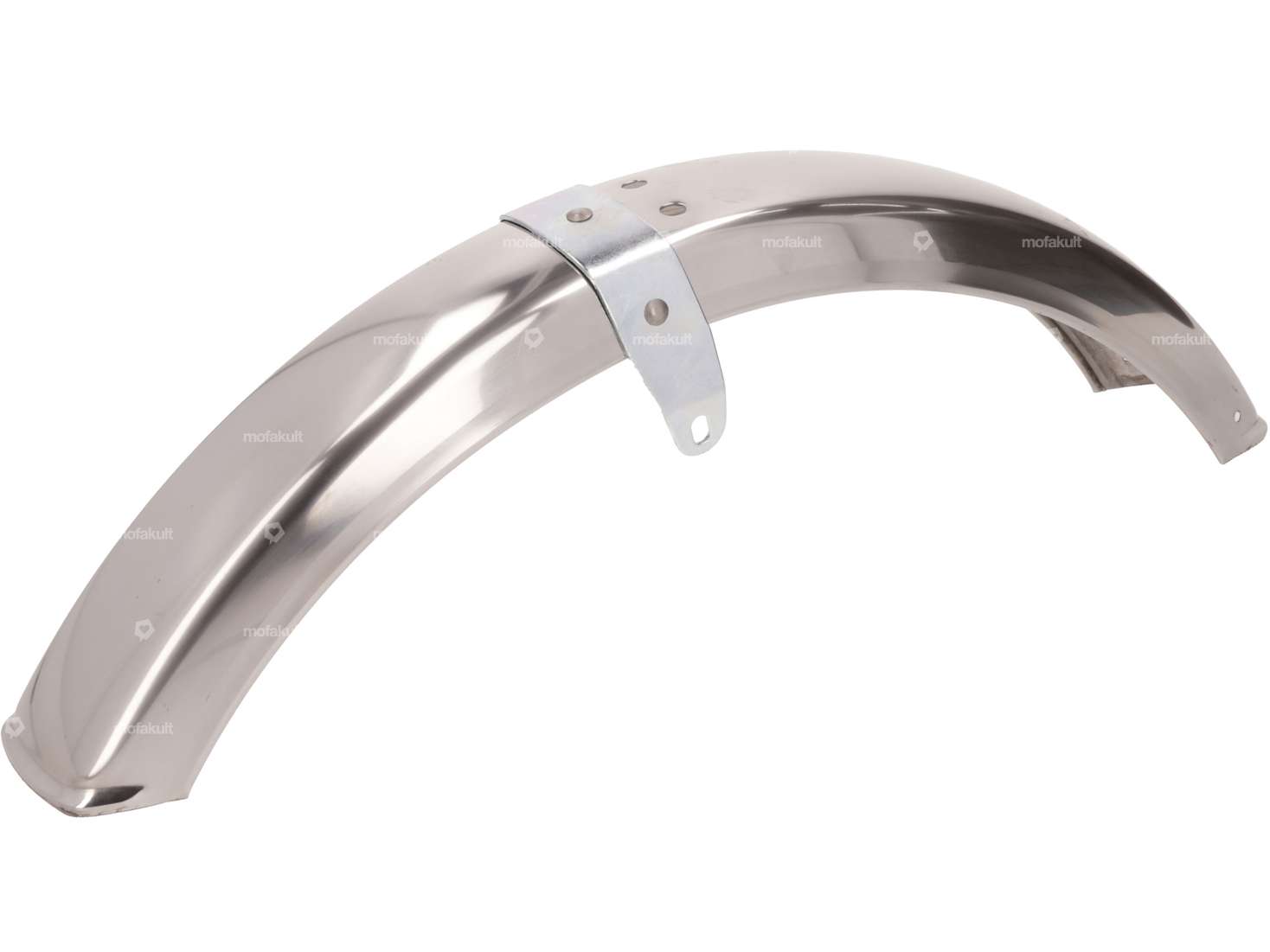

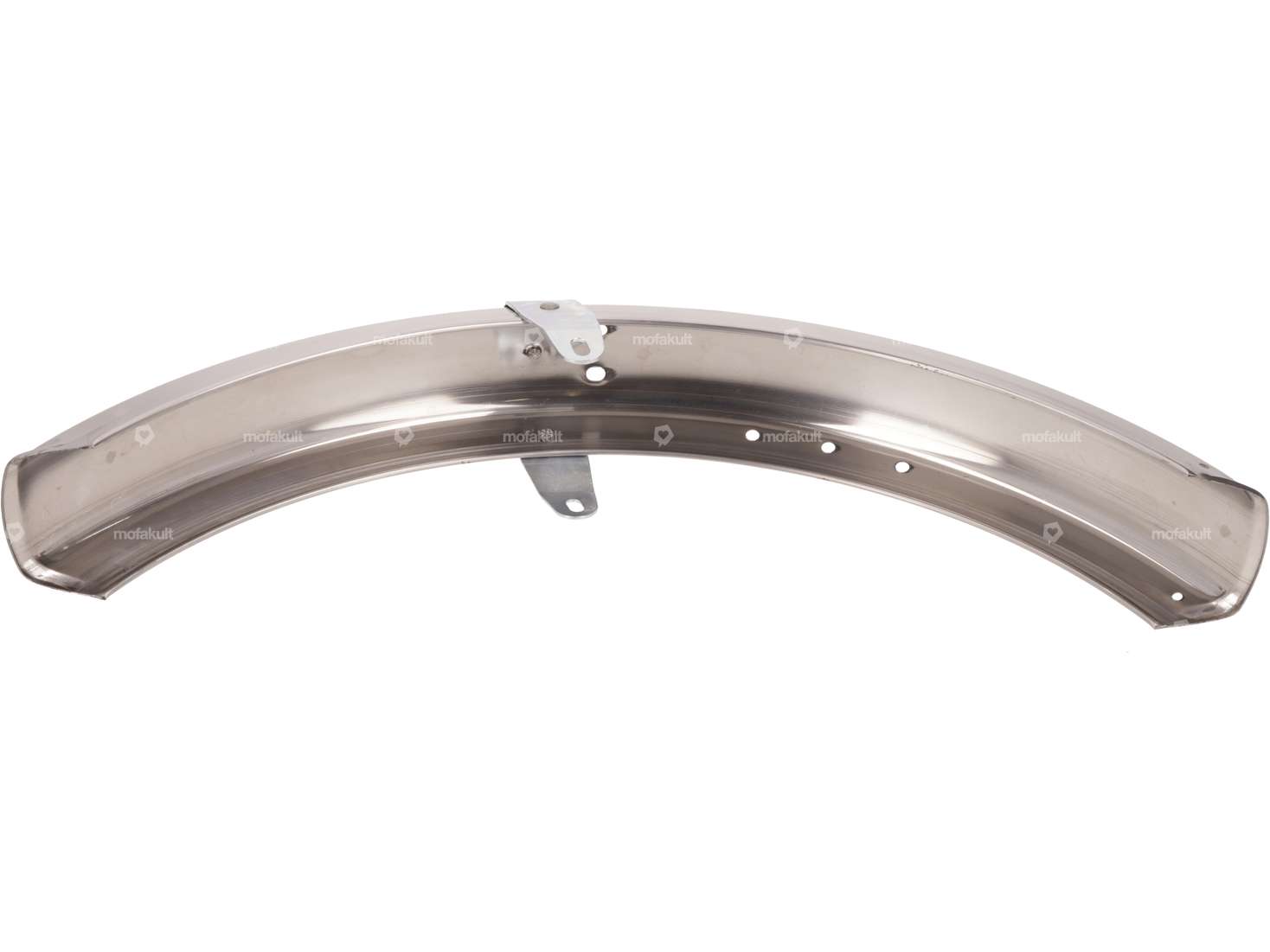

Front, partially round mudguard made of bright steel for your Piaggio Ciao moped with 16" cast or 17" spoke rims.
For mounting the mudguard, all original holes are provided to mount the mudguard to the front of the original fork. In addition, the three holes on the right-hand side are intended for mounting the original cable routing. There are also two holes for attaching the original edge protection or splash guard flap.
Details
| Material | Steel |
| Surface | blank |
| Wheel size [inch] | 16 ", 17 " |
| Folding the ends | open folded |
| Shape of the mudguard | partly round |
| Total length over ends | 510 mm |
| Mounting type | Nuts & bolts |
| Scope | 640 mm |

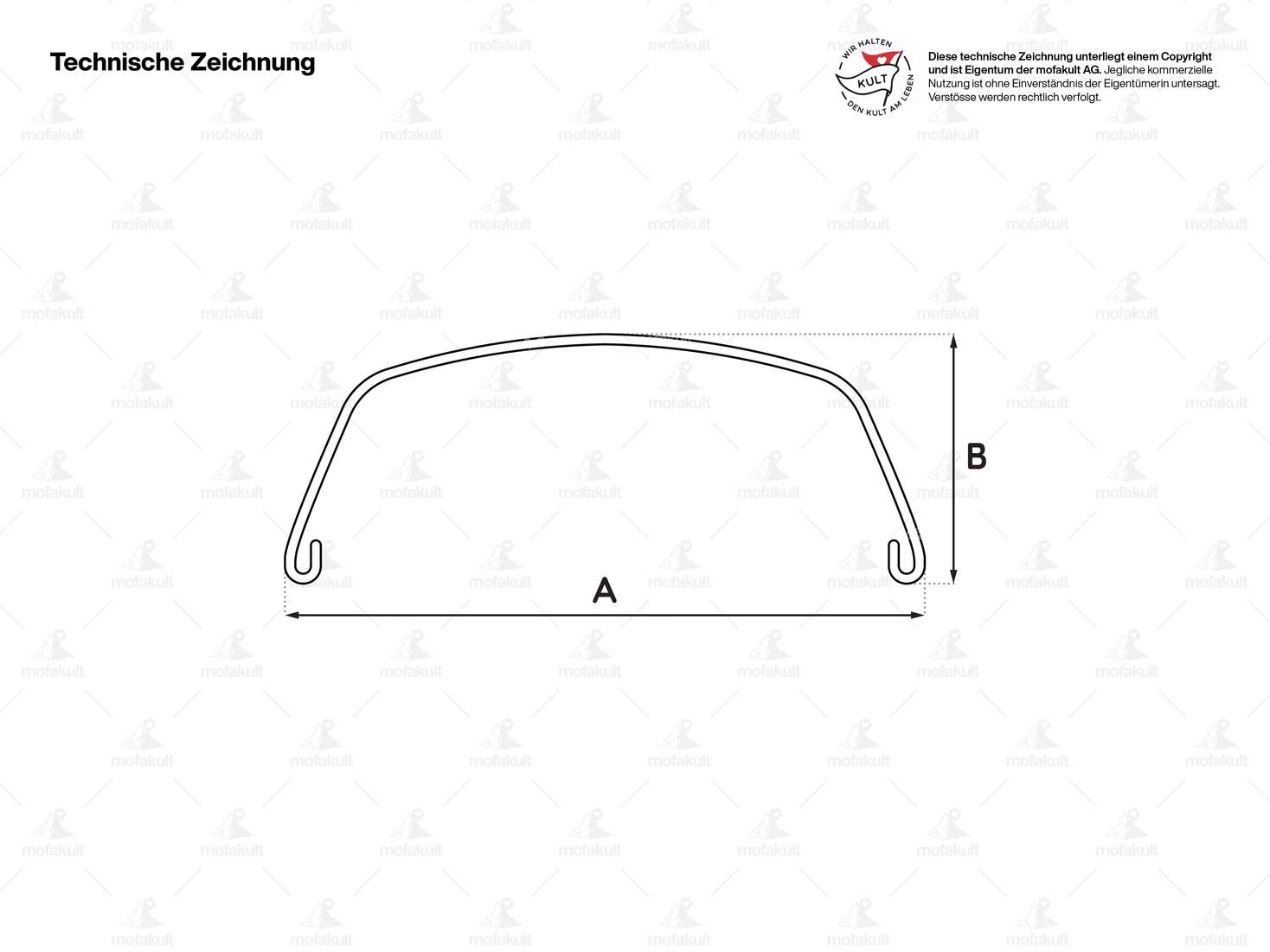

| Wide mudguard profile | 76 mm |
| Height of mudguard profile | 35 mm |
| Total height from support surface to top edge | 162 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 |
