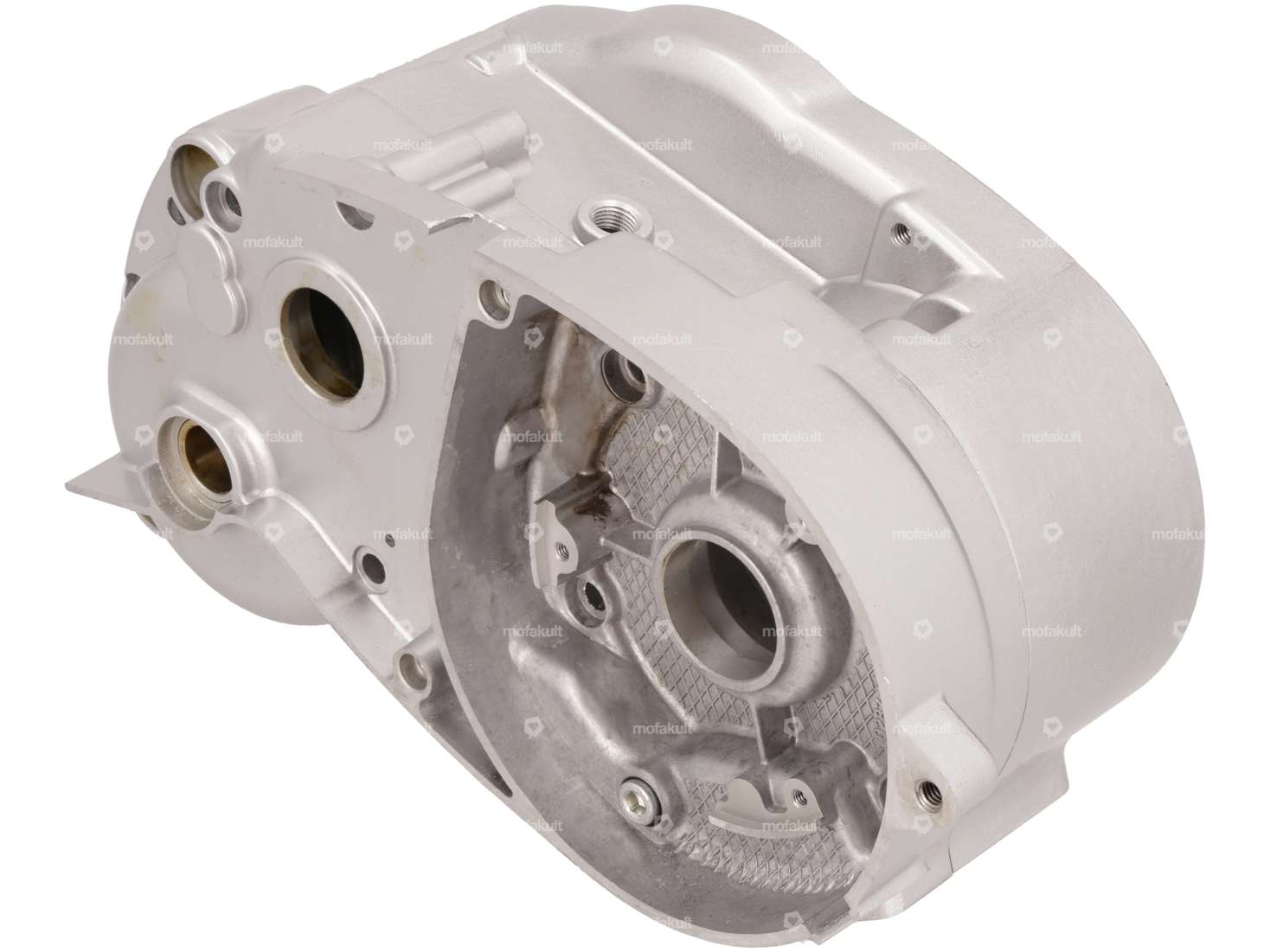

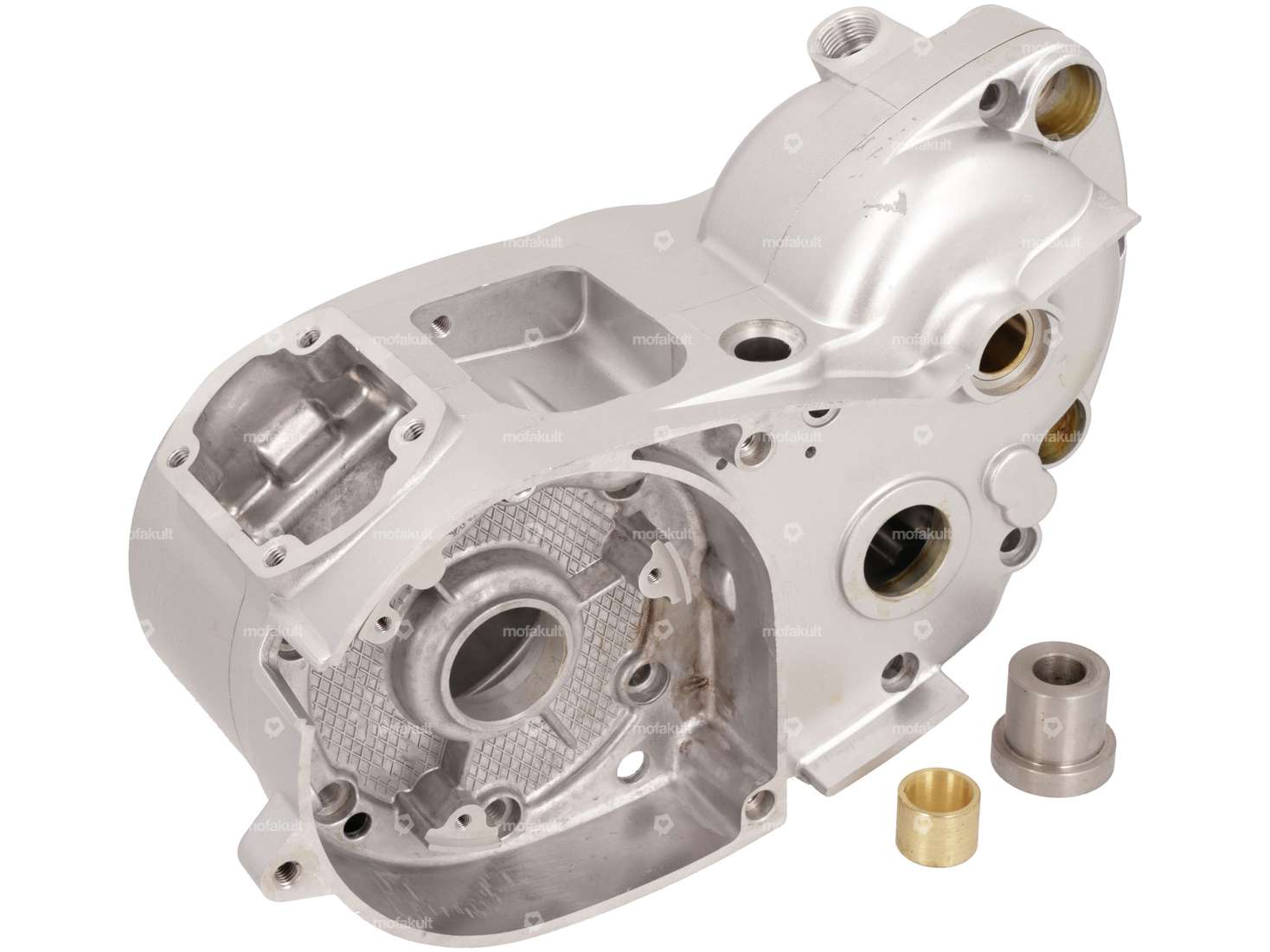

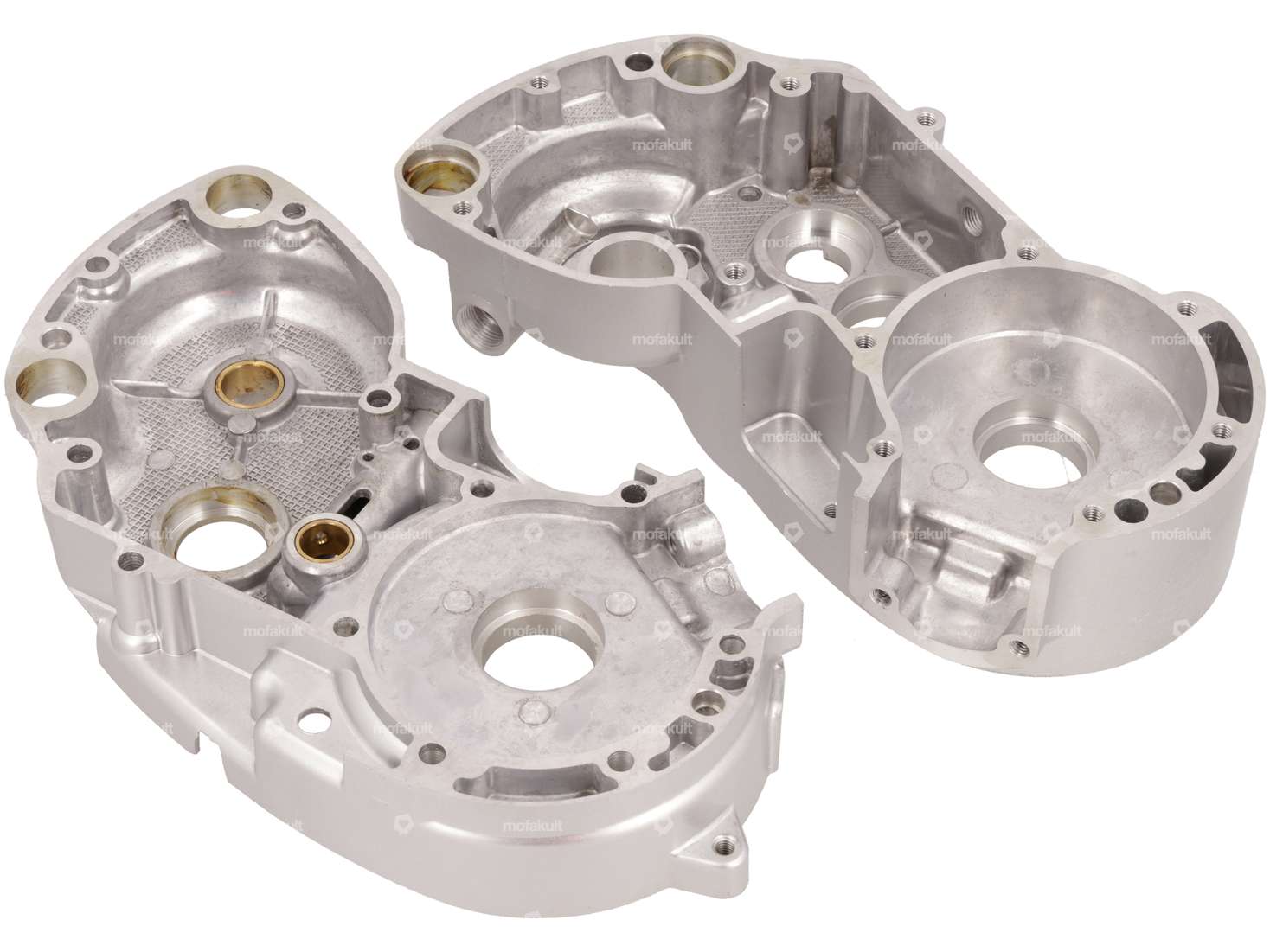

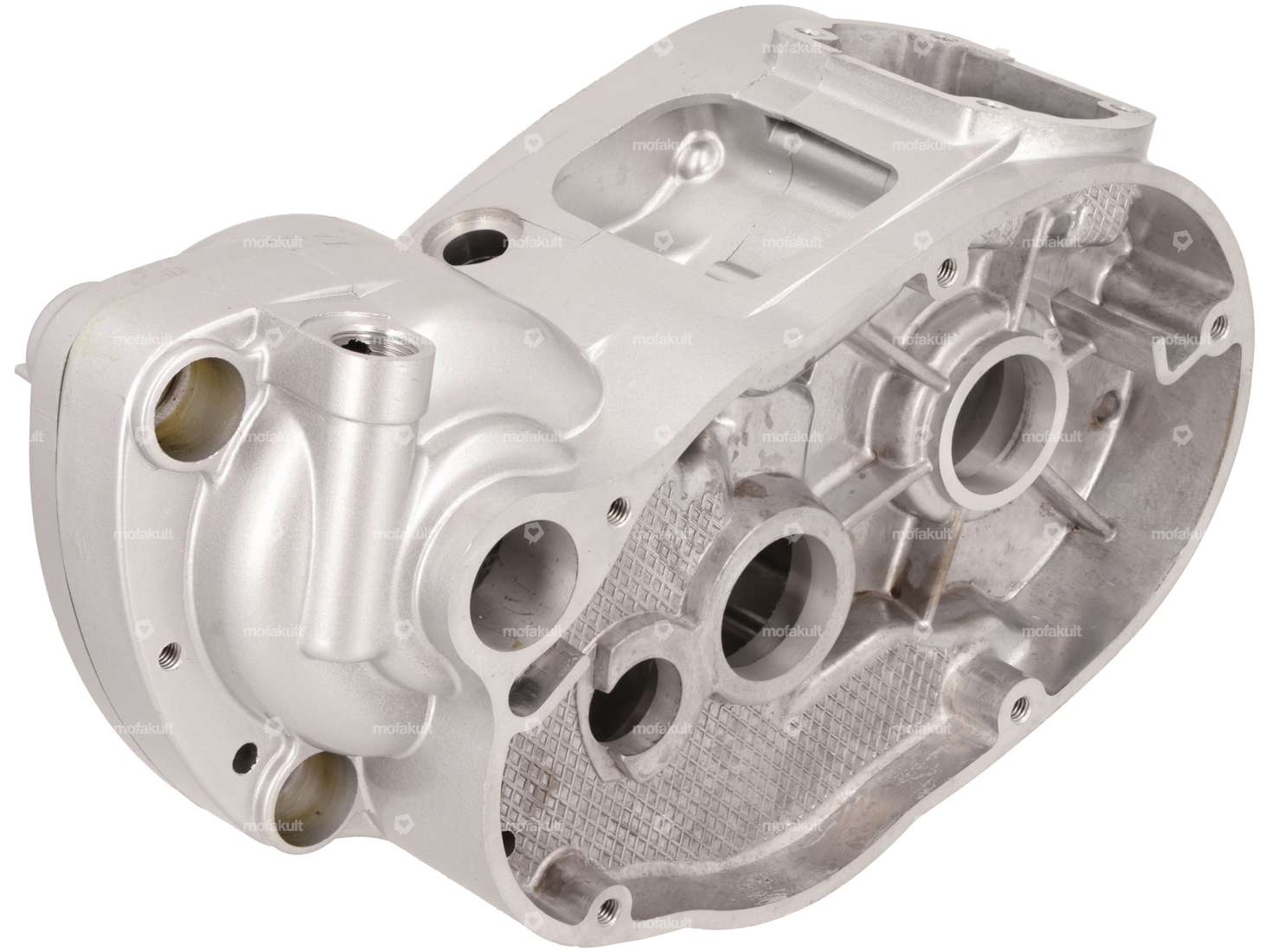

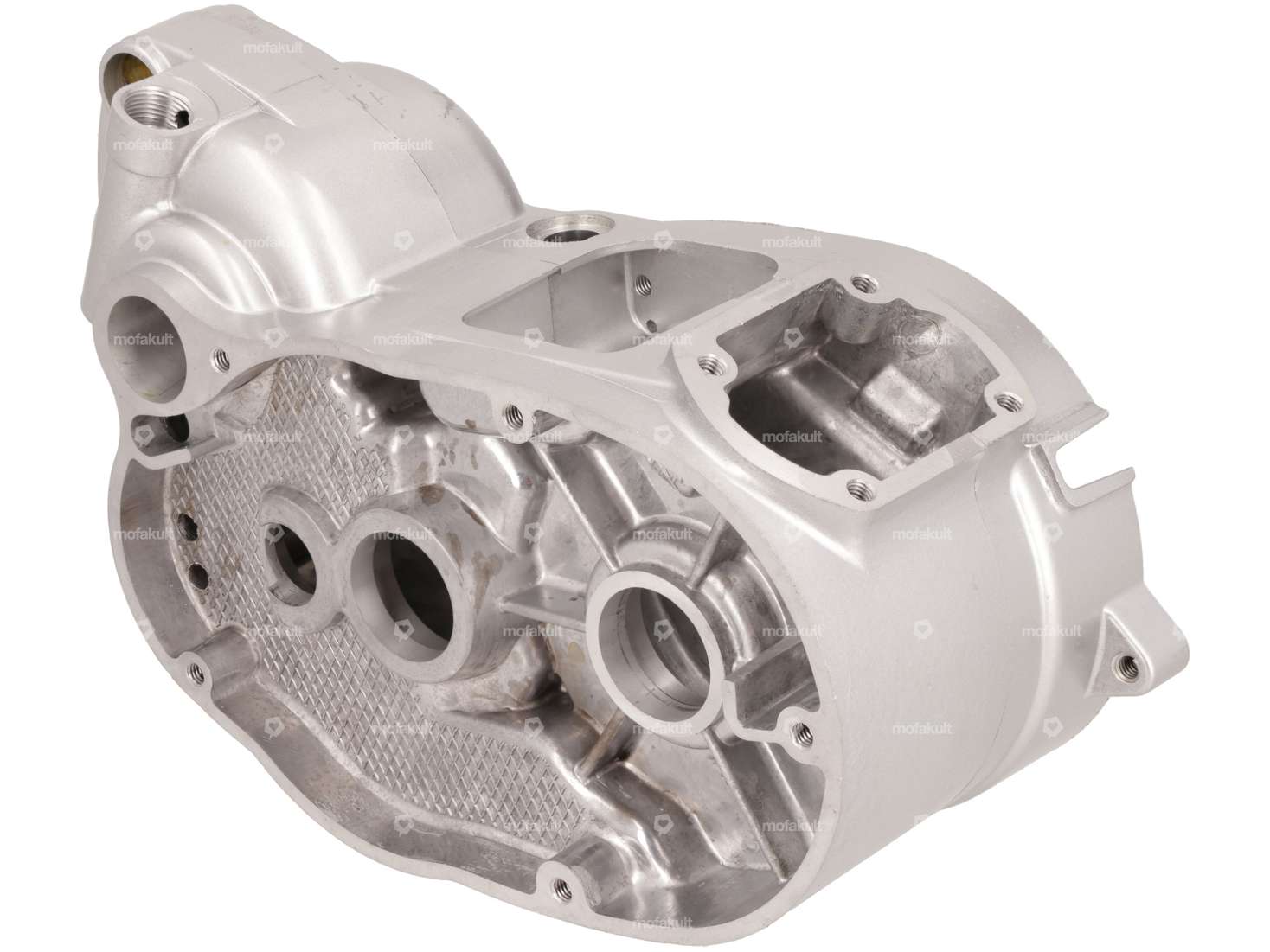

Engine housing | Sachs 50/3 3-speed HG with kickstarter

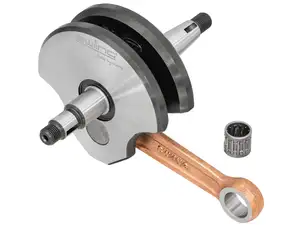

swiing® revival crankshaft standard | Sachs 50/2, 50/3

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Ø Connecting rod eye: 15 mm · Weight: 901 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400

swiing® revival screw set Motor Inox | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

NSK crankshaft bearing set | Sachs 50/2

Manufacturer: NSK · Manufacturer: Sachs · Number of components: 4 pcs

Engine revision set small | Sachs 502, 50/2

Manufacturer: NSK · Area of application: Standard · Number of components: 18 pcs

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Thickness: 0.4 mm · Manufacturer: swiing® revival parts · Number of fixing points: 16 pcs · Material: Sealing paper · Ø inside: 86 mm · Number of components: 1 pcs · Total length: 250 mm · Width: 170 mm · Color: sand-colored · Pony OEM number: A1828 · Sachs OEM no.: 0250 088 100

swiing 41 mm cylinder kit Racing fan-cooled (Version 2.0) | Sachs 50/2, 50/3, 50/4 (DE)

Manufacturer: swiing · Material: Aluminum · Camouflaged: No · Area of application: Racing · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Surface: sandblasted · Nominal diameter: 41 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole pattern [mm]: 51 x 40 · Hole spacing inlet: 31 mm

swiing® revival stud bolt set M6x30 (strength 10.9) galvanized

Diameter: 6 mm · Total length: 30 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: External hexagon · Strength class: 8 · Width across flats SW: 10 mm · Strength class: 10.9 · Thread length: 12 mm

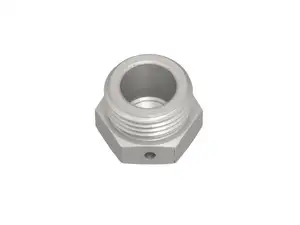

swiing® revival bleed screw M16x1.25 aluminum | Sachs 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Thread type: MF16x1.25 (fine pitch thread) · Drive: External hexagon · Screw head: Hexagon · Total length: 14 mm · Width across flats SW: 17 mm · Color: silver

swiing® revival wheel bearing 25/37/6.3 coaster wheel

Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 36 mm · Inner ring width: 25 mm · Manufacturer: swiing® revival parts · Ø ball: 6.34 mm · Groove ring: No · Material: Steel · Stock number: K042 · Area of application: Standard · Bearing type: Ball ring · Ø inside: 25 mm · Width: 6.8 mm · Ball bearing closed: No

swiing® revival ball bearing 14/27/6.3 coaster brake driver

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Ø ball: 6.34 mm · Groove ring: No · Material: Steel · Surface: blank · Stock number: K1052 · Bearing type: Ball ring · Ø inside: 14 mm · Ø outside: 27 mm · Ball bearing closed: No

Bearing puller set 3 pcs.

Width across flats (trigger): 13 mm · Width across flats (trigger): 15 mm · Width across flats (trigger): 17 mm · Material: Steel · Surface: burnished · Surface: galvanized (blue) · Area of application: (Dis)assembly tool · Number of components: 3 pcs

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Thickness: 0.5 mm · Manufacturer: swiing® revival parts · Place of use: Cylinder base · Material: Oiled paper · Hole pattern [mm]: 40.5 x 51

Outer ring 23.5/31.5/6 Main shaft left | Sachs 502, 50/2, 50/3, 50/4, 503 (A1157)

Ø inside: 23.5 mm · Ø outside: 31.5 mm · Width: 6 mm · Material: Steel · Surface: hardened & ground · Pony OEM number: A1157 · Sachs OEM no.: 0232 049 000

Spacer washer 16/22/0.3 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.3 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony OEM number: A1572 · Sachs OEM no.: 0244 081 000

Spacer washer 16/22/0.1 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.1 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled

Spacer washer 16/22/0.15 Pinion shaft / pedal start | Sachs

Nominal diameter inside: 16 mm · Thickness: 0.15 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Ø outside: 22 mm

Spacer washer 16/22/0.2 pinion shaft / pedal shaft | Sachs

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.2 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled

Spacer washer 23/28/1 Gearbox | Sachs 50/3, 50/4

Ø inside: 23 mm · Nominal diameter inside: 23 mm · Ø outside: 28 mm · Thickness: 1 mm · Material: Steel · Surface: blank / oiled
