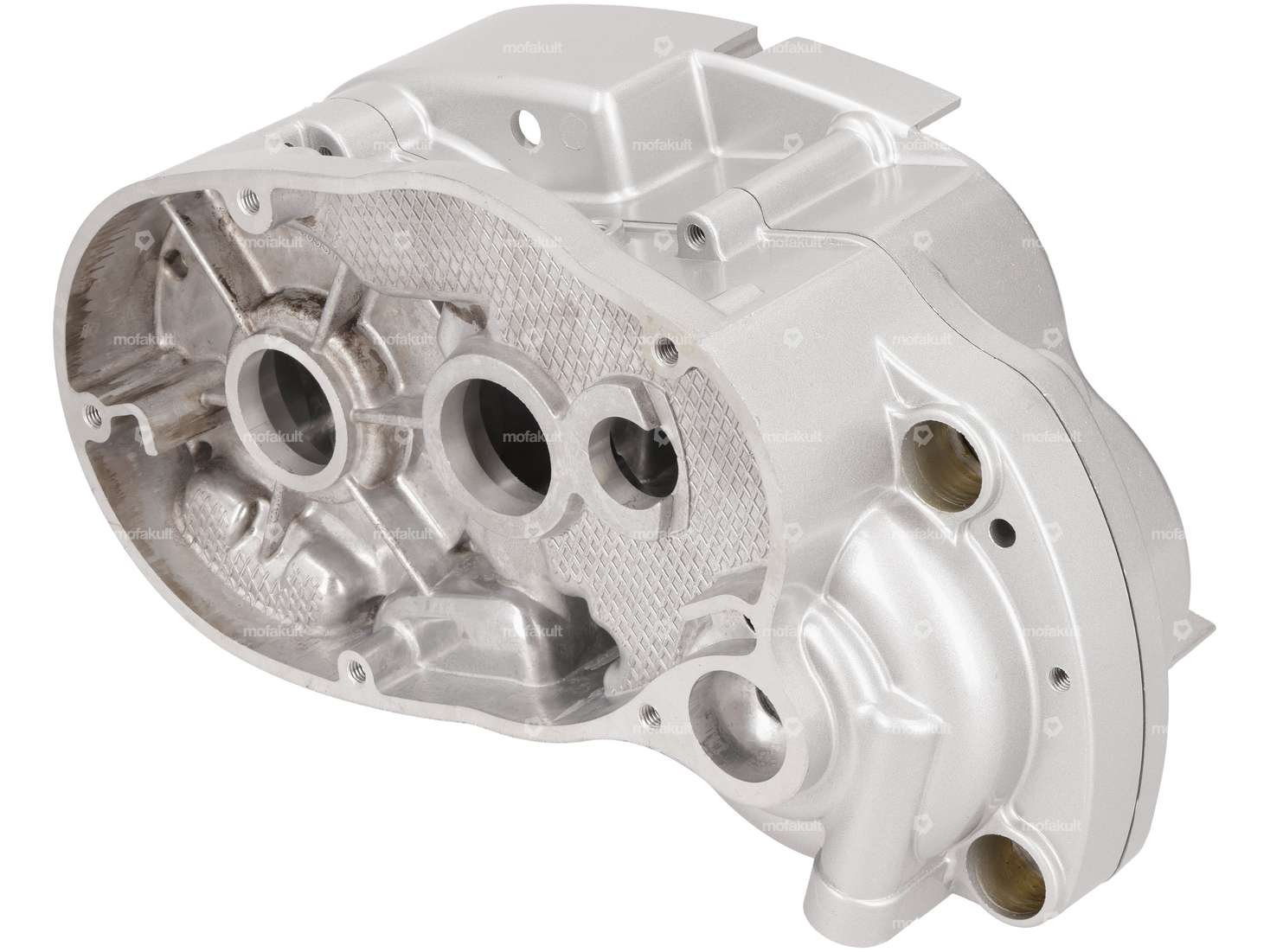

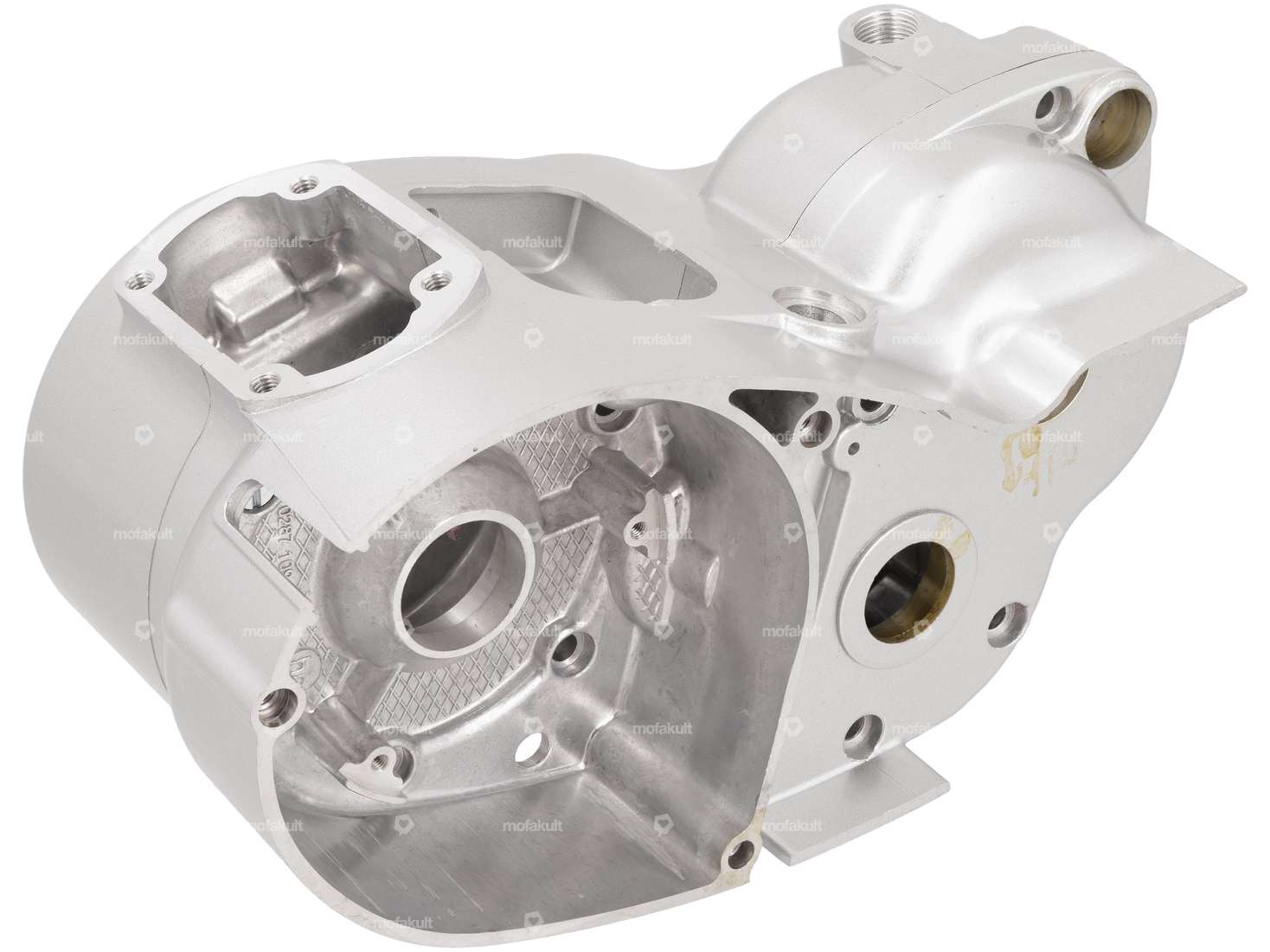

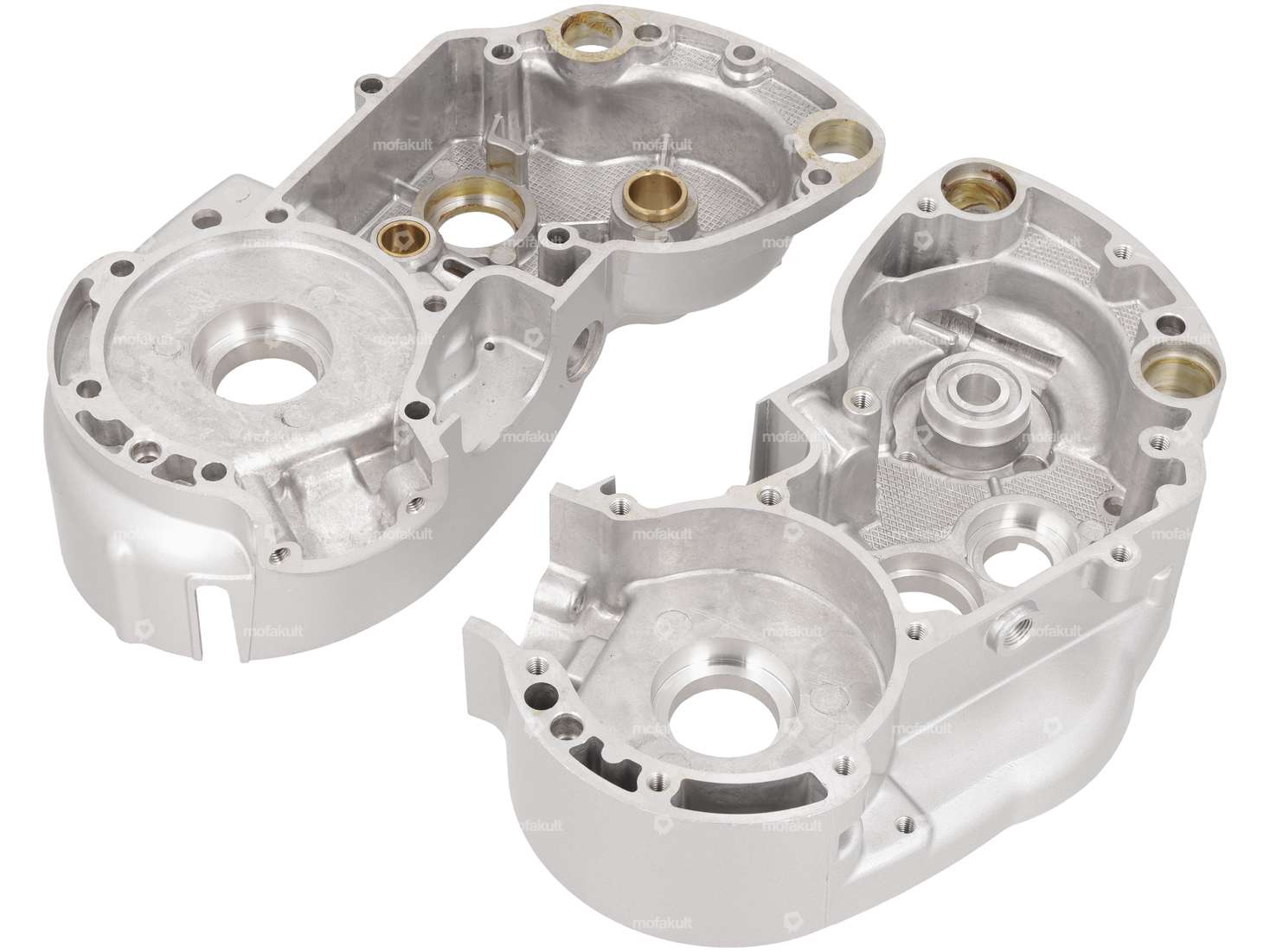

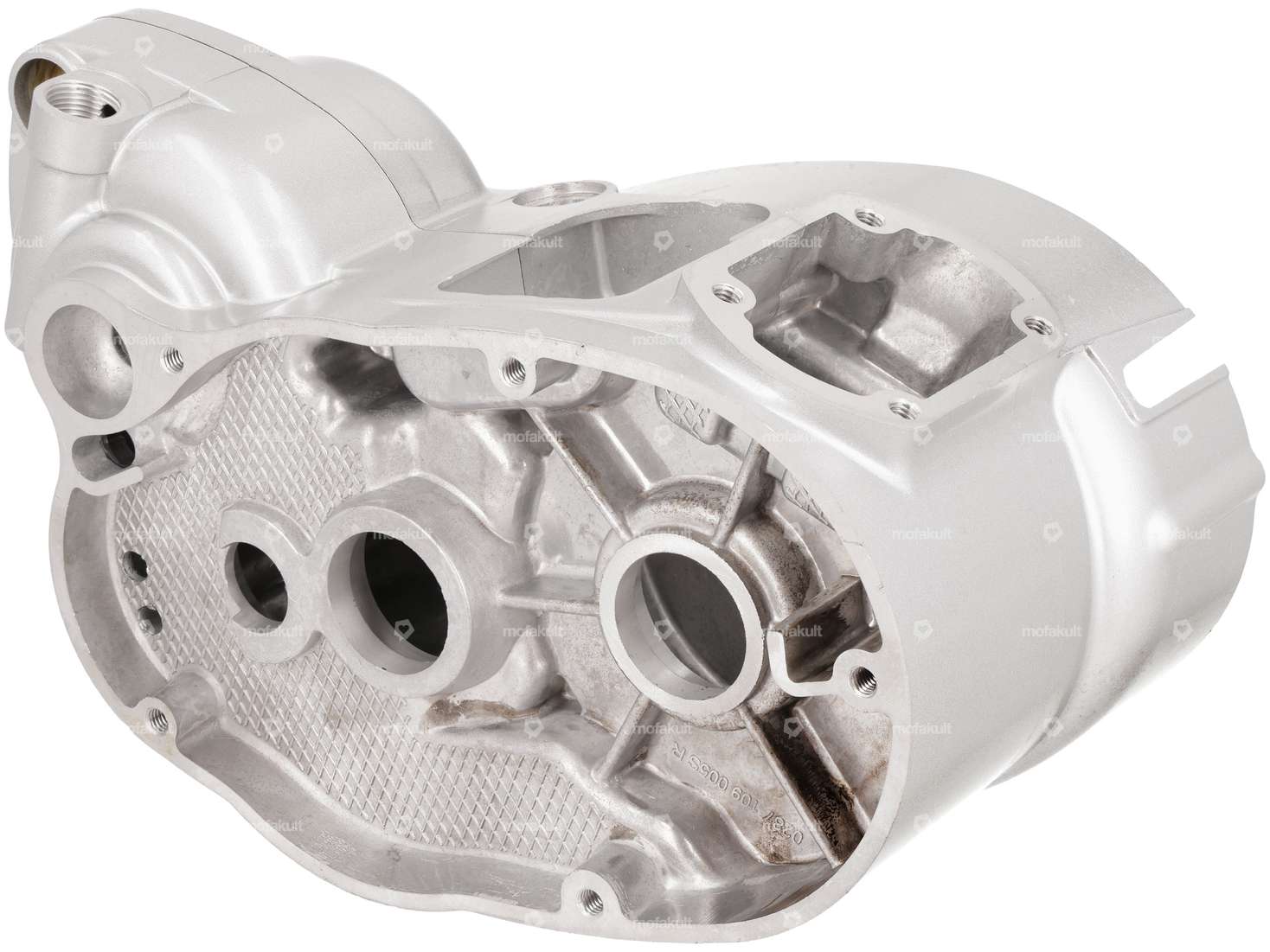

New engine case for Sachs 50/3 and 50/4.
3-/ 4-speed engine case for foot shift and kick start.
Fits versions 50/4 LKH, 50/3 LKH, 50/3 MLFB and 50/4 MFLB.
L17 shoulder ball bearings and the crankshaft with 17 mm cheek journal diameter are installed in this housing.
Can also be converted to a Sachs 50/2 with a great deal of effort. However, this is only something for a skilled mechanic.
Details
| Stock number | L17 |
| Material | Aluminum |
| Surface | varnished |
| Color | silver |
Suitable for the following models
| Sachs | 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
