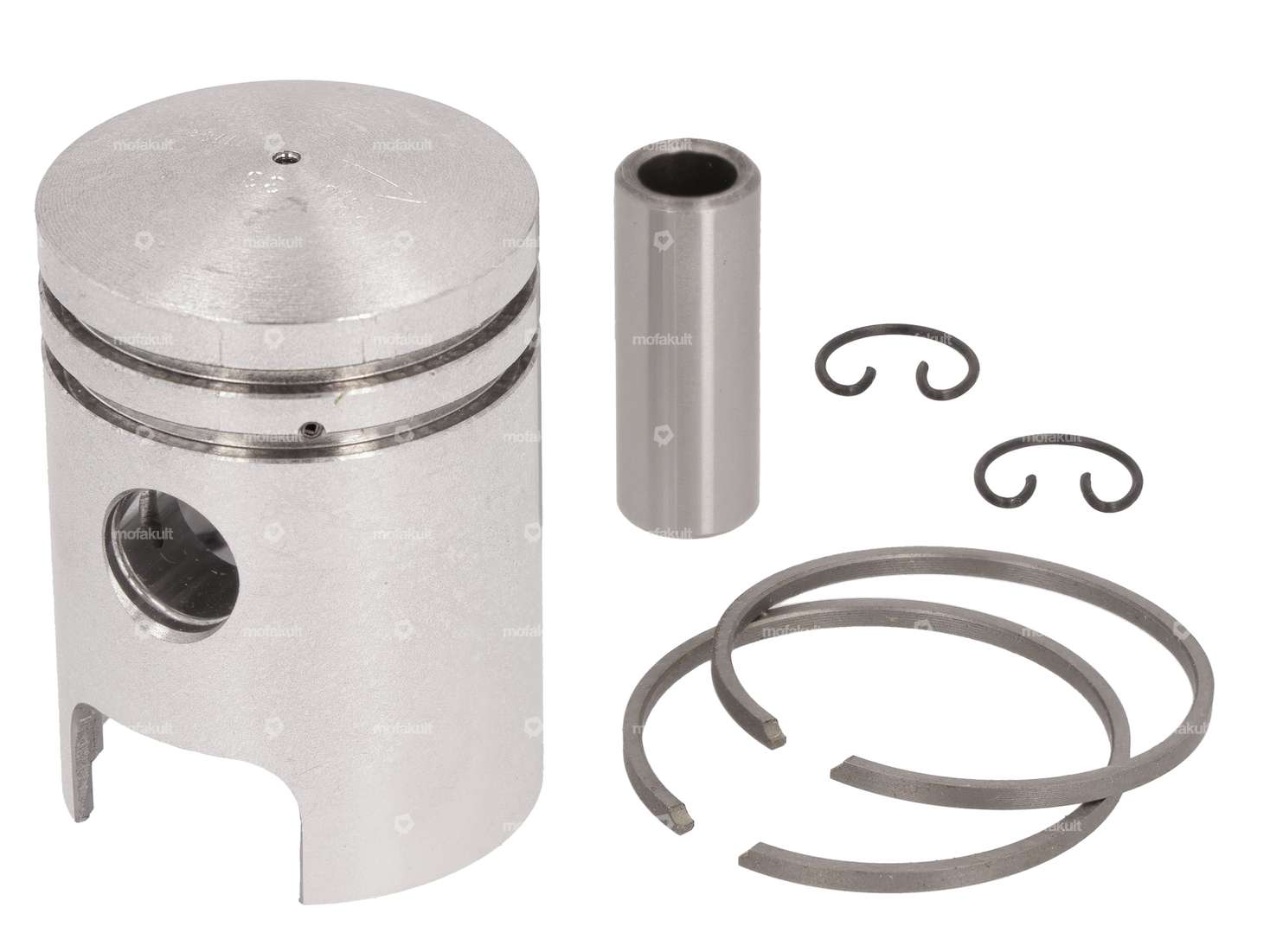

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
Manufacturer | ELKO (König) |
Ø outside piston (A) | 37.98 mm |
Compression height (C) | 22.5 mm |
Curvature (D) | 3.4 mm |
Total piston height (E) | 55 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 38 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Ø piston pin (B) | 12 mm |
Puch spare part no. | 350.3.101060/33 |
Suitable for the following models
Puch |
Accessories & related products
Meteor piston 38 mm #2 | Puch
Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2
EUR 56,20
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
EUR 22,40
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard
EUR 8,35

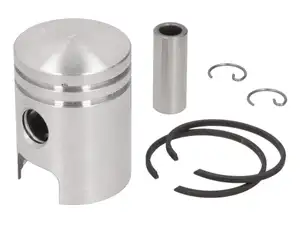

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi
