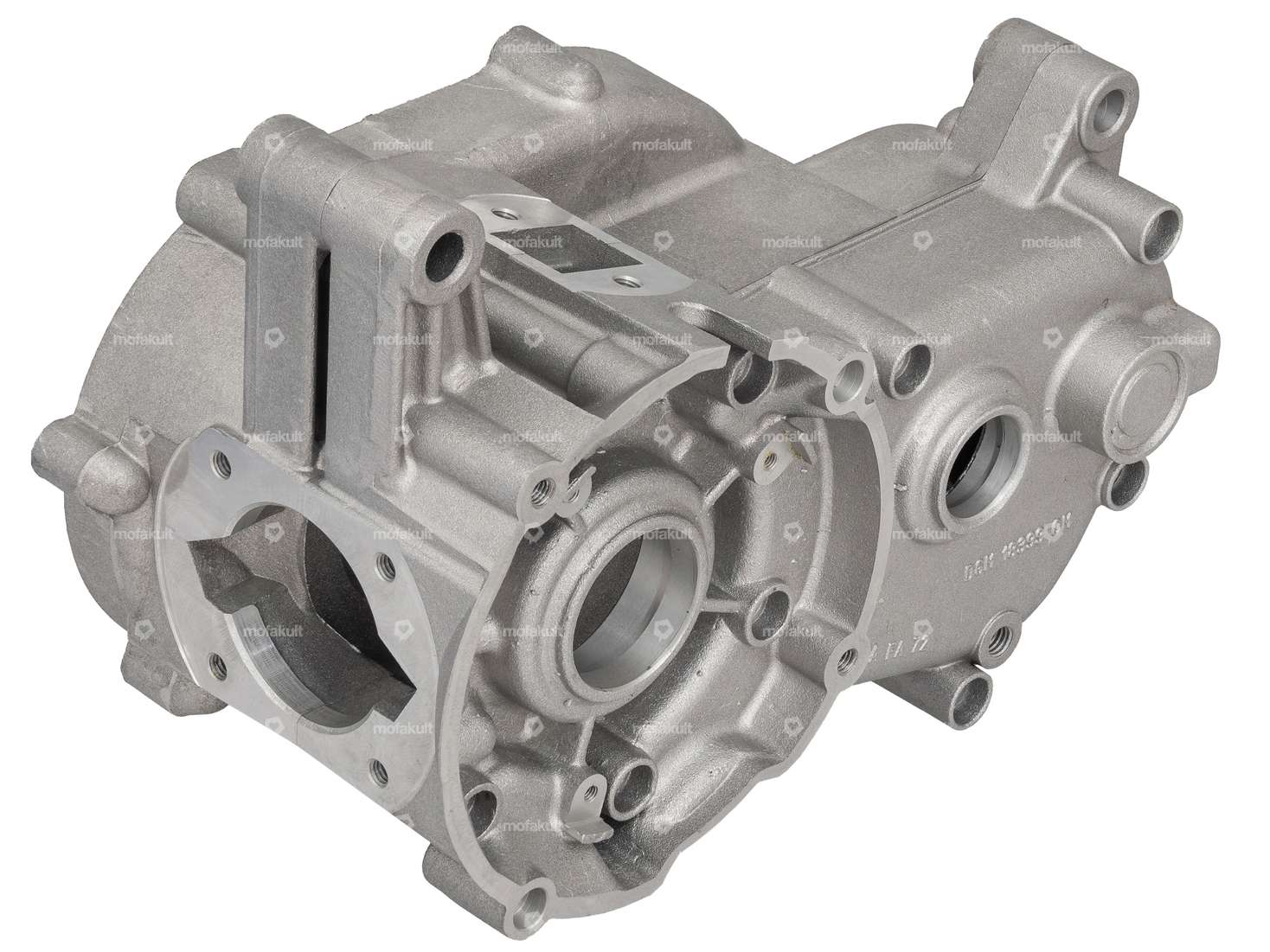

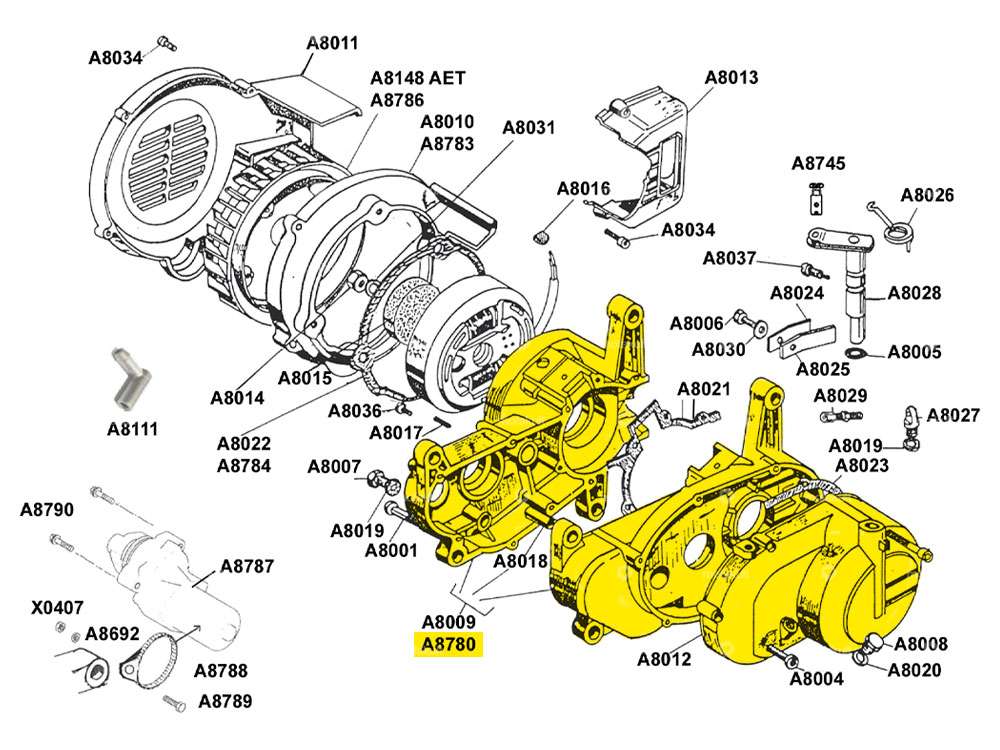

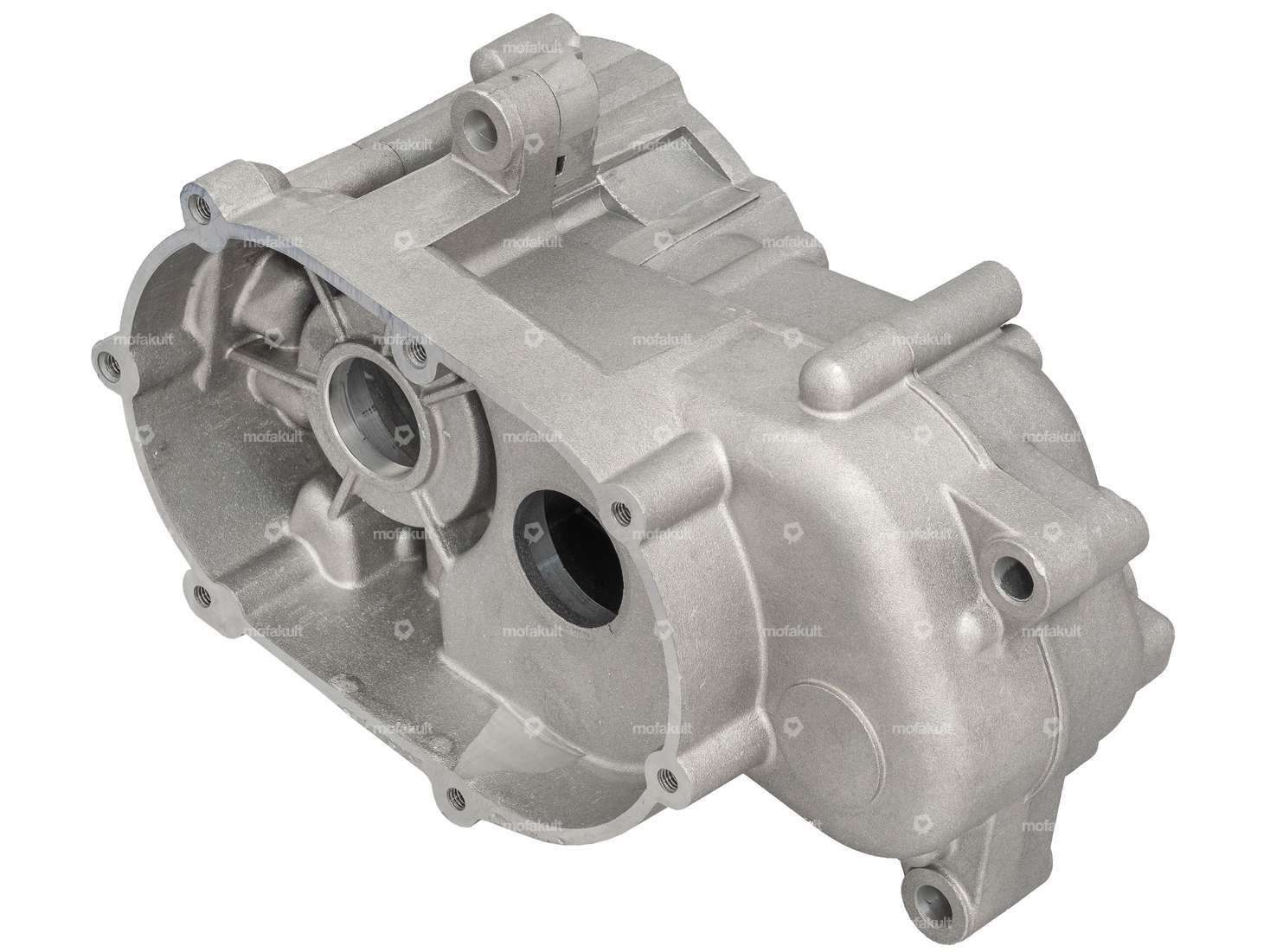

E-start motor housing | Beta 521 (A8780)

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -36 - 200 °C

Engine gasket engine | Beta 521 (A8021)

Manufacturer: Pony · Material: Sealing paper · Number of fixing points: 17 pcs · Number of components: 1 pcs

Blower fan seal motor | Beta 521, 512 (A8022, A8784)

Manufacturer: Pony · Material: Sealing paper · Number of fixing points: 4 pcs · Number of components: 1 pcs

Cylinder base gasket, engine Beta 521 & 512 (A8097)

Manufacturer: Pony · Place of use: Cylinder base · Thickness: 0.5 mm

Engine clutch cover gasket | Beta 521, 512 (A8023)

Manufacturer: Pony · Material: Sealing paper · Number of fixing points: 7 pcs · Number of components: 1 pcs

Clutch cover engine | Beta 521, 512 (A8012)

Manufacturer: Pony · Material: Aluminum · Surface: varnished · Color: black · Number of fixing points: 7 pcs

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Color: gray · Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Area of application: Chemistry · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Contents [ml]: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm · Area of application: Chemistry

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 21.6 mm · Hole pattern [mm]: 48 x 48 · Hole spacing outlet: 38 mm · Number of components: 10 pcs · Decompressor: Yes · Hole spacing inlet: 35 mm · Area of application: Standard

Beta 521 engine with E-Start (A8000E)

Manufacturer: Pony · Material: Cast aluminum · Material: Plastic · Material: Steel · Area of application: Original

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Material: Steel · Width: 3 mm · Height: 3.7 mm

swiing® revival needle roller bearing 12/15/14.2 original

Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 155 001 · Tomos OEM number: 035548

swiing® revival stud bolts M6 x 116 mm galvanized (strength 10.9)

Manufacturer: swiing® revival parts · Diameter: 5.9 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 116 mm · Thread length: 15 mm · Thread length: 23 mm

O-ring clutch lever engine Beta 521 & 512 (A8005)

Manufacturer: Pony · Place of use: Clutch · Ø inside: 8 mm · Ø outside: 11 mm · Cord thickness: 1.5 mm

Oil seal NBR 17/35/8 AS crankshaft | Beta 521, 512 (A8088)

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Pony · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 17 mm · Ø outside: 35 mm · Width: 8 mm · Temperature resistance (min.): -30 - 100 °C

Oil seal NBR 20/30/7 A

Simmering type: A - With rubberized outer part / one sealing lip. · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

Oil seal 20/30/7 engine | Beta 521, 512 (A8089)

Place of use: Crankshaft · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm · Manufacturer: Pony

swiing® revival gasket set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 21.6 mm · Hole pattern [mm]: 48 x 48 · Hole spacing outlet: 38 mm · Number of components: 10 pcs · Decompressor: Yes · Hole spacing inlet: 35 mm · Area of application: Standard

swiing® revival engine revision set | Pony / Cilo Beta 521

Manufacturer: swiing® revival parts · Number of components: 27 pcs · Area of application: Standard

swiing® revival engine overhaul kit | Pony Beta 521

Manufacturer: swiing® revival parts · Number of components: 9 pcs · Area of application: Standard
