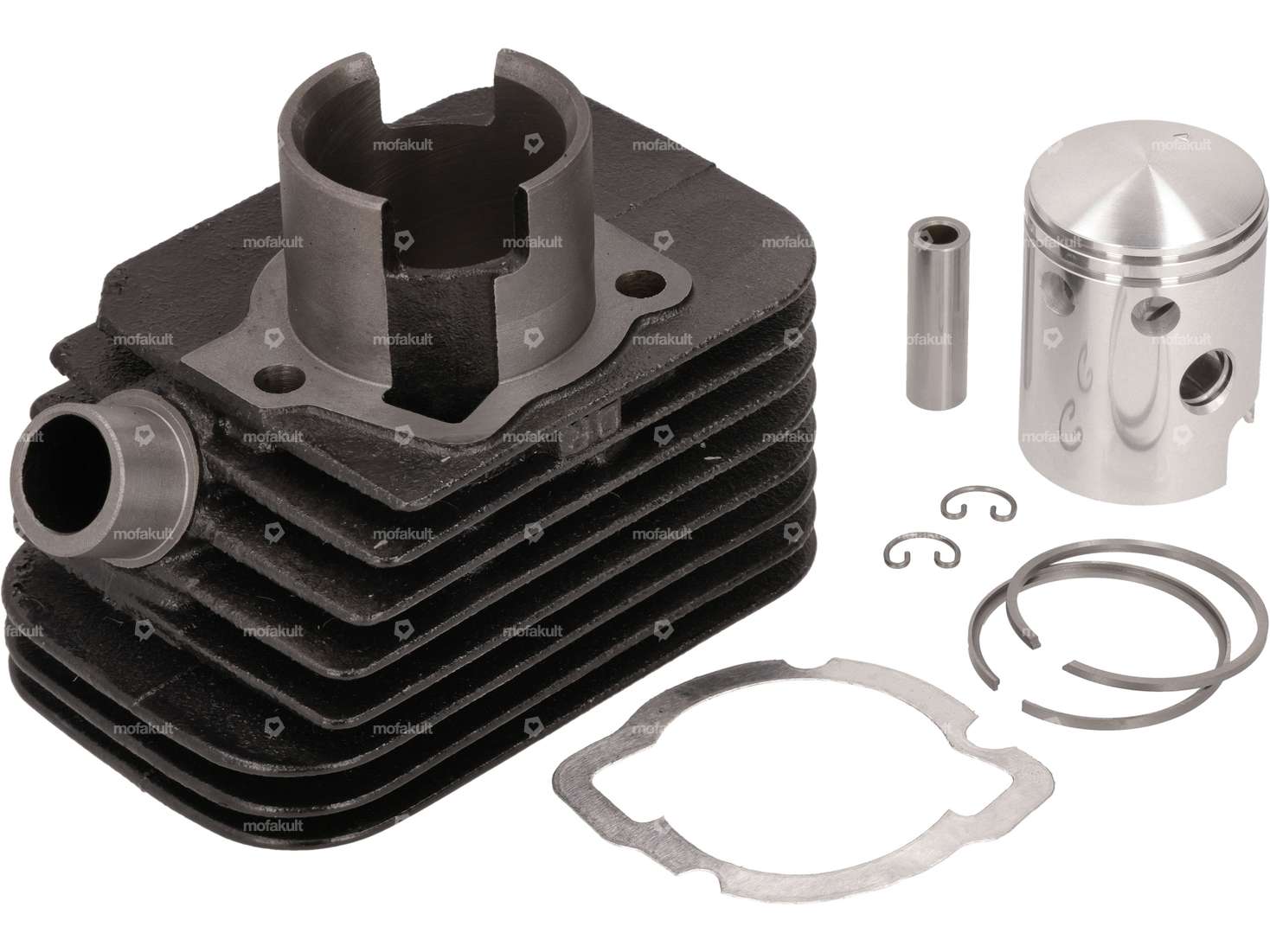

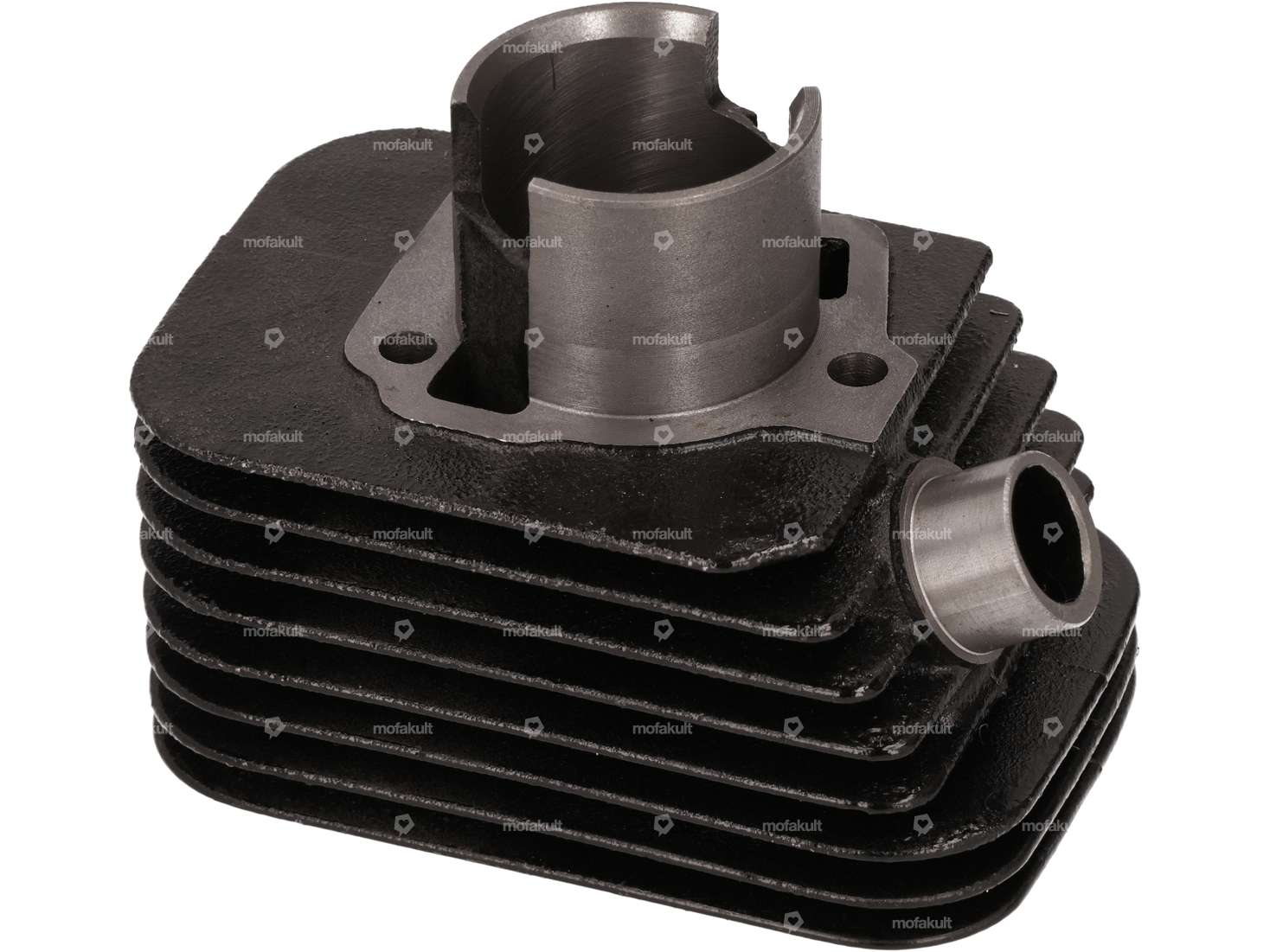

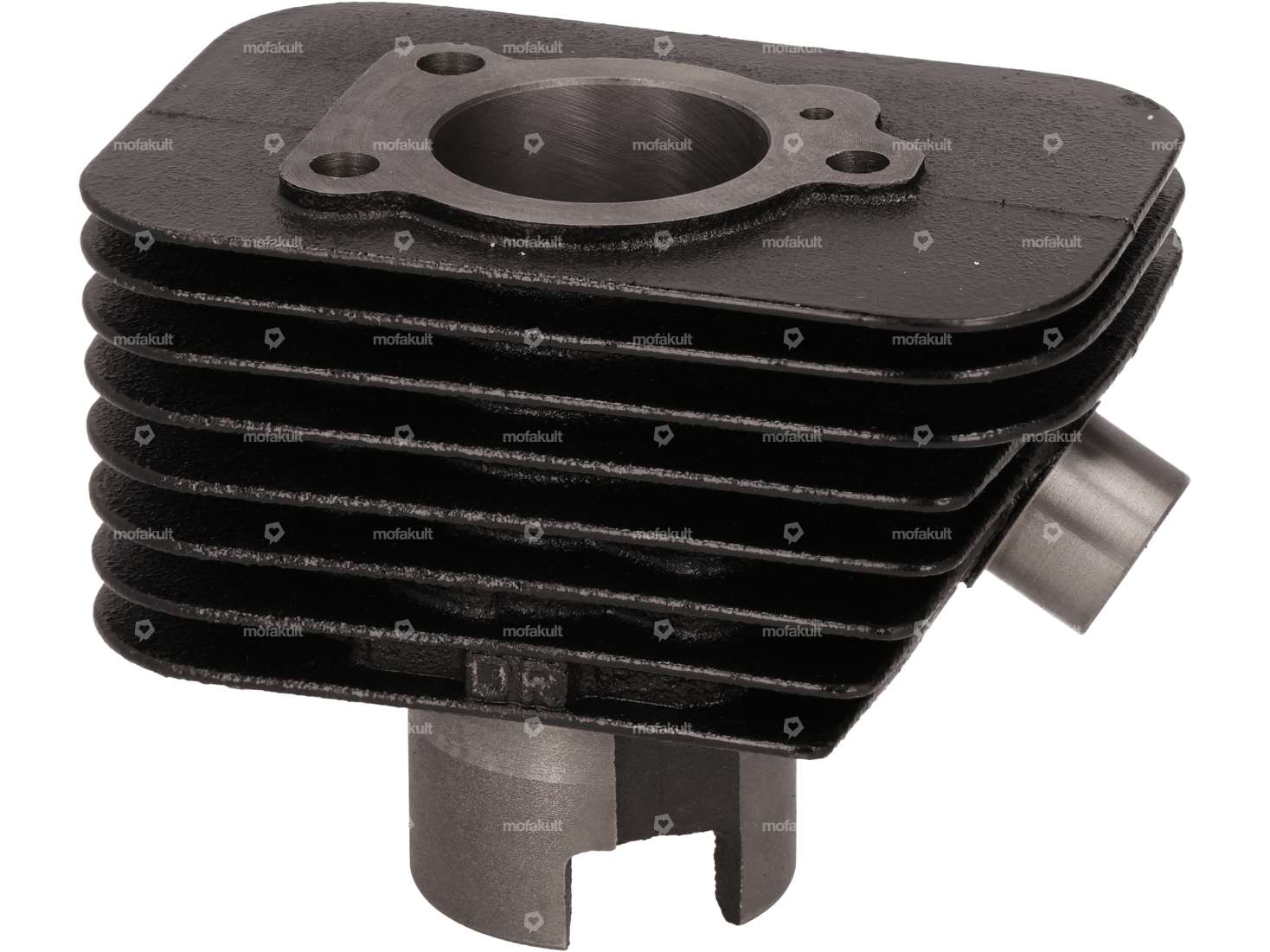

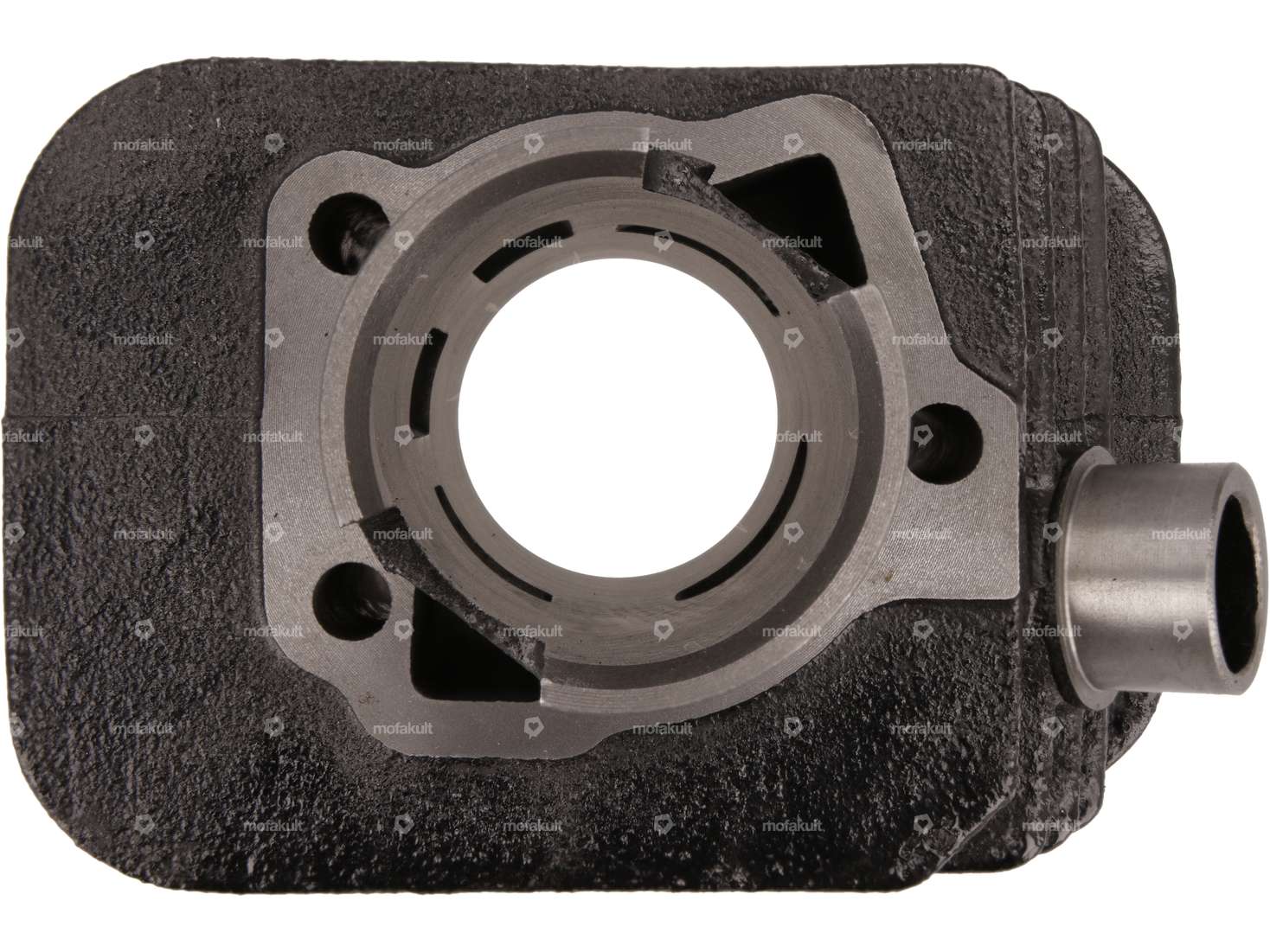

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (stainless steel) · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Drive: External hexagon · Width across flats SW: 11 mm

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Area of application: Standard · Color: green

Decompressor set | Piaggio Ciao, Bravo, Boxer

Material: Spring steel · Material: Steel · Surface: blank · Surface: blue galvanized · Area of application: Standard · Total length: 75 mm

Stud bolt M7x120 mm (budget)

Material: Steel · Surface: blue galvanized · Total length: 120 mm · Thread length: 25 mm · Thread type: M7x1 (standard thread)

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Ø cylinder: 38 mm · Total length: 120 mm · Width: 78 mm · Height: 62 mm · Decompressor: Yes

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Ø inside: 13 mm · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Ø outside: 1 mm · Dimension needle bearing: 10/13 x 14.5

Cylinder base gasket Piaggio Ciao, SI, Bravo, Boxer (aluminum) original

Area of application: Original · Material: Aluminum · Place of use: Cylinder base · Thickness: 0.25 mm

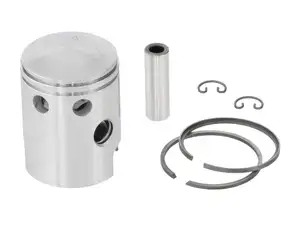

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.4 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight: 78 g

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No · Width across flats SW: 21 mm

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 46 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Place of use: Cylinder base · Thickness: 0.3 mm · Piaggio spare part no.: 182519

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Resistance: 1000 Ω · Suppressed: Yes · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: blue galvanized · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Cranking (offset): 23 mm · Number of fixing points: 2 pcs

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Area of application: Standard · Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Cable length: 1650 mm

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Total length: 8 mm · Manufacturer: swiing · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

RMS V-belt Mono 960 mm (original) | Piaggio Ciao

Height: 8.5 mm · Manufacturer: RMS · Material: Fabric insert · Material: Rubber · Outer width: 9.8 mm · Gearbox type: Mono · Rolling circumference: 960 mm · Belt profile: untoothed / untoothed

GPO Brake support bolt short Inox | Puch Maxi, Supermaxi

Manufacturer: GPO · Number of components: 3 pcs · Material: Chrome steel (stainless steel) · Thread type: MF10x1 (fine pitch thread) · Drive: Outer edge · Ø shaft: 9.8 mm · Ø External head: 14 mm · Area of application: Standard · Width across flats SW: 13 mm · Width across flats SW: 17 mm · Shank: Yes · Thread length: 13 mm · Shank length: 9.5 mm · Total length: 32 mm

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24

Manufacturer: Dell'Orto · Area of application: Tuning · Material: Aluminum · Color: black · Carburetor type: SHA (type 3) · Total length: 55 mm · Width: 60 mm · Camouflaged: No · Nominal diameter: 12 mm · Height: 110 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Mounting type: Plug connection clamped · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5 · Nozzle size: 48

Air filter 2 PS (DGM) replica | Piaggio Ciao, SI, Bravo, Boxer

Width: 98 mm · Height: 93 mm · Material: Plastic · Area of application: Standard · Filter type: Grille · Color: black · Ø Internal connection: 49.5 mm · Ø outside: 52 mm · Mounting type: Plug connection clamped

DR 38 mm everyday tuning set | Piaggio Ciao, SI

Nominal diameter: 38 mm · Manufacturer: DR Racing Parts · Manufacturer: Dell'Orto · Manufacturer: NGK · Manufacturer: SITO · Material: Gray cast iron · Displacement: 49 ccm
