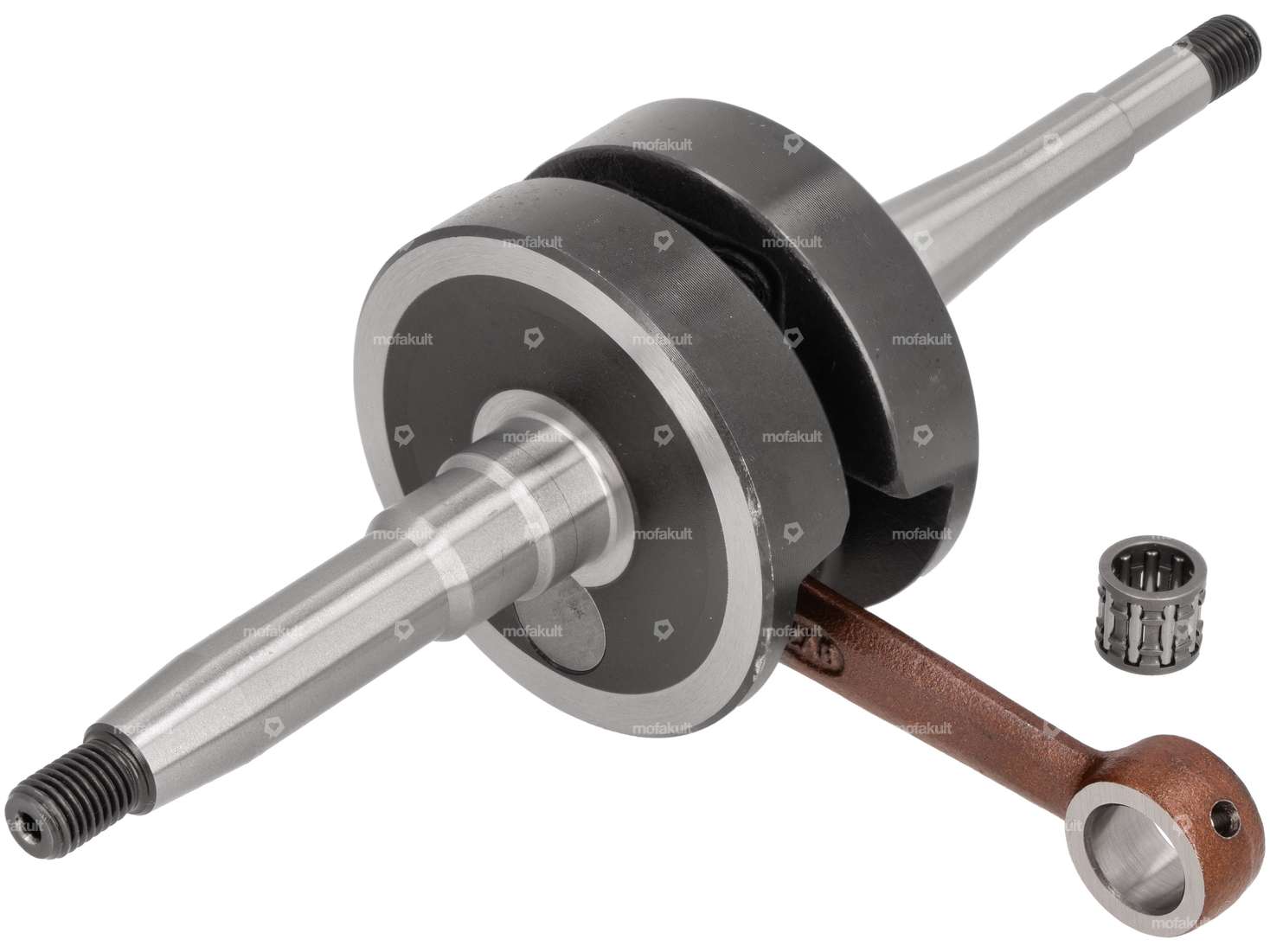

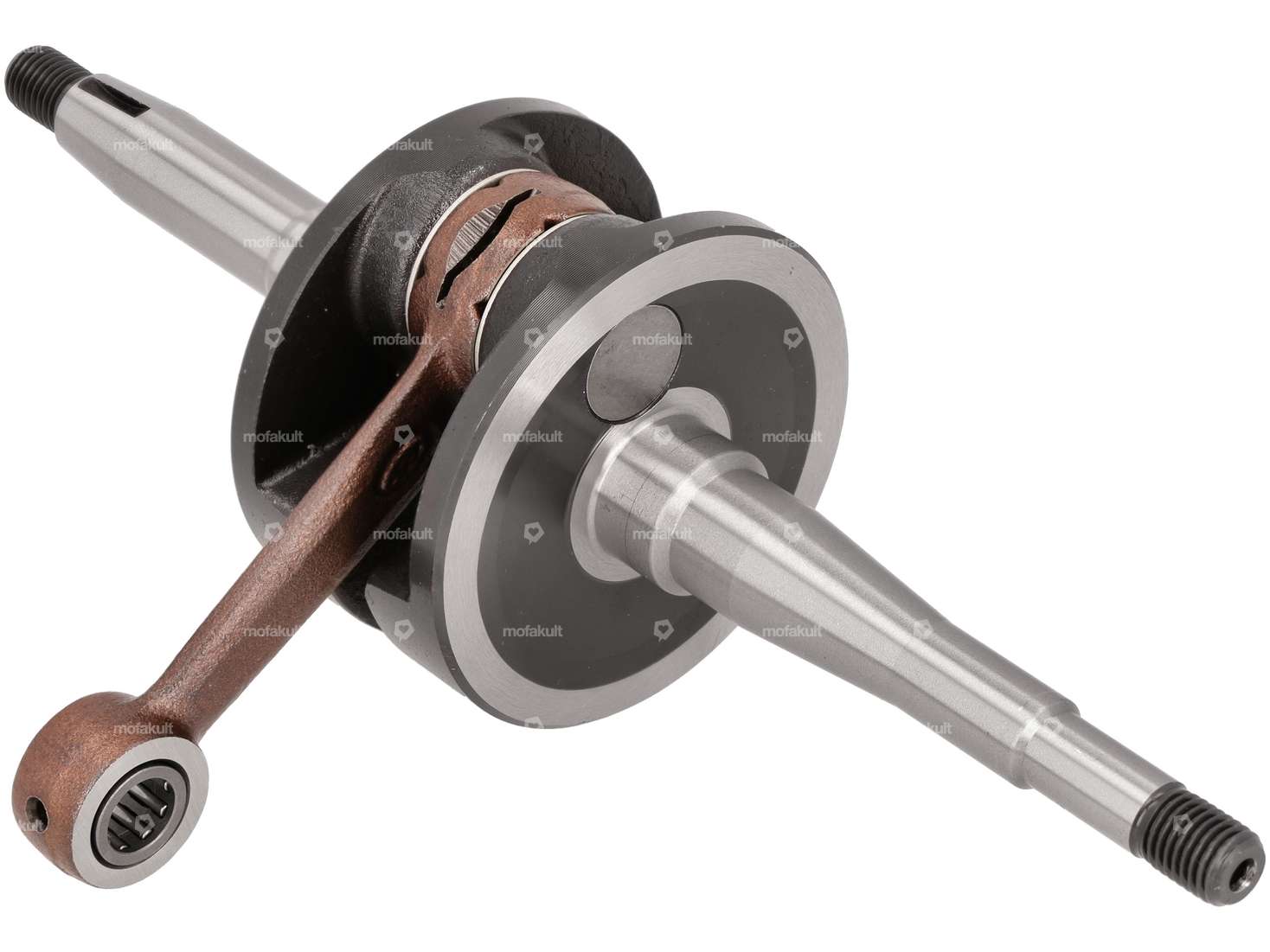

Crankshaft for Honda Camino mopeds / mopeds.
The needle bearing is included in the scope of delivery.
Branded product from the manufacturer DMP.
Details
Manufacturer | DMP |
Material | Steel |
Area of application | Standard |
Cheek type | standard |
Crankshaft stroke | 42 mm |
Connecting rod length center-center | 80 mm |
Total length of crankpin on clutch side | 100 mm |
Weight | 1088 g |
Total length crankpin ignition side | 80 mm |
Ø crank webs | 69.9 mm |
Ø Connecting rod eye | 14 mm, 16 mm |
Ø piston pin (B) | 10 mm |
Ø Bearing seat (clutch side) | 20 mm |
Thread type | MF10x1.25 (fine pitch thread) |
Ø Bearing seat (ignition side) | 20 mm |
Thread length | 11 mm, 12 mm |
Dimension needle bearing | 10 / 14 x 12.5 mm (axe 10) |
Wide crank webs | 41 mm |
Length 1st paragraph | 12.5 mm |
Length 2nd paragraph | 57 mm |
Length 3rd paragraph | 18 mm |
Ø 1st step (on the coupling side) | 20 mm |
Ø 2nd shoulder (on the clutch side) | 17 mm |
Ø 3rd step (on the clutch side) | 10 mm |
Length of shoulder (ignition side) | 12.5 mm |
Suitable for the following models
Honda |
