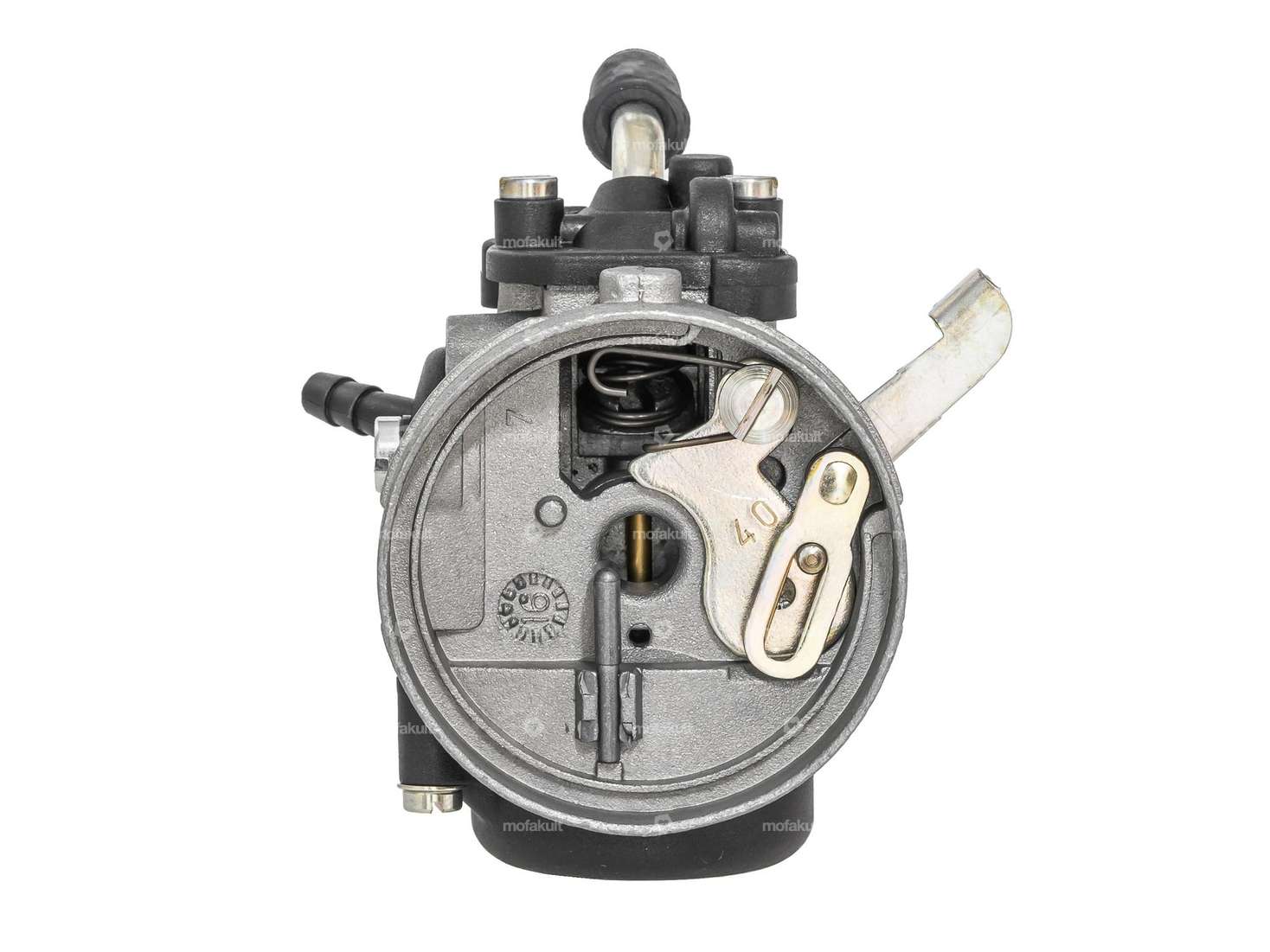

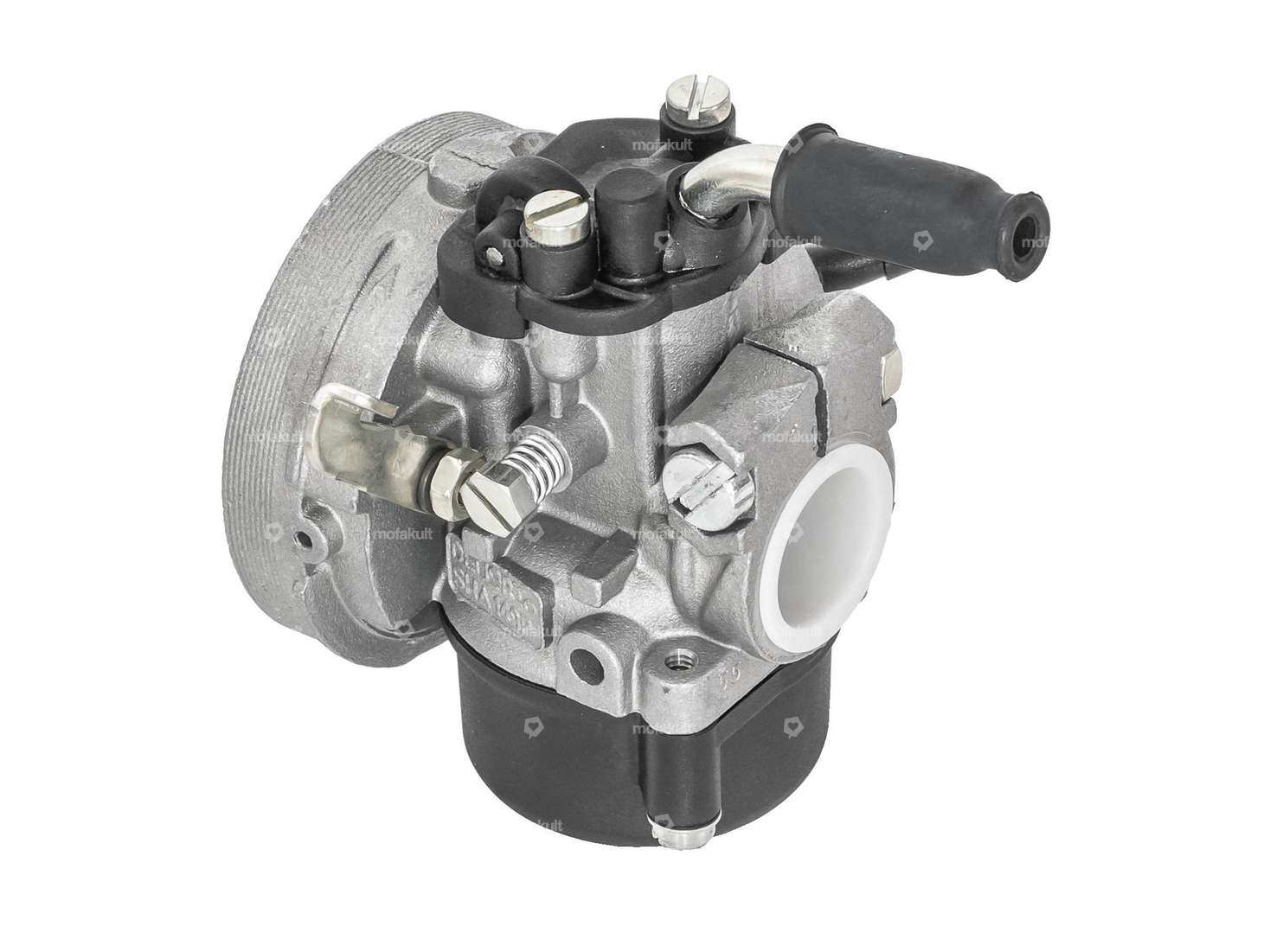

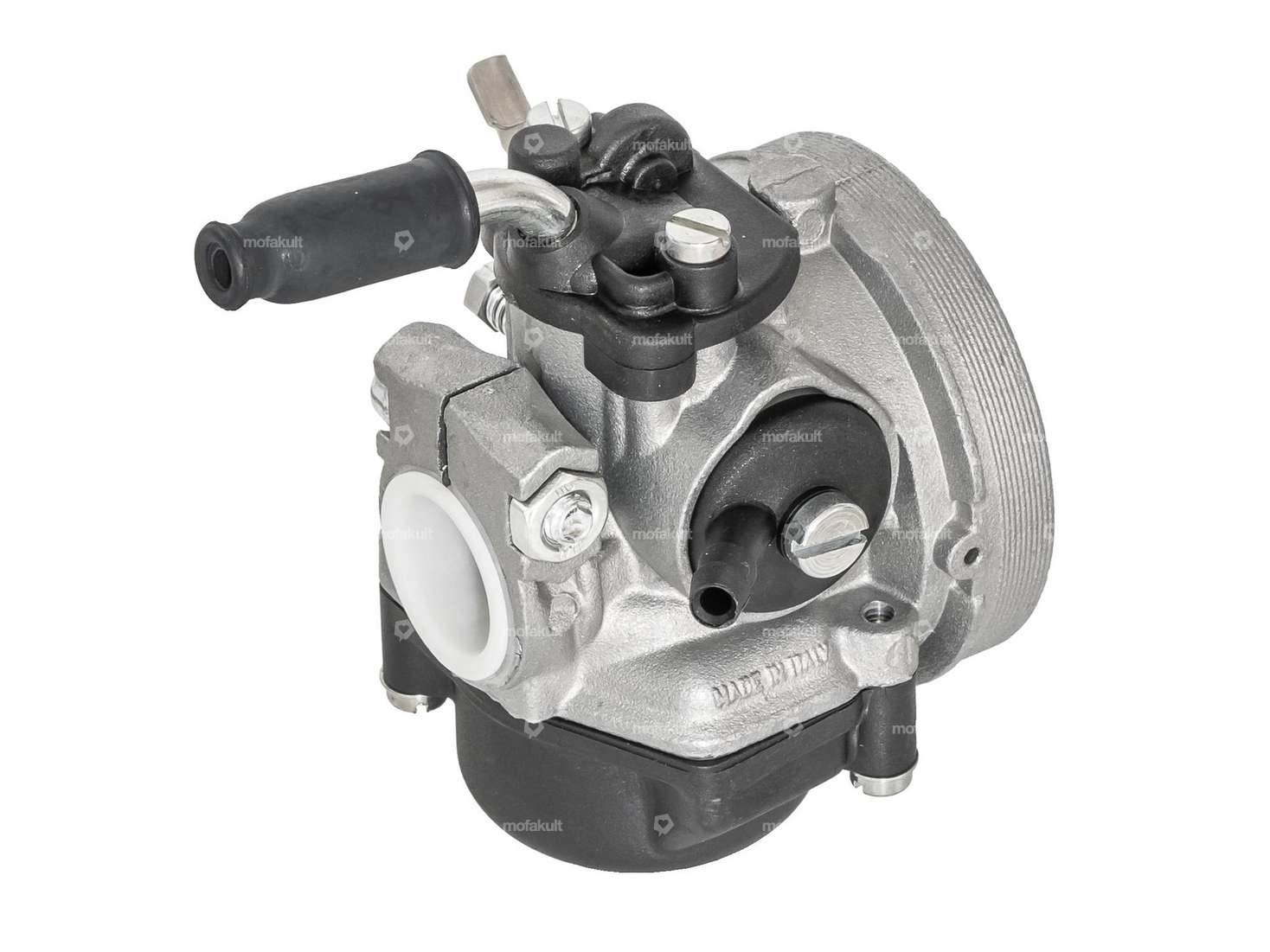

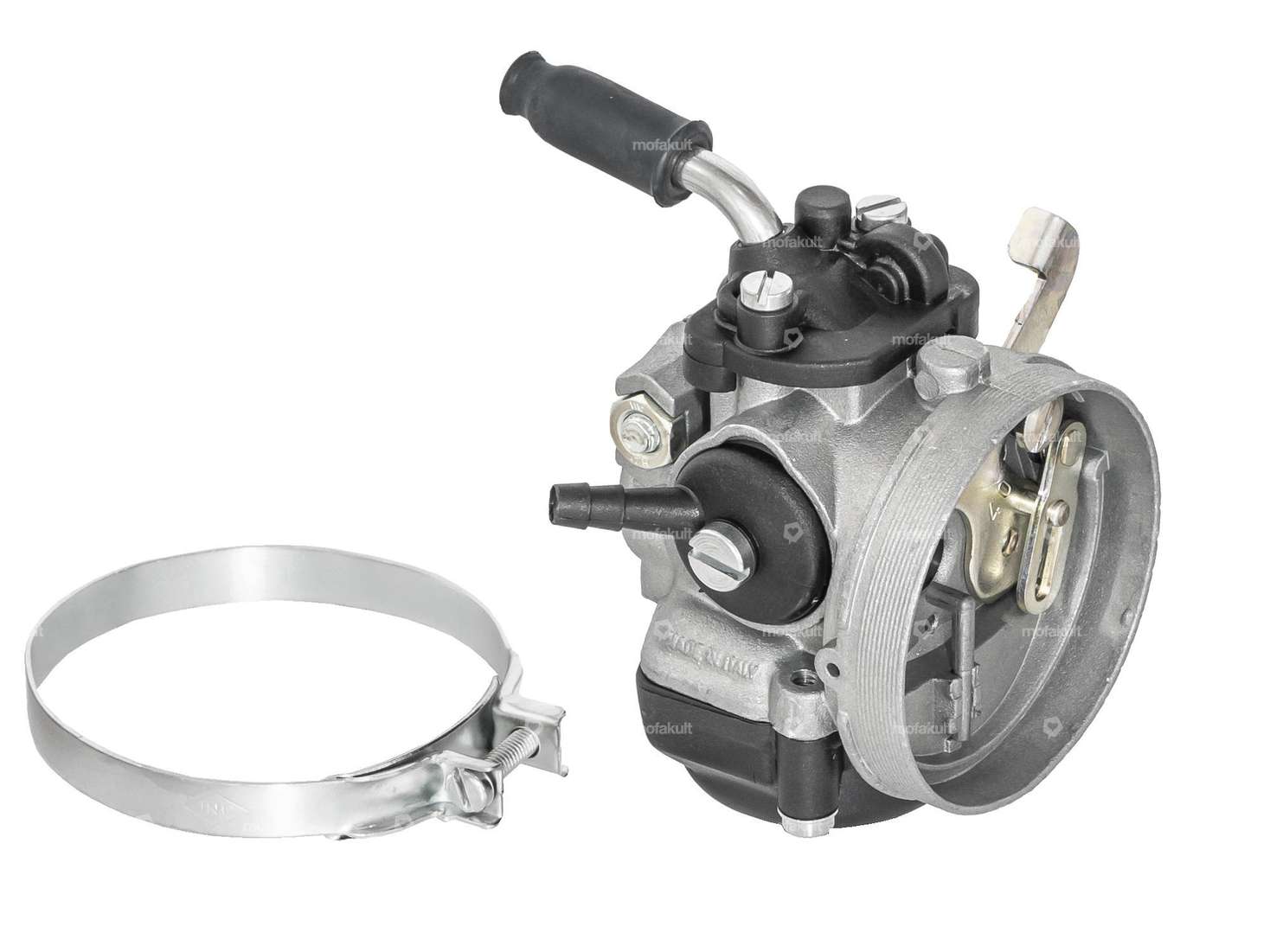

The Dell'Orto 14 / 9 P SHA original carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Tomos.
The carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 49
Inlet connection diameter: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 9 mm
Ø passage on intake manifold side: 14 mm
Total height: 82 mm (without pipe bend)
Total length: 58 mm
Total width: 60 mm (without choke)
Matching nozzles and air filters can be found in the accessories section.
Original Tomos spare part number: 1236202
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Total length | 58 mm |
| Camouflaged | No |
| Area of application | Original |
| Material | Aluminum |
| Width | 90 mm |
| Color | black |
| Carburetor type | SHA (type 4) |
| Nominal diameter | 14 mm, 9 mm |
| Ø Internal connection | 18 mm |
| Ø without reducing sleeve | 21 mm |
| Ø Inside entrance | 9 mm |
| Ø Output inside | 14 mm |
| Ø Air filter connection | 59 mm, 56 mm |
| Mounting type | Plug connection clamped |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5 |
| Nozzle size | 49 |
| Height | 82 mm |
| Tomos spare part no. | 1236202 |
Suitable for the following models
| Tomos |
