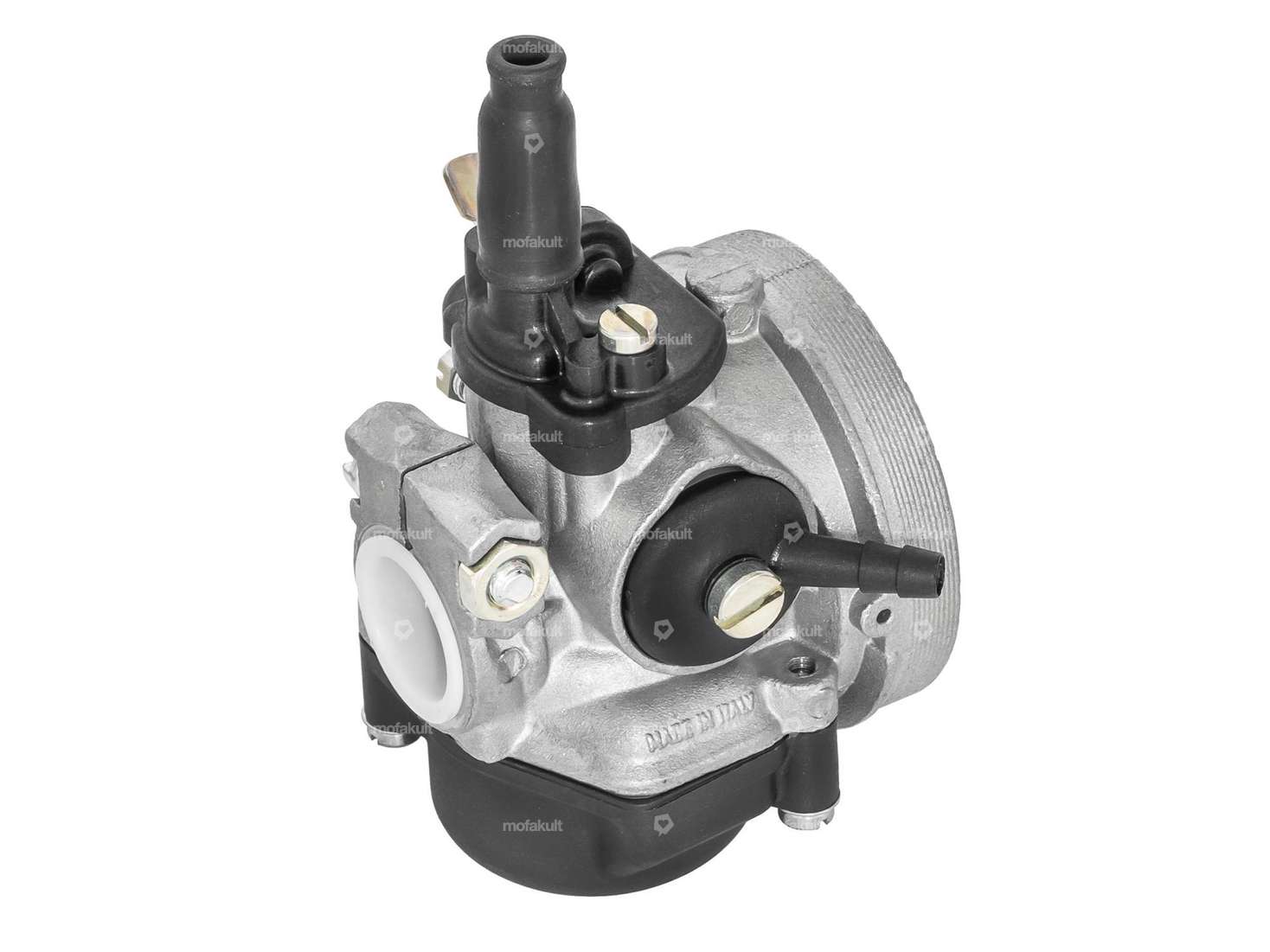

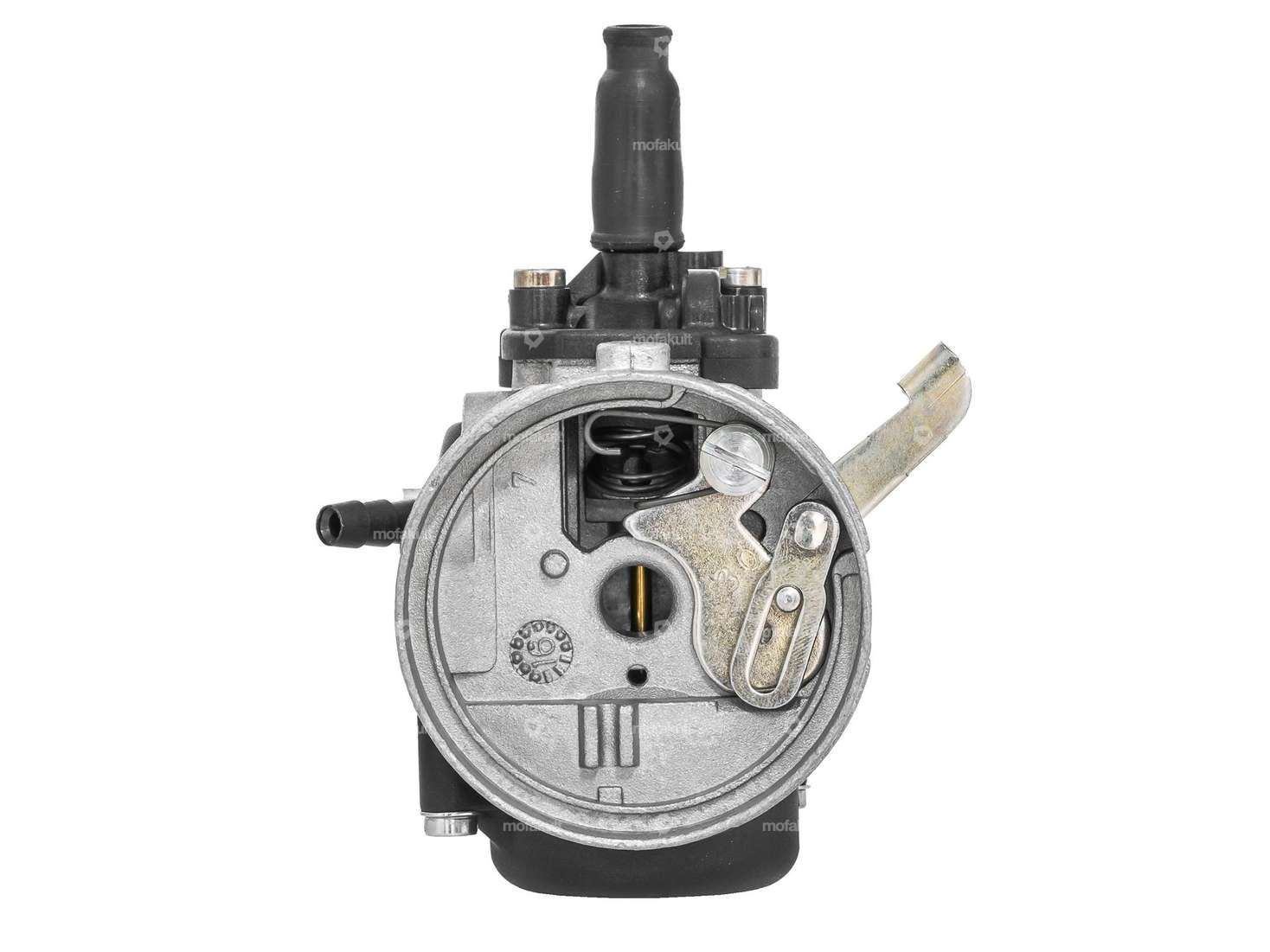

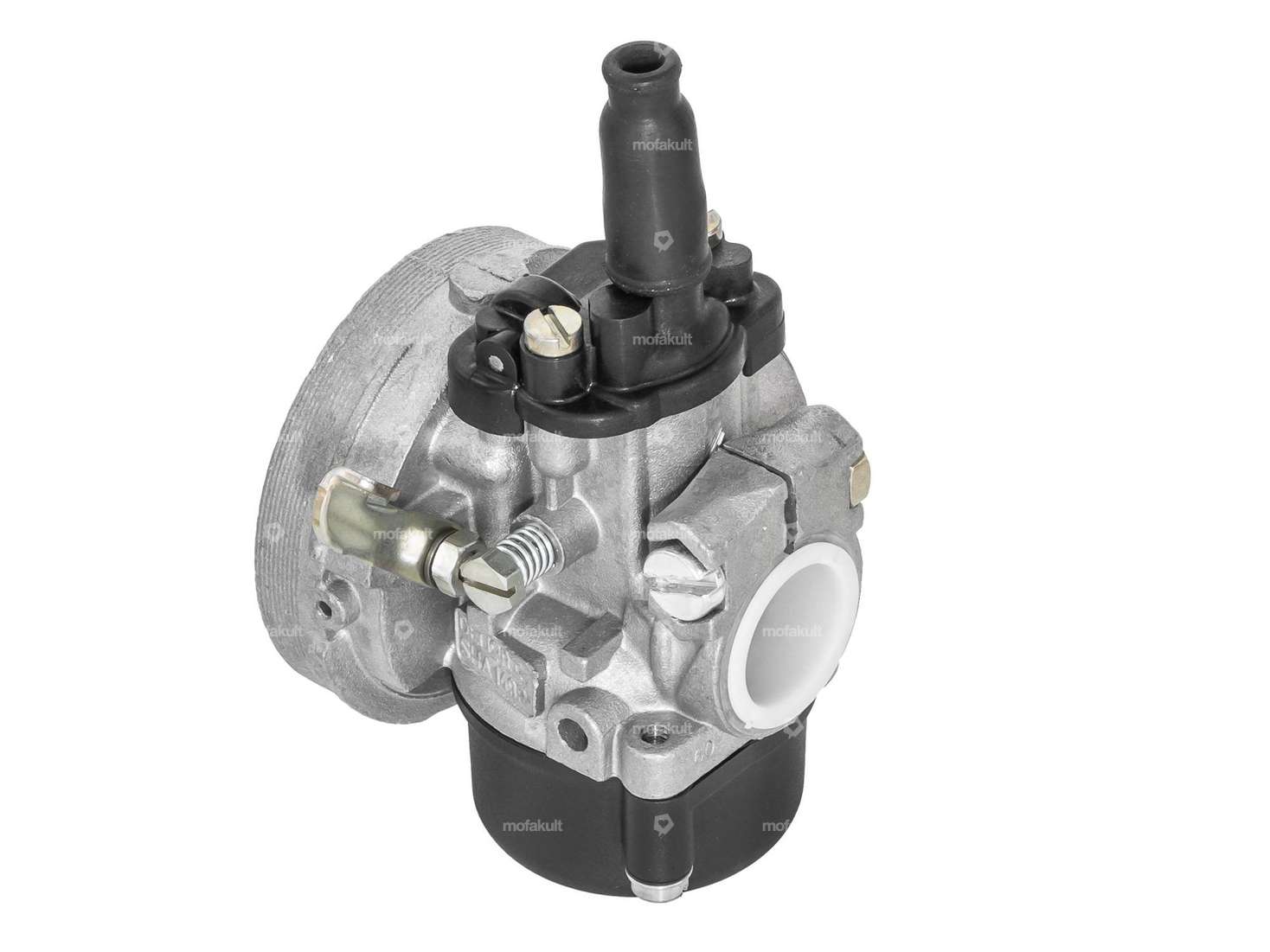

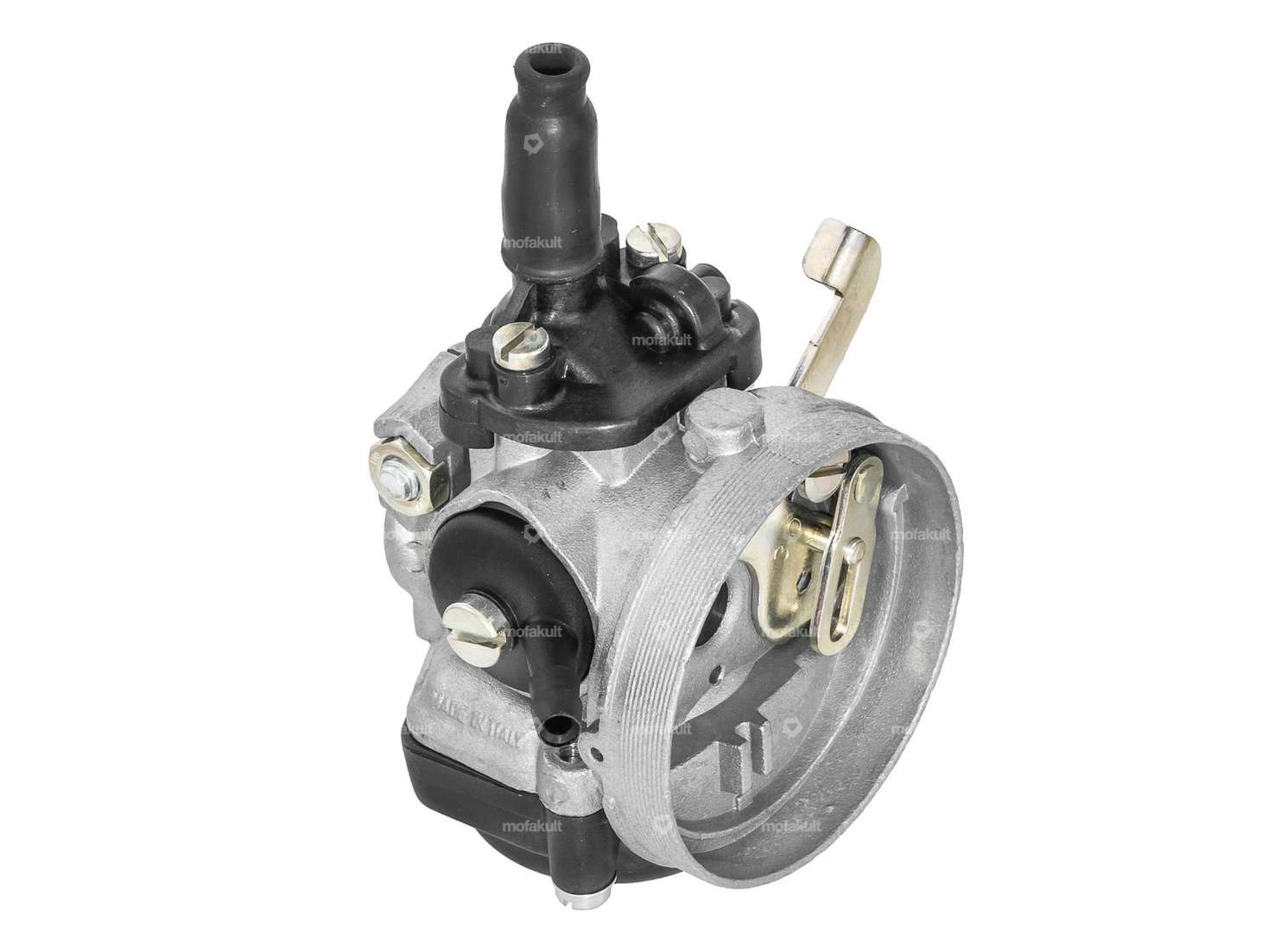

The Dell'Orto 14 / 9 SHA carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Morini Franco.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 43
Inlet connection diameter: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 9 mm
Ø passage on intake manifold side: 14 mm
Total height: 95 mm (without pipe bend)
Total length: 58 mm
Total width: 65 mm
Matching nozzles, intake manifolds and air filters can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Details
Width | 65 mm |
Height | 95 mm |
Manufacturer | Dell'Orto |
Total length | 58 mm |
Area of application | Original |
Carburetor type | SHA (type 4) |
Nominal diameter | 14 mm |
Ø Internal connection | 18 mm |
Ø without reducing sleeve | 21 mm |
Ø Inside entrance | 9 mm |
Ø Output inside | 14 mm |
Ø Air filter connection | 59 mm |
Mounting type | Plug connection clamped |
Ø fuel hose connection | 6 mm |
Choke control | Hand choke |
Nozzle thread | M5 |
Nozzle size | 43 |
Suitable for the following models
Universal | |
Franco Morini |
