Universal

29710

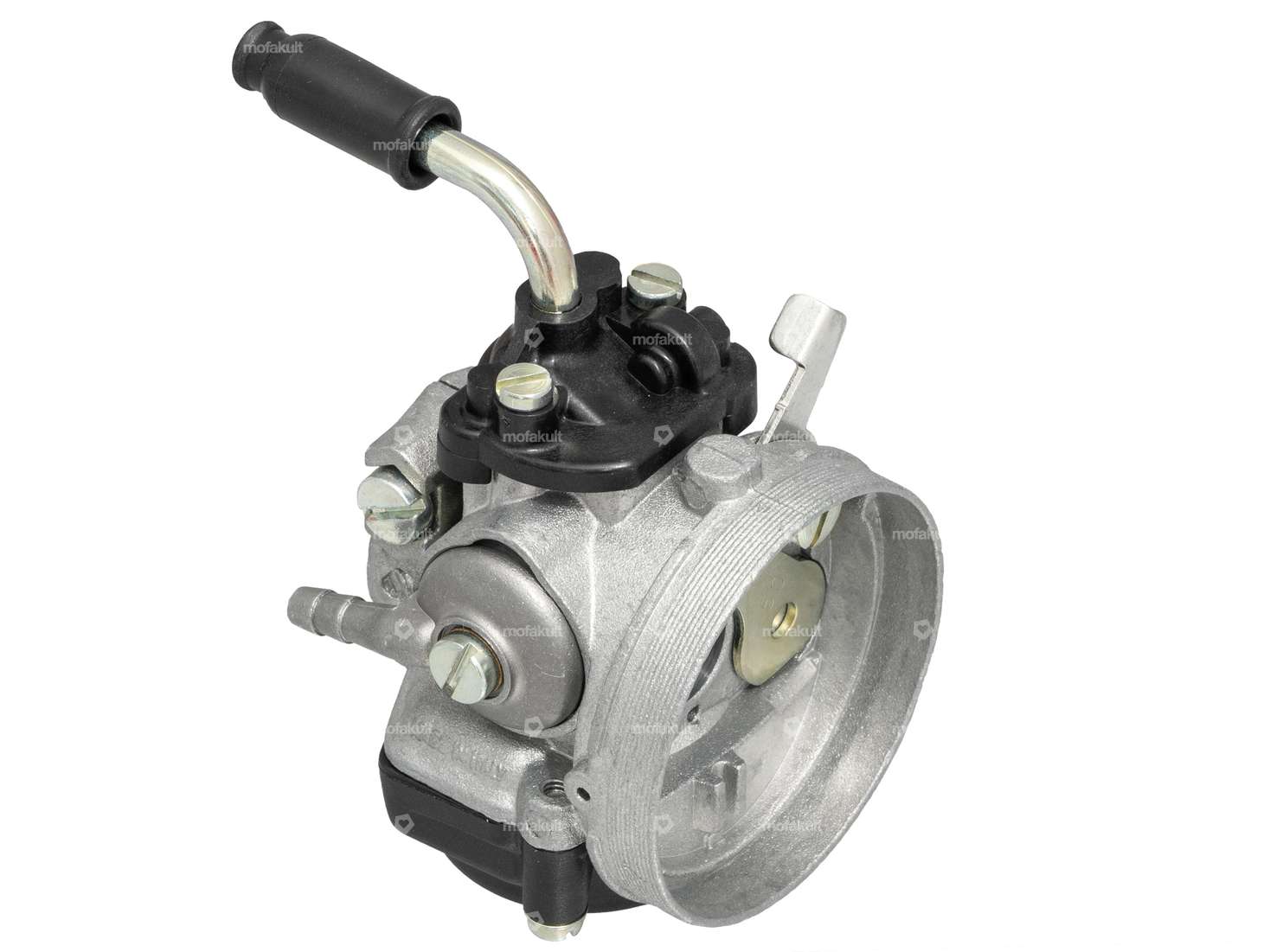

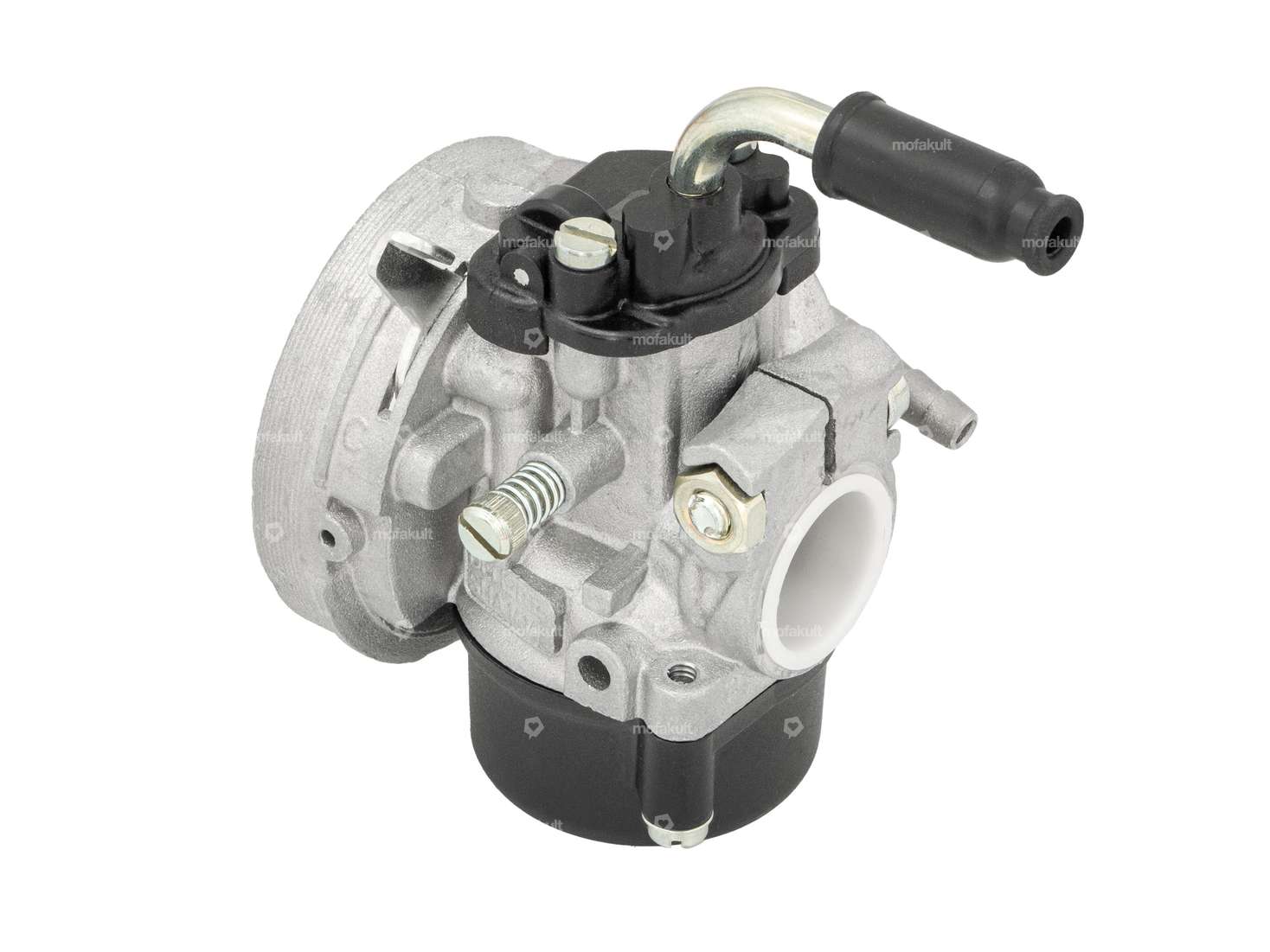

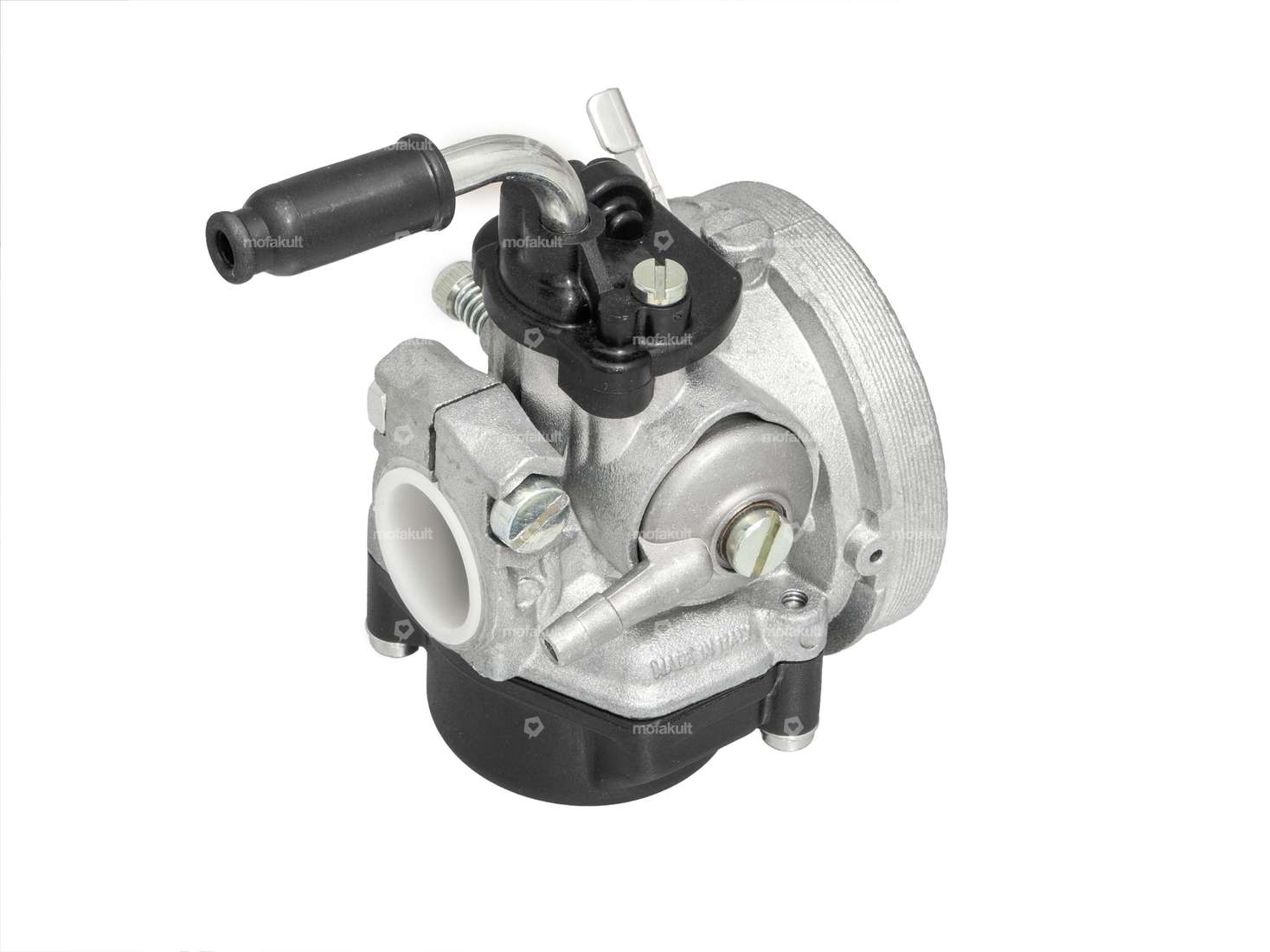

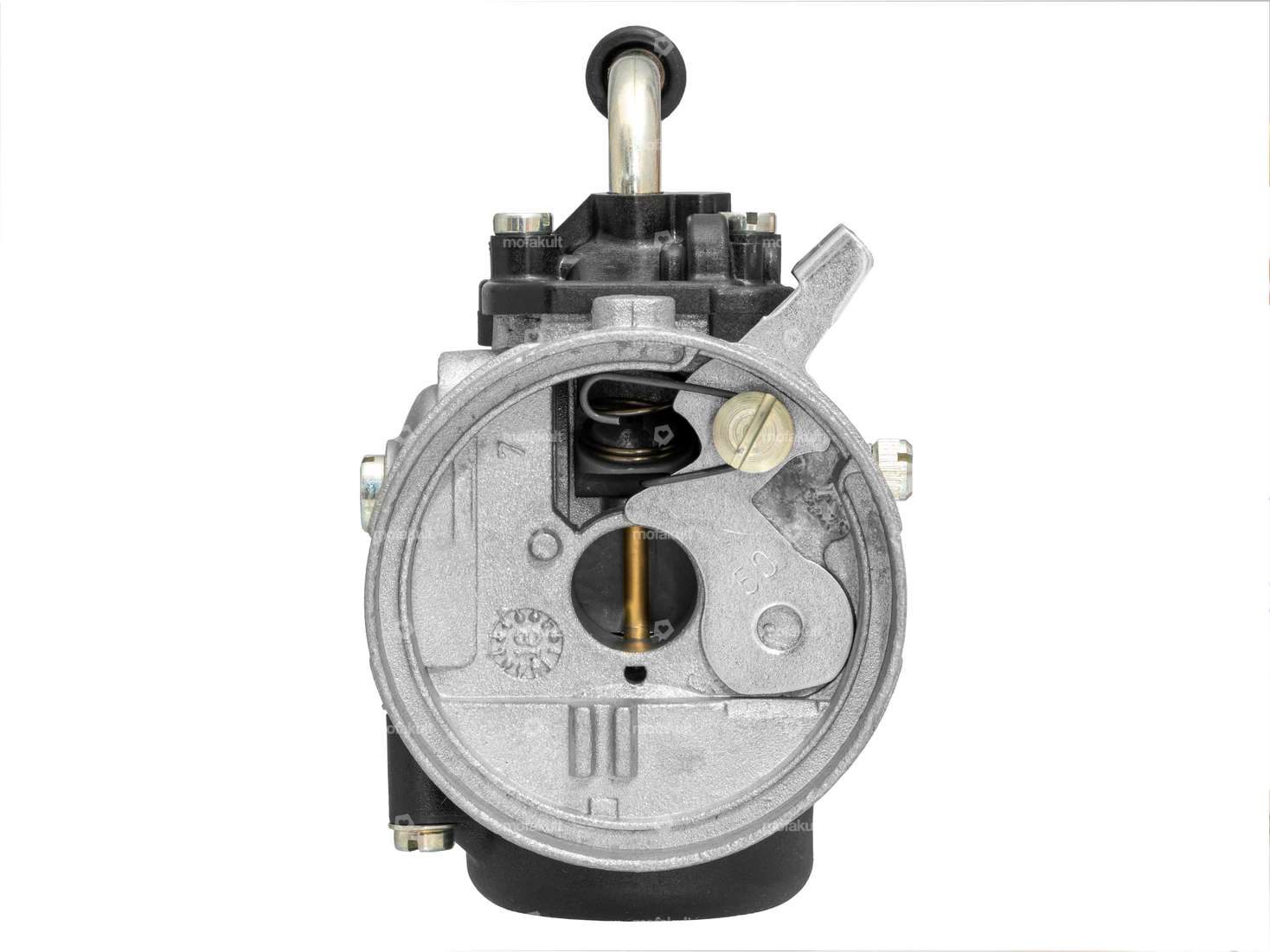

Dell'Orto 14/14 L SHA carburetor hand choke

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 80,70

Incl. 20% VAT.

The Dell'Orto 14 / 14 L SHA carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 68
Ø Intake port connection: 19 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø external air filter connection: 59 mm
Ø passage on air filter side: 14 mm
Ø passage on intake manifold side: 14 mm
Total height: 95 mm (without pipe bend)
Total length: 58 mm
Total width: 65 mm

Matching nozzles, intake manifolds and air filters can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Details

Nominal diameter14 mm
Total length58 mm
Width65 mm
ManufacturerDell'Orto
Area of applicationTuning
Component group CarburetorCarburetor complete
Carburetor typeSHA
Choke controlHand choke
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Mounting typePlug connection clamped
Nozzle size68
Ø without reducing sleeve21 mm
Ø Internal connection19 mm
Ø Inside entrance14 mm
Ø Output inside14 mm
Ø Air filter connection59 mm
Height95 mm
