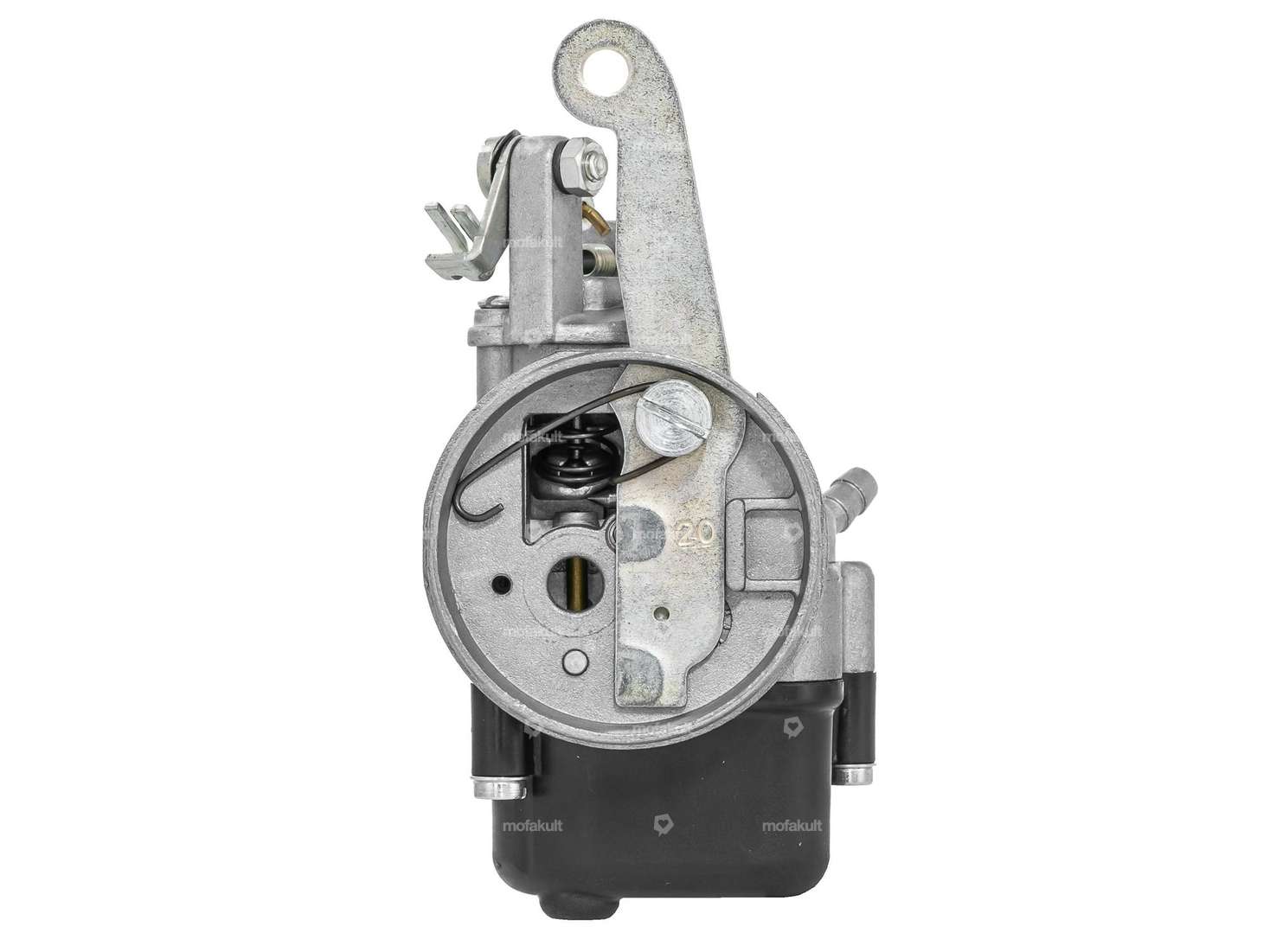

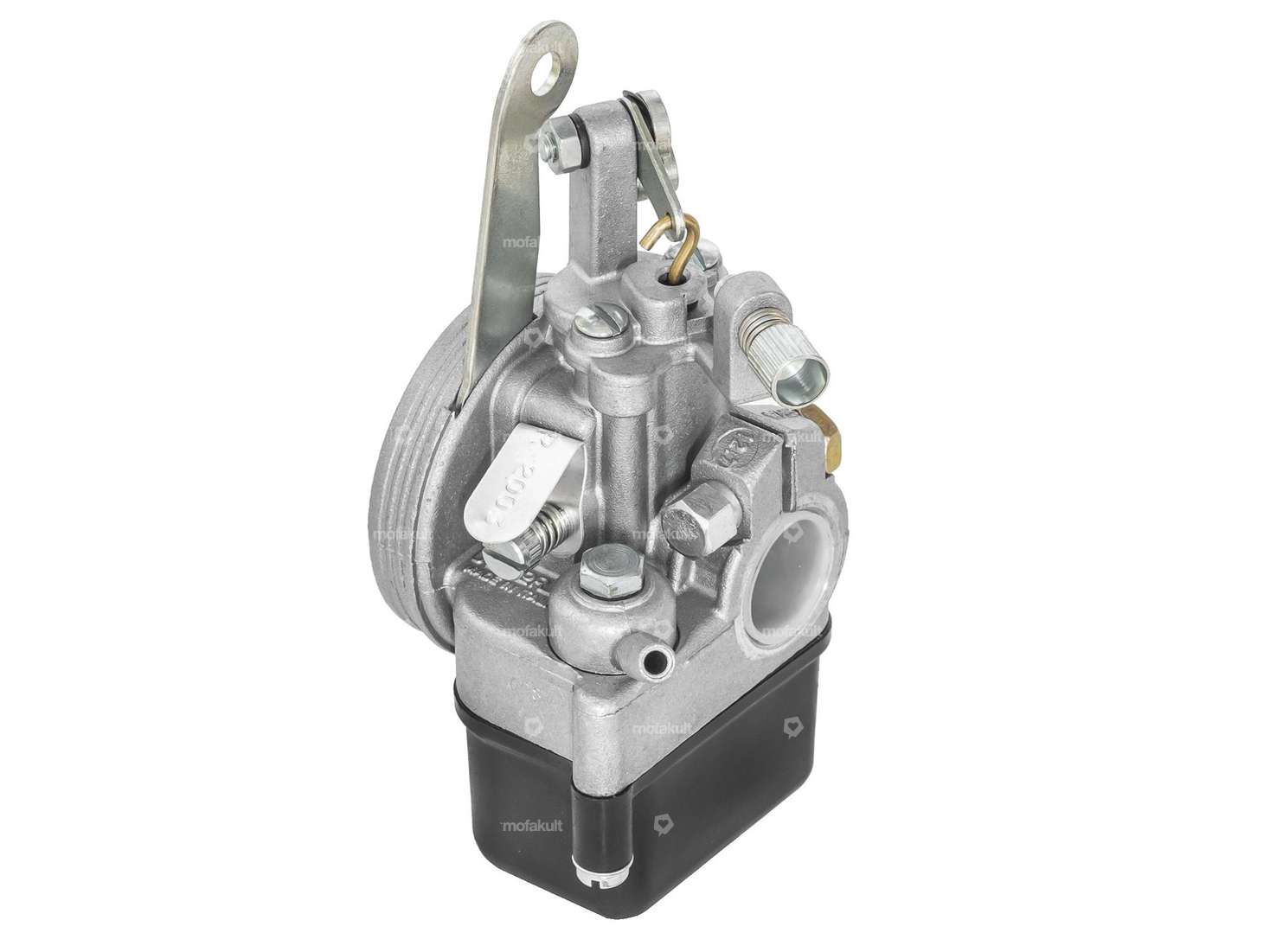

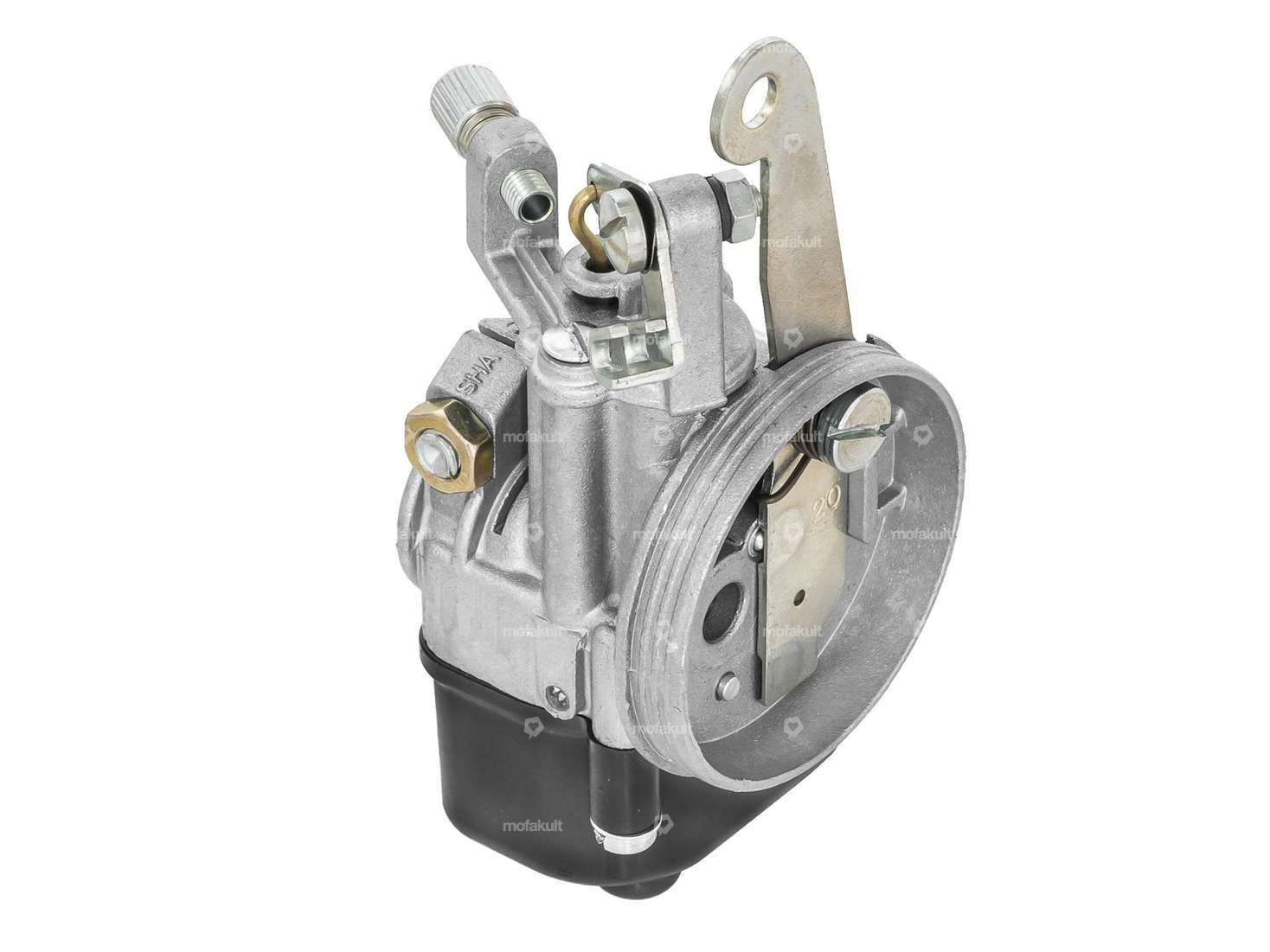

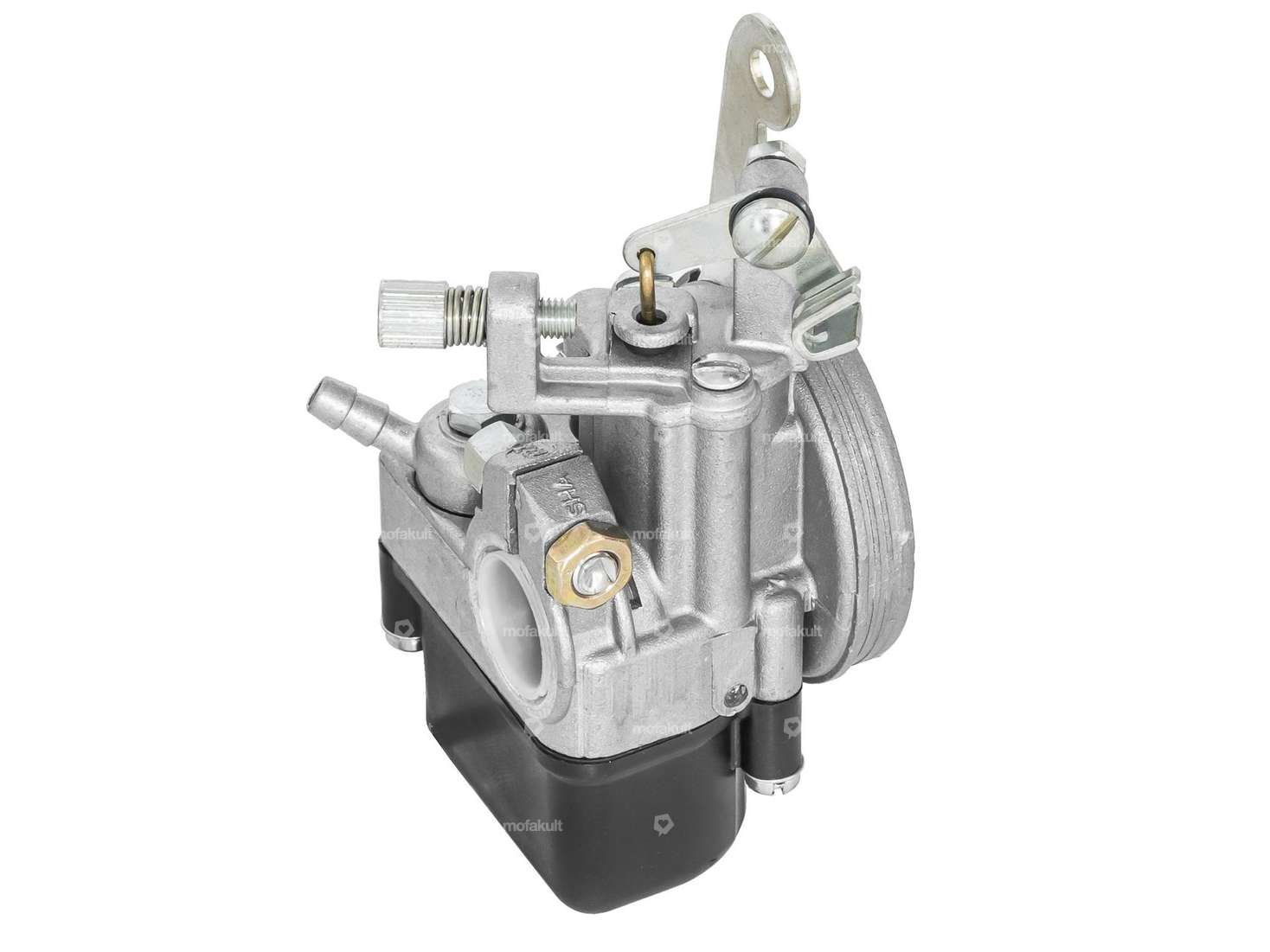

The Dell'Orto 12 / 7 SHA carburetor impresses with its compact design and is suitable for your Piaggio Si moped / moped.
The carburetor body has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 36
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 7 mm
Ø passage on intake manifold side: 12 mm
Total height: 117 mm (without pipe bend)
Total length: 60 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Original Piaggio spare part number: 244346
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Width | 60 mm |
| Carburetor type | SHA (type 3) |
| Height | 117 mm |
| Nominal diameter | 12 mm |
| Ø Internal connection | 16 mm |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 60 mm |
| Nozzle size | 36 |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 7 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.8 mm |
| Mounting type | Plug connection |
| Area of application | Original |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Si |
