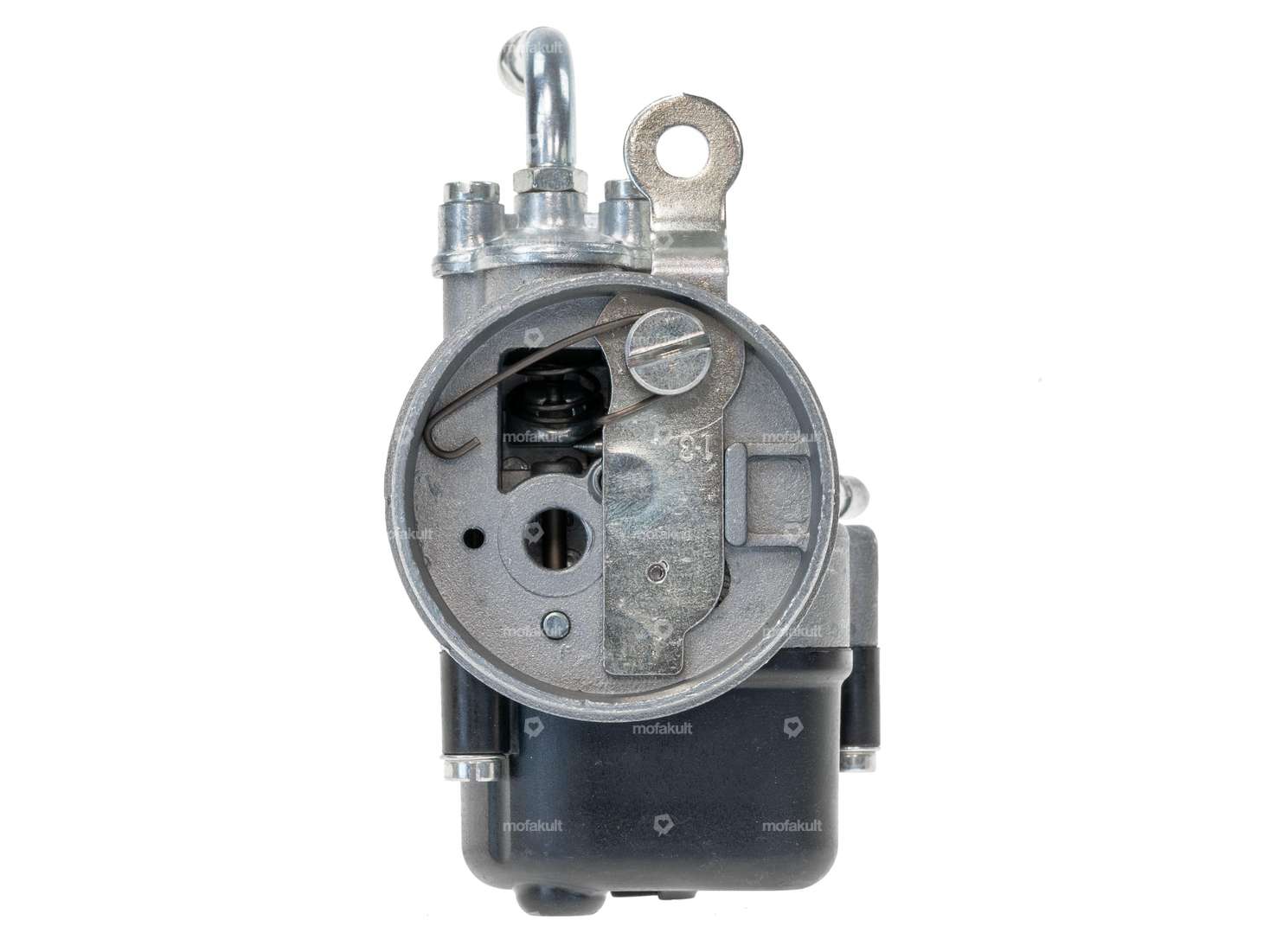

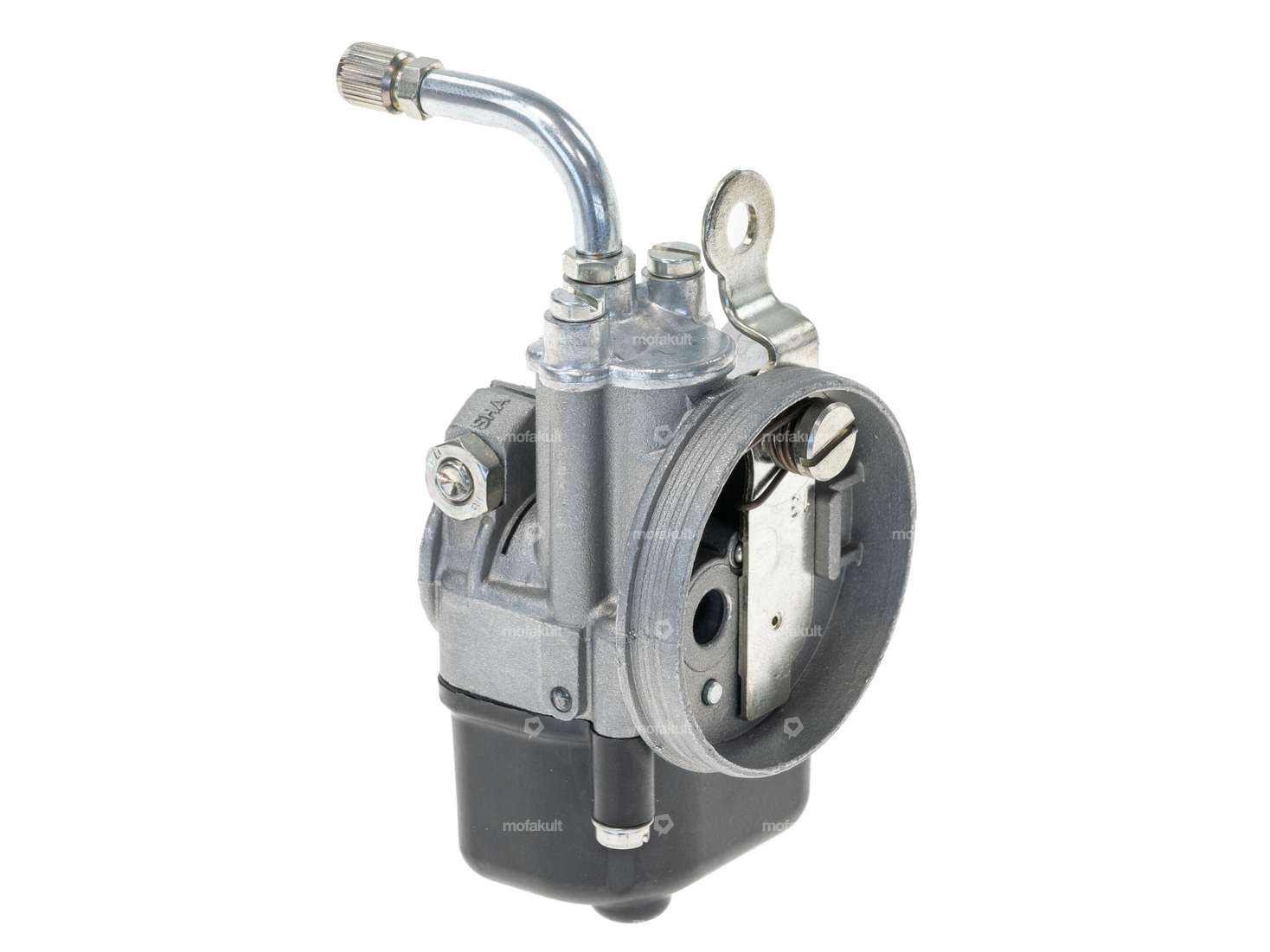

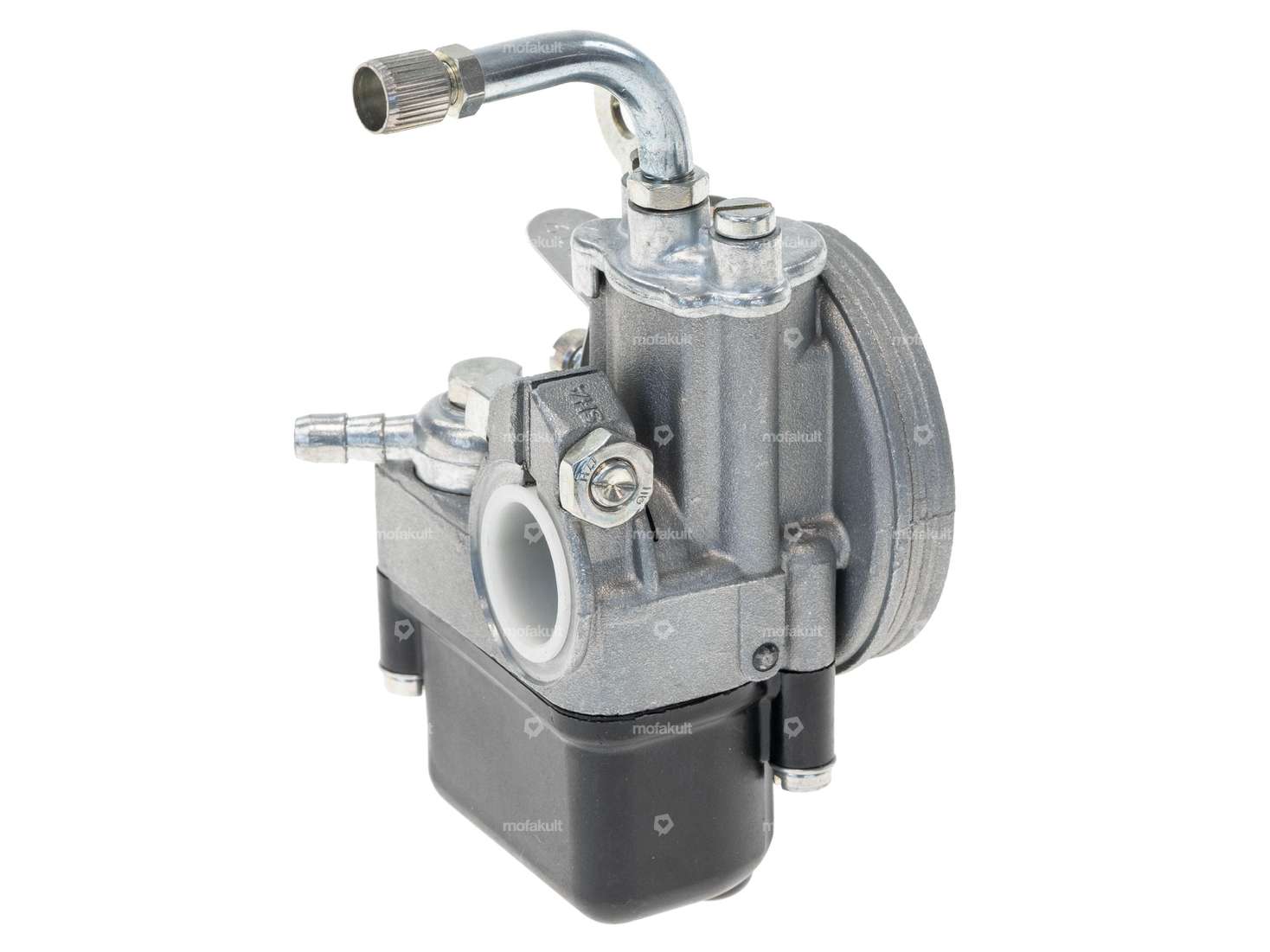

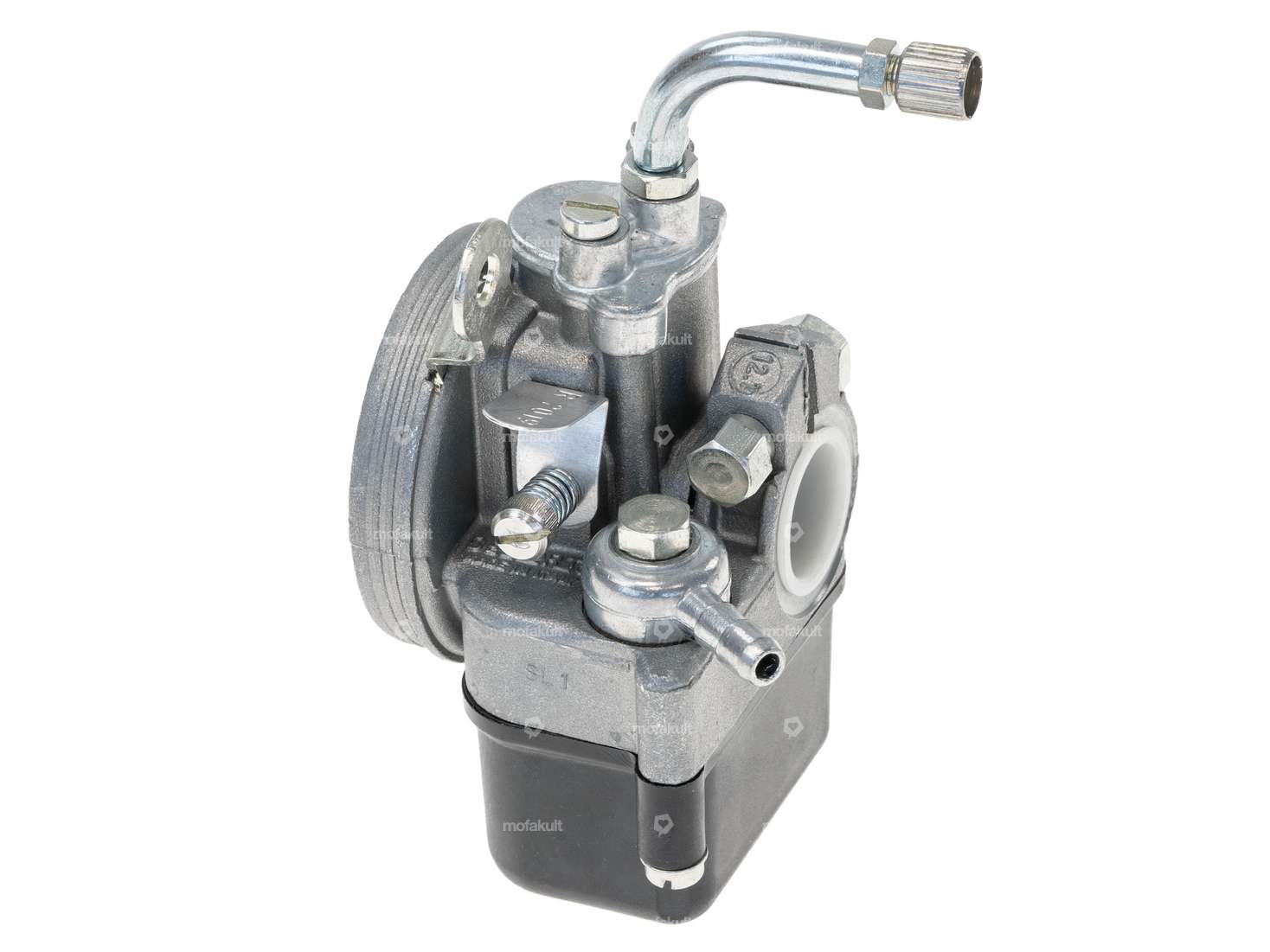

Dell'Orto 12/7 SHA carburetor hand choke | Piaggio Ciao C24

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 78,80

Incl. VAT, plus shipping costs

in stock

The item is in stock. Delivery time 2–4 workdays

The Dell'Orto 12 / 7 SHA original carburetor impresses with its compact design and fits perfectly on your Piaggio Ciao moped / moped.

This replica of the original carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 36
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 7 mm
Ø passage on intake manifold side: 12 mm
Total height: 97 mm (without pipe bend)
Total length: 45 mm
Total width: 62 mm

You can find matching nozzles and air filters in the accessories section.

Original Piaggio spare part number: 247270

Quality product from the Italian manufacturer Dell'Orto.

Details

Nominal diameter12 mm, 7 mm
ManufacturerDell'Orto
MaterialAluminum
Colorblack
Carburetor typeSHA (type 3)
Ø without reducing sleeve18 mm
Ø Internal connection16 mm
Ø Inside entrance7 mm
Ø Output inside12 mm
Ø Air filter connection50.8 mm
Ø fuel hose connection6 mm, 5 mm
Total length45 mm
Mixed oil connectionNo
Mounting typePlug connection clamped
Width60 mm
Vacuum connectionNo
Height112 mm
Choke controlHand choke
Nozzle threadM5x0.8 (standard thread)
Nozzle size36
CamouflagedNo
Area of applicationOriginal, Standard

Suitable for the following models

Piaggio

Ciao - Ciao
