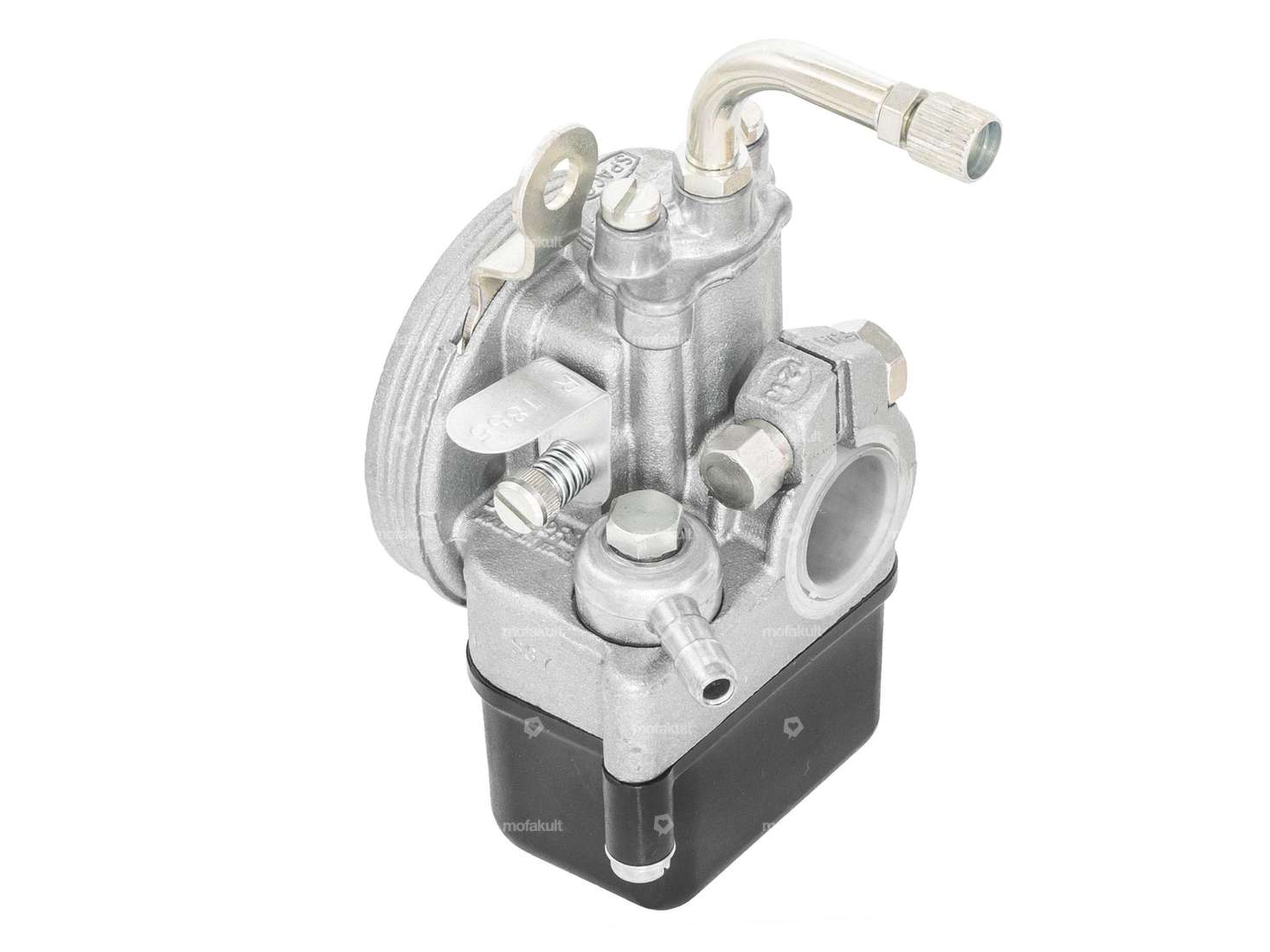

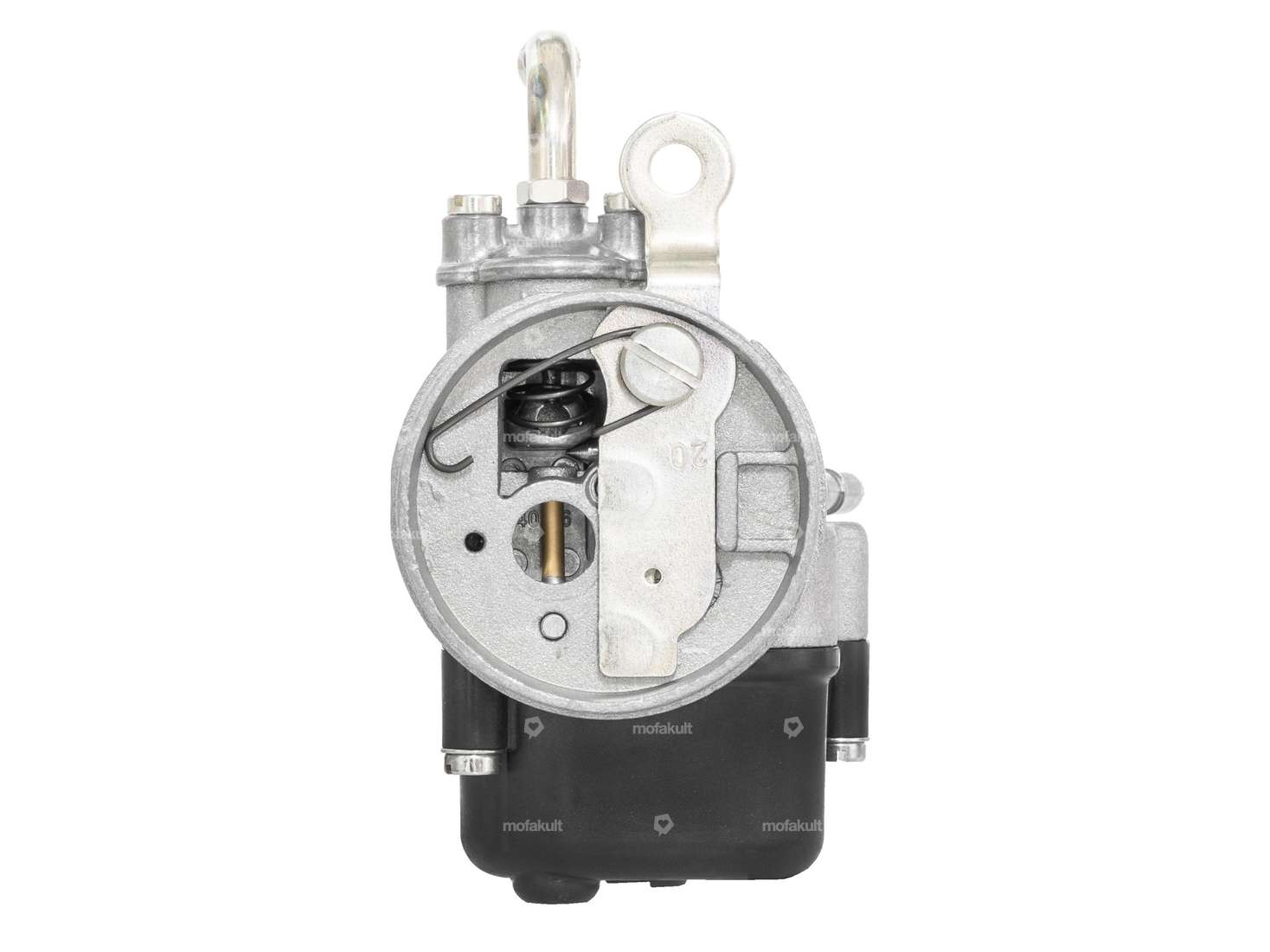

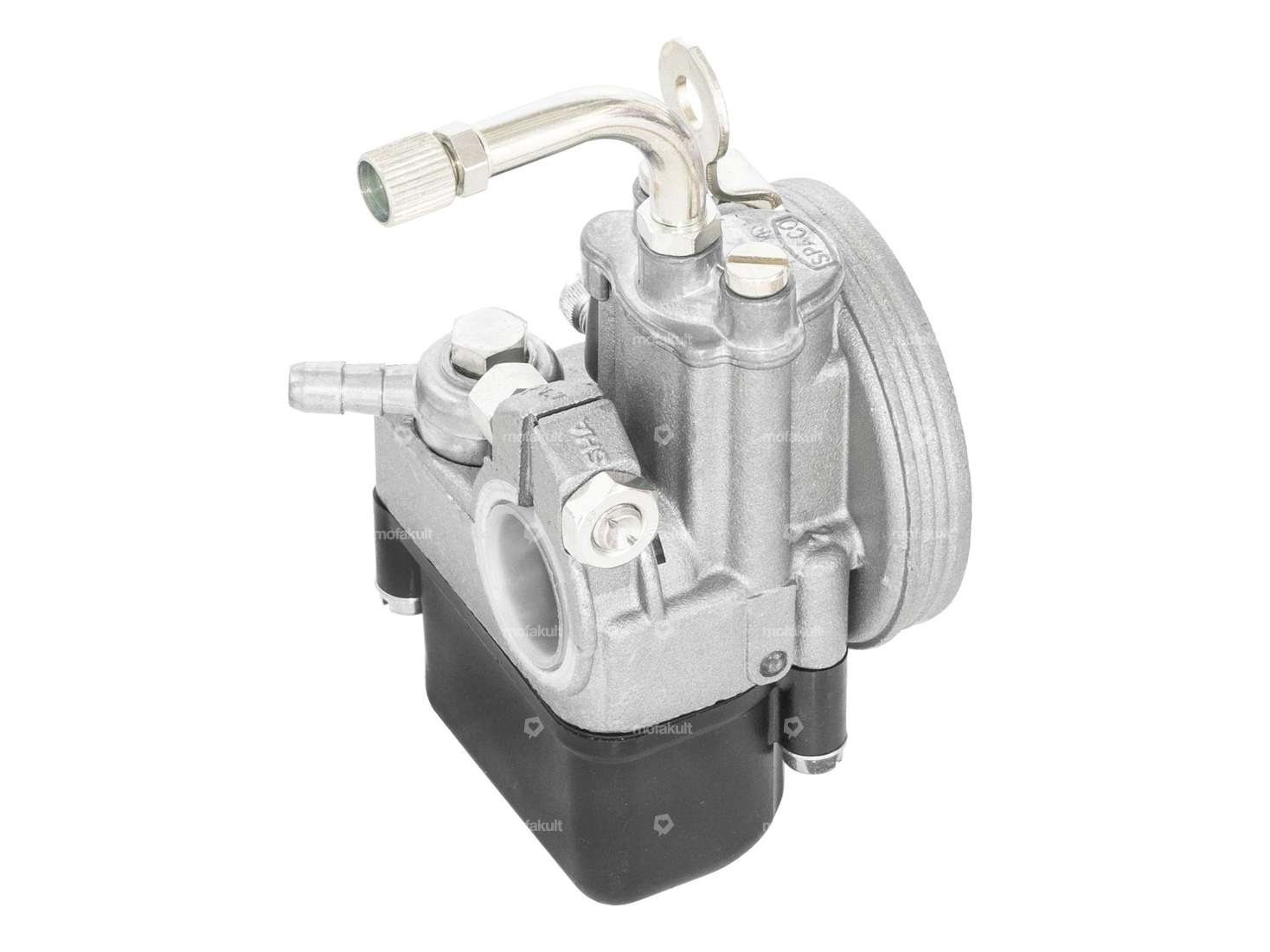

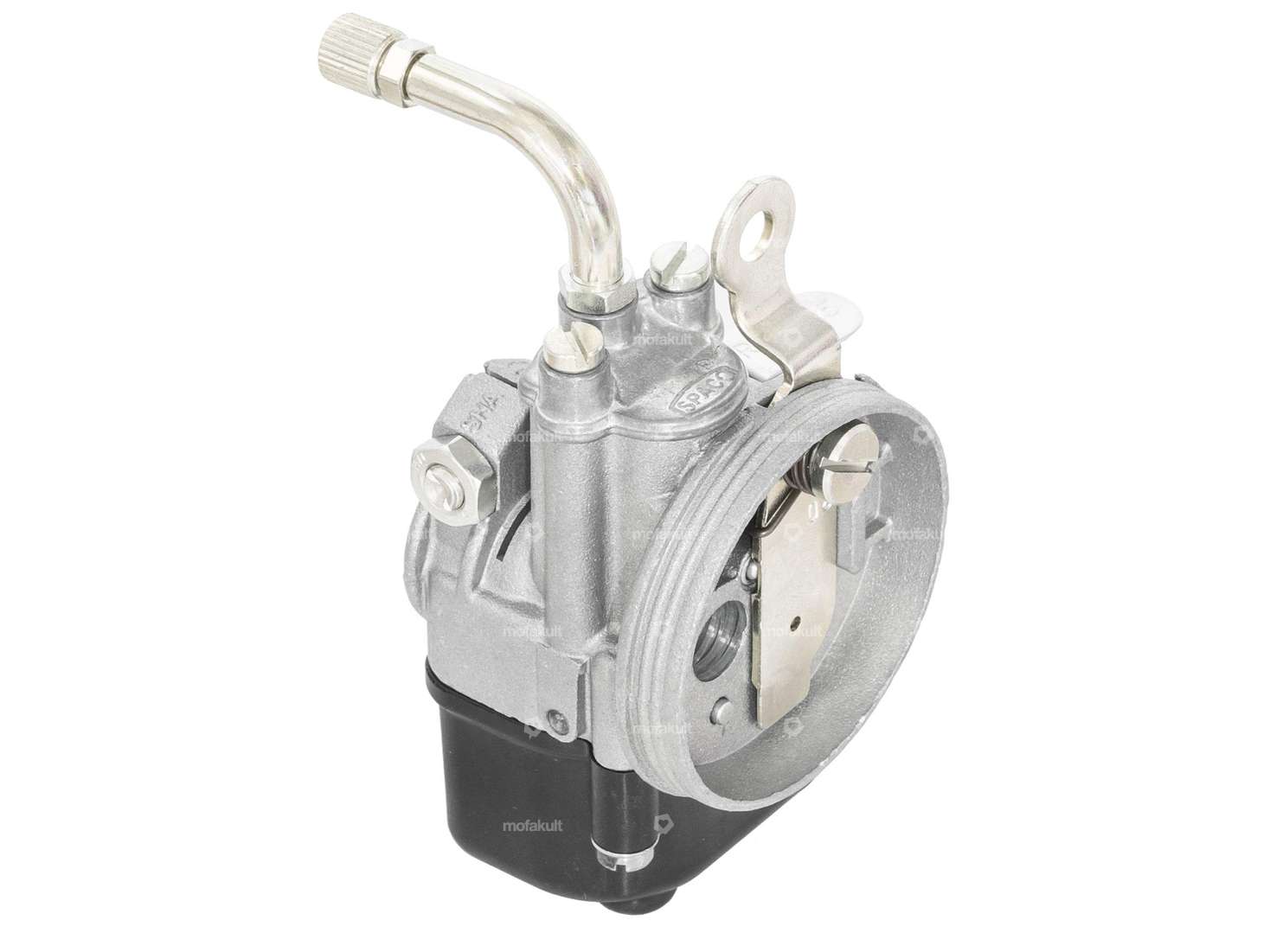

The Dell'Orto 12 / 10 SHA carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.
The carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 37
Inlet connection diameter: 16 mm (or 19 mm after removing the reduction sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 10 mm
Ø passage on intake manifold side: 12 mm
Total height: 96 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
The set includes the following fixed parts:
Nozzle size: 37 · Manufacturer: Dell'Orto · Camouflaged: No · Material: Aluminum · Color: black · Carburetor type: SHA (type 3) · Nominal diameter: 12 mm, 10 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm, 5.3 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 111 mm · Area of application: Original, Tuning
Details
| Manufacturer | Dell'Orto |
| Area of application | Tuning |
| Carburetor type | SHA (type 3) |
| Nominal diameter | 12 mm |
| Ø Internal connection | 16 mm |
| Ø without reducing sleeve | 19 mm |
| Ø Inside entrance | 10 mm |
| Ø Output inside | 12 mm |
| Mounting type | Plug connection clamped |
| Ø Air filter connection | 50.6 mm |
| Ø fuel hose connection | 6 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 45 mm |
| Width | 60 mm |
| Nozzle size | 37 |
| Height | 96 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao |
