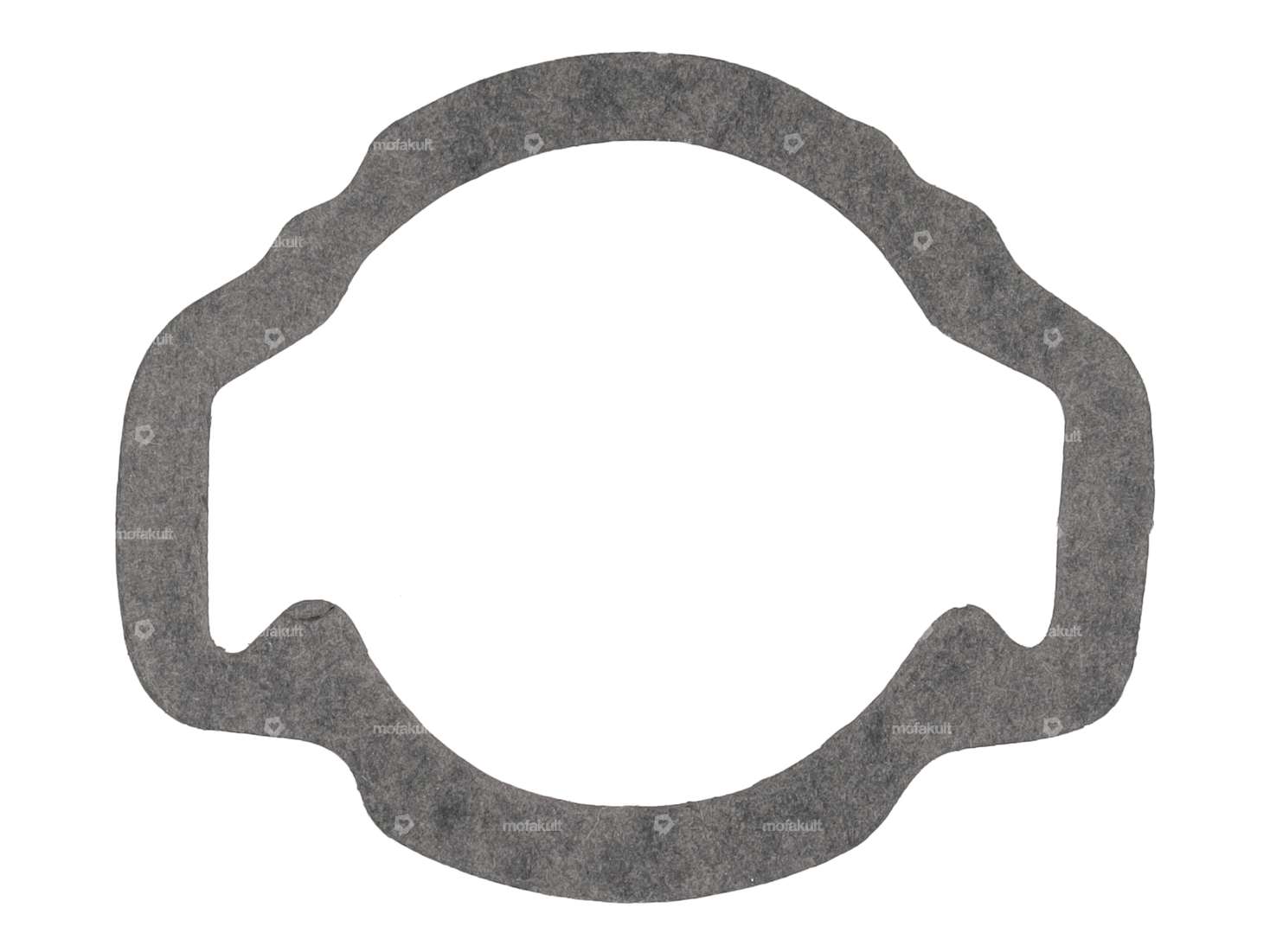

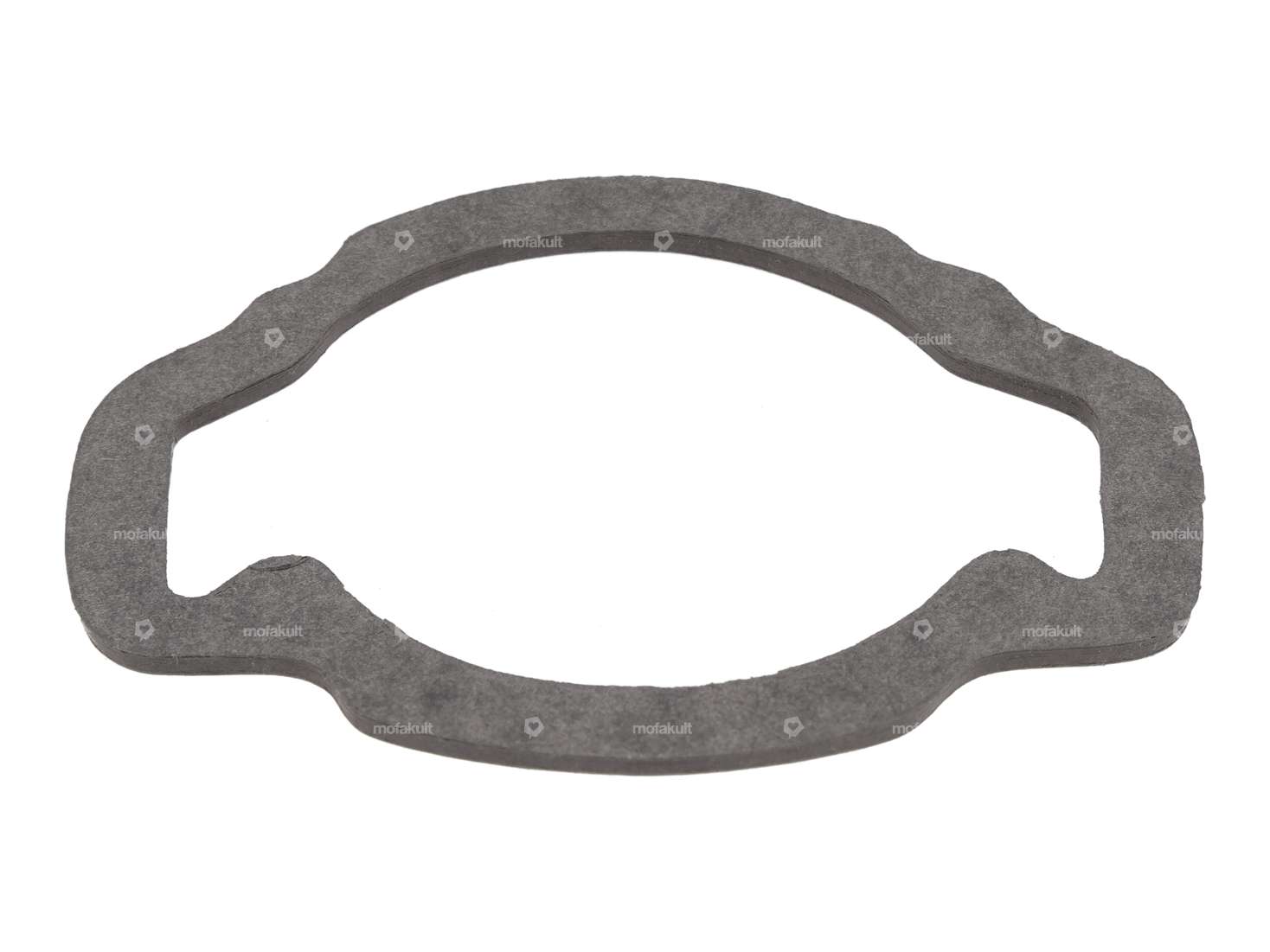

Cylinder base gasket, fan-cooled cylinder (2 mm)

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Place of use: Outlet · Ø screw holder: 6.3 mm · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Hole spacing outlet: 42.5 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Thread length: 12 mm · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread) · Total length: 30 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Area of application: Gearbox lubrication with clutch · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

Exhaust cigar 28 mm chrome | Puch Maxi S, N / X30 NS, NL

Ø outside: 70 mm · Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø Internal connection: 28 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Number of fixing points: 1 pcs · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Flame tube attachment: Flange · Total length: 920 mm

Meteor piston 38 mm #1 | Puch

Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 1 · Piston weight: 79 g · Puch OEM number: 349.1.10.106.0/21

Meteor piston 38 mm #3 | Puch

Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 3 · Piston weight: 79 g

Exhaust clamp 28 mm with rubber

Ø inside: 26.5 - 28 mm · Material: Rubber · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Mounting type: Nuts & bolts · Total length: 40 mm

swiing® revival stud bolt set M6 x 106 mm | Puch

Drive: External hexagon · Width across flats SW: 10 mm · Manufacturer: swiing® revival parts · Thread length: 13 mm · Thread length: 18.5 mm · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Cylinder base gasket, fan-cooled cylinder (1 mm)

Place of use: Cylinder base

swiing piston 41 mm (12 mm KoBo) Racing | Puch X30 Velux fan-cooled

Manufacturer: swiing · Surface: molybdenum-coated · Ø outside piston (A): 40.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 94 g
