Real junk that definitely does not belong on your moped! The quality is so bad that the item only serves as a memorial - you can't buy it from mofakult.

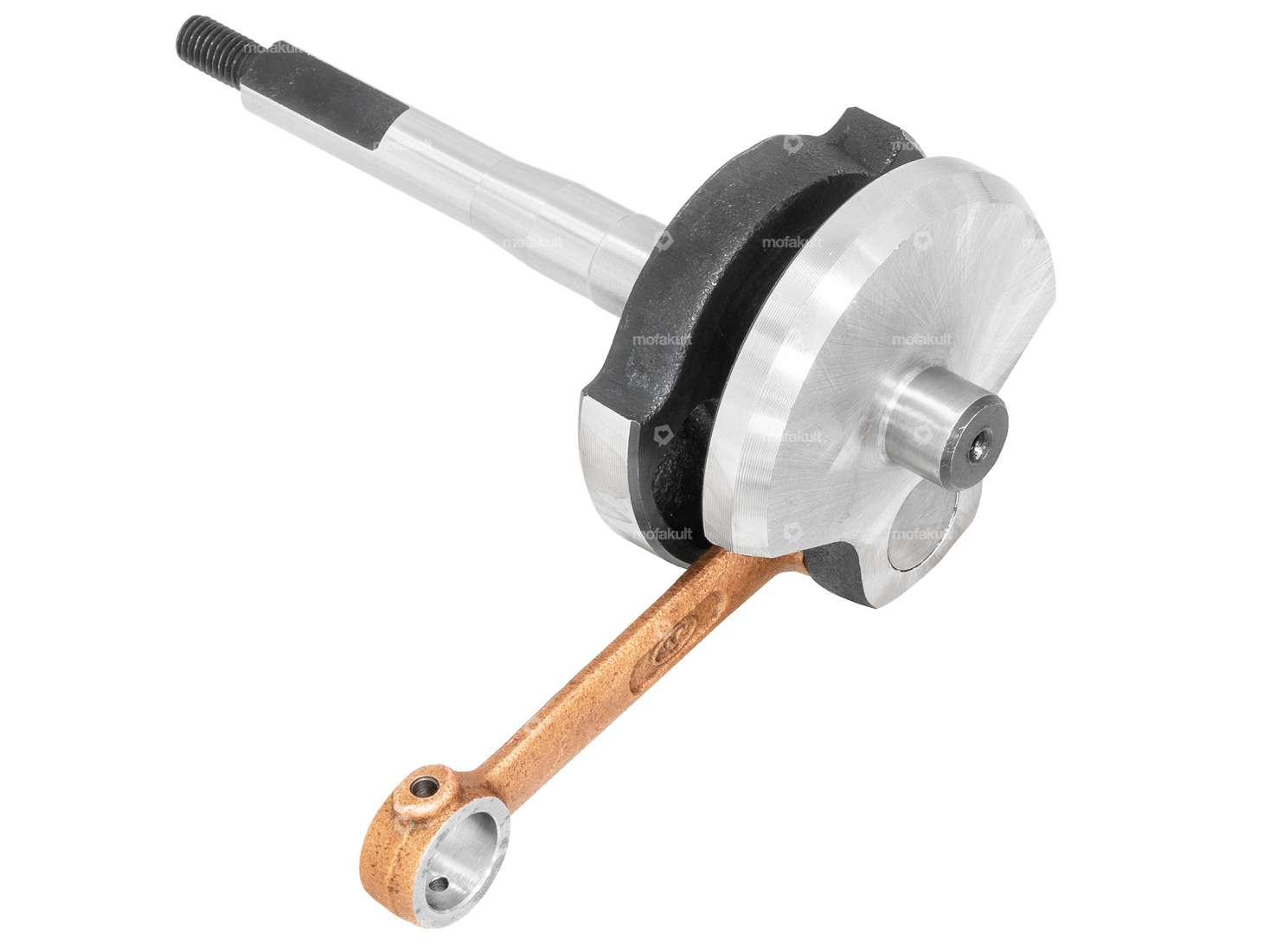

Crankshaft for all Piaggio moped & moped models (Ciao, Si, Bravo, Boxer, Grillo).
This crankshaft fits all cylinders with 12 mm piston pin. However, as the crank web has not been machined properly, it protrudes from the housing and is therefore unusable.
You can find usable alternatives in the accessories section.
Original Piaggio spare part number: 1841545
Details
| Weight | 697 g |
| Manufacturer | Quenching |
| Area of application | Standard |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 90 mm, 106 mm |
| Ø crank webs | 69.8 mm |
| Thread length | 16 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Thread type | M8x1.25 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 32.9 mm |
| Length 1st paragraph | 20.3 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 63.5 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
