CIF repair kit fork | Piaggio Ciao

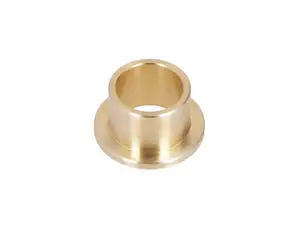

swiing® ingenious bushing fork swing arm brass original | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Material: Brass · Ø outside: 16 mm · Ø inside: 12.85 mm · Total length: 12 mm · Ø Bundle: 22 mm

swiing® revival plain bearing fork swing arm brass original | Piaggio Ciao

Ø inside: 12.85 mm · Nominal diameter inside: 13 mm · Ø outside: 16 mm · Ø Bundle: 22 mm · Total height: 12 mm · Manufacturer: swiing® revival parts · Material: Brass

swiing fork springs (Ø 28 mm) white | Piaggio Ciao PX, C24

Ø wire: 4.2 mm · Manufacturer: swiing · Material: Spring steel · Surface: powder-coated · Color: white · Ø outside: 28 mm · Ø inside: 19.6 mm · Total length: 110 mm

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Material: Rubber · Color: black · Surface: raw · Width: 16.25 mm · Ø outside: 7.9 mm · Total length: 22.8 mm · Ø mounting hole: 6.9 mm · Height: 8.8 mm · Area of application: Standard · Total height: 22.7 mm

Fork repair kit (galvanized springs) | Piaggio Ciao

Ø wire: 3.8 mm · Material: Plastic · Material: Rubber · Material: Spring steel · Material: Steel · Color: black · Surface: galvanized (blue) · Surface: powder-coated · Color: silver · Ø outside: 27.4 mm · Ø inside: 20 mm · Total length: 99 mm

swiing® ingenious fork springs (Ø 28 mm) original Inox | Piaggio Ciao PX, C24

Ø wire: 4.25 mm · Manufacturer: swiing® ingenious parts · Material: Chrome steel (stainless steel) · Color: Chrome · Surface: trowalized · Ø outside: 28.4 mm · Ø inside: 20 mm · Total length: 110 mm

swiing® ingenious fork springs (Ø 28 mm) reinforced +20 % Inox | Piaggio Ciao PX, C24

Ø wire: 4.25 mm · Manufacturer: swiing® ingenious parts · Material: Chrome steel (stainless steel) · Color: Chrome · Surface: electropolished · Ø outside: 28.4 mm · Ø inside: 20 mm · Total length: 110 mm

swiing fork springs (Ø 28 mm) reinforced +50 % Inox | Piaggio Ciao PX, C24

Ø wire: 4.5 mm · Manufacturer: swiing · Material: Chrome steel (stainless steel) · Color: Chrome · Surface: electropolished · Ø outside: 28.4 mm · Ø inside: 20 mm · Total length: 110 mm

Spring holder swing arm (Ø 28 mm spring) | Piaggio Ciao

Material: Aluminum · Ø outside: 23.5 mm · Ø inside: 7.8 mm · Thread type: M6x1 (standard thread) · Piaggio OEM number: 103411 · Piaggio OEM number: 175865

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Color: black · Surface: ribbed · Width: 51 mm · Width across flats SW: 15 mm · Total length: 118 mm · Drive: Outer edge · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 250 mm

Tail light black | Piaggio Ciao PX, C24, Bravo

Manufacturer: Made in Italy · Material: Plastic · Bulb holder: BA9s · Color: black · Color: red · Width: 130 mm · Height: 58 mm · Mounting type: Nuts & bolts · Test mark: none · Depth: 43 mm · Battery operated: No · Number of fixing points: 2 pcs

GPO control bearing set | Piaggio Ciao

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 41.4 mm · Ø outside: 42 mm · Ø inside: 27 mm · Ø mounting frame: 30.05 mm · Height: 10.5 mm · Height: 17 mm · Thread type: FG25.4 (1" 24G) · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Color: black · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears

Handlebar Ø 21 mm with stem 23.5 cm | Piaggio Ciao

Manufacturer: Made in Italy · Material: Steel · Color: Chrome · Surface: chrome-plated · Width: 600 mm · Ø outside: 22 mm · Height: 260 mm · Mounting type: Front boom mounting · Ø Stem: 21 mm · Stem height: 160 mm · Length handlebar ends: 160 mm · Crossbar: No

Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm · Alternative version of the Piaggio OEM number: 103089 · Piaggio OEM number: 189525 · Piaggio OEM number: 257073

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Material: Rubber · Color: black · Surface: raw · Width: 16.25 mm · Ø outside: 7.9 mm · Total length: 22.8 mm · Ø mounting hole: 6.9 mm · Height: 8.8 mm · Area of application: Standard · Total height: 22.7 mm

Lock washer control head / end nut original | Piaggio Ciao

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (yellow) · Color: silver · Ø outside: 32.8 mm · Ø inside: 25.5 mm · Number of lobes: 3 pcs · Area of application: Standard · Thickness: 1.5 mm · Piaggio OEM number: 189305
