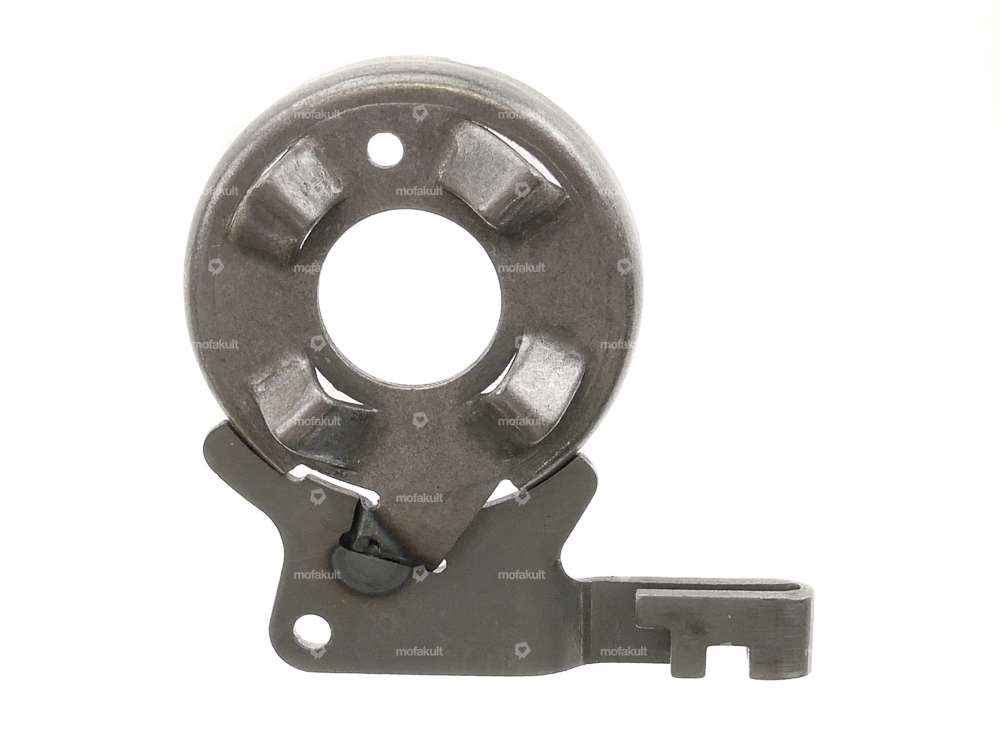

Cam shell | Sachs 503 AC, ADV (A5499)

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 17 mm · Manufacturer: Sachs · Material: NBR · Place of use: Crankshaft · Width: 7 mm · Ø outside: 33 mm · Temperature resistance (min.): -30 - 100 °C

NSK 6201 ball bearing 12/32/10

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 12 mm · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø outside: 32 mm · Ball bearing closed: No

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)

Width: 130 mm · Manufacturer: swiing® revival parts · Number of components: 1 pcs · Material: Sealing paper · Color: sand-colored · Thickness: 0.35 mm · Total length: 200 mm · Number of fixing points: 6 pcs · Pony spare part no.: A1888 · Sachs spare part no.: 0250 150 000

Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Ø inside: 14.96 mm · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Width: 3.5 mm · Ø outside: 31.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)

Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Connecting rod length center-center: 86 mm · Thread length: 7 mm · Thread length: 11 mm · Total length of crankpin on clutch side: 97 mm · Weight: 964 g · Total length crankpin ignition side: 62 mm · Ø crank webs: 83 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm · Number of gears: 2 pcs

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm · Puch spare part no.: 900.4.6202

NTN needle roller bearing 8/12/10 | Sachs 50/2, 503 (A1176)

Ø inside: 8 mm · Stock number: HK0810 · Manufacturer: NTN · Bearing type: Needle sleeve · Width: 10 mm · Ø outside: 12 mm · Dimension needle bearing: 8/12 x 10 · Pony spare part no.: A1176 · Sachs spare part no.: 0232 137 000

NSK 6000 ball bearing 10/26/8

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 10 mm · Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 8 mm · Ø outside: 26 mm

swiing® revival starter disk small | Sachs 503 AC / ADV (A5498)

Ø inside: 23 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Sheet metal (steel) · Material: Silicon carbide · Surface: raw · Number of jaws: 1 pcs · Ø outside: 55 mm · Ø outside: 59 mm · Thickness: 5.2 mm
