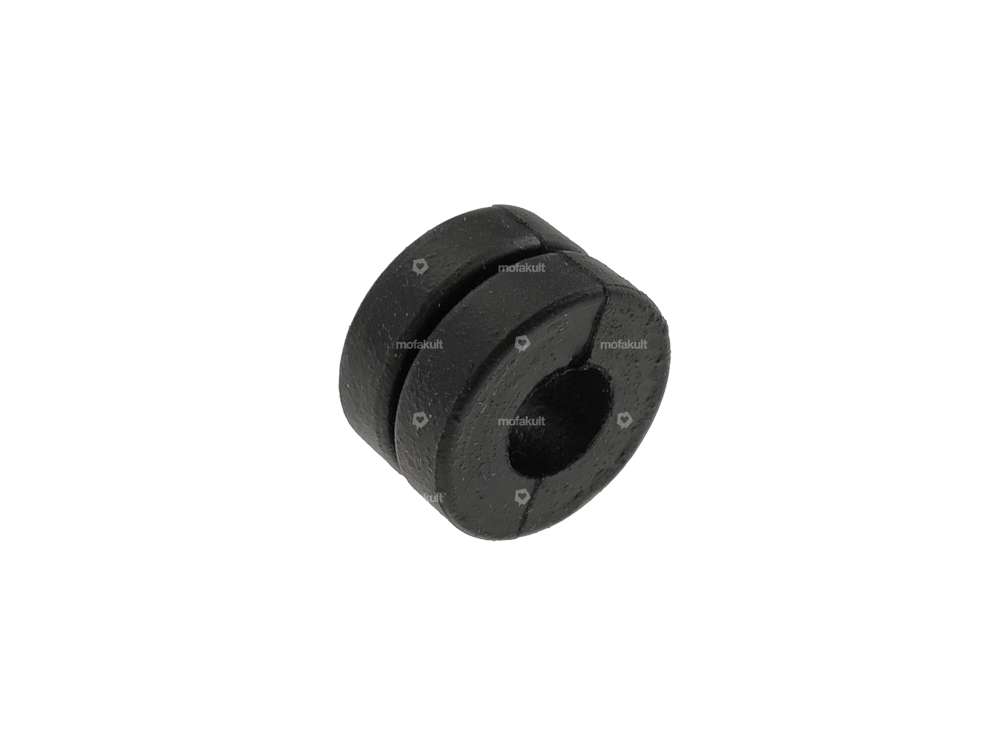

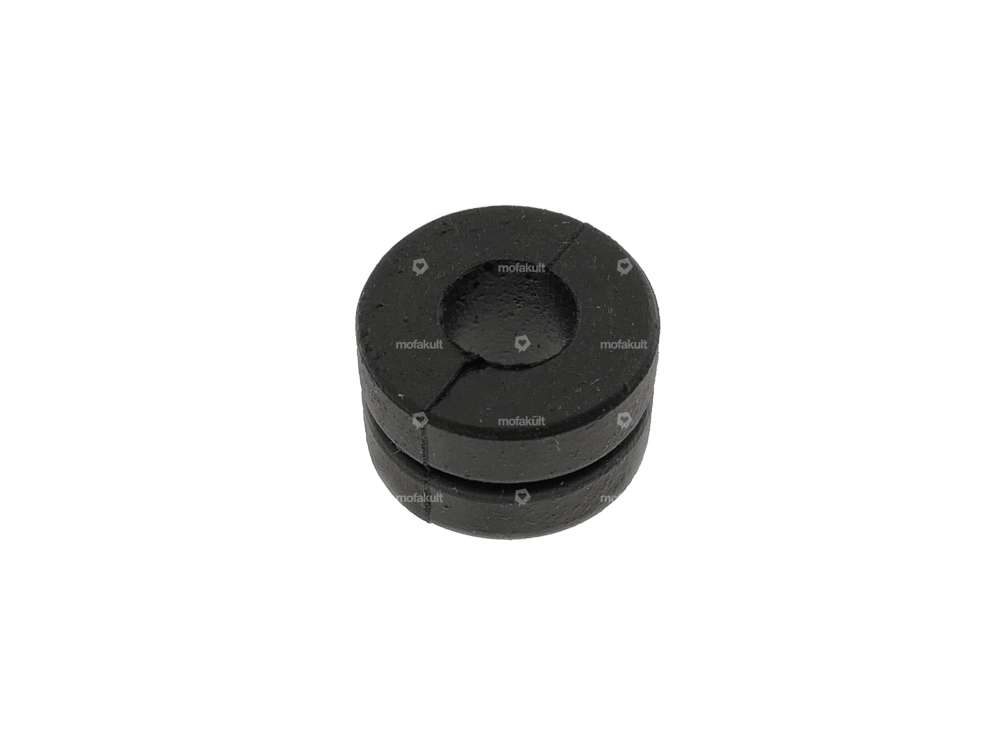

Buffer guard plate rear original | Piaggio Ciao

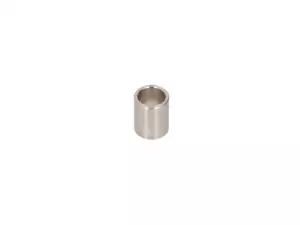

Spacer bushing rear fender Inox original | Piaggio Ciao

Ø inside: 6.1 mm · Manufacturer: Piaggio · Material: Chrome steel (stainless steel) · Nominal diameter: 6 mm · Total length: 10 mm · Ø outside: 8 mm · Piaggio spare part no.: 174969

Tail light black | Piaggio Ciao PX, C24, Bravo

Depth: 43 mm · Width: 130 mm · Height: 58 mm · Manufacturer: Made in Italy · Number of fixing points: 2 pcs · Material: Plastic · Color: black · Color: red · Bulb holder: BA9s · Test mark: none · Mounting type: Nuts & bolts · Battery operated: No

swiing® revival front fender primed | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Steel · Color: black · Surface: primed · Folding the ends: open folded · Shape of the mudguard: partly round · Wheel size [inch]: 16 " · Wheel size [inch]: 17 " · Total length over ends: 510 mm · Scope: 640 mm · Wide mudguard profile: 76 mm · Mounting type: Nuts & bolts · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 162 mm · Piaggio spare part no.: 274184

GPO control bearing set | Piaggio Ciao

Height: 10.5 mm · Height: 17 mm · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Bearing type: Bearing ring · Thread type: FG25.4 (1" 24G) · Ø mounting frame: 30.05 mm · Color: silver · Ø inside: 27 mm · Ø outside: 41.4 mm · Ø outside: 42 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

swiing® revival rear fender Inox | Piaggio Ciao

Manufacturer: swiing® revival parts · Color: Chrome · Material: Chrome steel (stainless steel) · Surface: polished · Folding the ends: open folded · Shape of the mudguard: partly round · Wheel size [inch]: 16 " · Wheel size [inch]: 17 " · Total length over ends: 510 mm · Scope: 620 mm · Wide mudguard profile: 76 mm · Mounting type: Nuts & bolts · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 159 mm · Piaggio spare part no.: 576135

Splash guard front fender | Piaggio Ciao

Width: 90 mm · Manufacturer: Made in Italy · Material: Rubber · Color: black · Ø mounting hole: 3.3 mm · Mounting type: Rivets · Total length: 115 mm · Number of fixing points: 2 pcs · Piaggio spare part no.: 100446

Lock washer control head / end nut original | Piaggio Ciao

Manufacturer: Piaggio · Ø inside: 25.5 mm · Material: Steel · Surface: galvanized · Color: silver · Ø outside: 32.8 mm · Number of lobes: 3 pcs · Area of application: Standard · Thickness: 1.5 mm · Piaggio spare part no.: 189305

Spacer bushing rear fender Inox original | Piaggio Ciao

Ø inside: 6.1 mm · Manufacturer: Piaggio · Material: Chrome steel (stainless steel) · Nominal diameter: 6 mm · Total length: 10 mm · Ø outside: 8 mm · Piaggio spare part no.: 174969

Screw set rear fender Inox original | Piaggio Ciao

Manufacturer: Piaggio · Material: Chrome steel (stainless steel) · Drive: External hexagon · Screw head: Hexagon · Piaggio spare part no.: 013092 · Piaggio spare part no.: 016406 · Piaggio spare part no.: 020106 · Piaggio spare part no.: 031092

Set of rear fender mounting screws Inox original | Piaggio Ciao

Manufacturer: Piaggio · Material: Chrome steel (stainless steel) · Material: Rubber · Color: black · Mounting type: Nuts & bolts · Piaggio spare part no.: 013092 · Piaggio spare part no.: 016406 · Piaggio spare part no.: 020106 · Piaggio spare part no.: 031092 · Piaggio spare part no.: 174968 · Piaggio spare part no.: 174969

Cable support fender original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Area of application: Standard · Color: black · Total length: 81 mm · Width: 12.2 mm · Ø mounting hole: 6.8 mm · Height: 4.4 mm · Total height: 11 mm · Piaggio spare part no.: 143705
