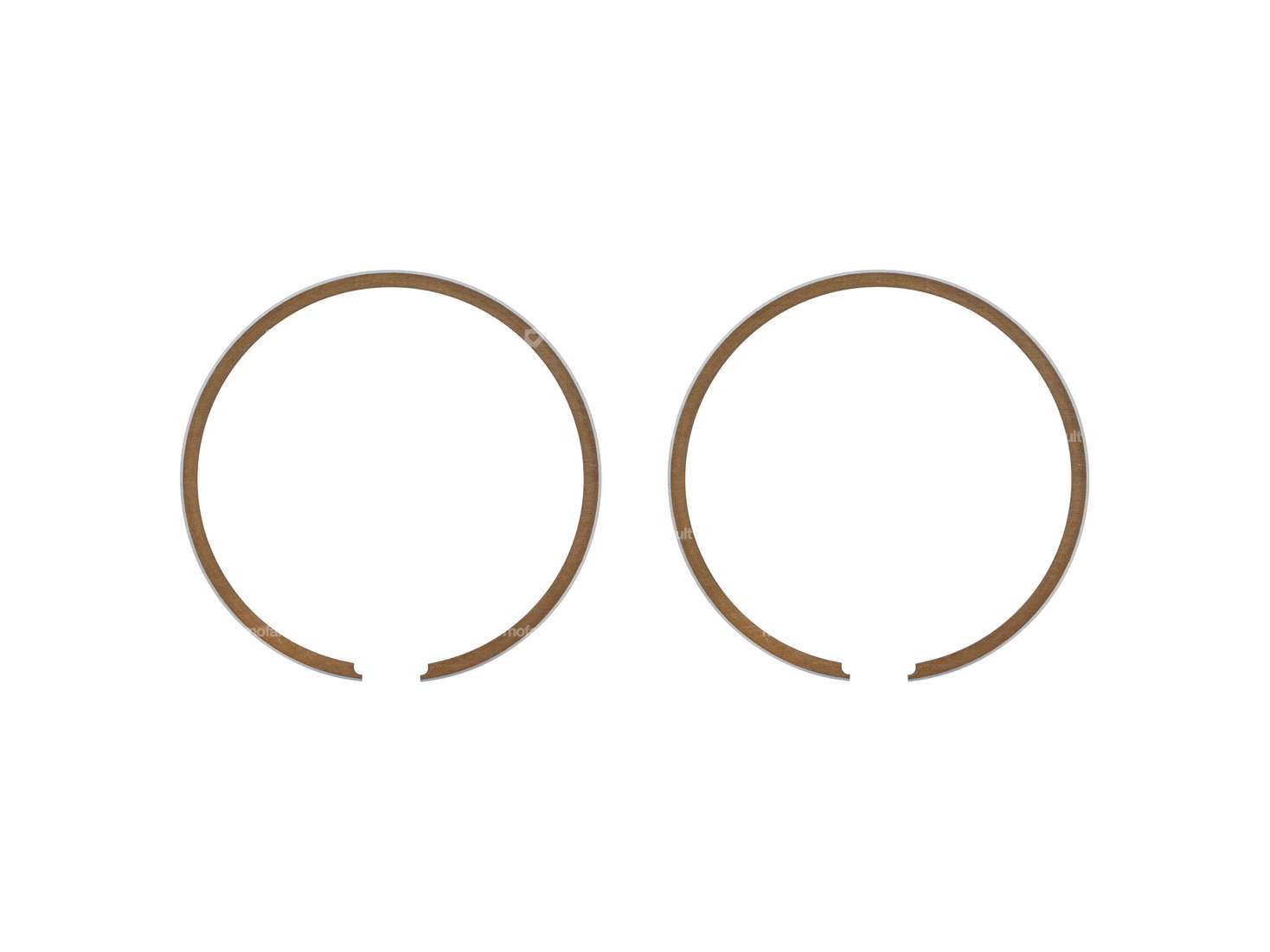

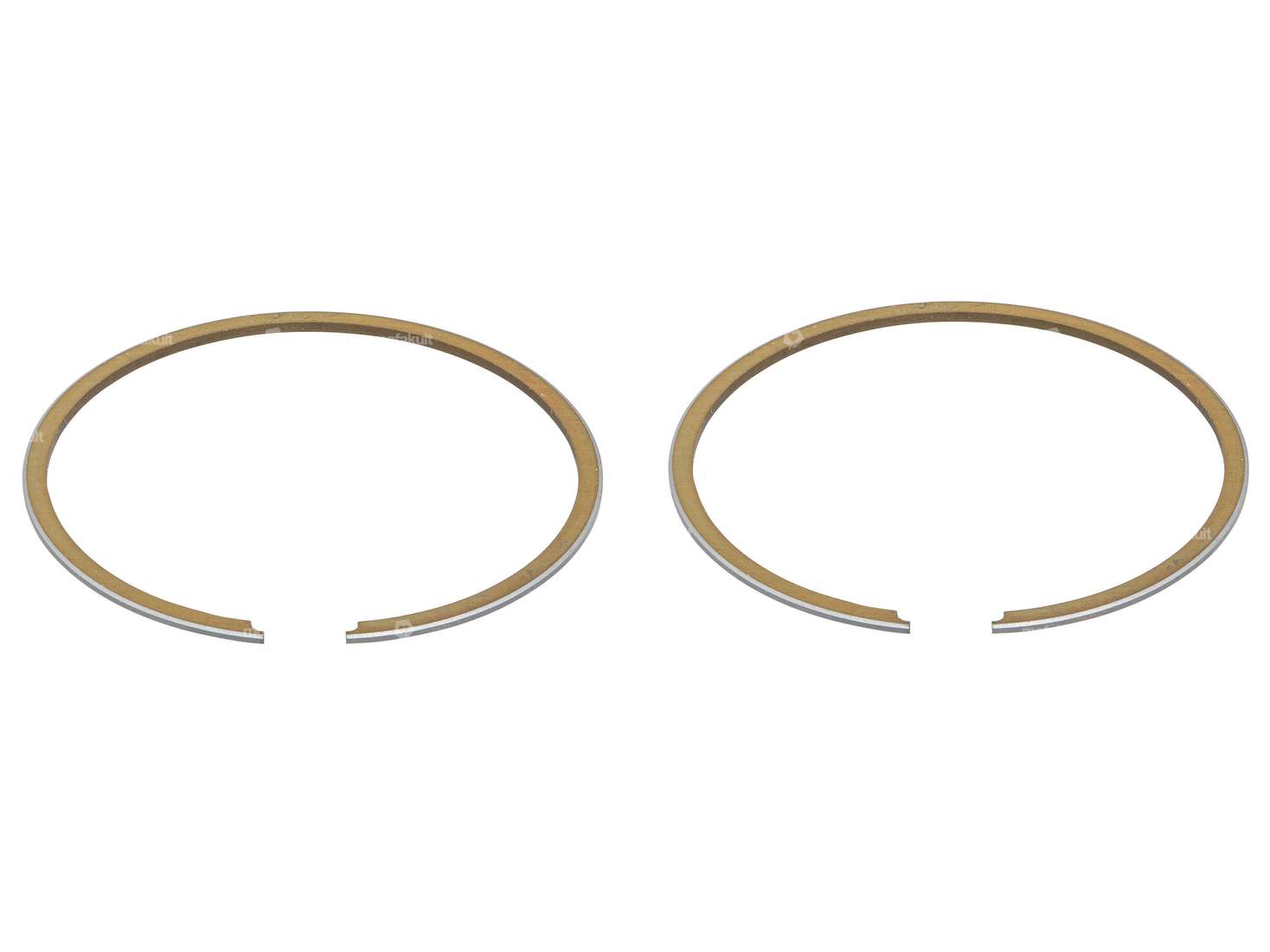

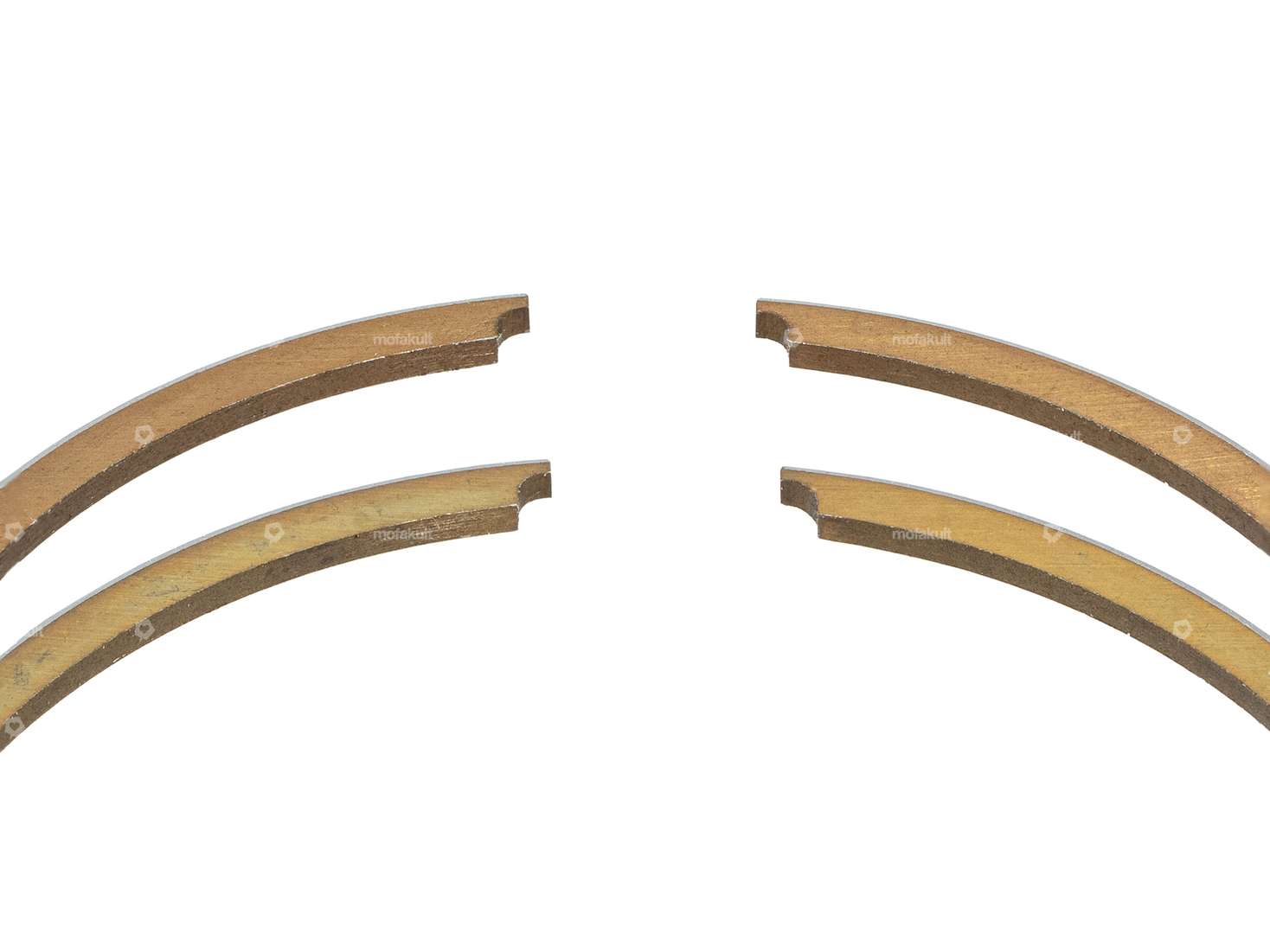

Barikit piston rings Ø 40 mm | Puch

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Area of application: Standard · Color: green

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Contents [ml]: 70 ml · Area of application: Chemistry · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

Barikit piston 41 mm | Puch

Manufacturer: Barikite · Thick piston ring: 0.95 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.55 mm · Curvature (D): 3.46 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Piston weight: 92 g

Barikit piston rings Ø 41 mm | Puch

Manufacturer: Barikite · Thick piston ring: 1.5 mm · Nominal diameter: 41 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1 mm

Barikit piston 40 mm | Puch

Manufacturer: Barikite · Ø outside piston (A): 39.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.6 mm · Curvature (D): 3.46 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Piston weight: 84 g

Chrome mirror

Total length: 285 mm · Material: Steel · Thread size: M8 · Surface: chrome-plated · Color: Chrome · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Mirror rod length: 230 mm · Clamping diameter: 22 mm · Thread type: M8x1.25 (standard thread)

Exhaust gasket original | Puch

Ø inside: 18 mm · Ø inside: 22 mm · Material: Sealing carton · Place of use: Outlet · Number of fixing points: 2 pcs · Thickness: 1.8 mm · Hole spacing: 42.5 mm · Ø mounting hole: 6.3 mm

Chrome / black mirror

Total length: 315 mm · Material: Steel · Thread size: M8 · Surface: chrome-plated · Color: Chrome · Color: black · Ø mirror surface: 102 mm · Ø mirror rod: 8 mm · Mirror rod length: 180 mm · Clamping diameter: 22 mm · Thread type: M8x1.25 (standard thread)

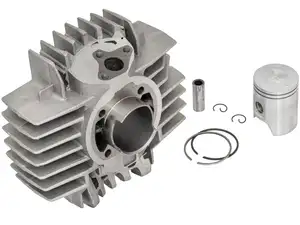

Hero 43.5 mm cylinder kit tuning | Puch Maxi / X30 NS, NL

Material: Aluminum · Material: Gray cast iron · Area of application: Tuning · Surface: blank · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Nominal diameter: 43.5 mm · Camouflaged: No · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm

Bench seat Denfeld imitation black

Material: Imitation leather · Material: Steel · Ø Saddle tube holder: 22 mm · Surface: varnished · Spring-loaded: No · Color: black · Lettering: No · Number of fixing points: 1 pcs · Total length: 300 mm · Width: 215 mm · Height: 95 mm

GPO piston stopper M14x1.25

Width across flats SW: 17 mm · Manufacturer: GPO · Number of components: 1 pcs · Material: Steel · Area of application: Special tool · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 16 mm · Thread type: MF14x1.25 (fine pitch thread) · Total length: 83 mm

Continental Go 2.25 x 17" Semi-Slick

Manufacturer: Continental · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Color: black · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: ContiGo! · Tire type: Semi-slick · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

swiing® revival piston 38 mm | Puch

Manufacturer: swiing® revival parts · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.45 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.7 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 77 g

GPO air filter screen Ø 52 mm Racing

Ø outside: 52 mm · Manufacturer: GPO · Material: Steel · Area of application: Tuning · Surface: galvanized (yellow) · Color: yellow · Camouflaged: No · Height: 9.7 mm
