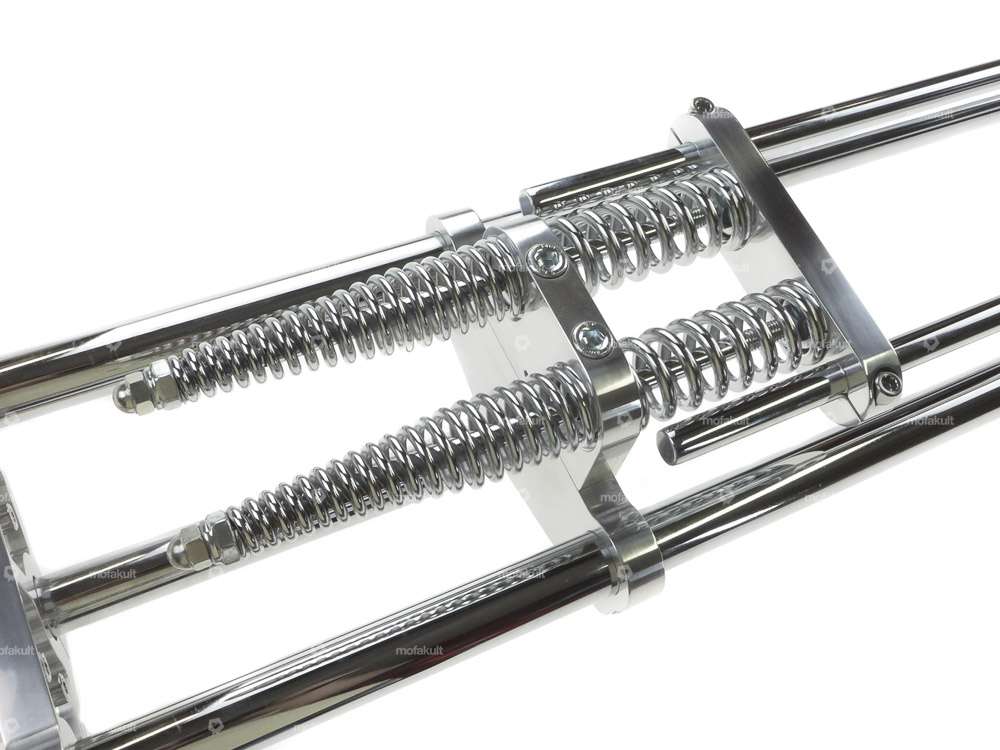

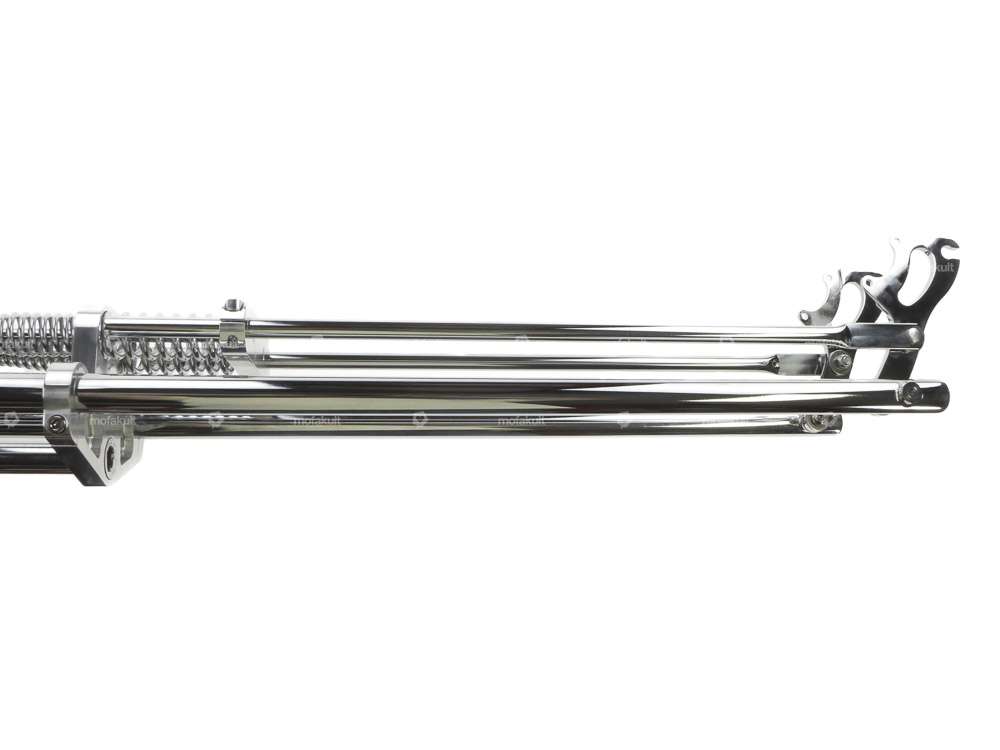

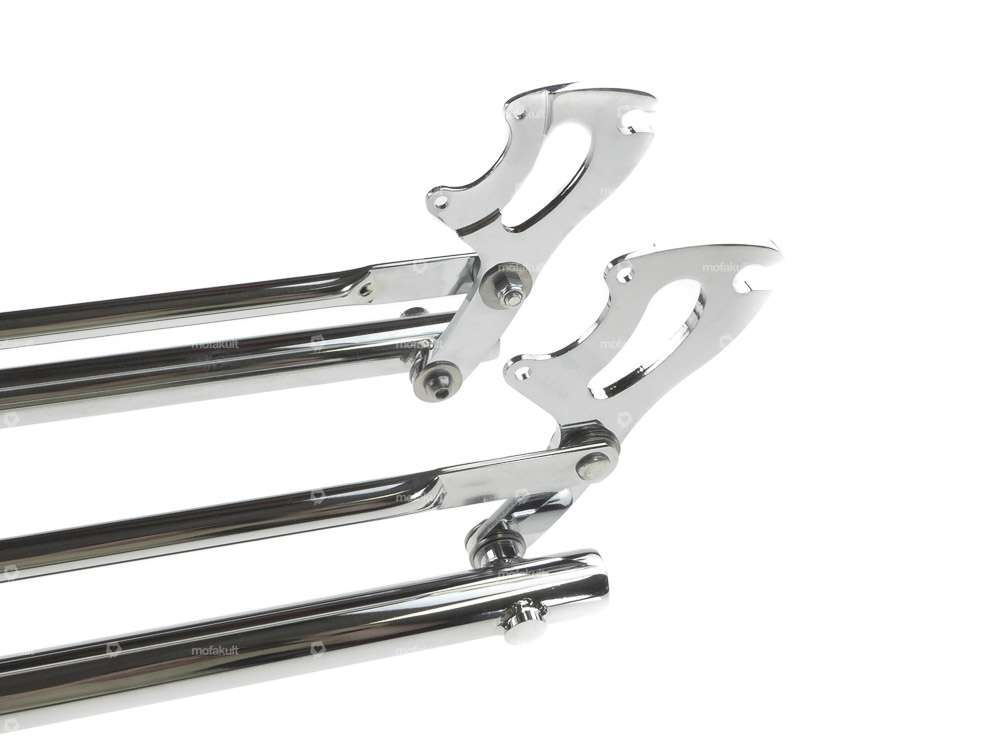

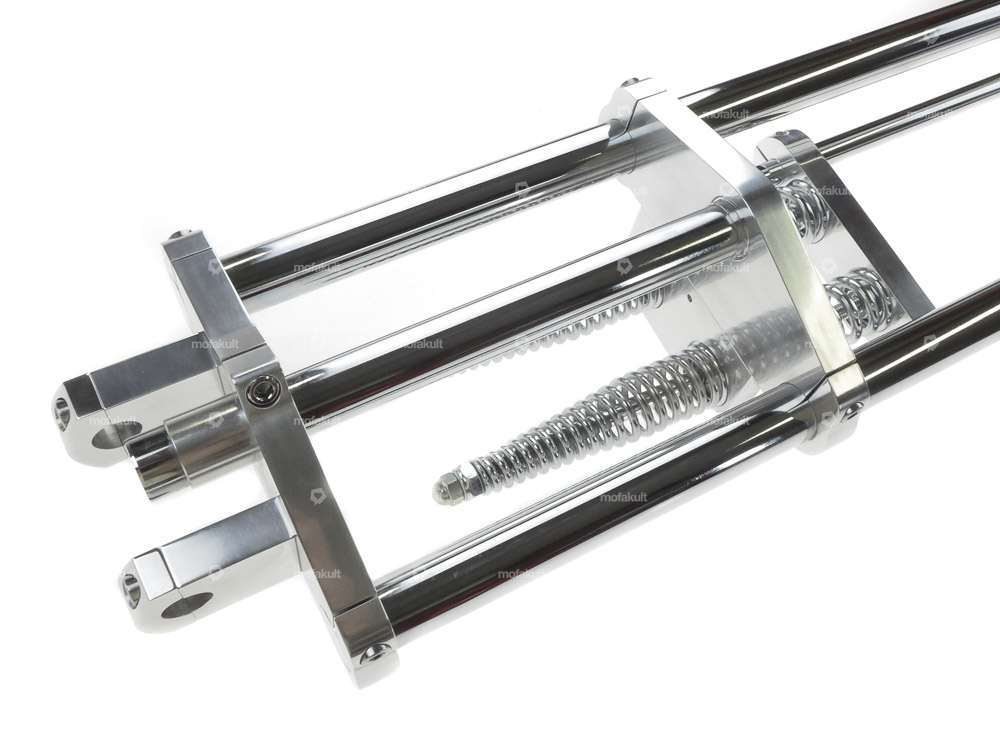

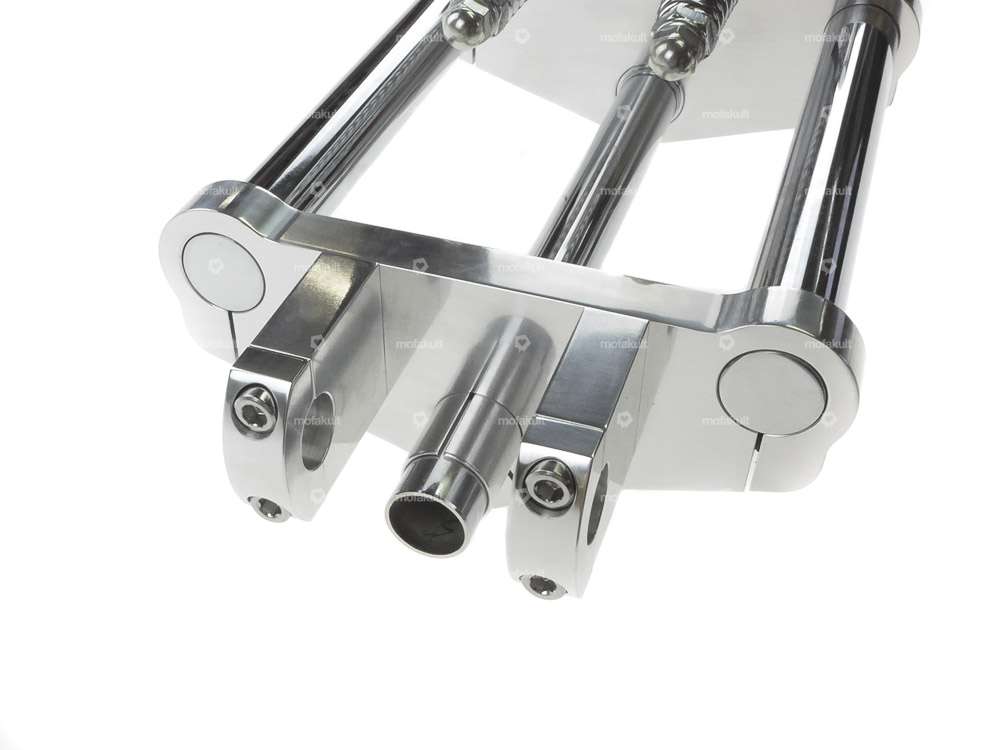

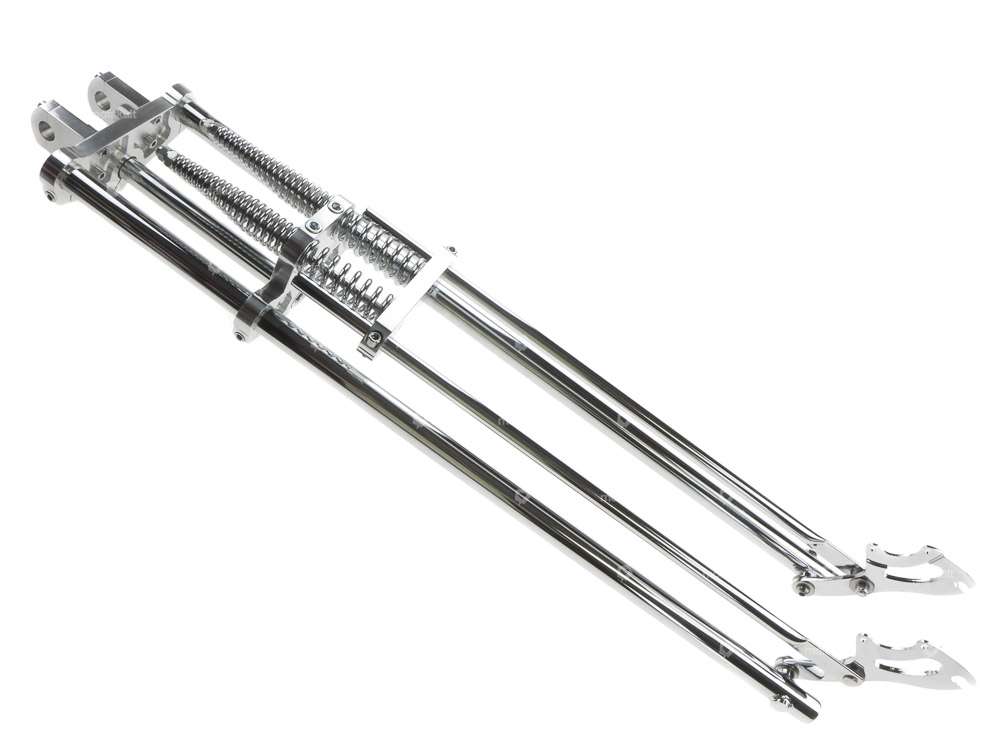

This is not a Springer fork, but a "spinner" fork.
Only for the tough guys! We recommend using this fork exclusively for show purposes, use at your own risk!
For those who want to attract all eyes, just the right thing!
The fork blades are CNC machined from aluminum. All other components are chrome-plated. Absolute quality workmanship and worth every franc.
The Springer fork must be individually adapted. Among other things, an inch thread must be cut on the head tube. This project is therefore only for experienced hobbyists.
The headset is not included in the scope of delivery.
Technical data:
- Total length: 1053 mm
- Ø steerer tube: 25.4 mm (1 inch)
- Head tube length: 270 mm
- Ø handlebar mount: 22 mm
- Stem and fork tubes are collapsible
- Ø thick stanchions: 29 mm
- Ø thin stanchions: 16 mm
- Dimension for wheel axle mount: 100 mm
- Maximum possible tire width: 108 mm
- Length between axle mount and spring brake: 620 mm
- Adapter for mounting a disc brake
- Weight: approx. 6.5 kg
You can find alternative forks and suitable headset bearings in the accessories section.
Details
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Ø outer head tube | 25.4 mm |
| Head tube length | 270 mm |
| Fork bridge - center wheel axle | 580 mm |
Accessories & related products
EBR fork reinforced black | Piaggio Ciao
Thread type: FG25.4 (1" 24G) · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 25.65 mm · Ø head tube inside: 21.1 mm · Head tube length: 200 mm · Total length: 610 mm · Total length: 675 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 385 mm · Distance brake cam to wheel axle center-center: 35 mm
EUR 199,20

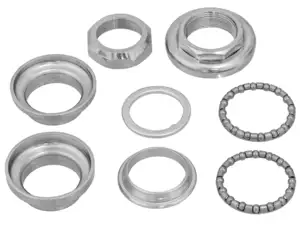

Headset bearing set 1" (for Ø 30 mm steering head tube) | Sachs
