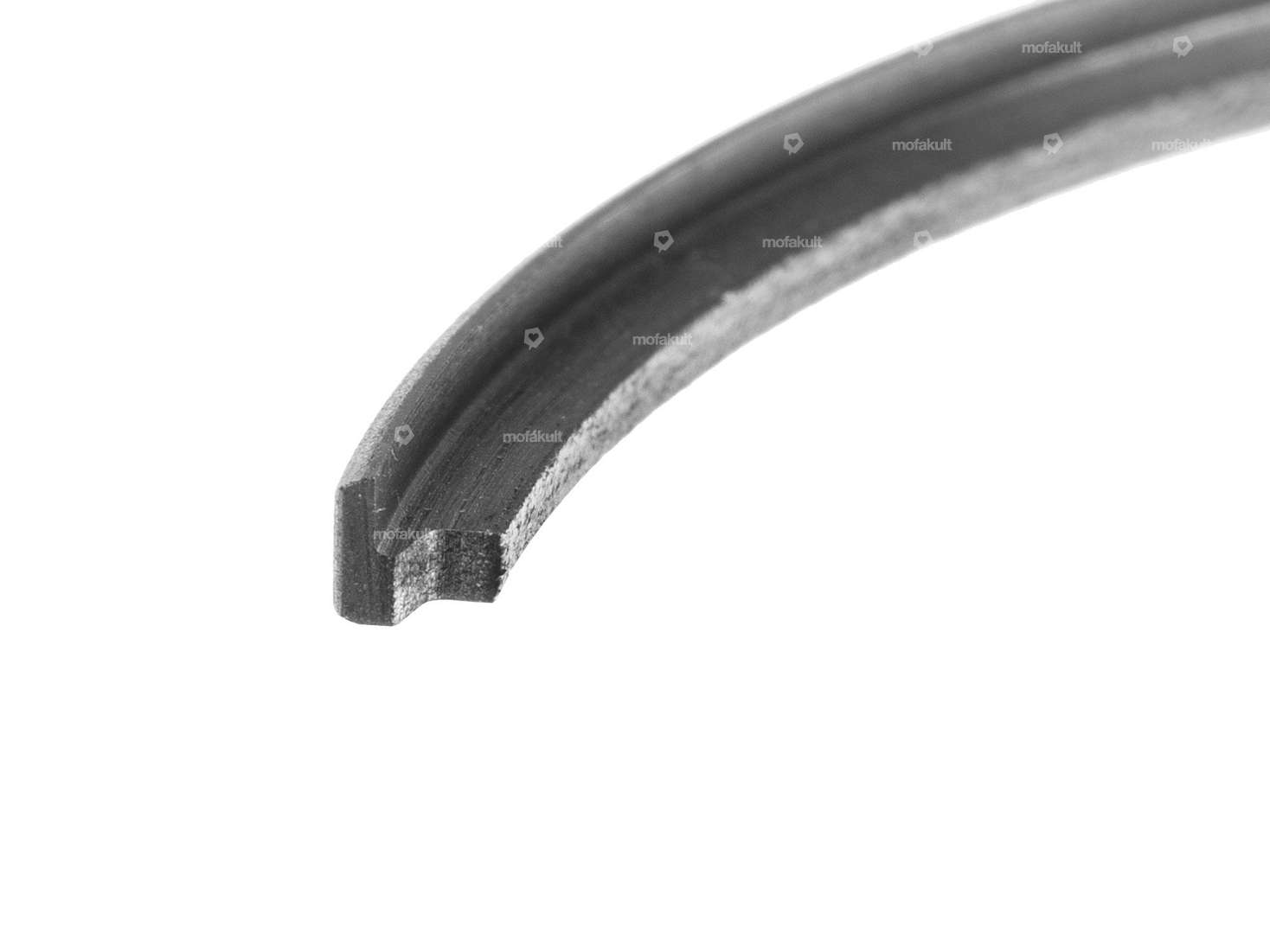

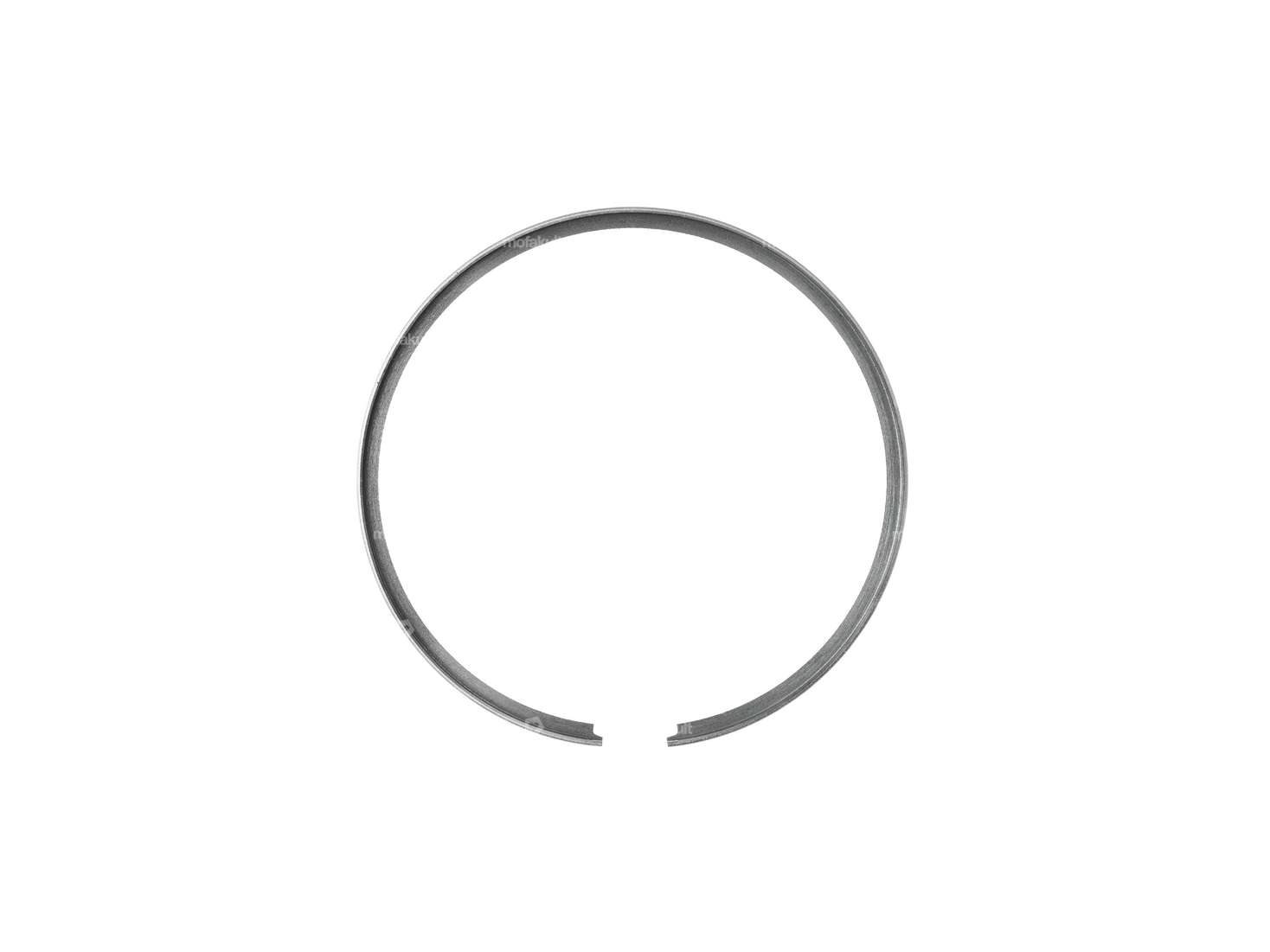

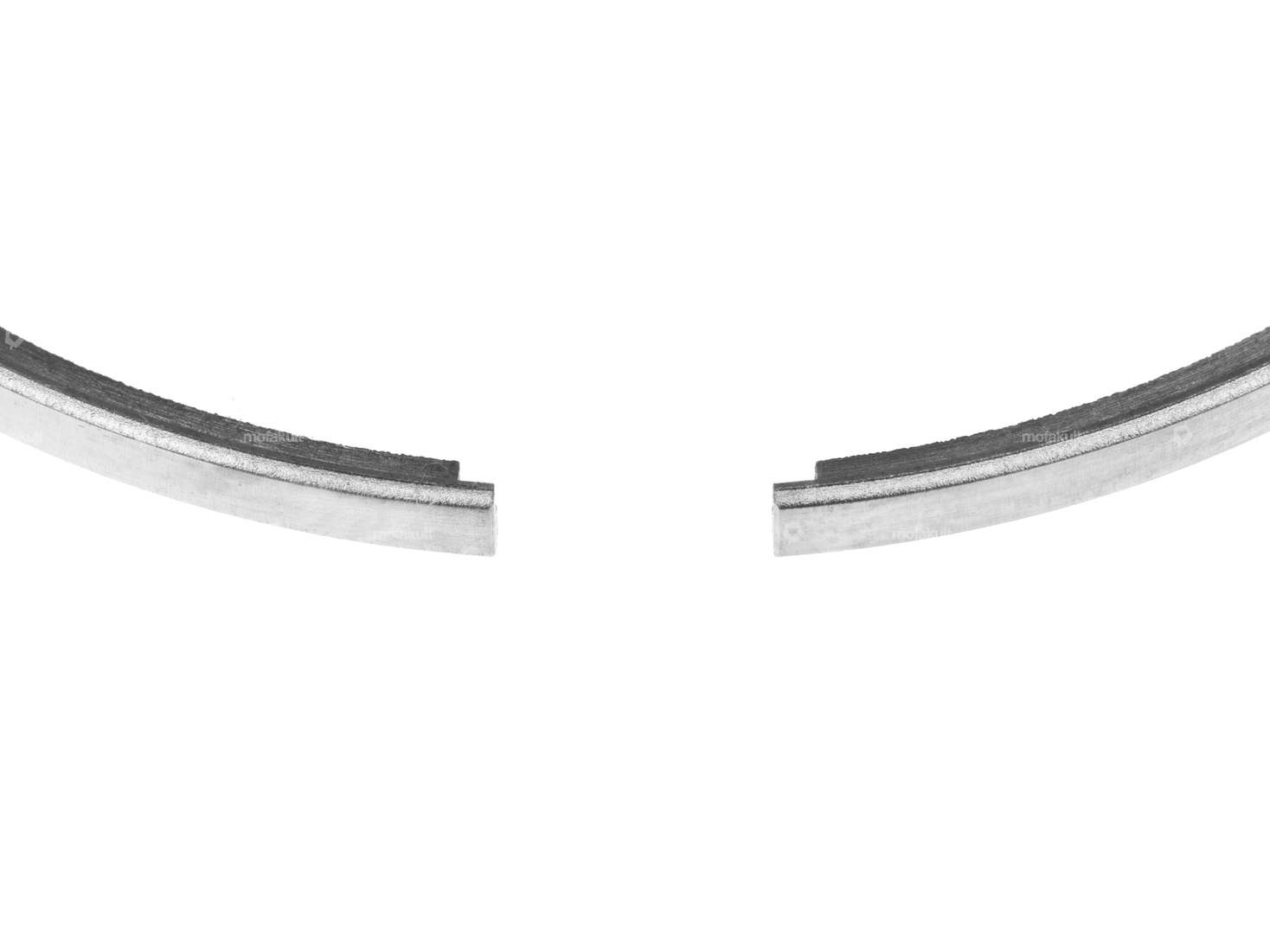

Athena piston ring 48 x 2 mm L | Sachs 503 AB, AC, ADV

Athena 48 mm cylinder kit | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 80 ccm · Camouflaged: No · Ø Outlet outside: 26 mm · Nominal diameter: 48 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread)

Athena piston 48 mm #A | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Ø outside piston (A): 47.92 mm · Compression height (C): 29.3 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: A · Weight: 114 g

Athena piston 48 mm #B | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Ø outside piston (A): 47.93 mm · Compression height (C): 29.1 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 48 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Tolerance group: B · Weight: 113 g

Magura cable clamp Ø 8 x 15 mm

Total length: 15 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Area of application: Standard · Thread type: M6x1 (standard thread) · Ø Cable bushing: 2.3 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Ø Bundle: 6 mm · Ø outside: 8 mm · Thread length: 7 mm · Width across flats SW: 7 mm

Large outlet seal with metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Area of application: Tuning · Thickness: 2.1 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

Inner cable Ø 1.2 mm x 200 cm with barrel nipple Ø 6 mm

Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Area of application: Standard · Ø Stranded wire: 1.2 mm · Nipple shape: Barrel (transverse) · Cable length: 2000 mm · Nipple length: 5.5 mm

swiing nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110

Magura cable clamp Ø 6 x 14 mm

Total length: 14 mm · Total length: 20 mm · Manufacturer: Magura · Material: Chrome steel (stainless steel) · Material: Steel · Surface: blank · Surface: blue galvanized · Area of application: Standard · Thread type: M5x0.8 (standard thread) · Ø Cable bushing: 2.2 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Ø outside: 6 mm · Thread length: 6.5 mm · Width across flats SW: 5 mm · Width across flats SW: 6 mm

GPO exhaust clamp solid 28 - 30 mm galvanized (strength 12.9)

Total length: 46 mm · Width: 42.5 mm · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Color: silver · Ø inside: 28 - 30 mm · Ø outside: 41 mm · Material thickness: 1.6 mm · Mounting type: Nuts & bolts · Pony spare part no.: A1897 · Sachs spare part no.: 0251 113 105

swiing® revival rubber grommet ignition cable | Sachs 503 2AL/2BL/AAL, 535 (A4521)

Manufacturer: swiing® revival parts · Material: Rubber · Surface: raw · Area of application: Standard · Ø Cable bushing: 5.2 mm · Color: black · Ø mounting hole: 8.5 mm · Ø outside: 10.5 mm · Ø Bundle: 10.5 mm · Waistband height: 3 mm · Pony spare part no.: A4520 · Pony spare part no.: A4521 · Sachs spare part no.: 0960 135 000 · Sachs spare part no.: 0960 136 000

Magura cable clamp Sachs shift/clutch arm

Total length: 11 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Number of components: 2 pcs · Thread type: M4x0.7 (standard thread) · Ø shaft: 4 mm · Ø Cable bushing: 2.8 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Ø outside: 7 mm · Ø Bundle: 7 mm · Thread length: 7 mm · Width across flats SW: 6 mm

Exhaust clamp 60 mm chrome (1A quality)

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Width: 20 mm · Nominal diameter: 60 mm · Number of fixing points: 1 pcs · Thickness: 2.3 mm · Ø mounting hole: 8.2 mm · Clamping diameter: 56 - 60 mm

Athena gasket set 48 mm cylinder kit | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 48 mm · Number of components: 3 pcs
