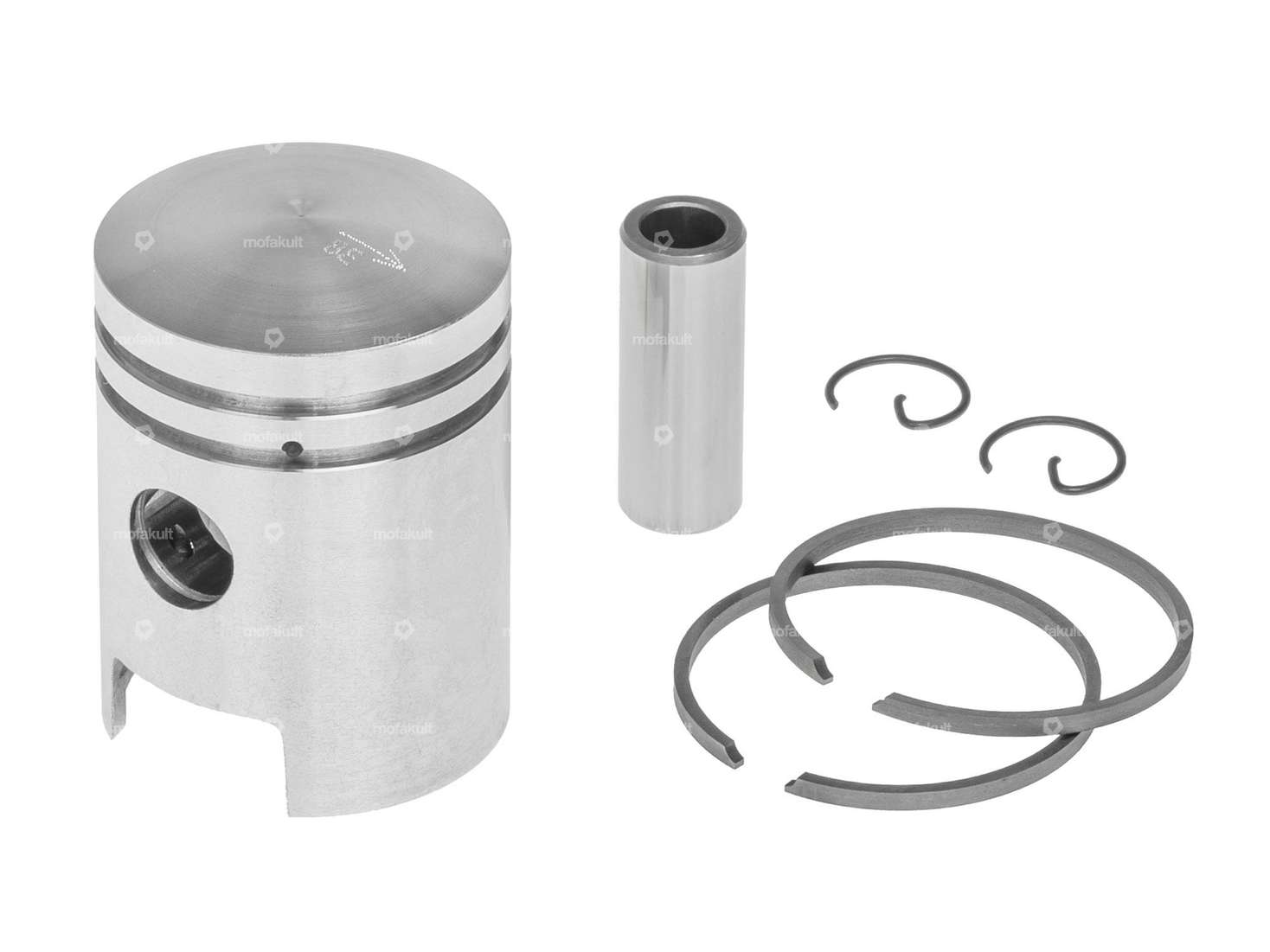

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) to fit the original Athena 38 mm cylinder kit for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the pictures.
Tolerance sizes: A
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
Nominal diameter | 38 mm |
Manufacturer | Athena |
Ø outside piston (A) | 37.96 mm |
Compression height (C) | 22.6 mm |
Curvature (D) | 3.56 mm |
Total piston height (E) | 52.66 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Ø piston pin (B) | 12 mm |
Tolerance group | A |
Piston weight | 78 g |
Suitable for the following models
Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
