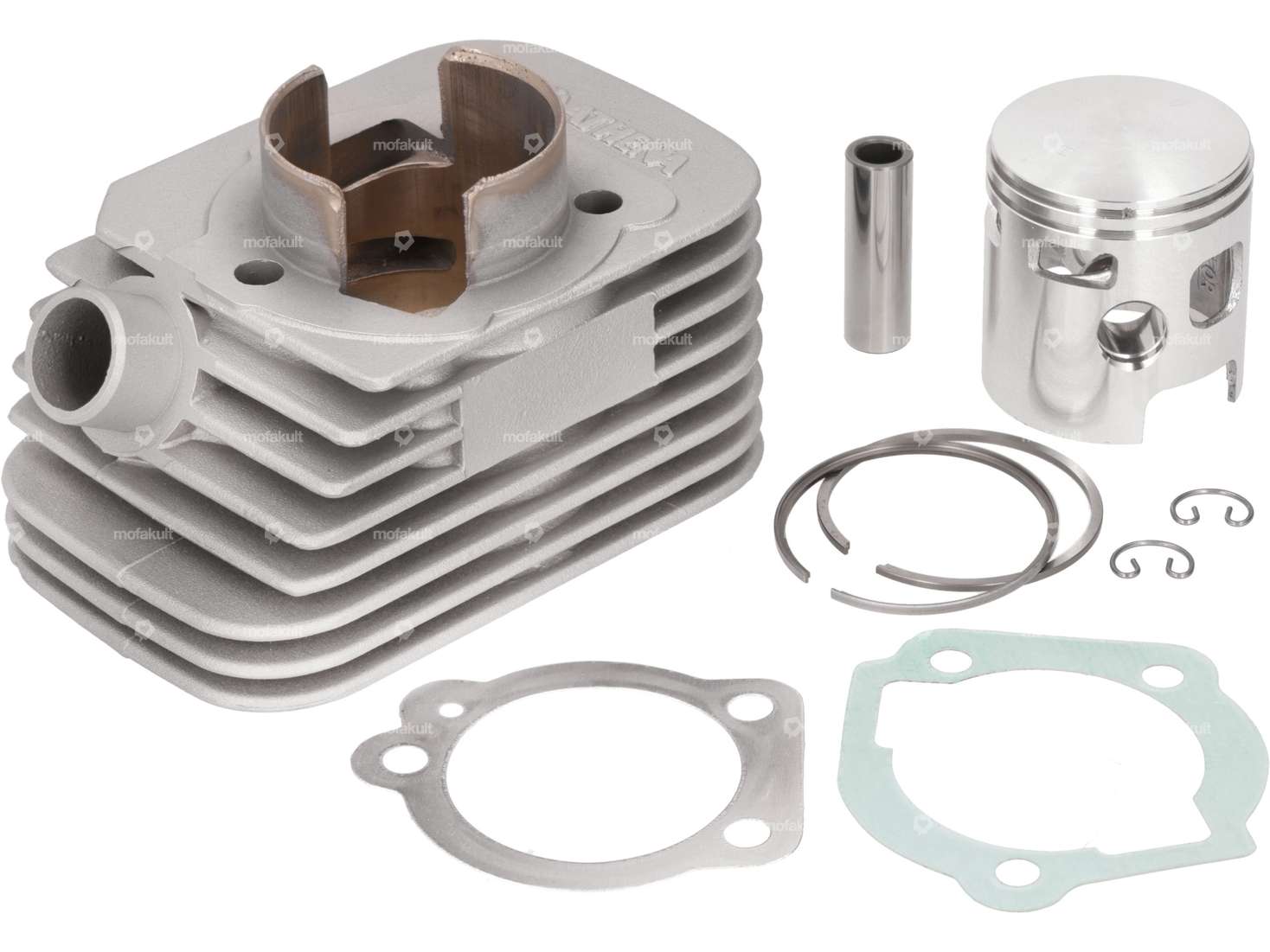

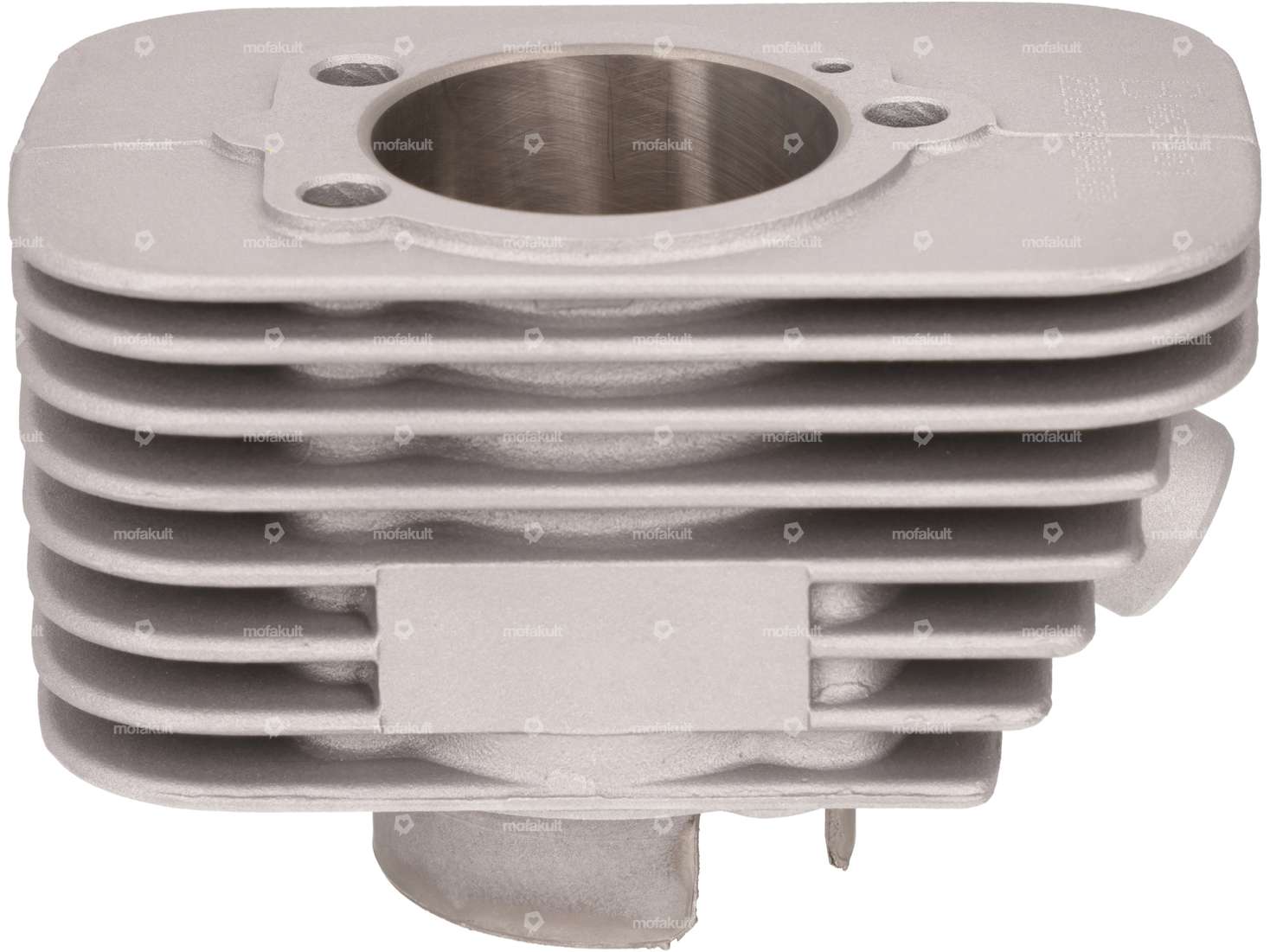

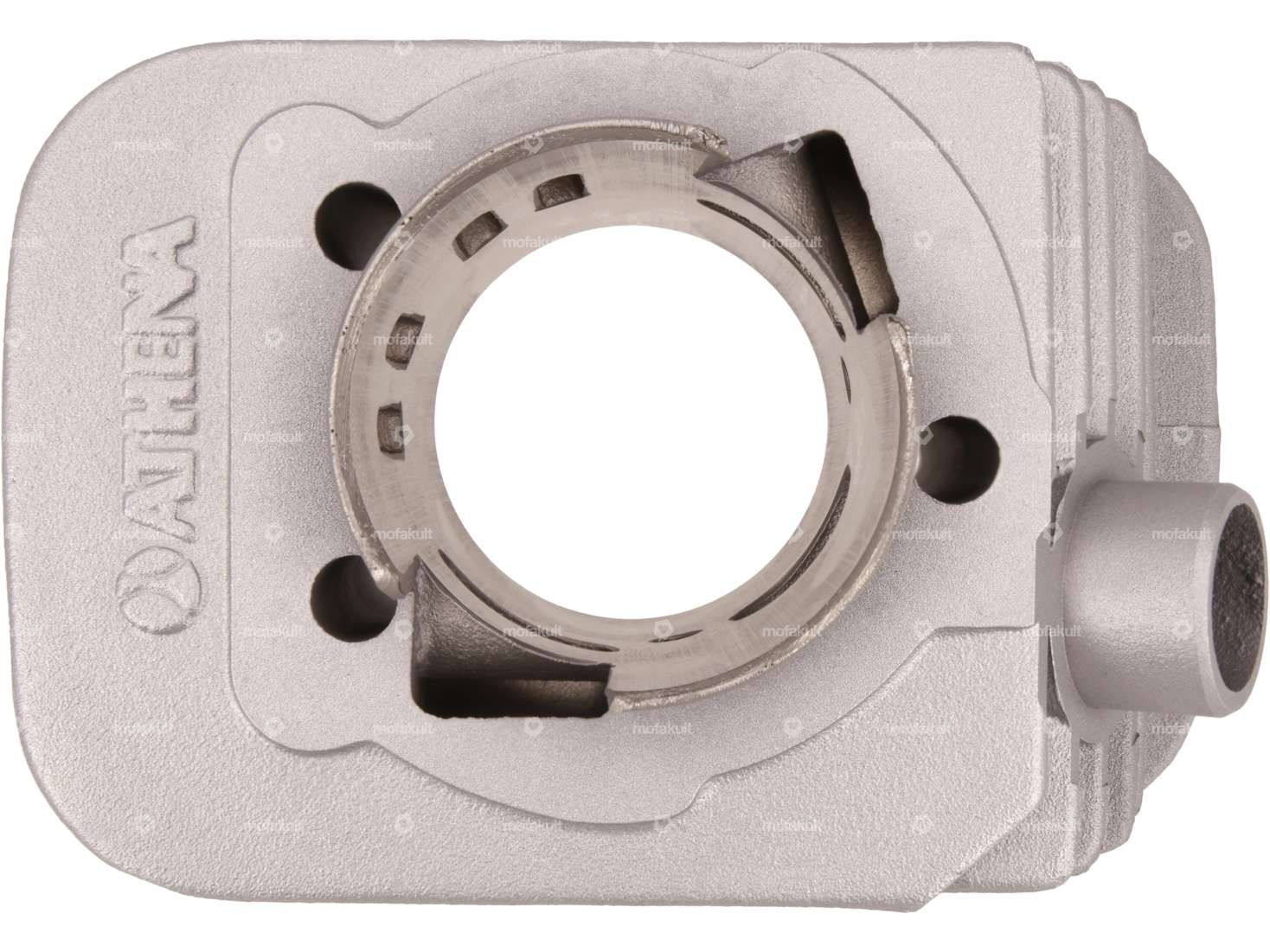

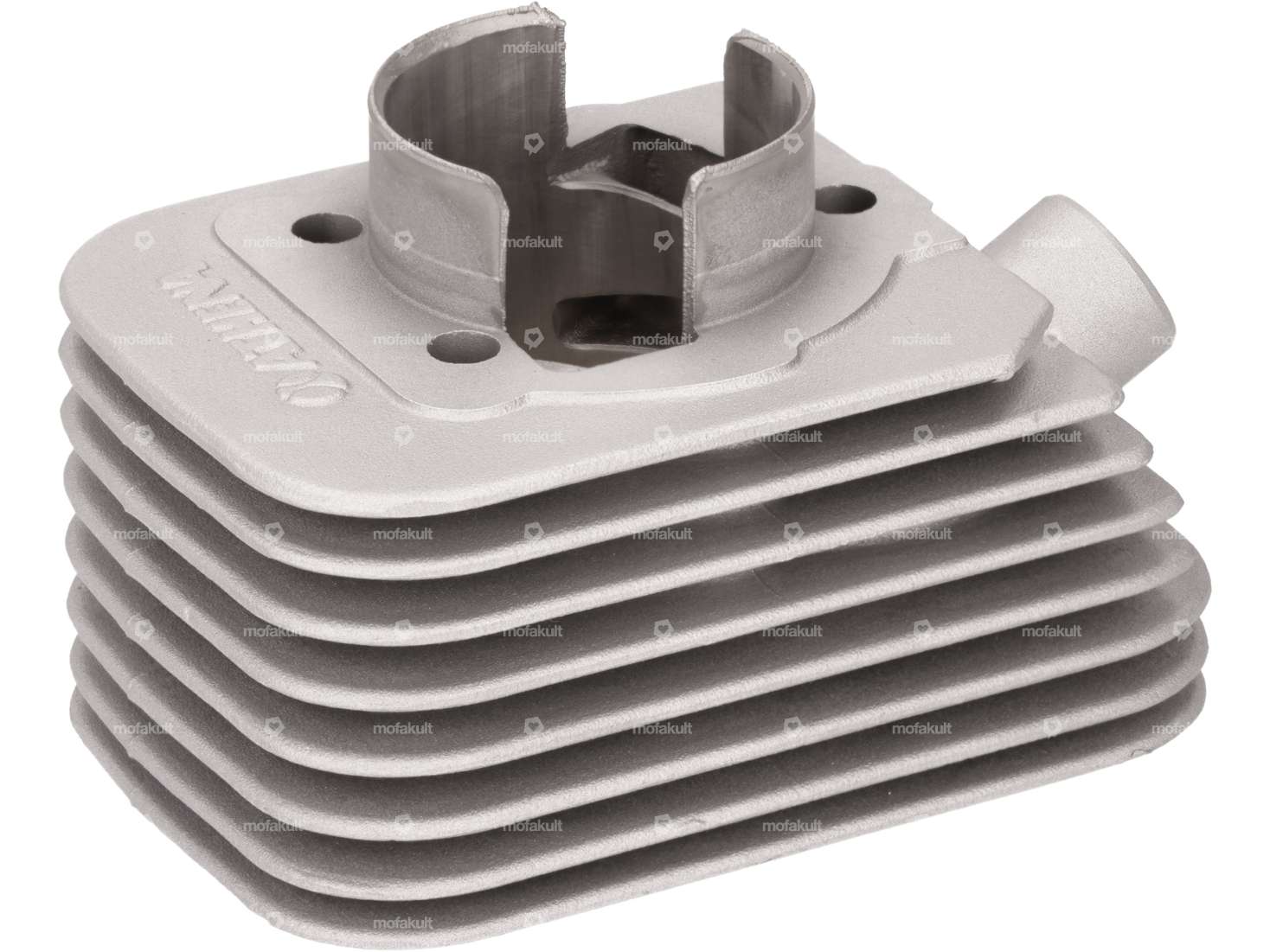

This cast cylinder from the Italian brand manufacturer Athena is suitable for all Piaggio mopeds.
Athena is known for carrying out strict quality controls. This results in high-quality cylinders.
The cylinder is made from a special aluminum alloy. The barrel surface has a Nikasil coating,
which allows the piston to slide smoothly and increases the durability of the cylinder kit.
We also offer the cylinder kit with a 10 mm piston pin diameter.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Material | Aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 46 mm |
| Number of fixing points | 3 pcs |
| Outlet type | clamped |
| Decompressor | Yes |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
