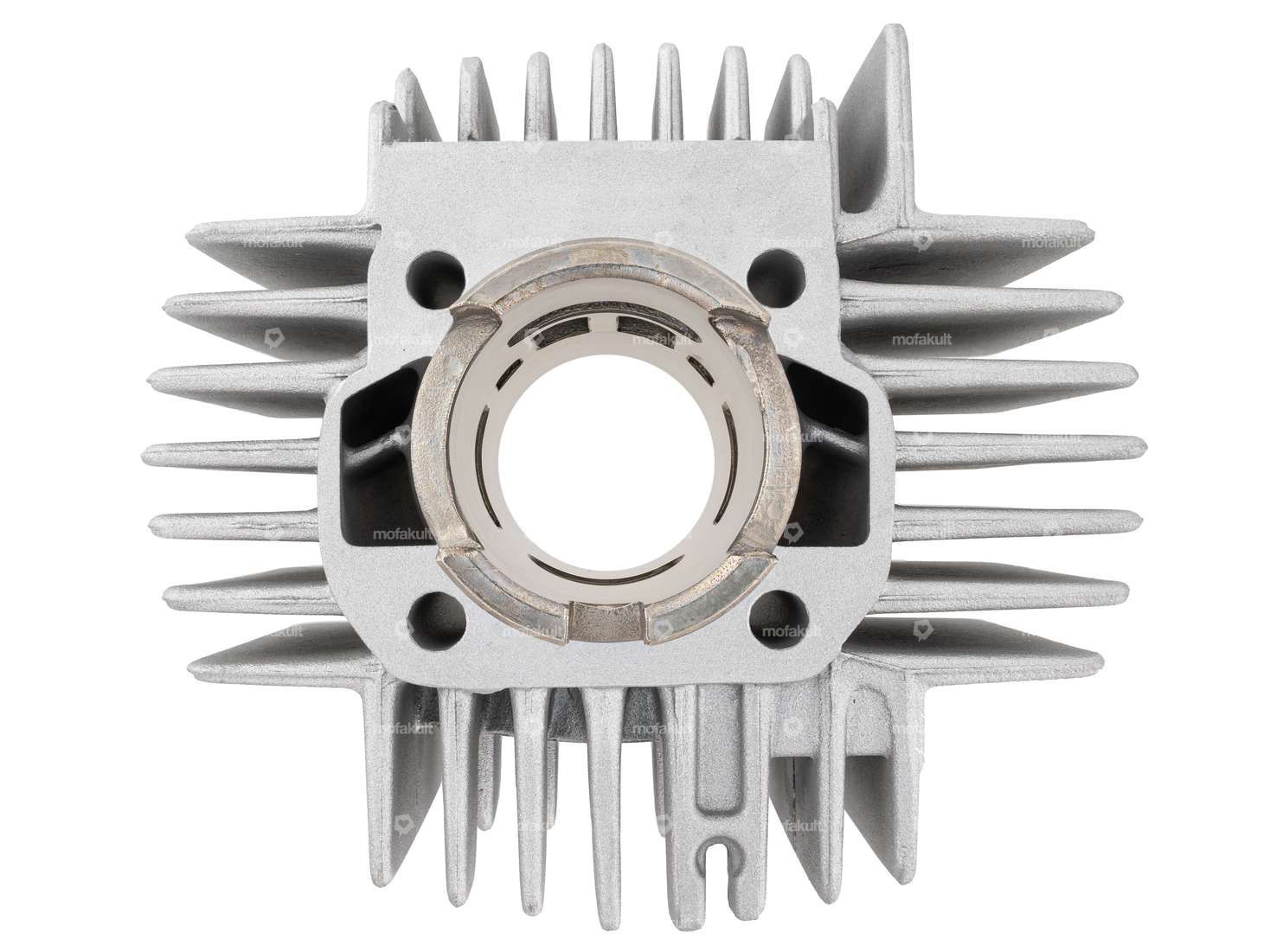

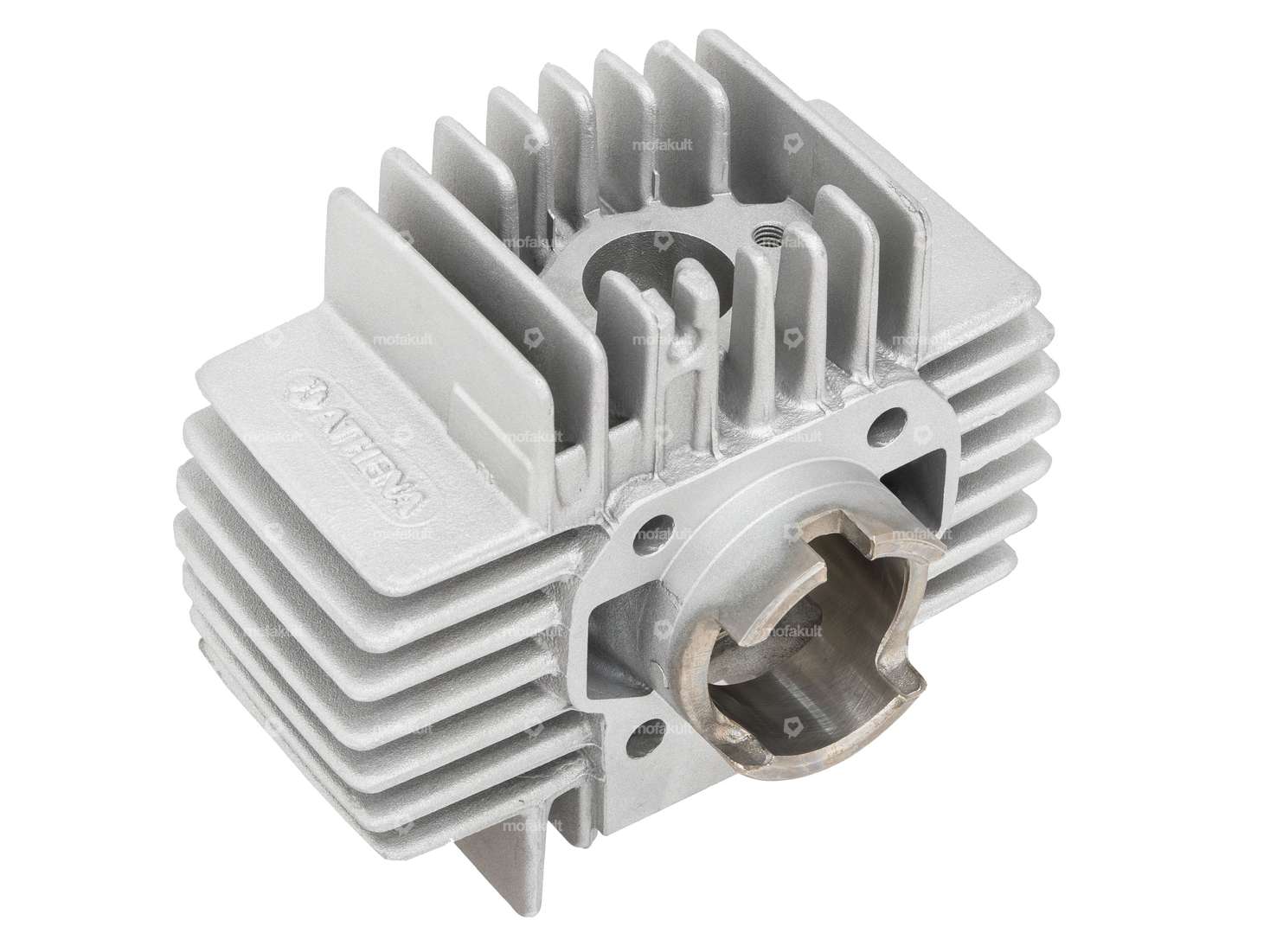

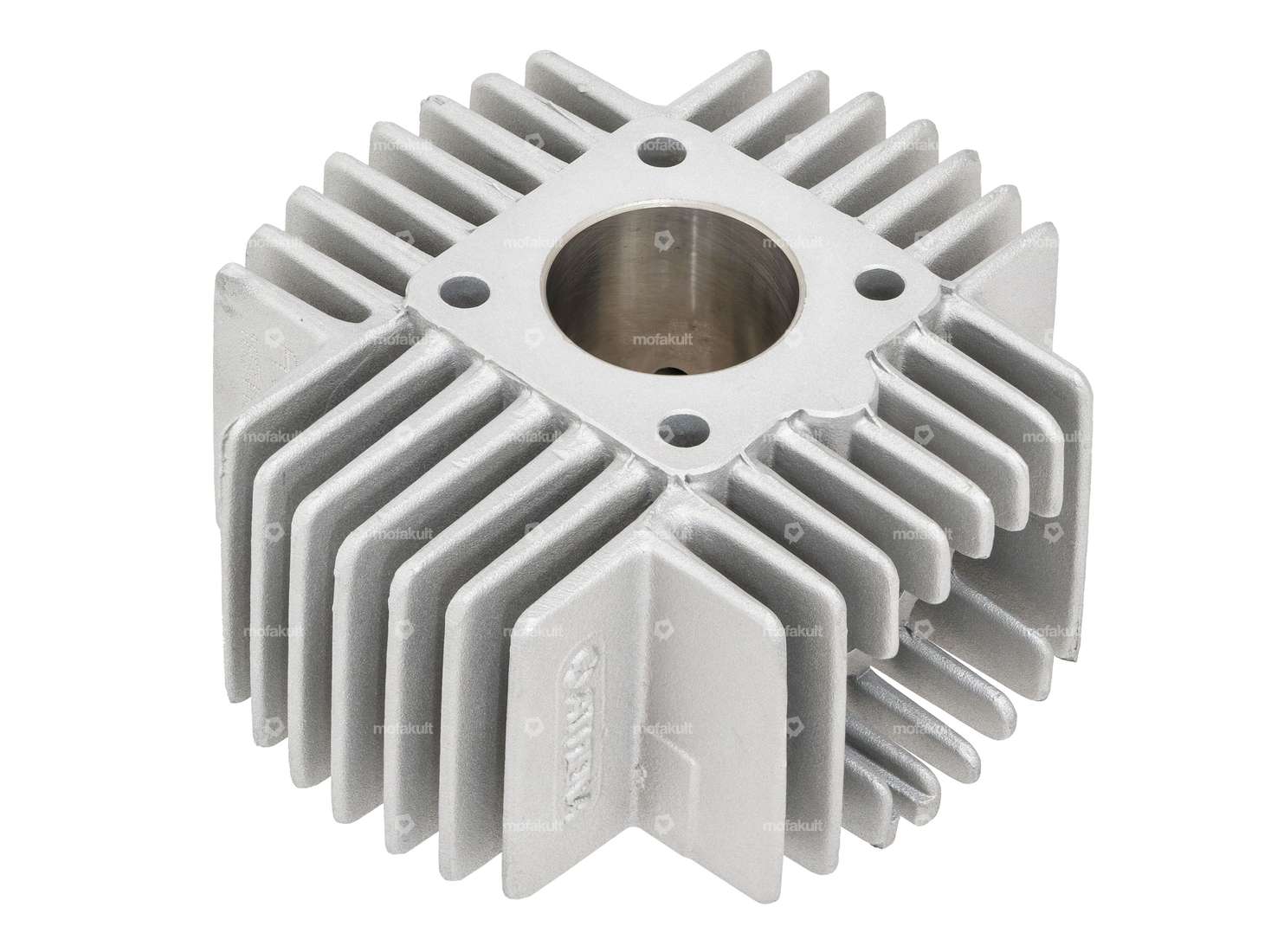

High-quality 50 cc cylinder kit from the quality brand Athena suitable for various Puch mopeds.
With 38 mm bore, 6 ports and slotted intake.
The cooling fins are as original, therefore camouflaged.

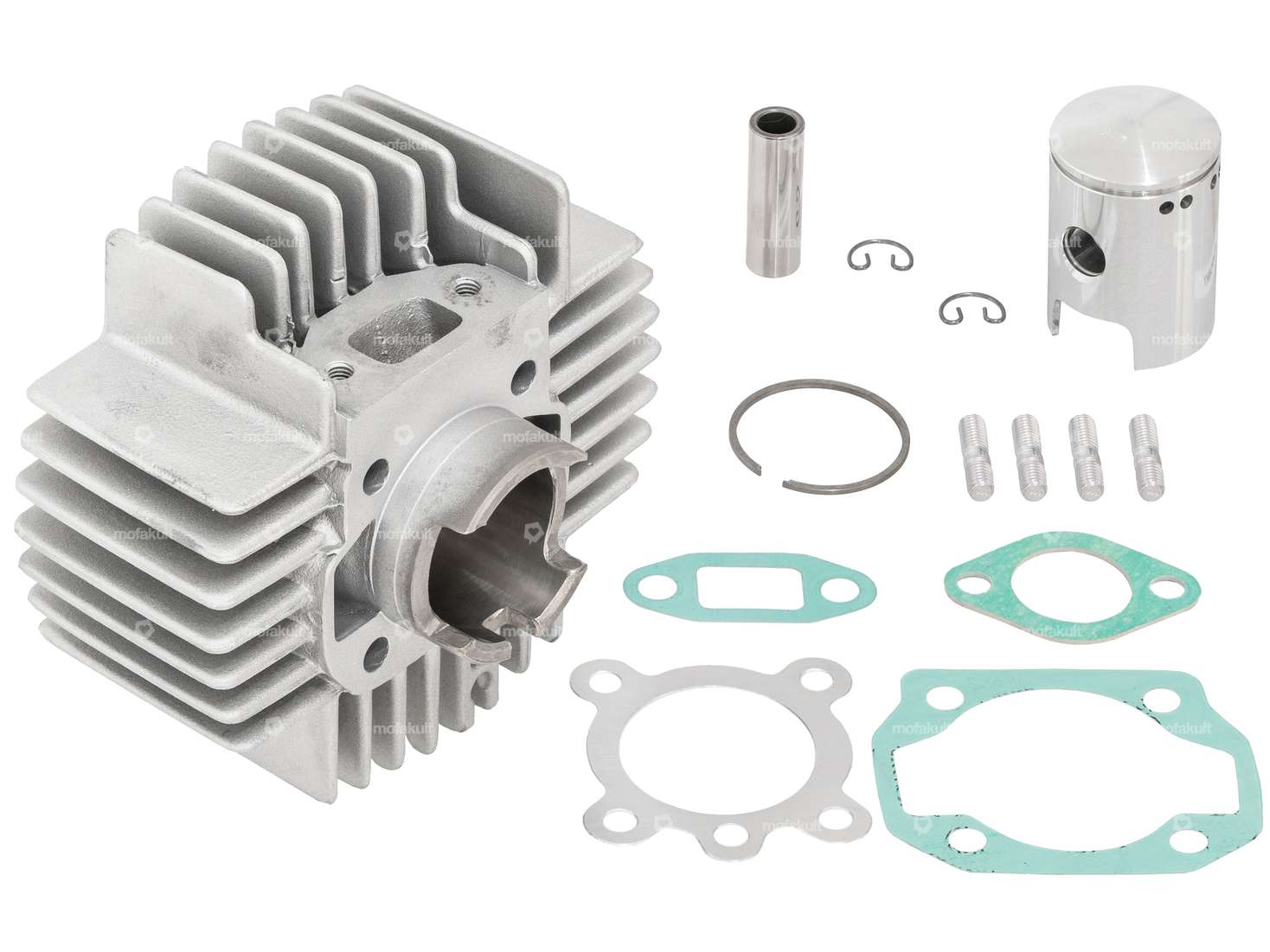

Scope of delivery according to picture 1.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Nominal diameter | 38 mm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.7 mm |
| Ø outlet inside | 24.4 mm |
| Inlet window | 22 x 14 |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38 mm |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | Yes |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
