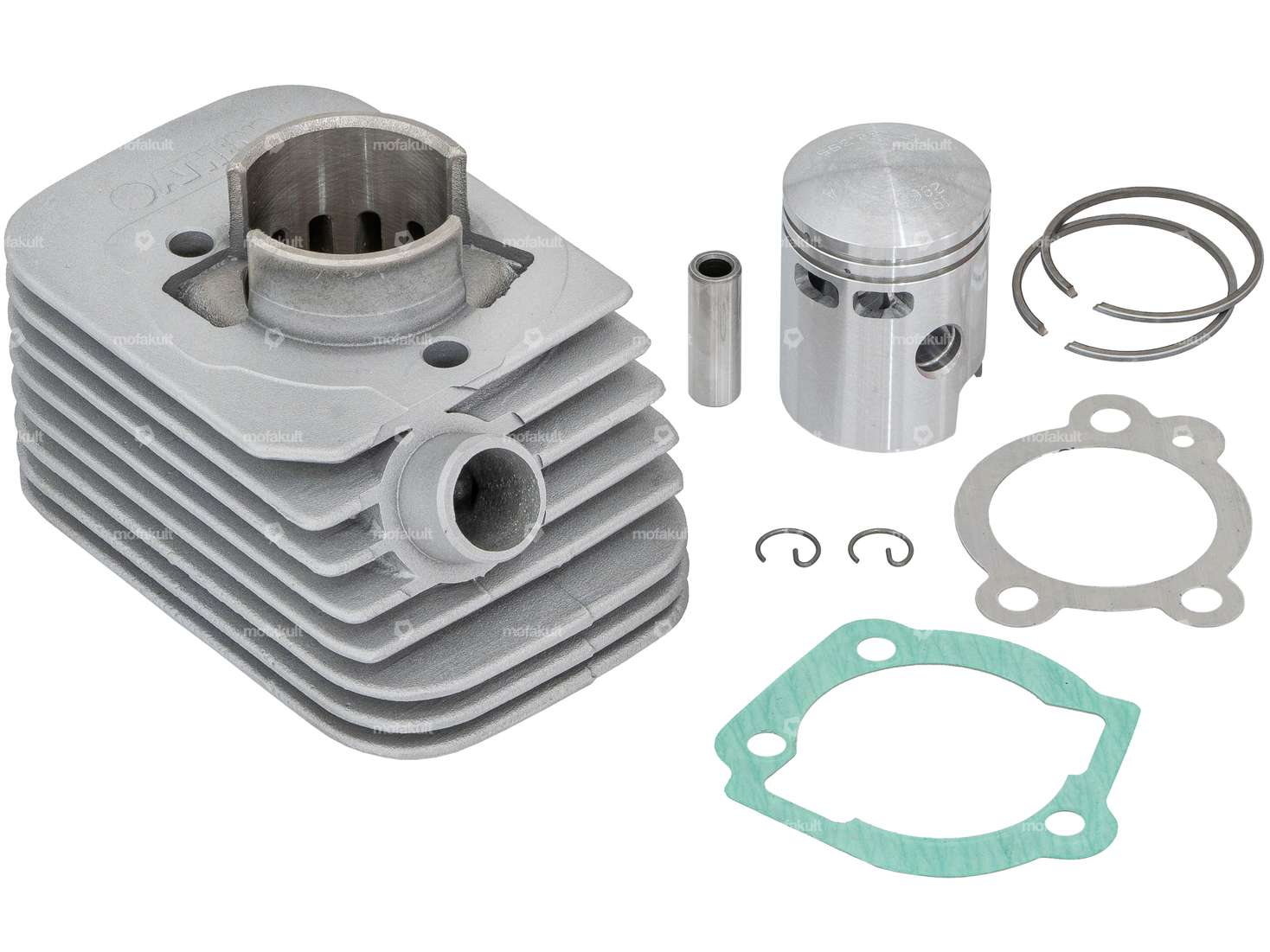

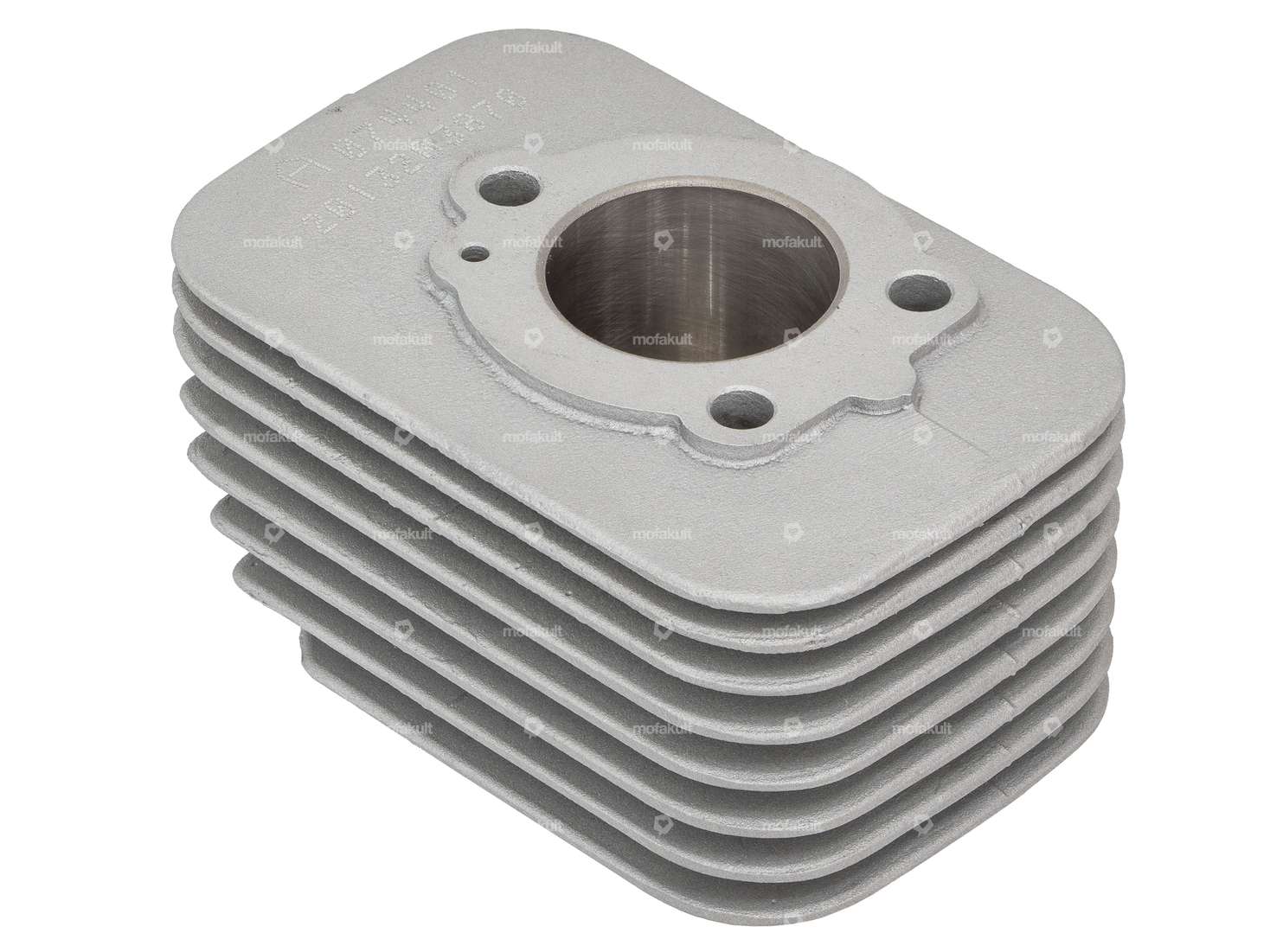

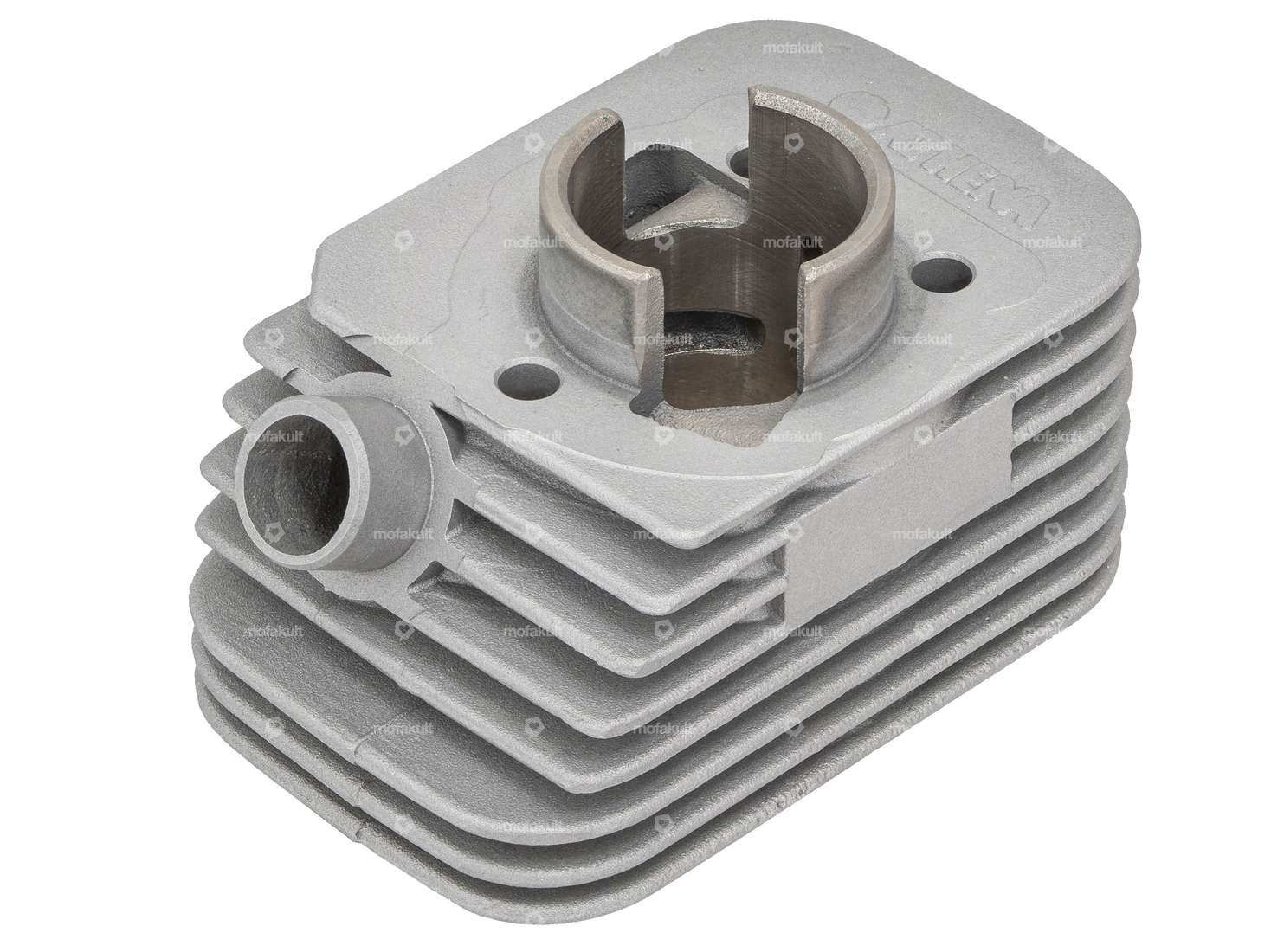

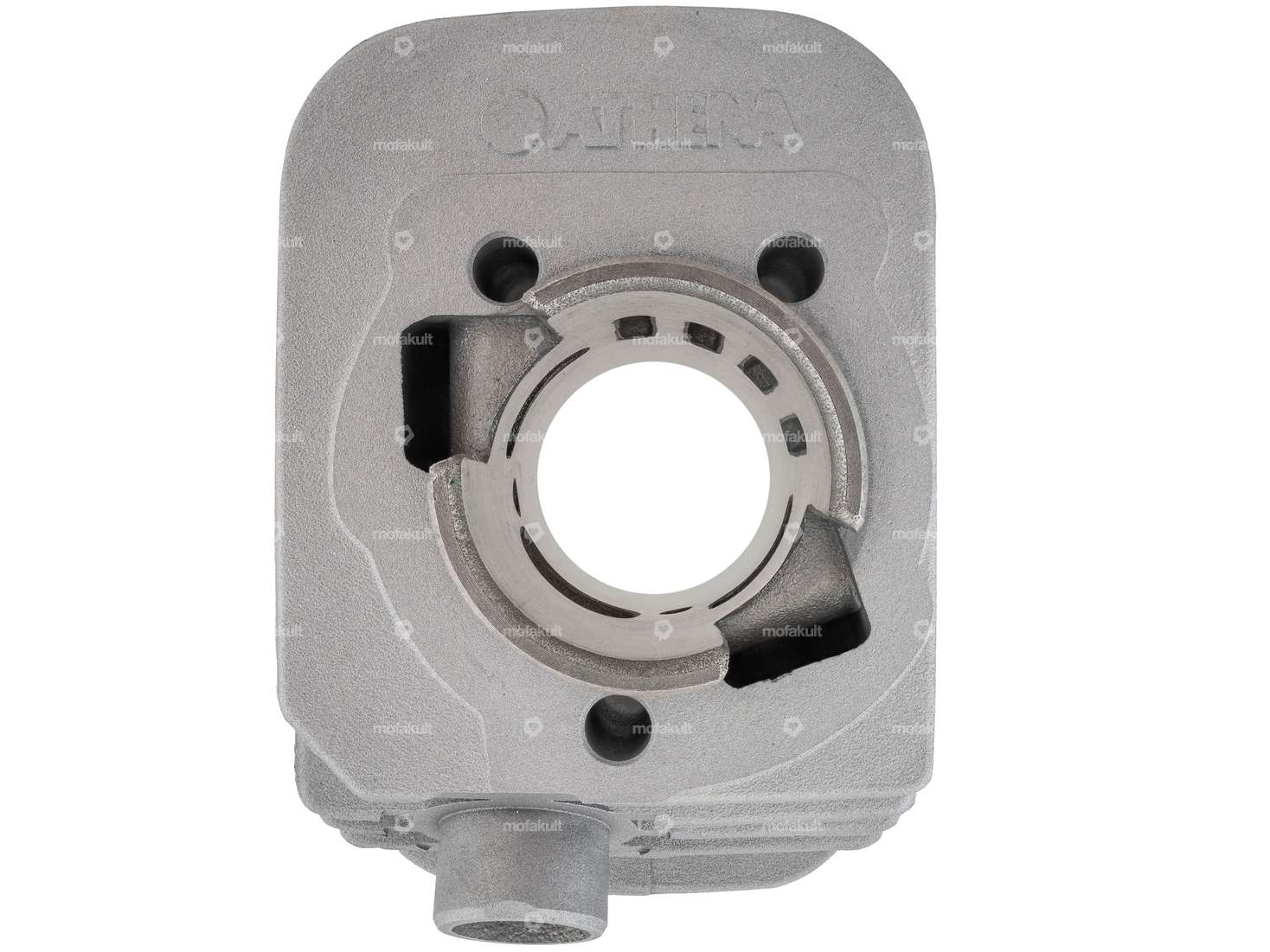

This cast cylinder from the Italian brand manufacturer Athena is suitable for all Piaggio mopeds.
Athena is known for carrying out strict quality controls. This results in high quality cylinders.
The cylinder is made from a special aluminum alloy. The barrel surface has a Nikasil coating.
This allows the piston to slide smoothly and increases the durability of the cylinder kit.
We also offer the cylinder kit with a 12 mm piston pin diameter.
Quality product from the Italian manufacturer Athena.
Details
Nominal diameter | 38.4 mm |
Manufacturer | Athena |
Area of application | Tuning |
Material | Cast aluminum |
Surface | sandblasted |
Displacement | 50 ccm |
Crankshaft stroke | 43 mm |
Ø cylinder neck | 45.7 mm |
Ø Outlet outside | 22.5 mm |
Number of fixing points | 3 pcs |
Ø outlet inside | 18 mm |
Ø piston pin (B) | 10 mm |
Outlet type | clamped |
Hole pattern [mm] | 35 x 55 |
Decompressor | Yes |
Camouflaged | No |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
