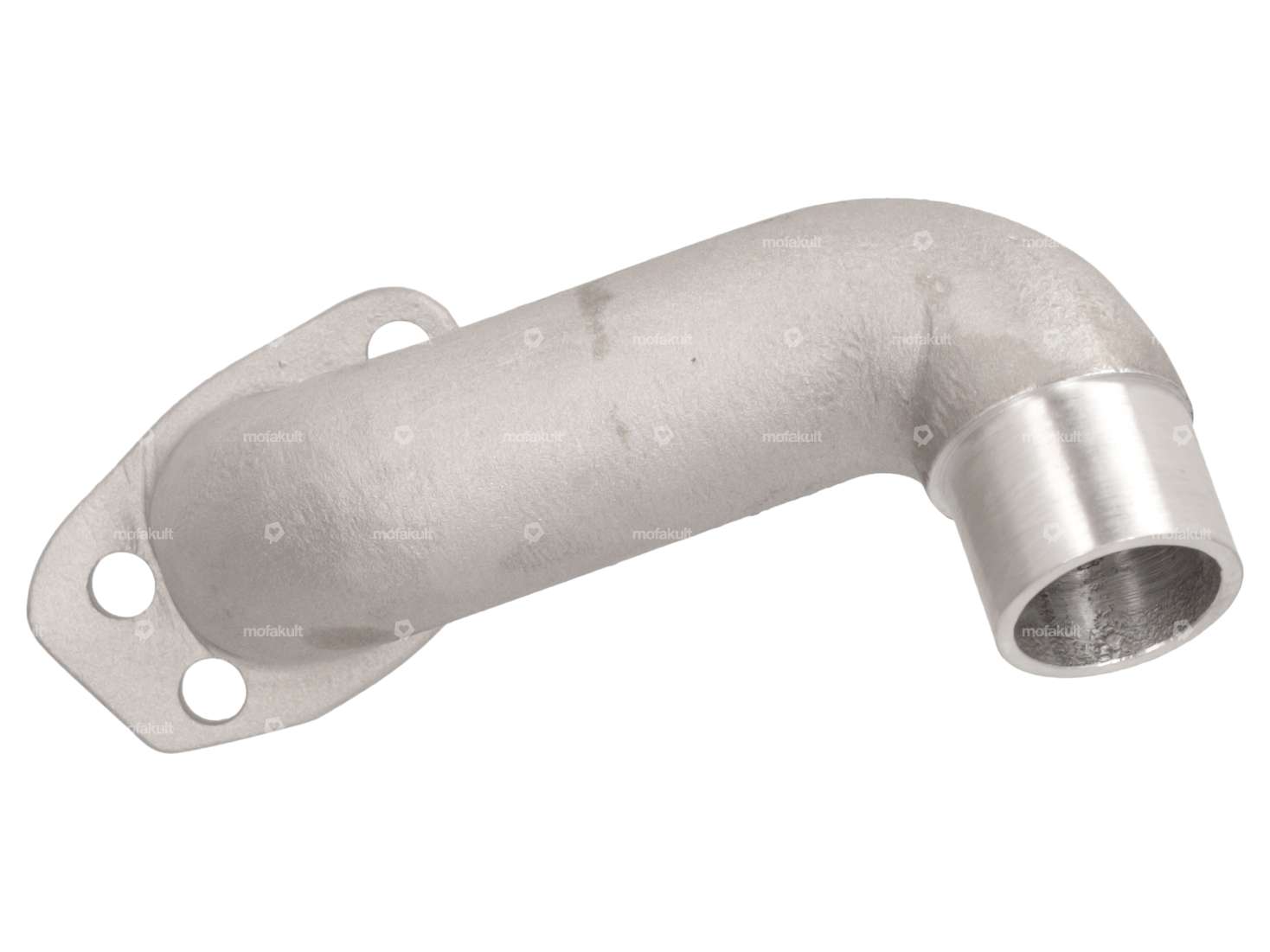

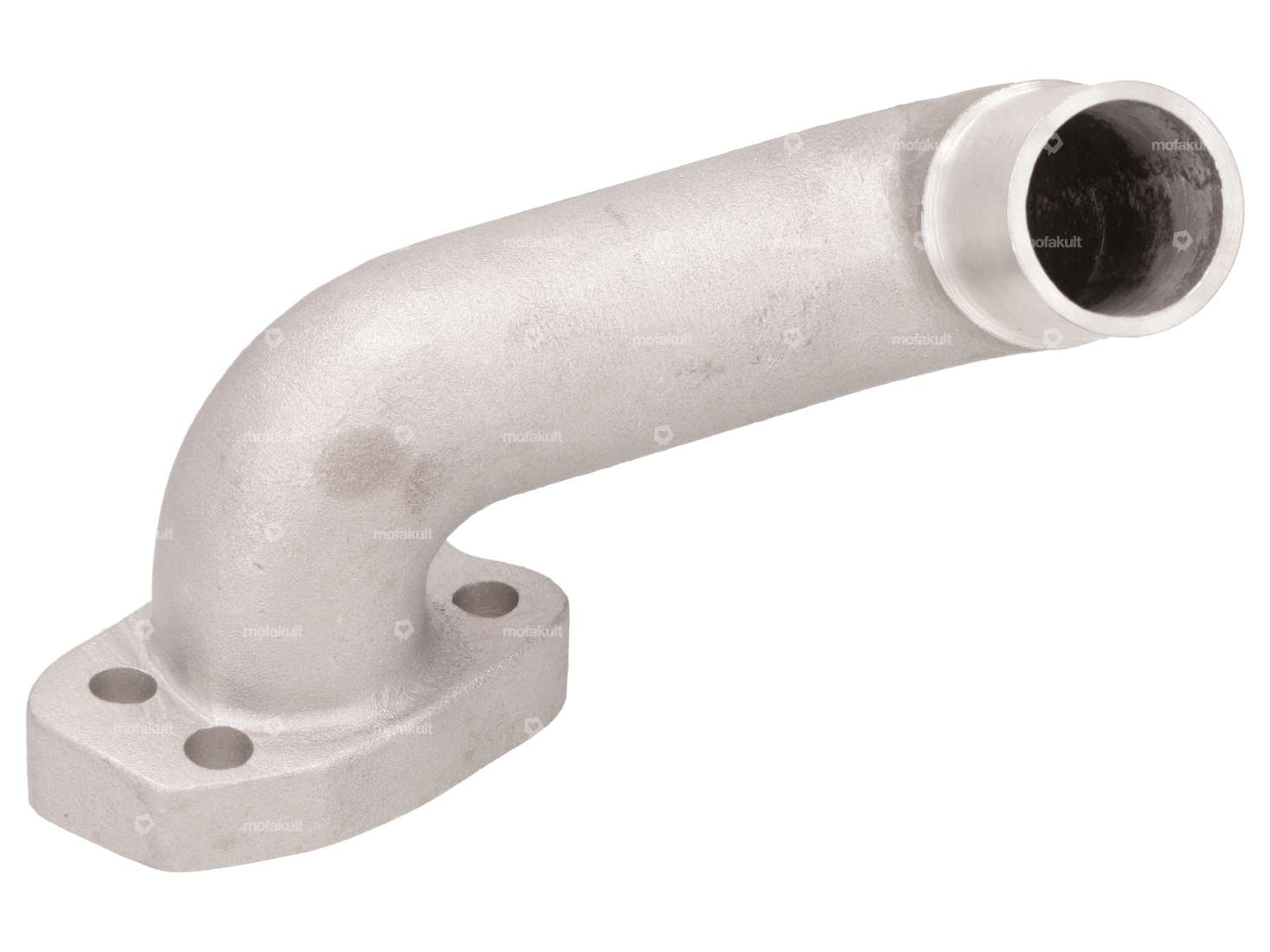

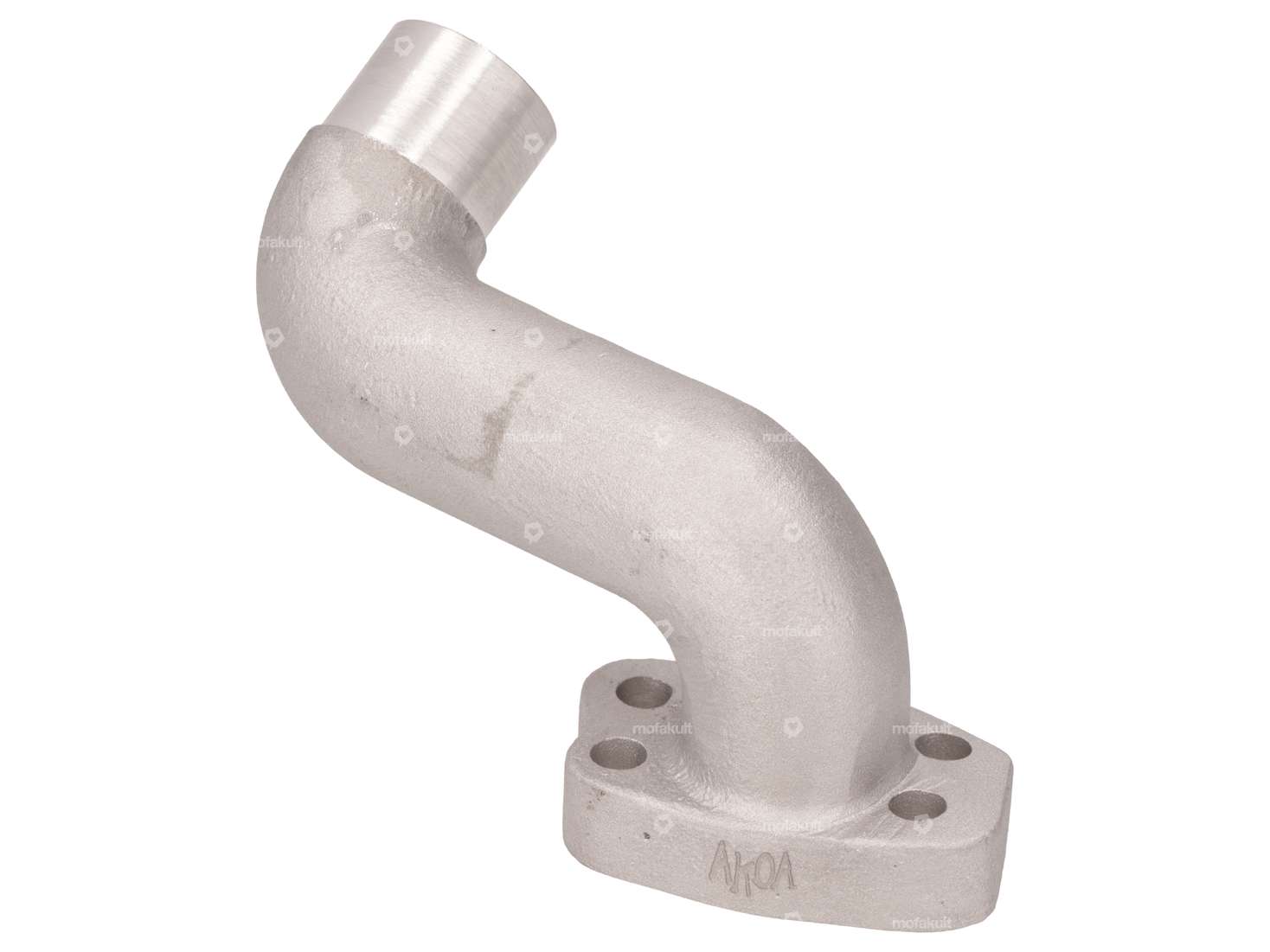

Tuning intake manifold with 20 mm diameter for your Pony moped / moped with Sachs 503 AB engine in combination with a PHBG or Polini CP carburetor.

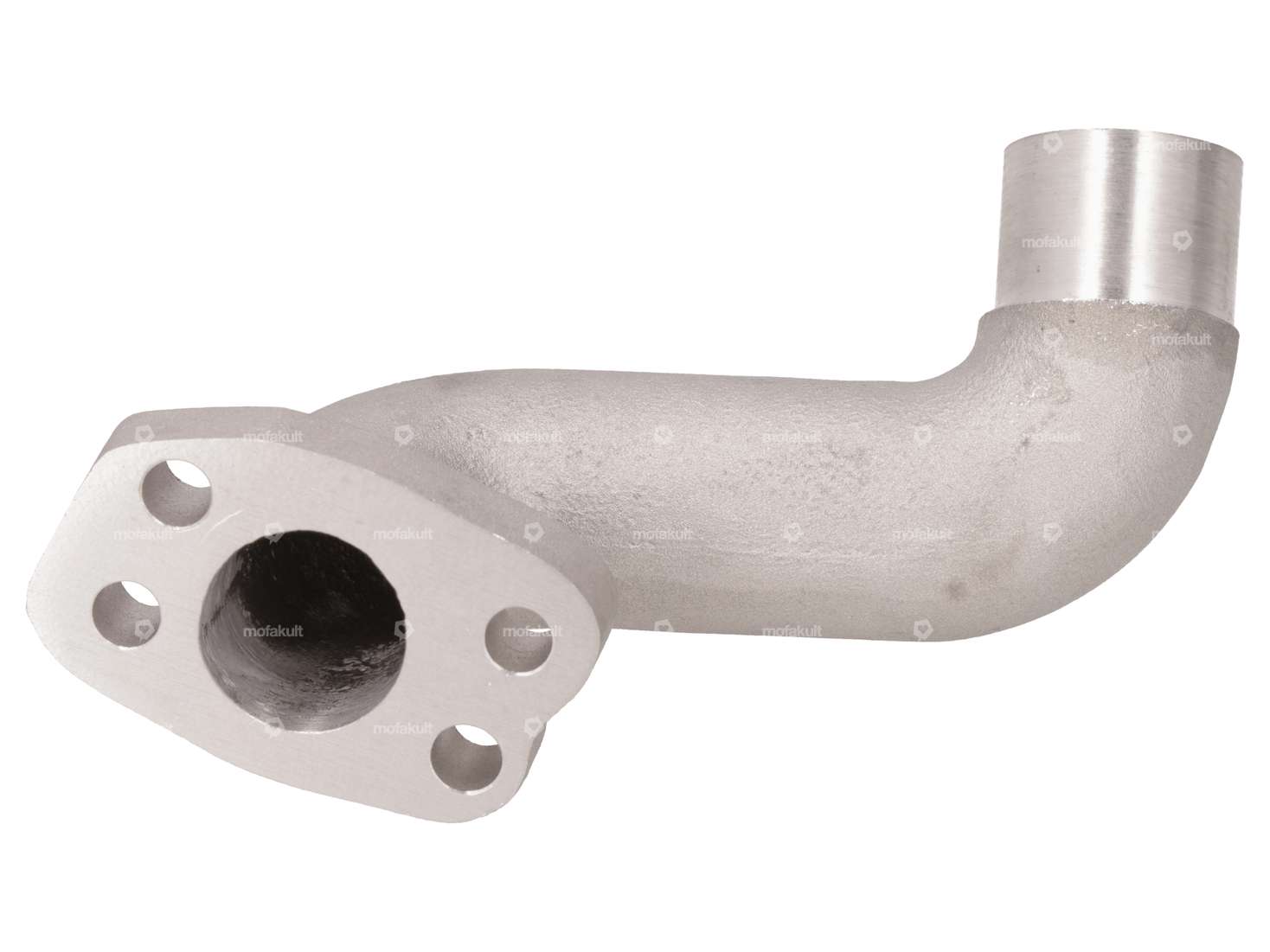

The intake elbow has a double hole pattern and can therefore also be used for ADV engines in combination with PHBG or Polini CP carburetors.
Ø connection outside: 24 mm
Ø inside: 20 mm
Hole spacing: 36 mm
Material: cast aluminum
Matching carburetors can be found under accessories.
Alternative to the original Pony spare part number: A5669, A2180
Branded product from the manufacturer AKOA.
Details
| Manufacturer | AKOA |
| Material | Aluminum |
| Ø inside | 20 mm |
| Hole spacing inlet | 36 mm |
| Mounting type | Screws |
| Ø External connection | 24 mm |
| Alternative version of the Pony OEM number | A5669, A2180 |
Suitable for the following models
| Sachs | 503 - AB, ADV |
