45.0 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) suitable for various Puch mopeds / mopeds.

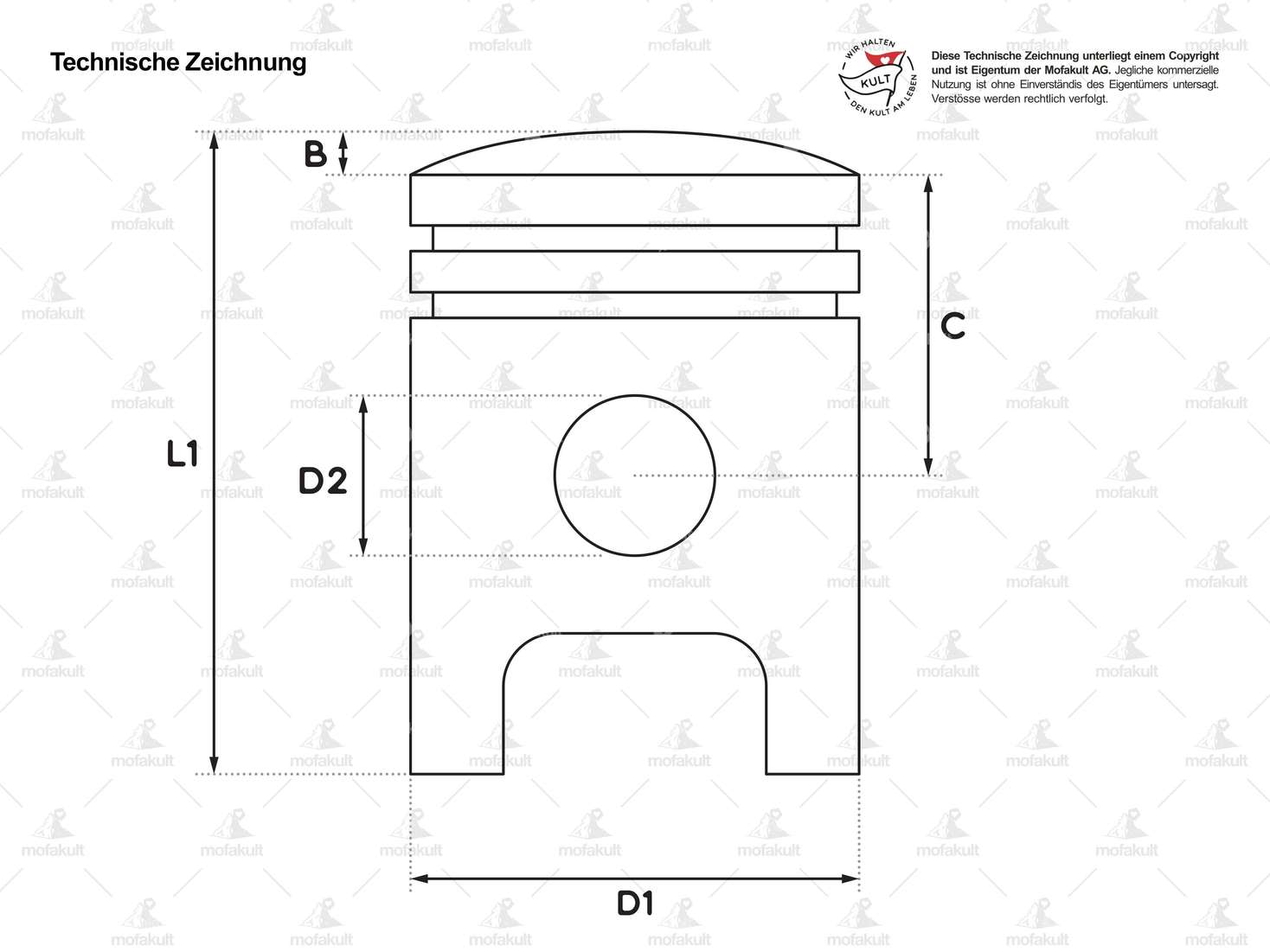

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.

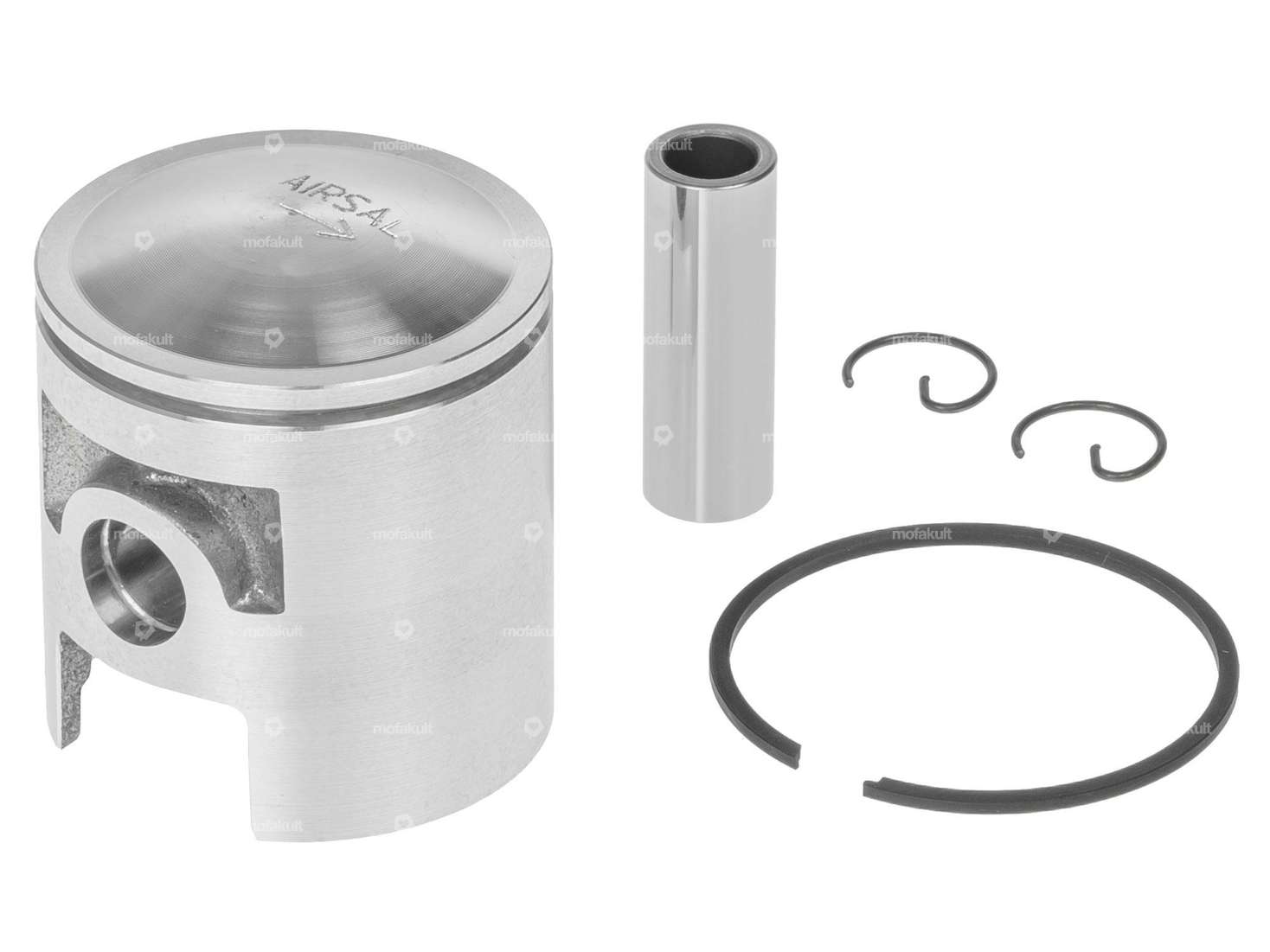

The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.
Quality product from the Spanish manufacturer Airsal.
Details
Nominal diameter | 45 mm |
Manufacturer | Airsal |
Ø outside piston (A) | 44.95 mm |
Compression height (C) | 22.45 mm |
Curvature (D) | 4.3 mm |
Total piston height (E) | 50.3 mm |
Number of piston rings (F) | 1 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Piston ring height | 1.5 mm |
Thick piston ring | 2 mm |
Ø piston pin (B) | 12 mm |
Piston weight | 91 g |
Suitable for the following models
Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
