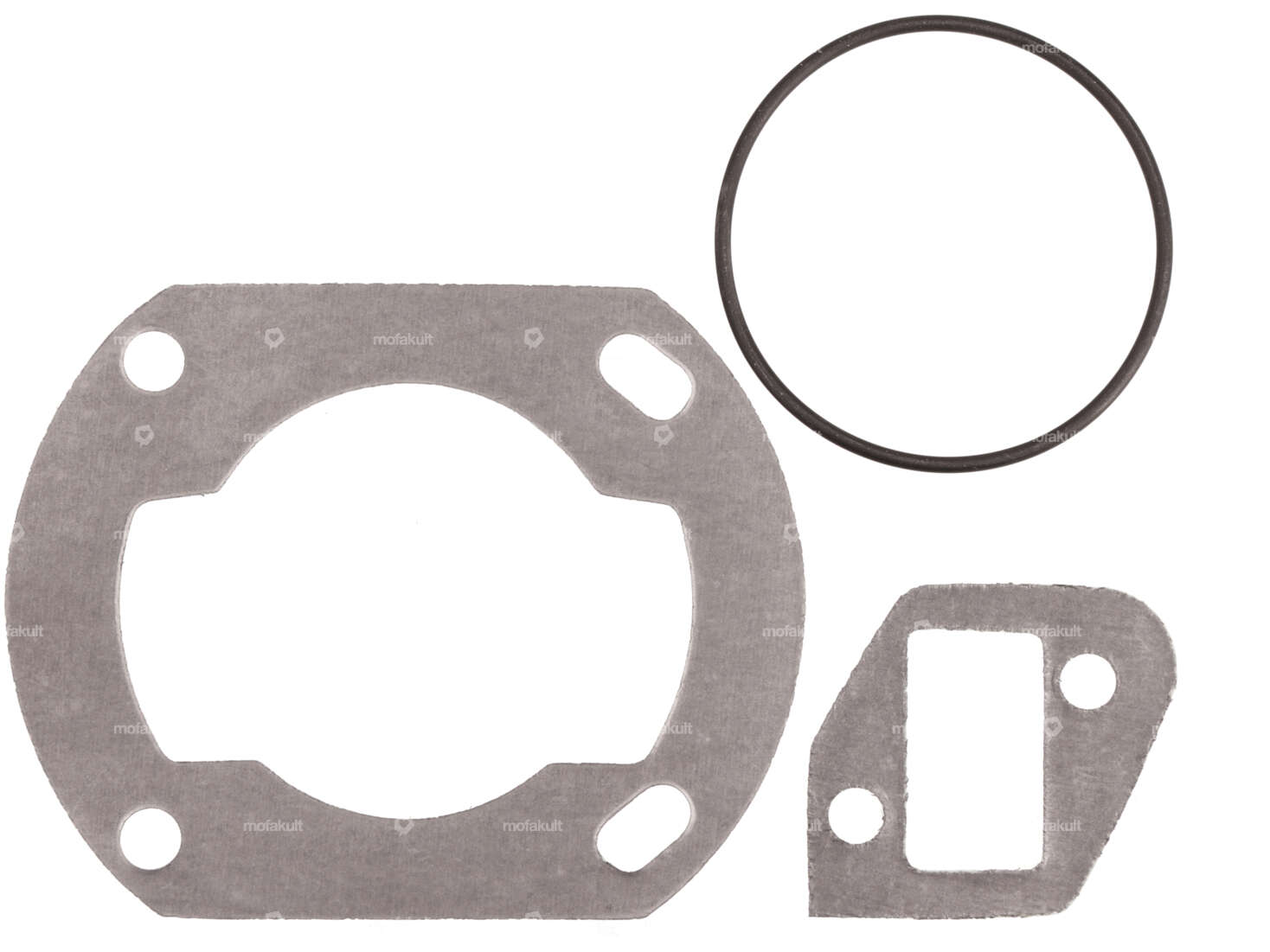

Airsal gasket set 43.5 mm | Sachs 504 & 505

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Color: green · Contents [ml]: 70 ml · Gap dimension (max.): 0.2 mm · Area of application: Chemistry

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 508

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: clamped · Decompressor: M10x1.5

Airsal 14 mm intake manifold angled | Sachs 504, 505

Manufacturer: Airsal · Material: Aluminum · Ø External connection: 20 mm · Ø inside: 13.6 mm · Hole spacing inlet: 31 mm · Mounting type: Screws · Height flange center hole: 56 mm · Number of fixing points: 2 pcs · Area of application: Tuning

Airsal 43.5 mm cylinder head | Sachs 504 / 505

Manufacturer: Airsal · Ø cylinder: 43.5 mm · Area of application: Racing

Airsal piston 43.5 mm | Sachs 504 / 505

Manufacturer: Airsal · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.5 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.8 mm · Curvature (D): 4.25 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm

Airsal piston rings 43.5 mm (pair) | Sachs 504 / 505

Manufacturer: Airsal · Nominal diameter: 43.5 mm · Piston ring impact: Internal fuse (IS) · Area of application: Racing

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Color: red · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C · Area of application: Chemistry

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Ø cable: 5 mm · Ø cable: 7 mm · Color: silver · Pony OEM number: A2099 · Sachs OEM number: 0265 100 00

Black bench seat

Manufacturer: Made in Portugal · Ø Saddle tube holder: 22 mm · Material: Imitation leather · Color: black · Spring-loaded: No · Lettering: No · Total length: 300 mm · Number of fixing points: 1 pcs · Width: 215 mm · Height: 80 mm · Height: 115 mm

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Area of application: High End · Area of application: Standard · Contents [ml]: 1000 ml · Color: red

Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall

Manufacturer: Mitas · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · Color: black · Color: white · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)

Cable set black | Sachs 50/2, 503 2AL/2BL (manual)

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Total length: 1400 mm · Total length: 1600 mm · Total length: 2200 mm · Material: Steel · Quantity: 5 pcs · Color: black · Outer shell length: 1150 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm

GPO exhaust clamp solid 28 - 30 mm galvanized (strength 12.9)

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 41 mm · Width: 42.5 mm · Total length: 46 mm · Ø inside: 28 - 30 mm · Mounting type: Nuts & bolts · Material thickness: 1.6 mm · Pony OEM number: A1897 · Sachs OEM number: 0251 113 105

Rubber grommet round 2 cables | Sachs 502, 503, 504 (A1923)

Ø Bundle: 10.5 mm · Waistband height: 2 mm · Ø outside: 12.8 mm · Total length: 7 mm · Material: Rubber · Surface: raw · Color: black · Ø Cable bushing: 2.2 mm · Ø mounting hole: 8.5 mm · Area of application: Standard · Pony OEM number: A1923 · Sachs OEM number: 0260 020 000

Oil seal NBR 15/32/5.5 A Main shaft | Sachs 504, 535 (A4216)

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 5.5 mm · Ø inside: 15 mm · Ø outside: 32 mm

Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 35 mm
