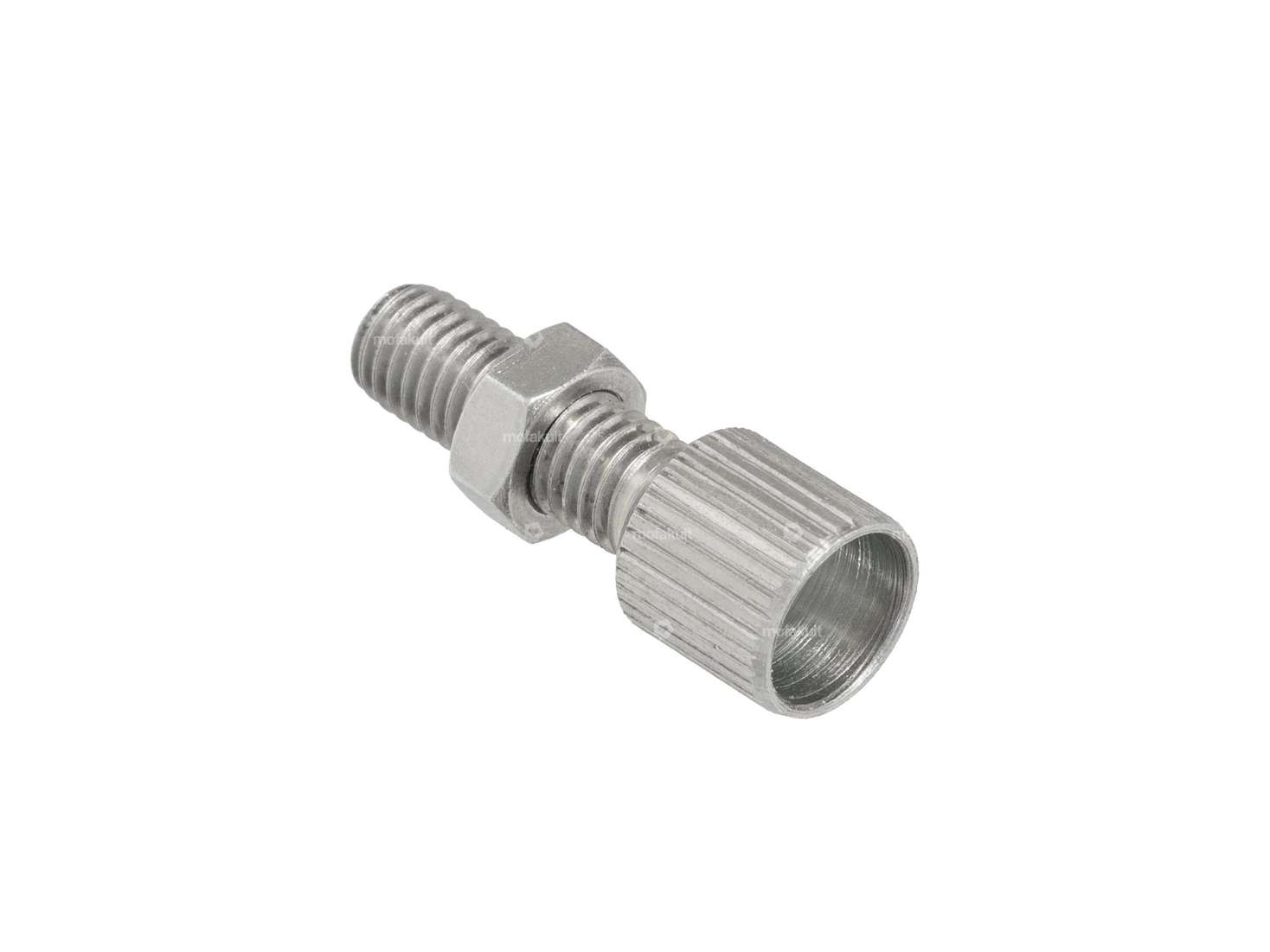

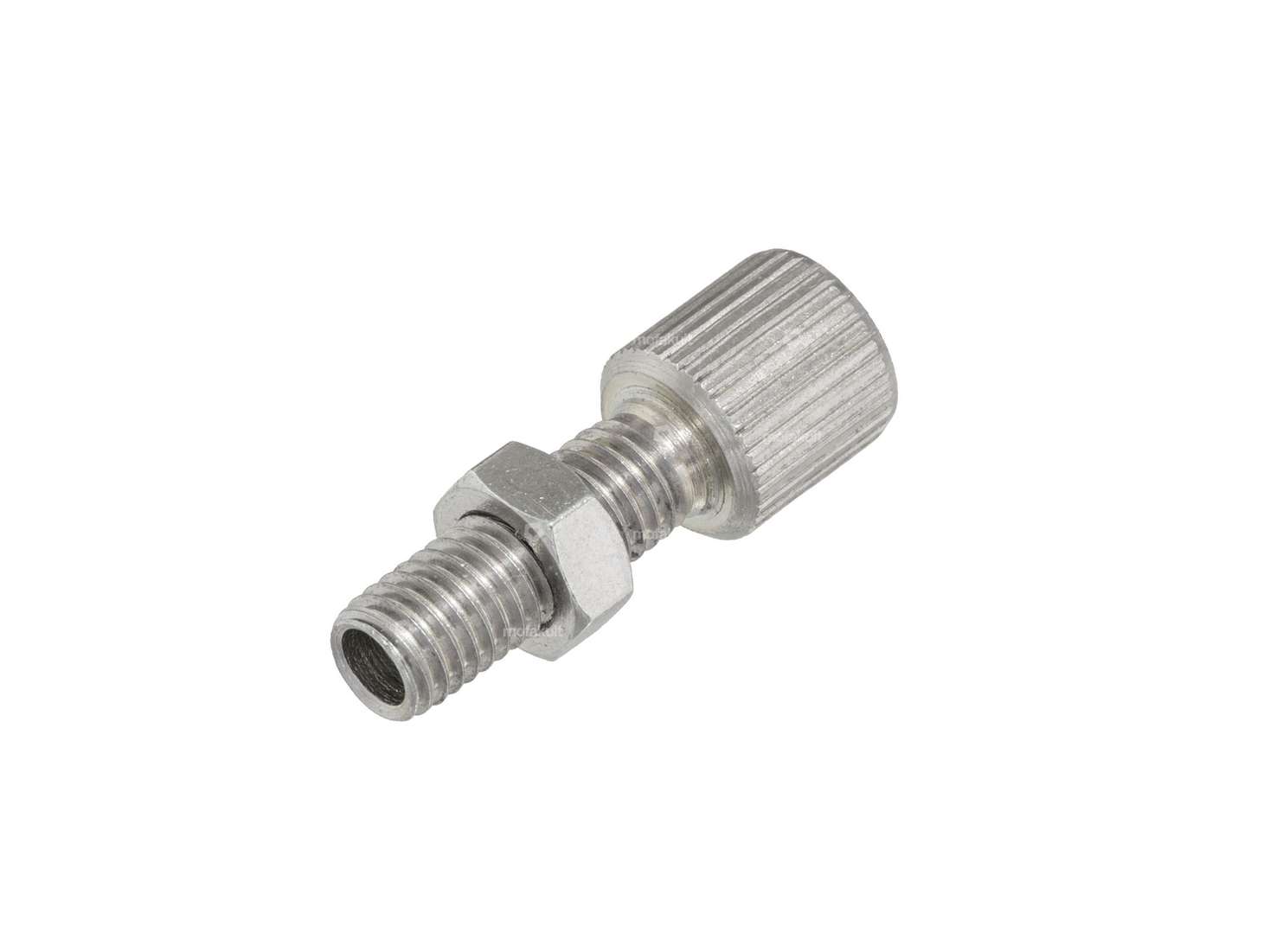

Adjusting screw for the pipe bend of Dell'Orto SHA carburetors with lock nut suitable for all Piaggio mopeds (Ciao, Bravo, Si, Boxer).
Thread: M5 x 0.75
Thread length: 15 mm
Total length: 23 mm
Counter nut: SW 8
Quality product from the Italian manufacturer Piaggio in original equipment quality.
The set includes the following fixed parts:
Details
Manufacturer | Piaggio |
Thread type | MF5x0.75 (fine pitch thread) |
Slotted | No |
Total length | 23 mm |
Thread length | 15 mm |
Width across flats nut | 8 mm |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
