Highly polished stainless steel pads for attaching clamp bars to the fork plate of your moped, moped or small motorcycle.
These two adapters can be used to mount handlebars on various fork plates.
To do this, two mounting holes are drilled into the fork plate. The substructures are attached there using the enclosed M8 screws.
Now conventional handlebars for fork plate mounting with a diameter of 22 mm can be fitted.
Thread for clamping brackets: M7 x 1 mm
Thread spacing: 30 mm
Height: 17 mm

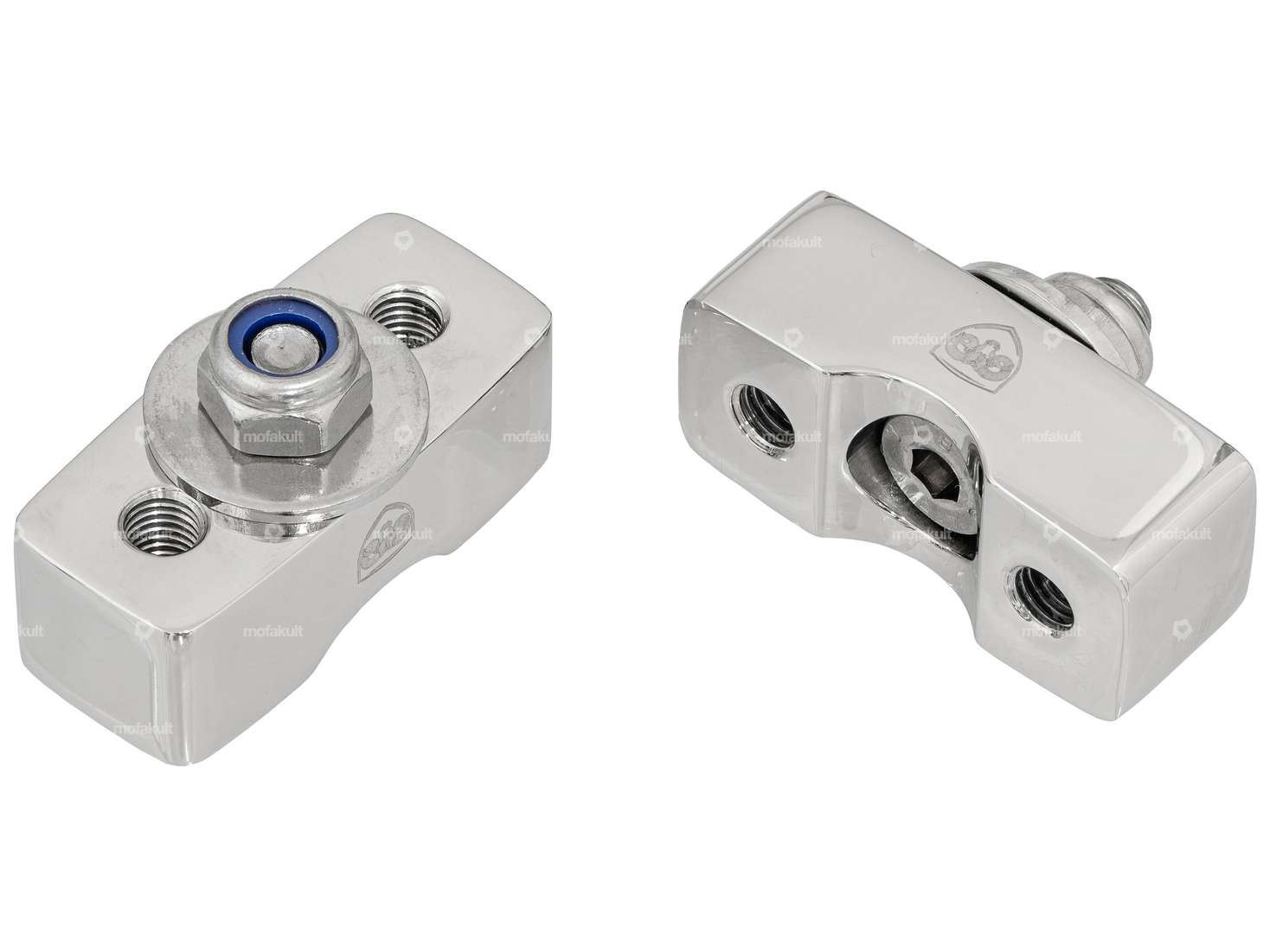

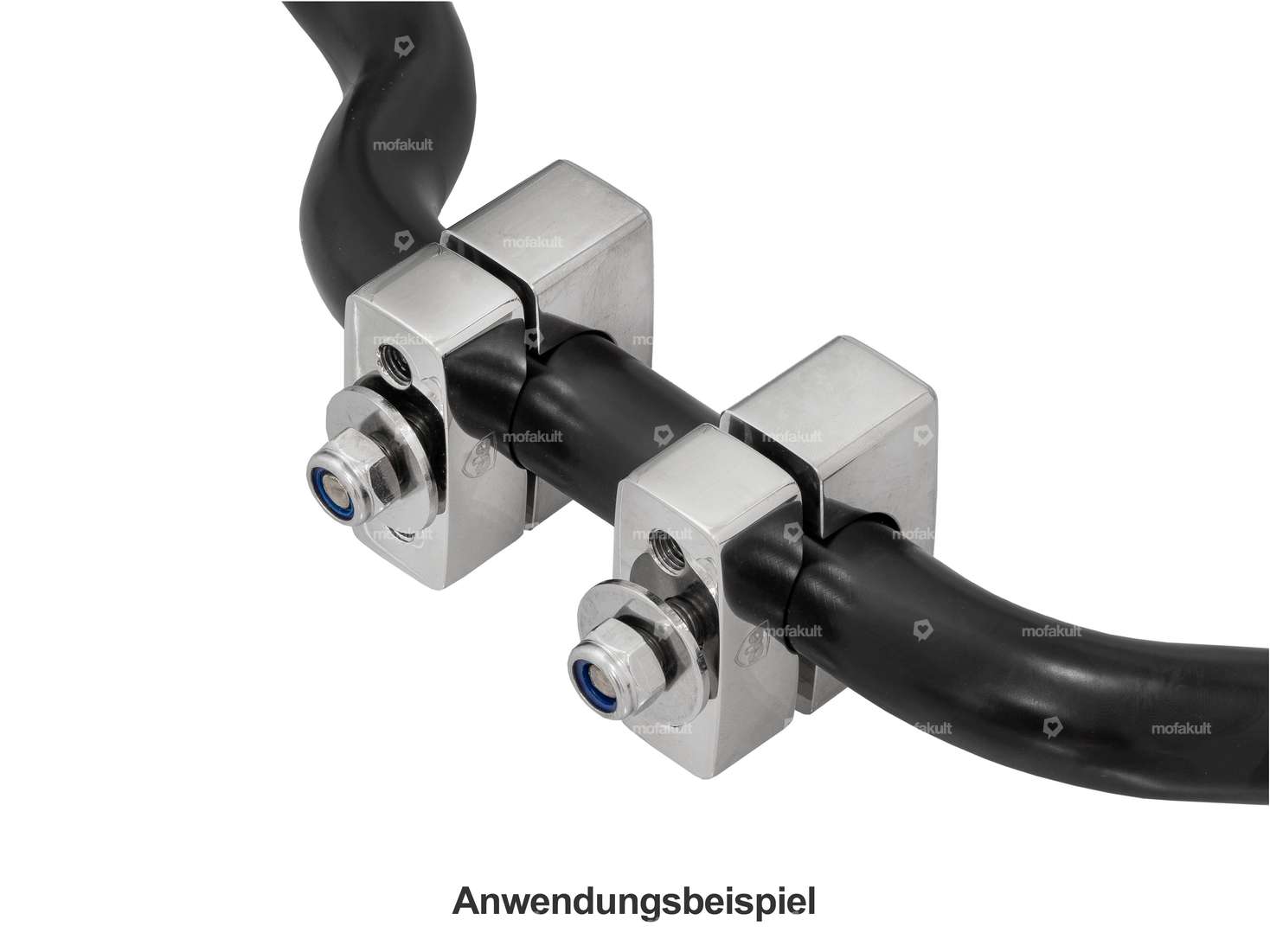

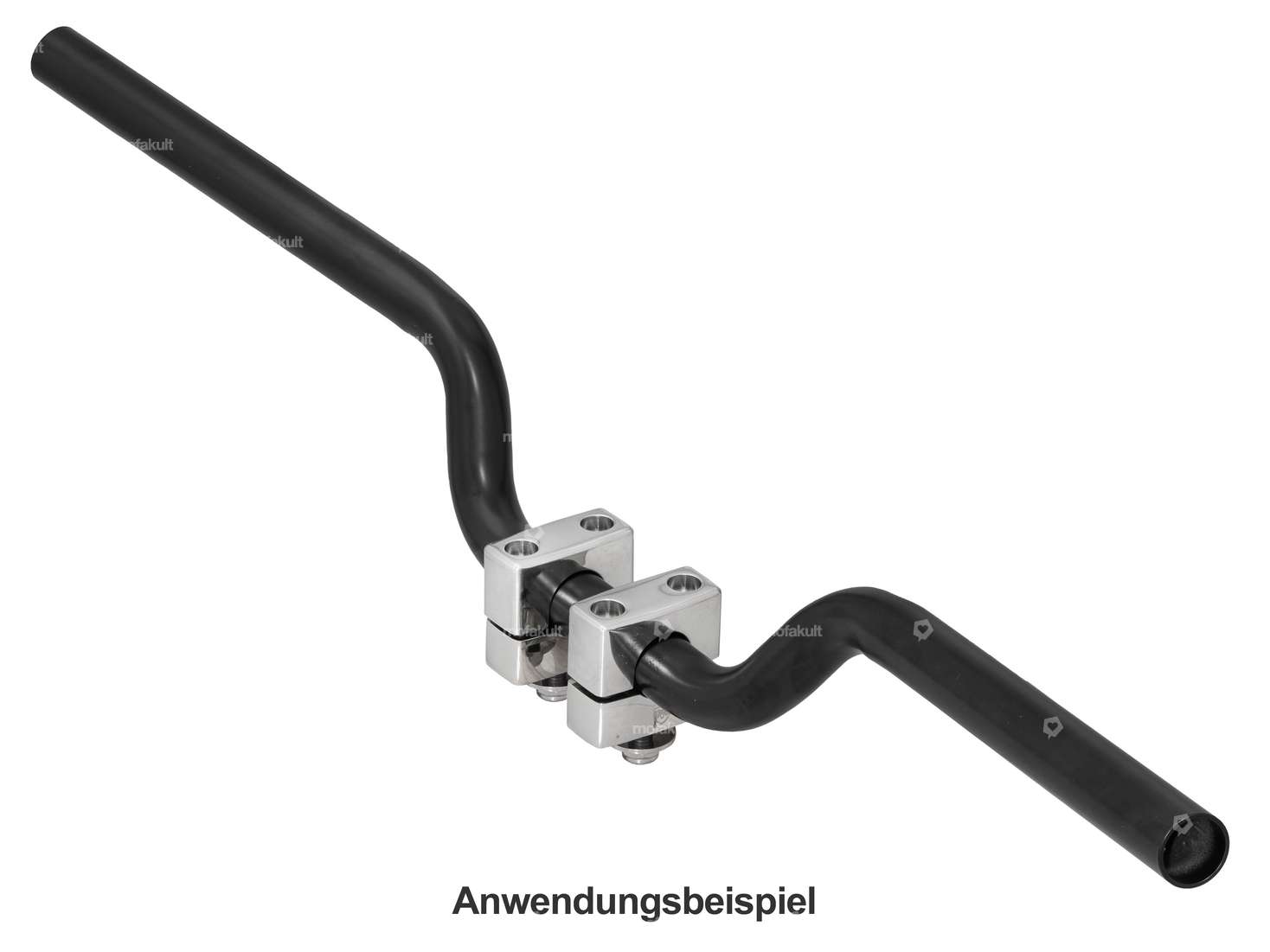

Scope of delivery as shown in figure 1. Figures 2 / 3 are for illustration purposes only.
You can find a selection of matching clamps in the accessories section.
Excellent quality from the premium custom brand 66HEROES.
Details
Manufacturer | 66HEROES |
Material | Chrome steel (known as Nirosta®) |
Surface | polished |
Color | Chrome |
Hole spacing | 30 mm |
Number of fixing points | 2 pcs |
Height | 17 mm |
Suitable for the following models
Universal | |
Puch |
