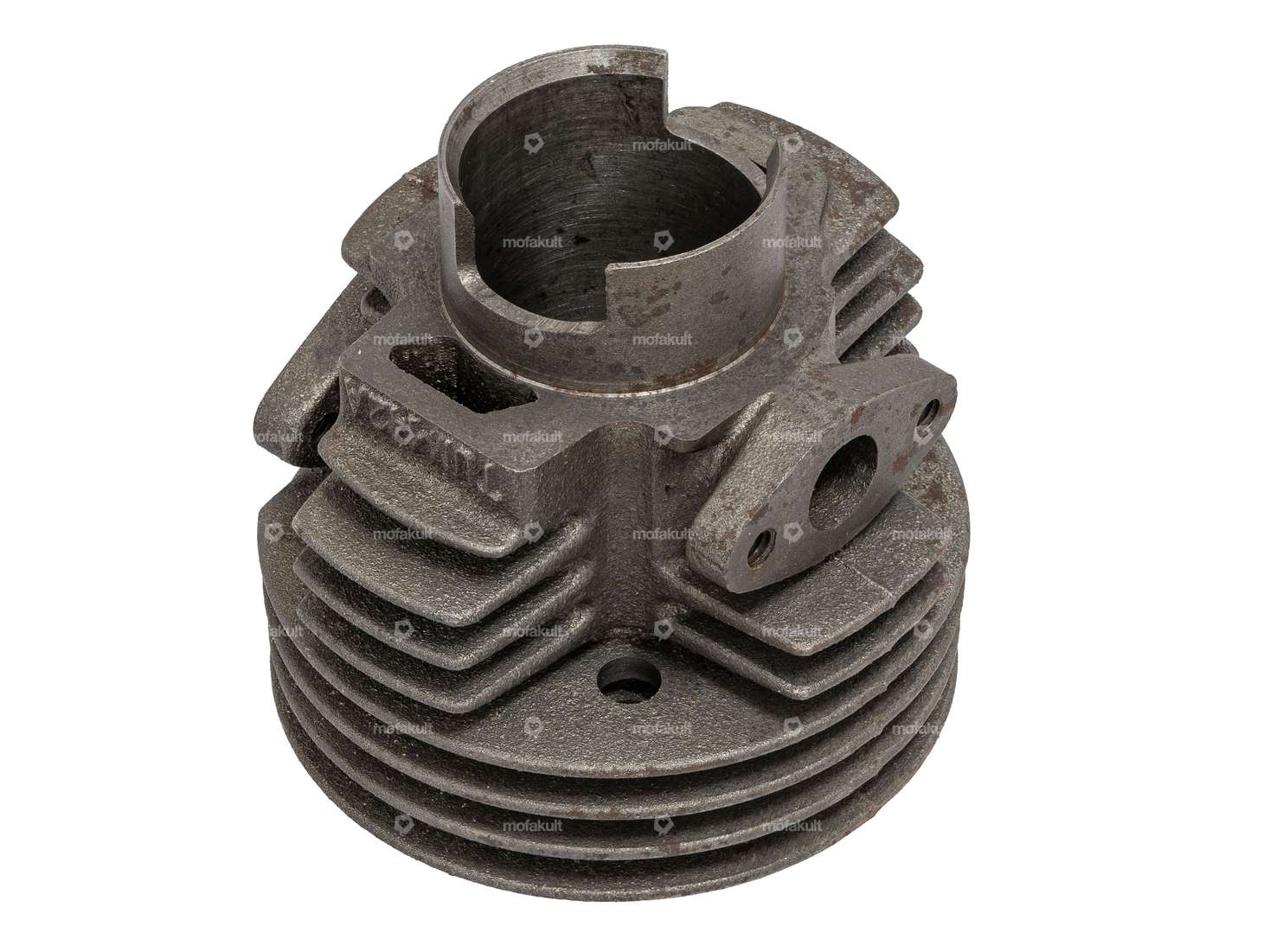

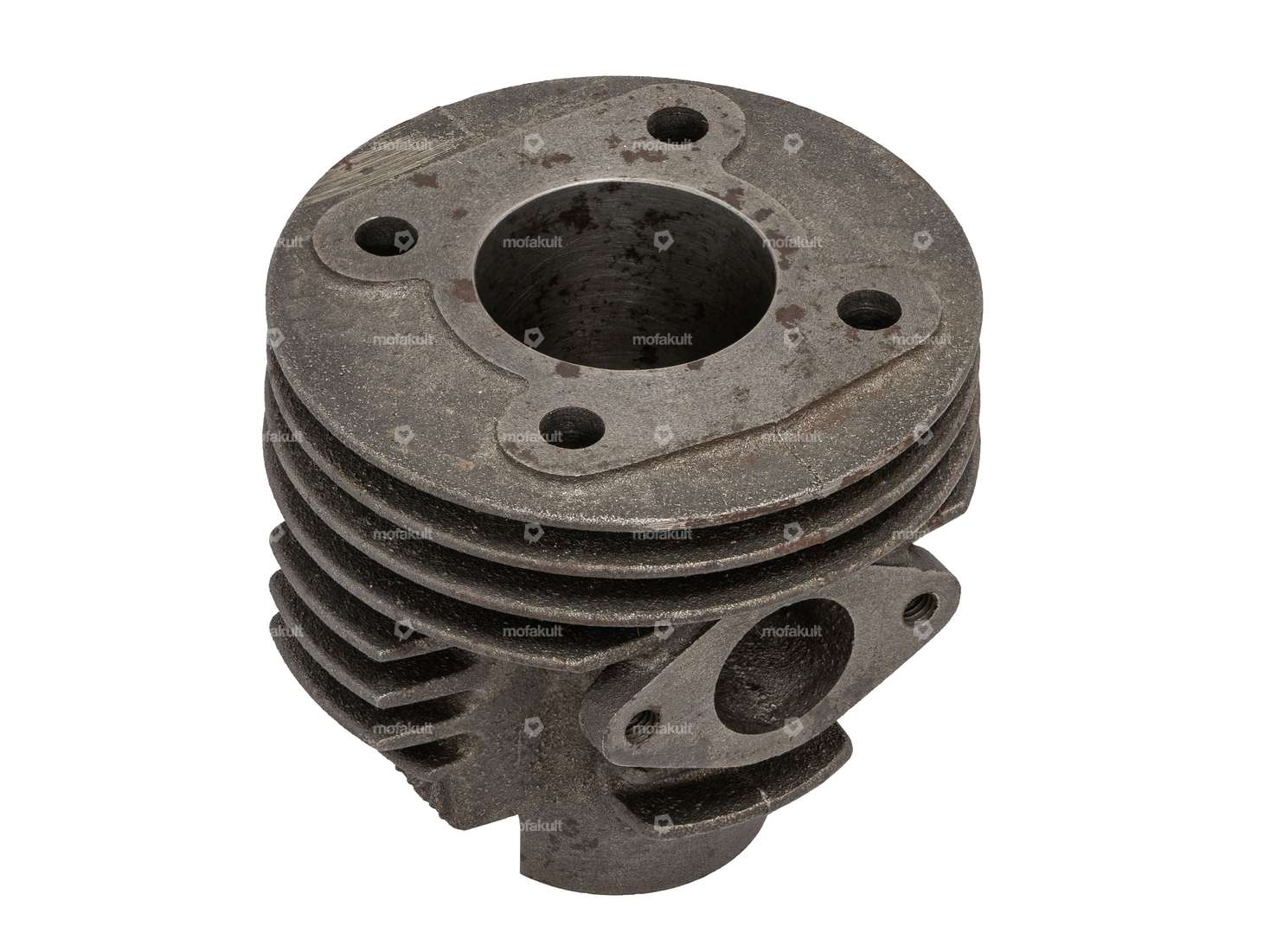

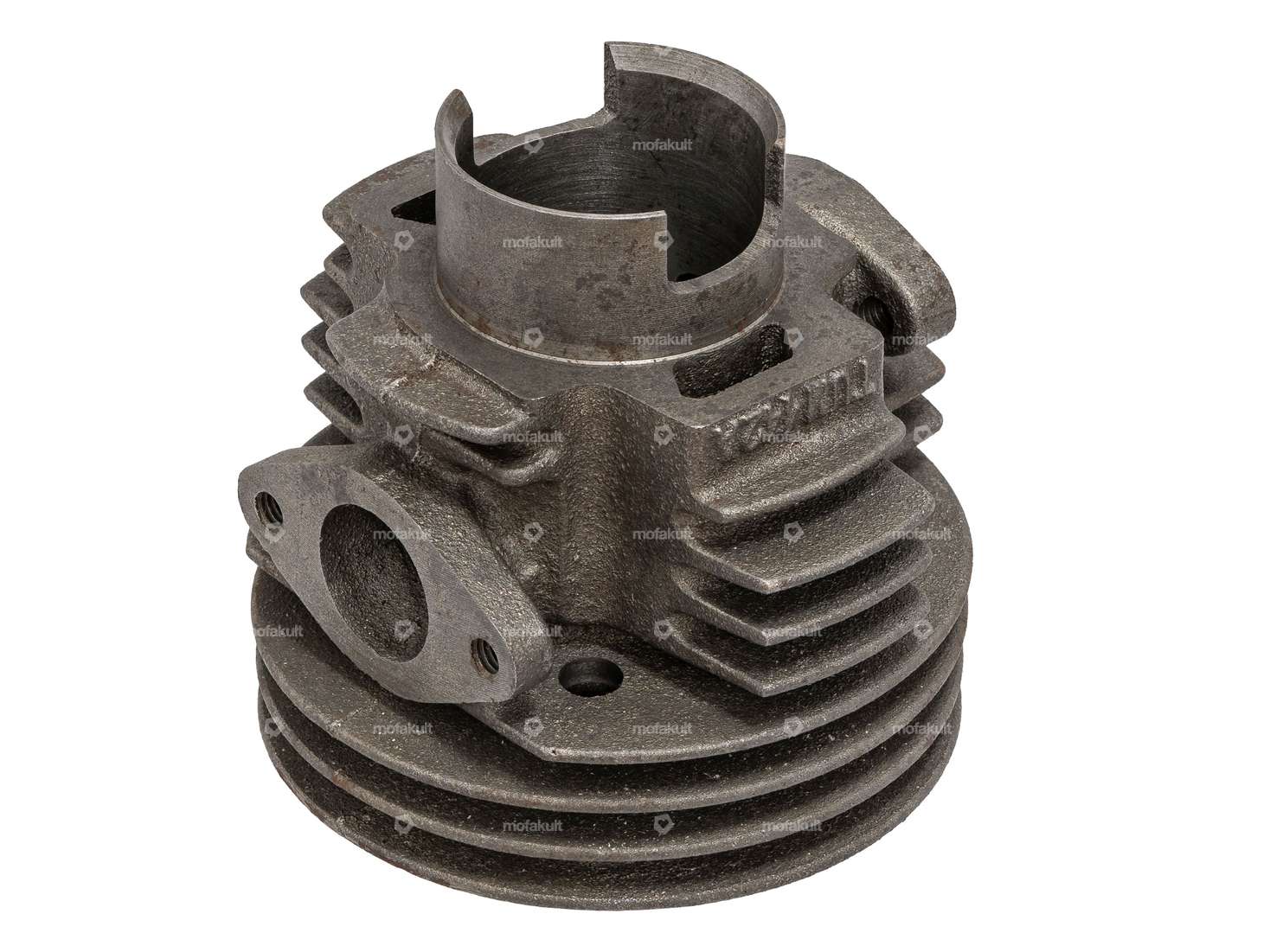

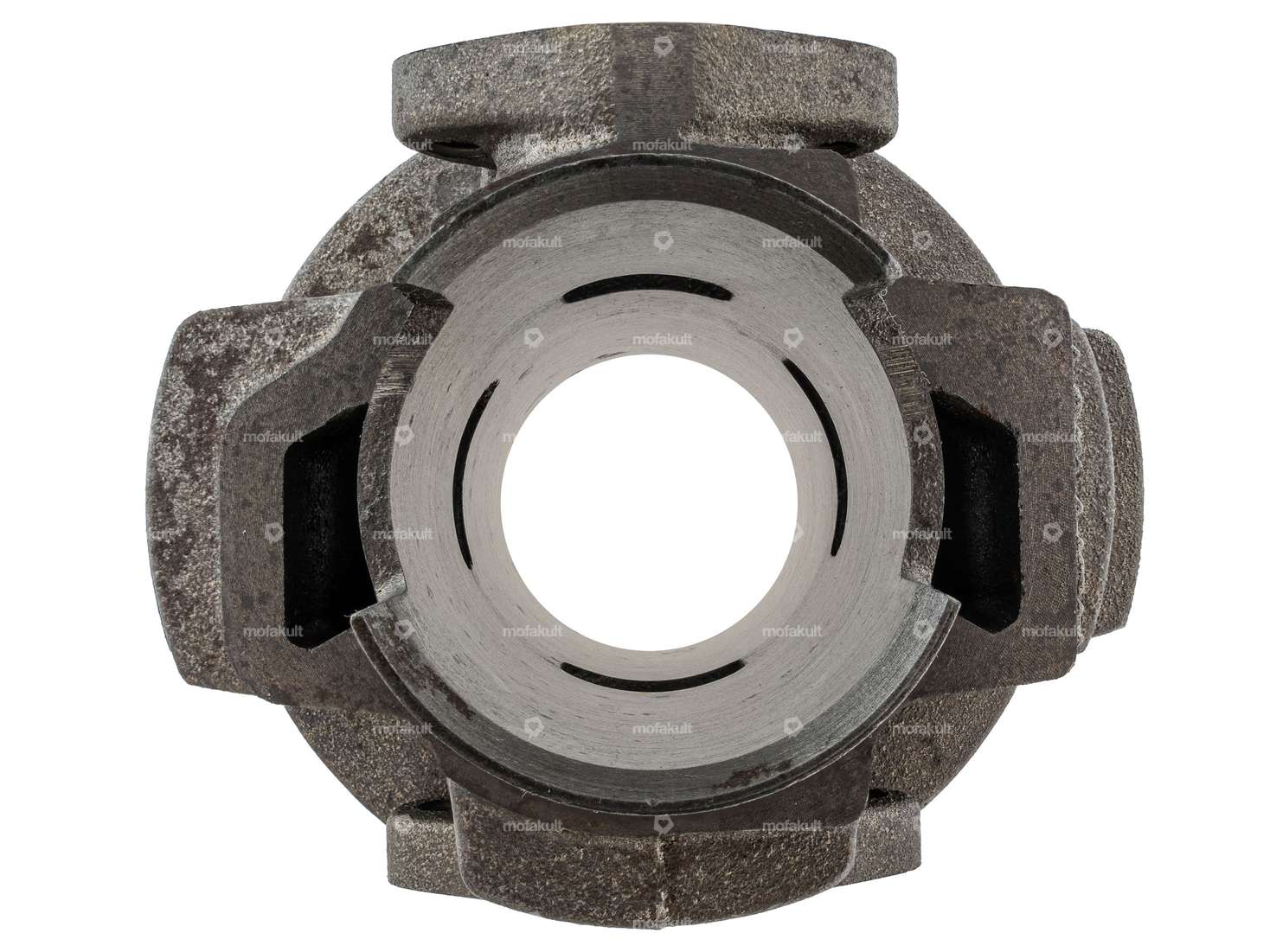

Original 38 mm cylinder kit for your Tomos moped / moped (old version) of the 2L, 3L, 4L series. The cylinder comes from the license replica of the Puch Velux and MS / MV engines.
The cast iron cylinder has a slight rust film due to years of storage. However, this can be easily removed with a little scotch and oil.
Corresponding add-on parts such as pistons, seal kit, stud bolts etc. can be found in the accessories section.
Cast-in number on the cylinder base: TUM142A
NOS – New from old stock.
Details
| Manufacturer | Tomos |
| Material | Gray cast iron |
| Surface | raw |
| Displacement | 50 ccm |
| Nominal diameter | 38 mm |
| Area of application | Original |
| Outlet type | straight |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | Yes |
Suitable for the following models
| Tomos |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Contents [ml]: 10 ml · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 25,70
EUR 2.570,00/l
Piston 38 mm (12 mm KoBo) short shirt | Puch fan-cooled
Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Compression height (C): 22.9 mm · Curvature (D): 3.2 mm · Total piston height (E): 50.1 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 74 g
EUR 46,80
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548
EUR 14,00
swiing® revival stud bolt set M6x30 (strength 10.9) galvanized
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Width across flats SW: 10 mm · Strength class: 8 · Strength class: 10.9 · Drive: External hexagon
EUR 12,40
Collection only possible with online purchase and appointment.
