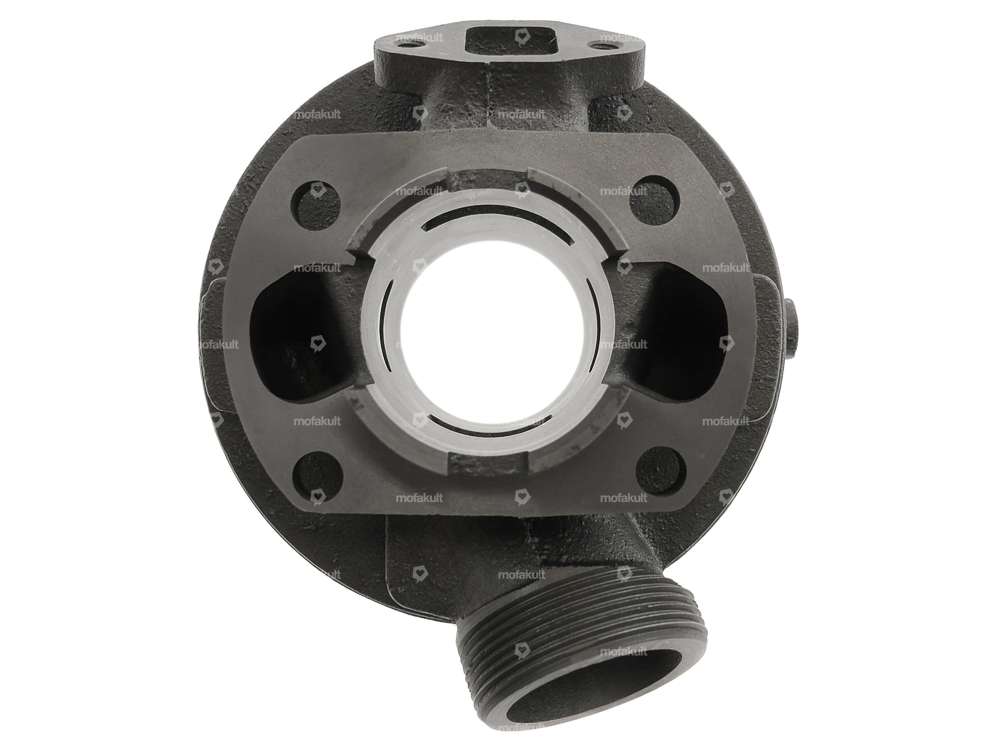

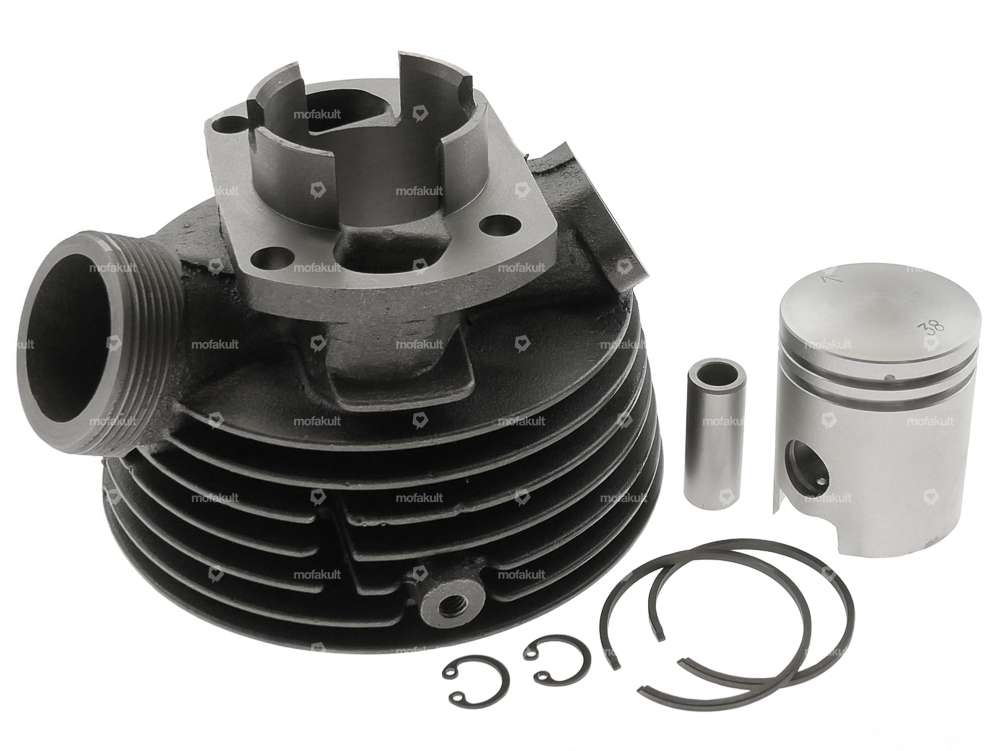

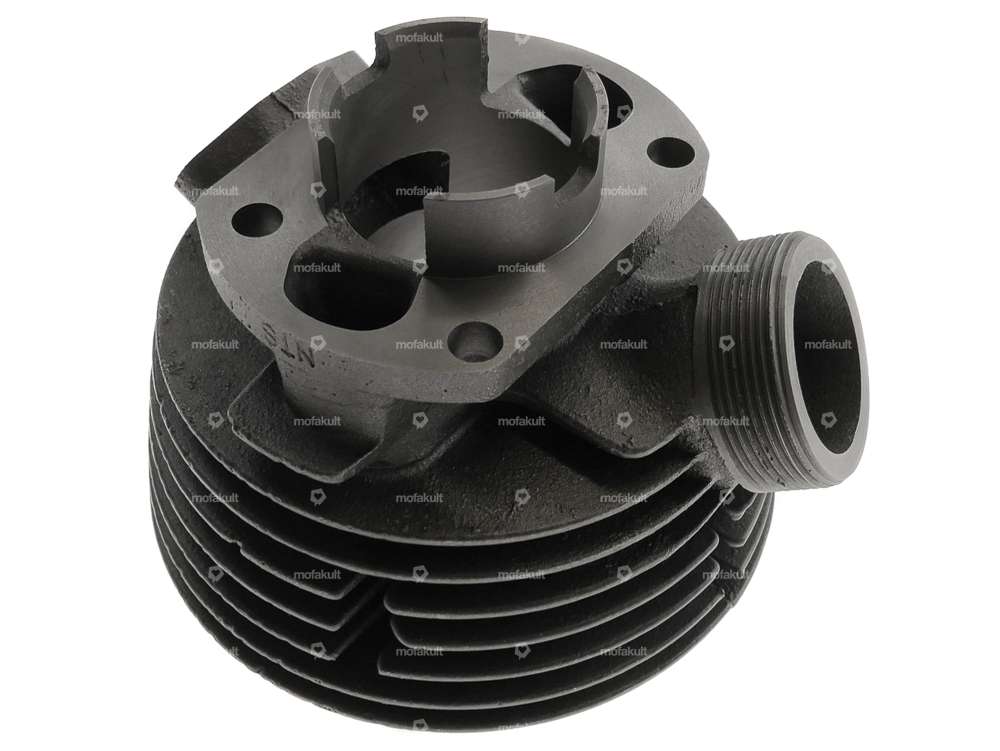

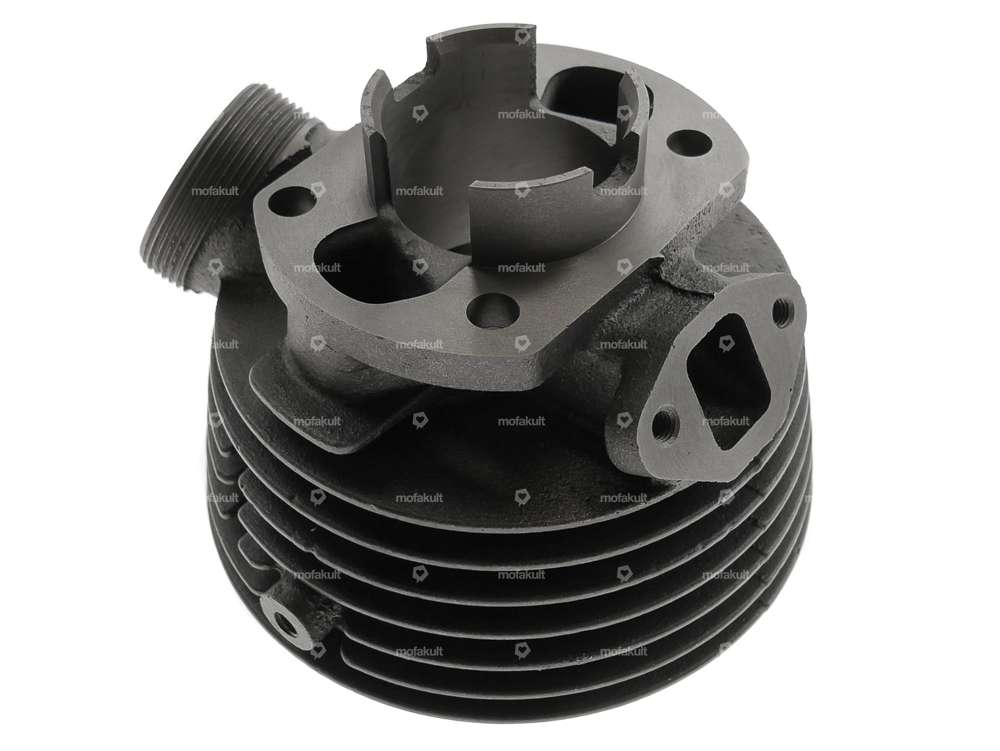

Complete cylinder kit for Sachs 3- and 4-speed engines with foot shift.
Für 32 mm flame tubes with an M40x1.5 mounting nut.
Ø outside: 119 mm
Should be used with a 17 mm Bing carburetor.
To be able to mount this cylinder on a Sachs 50/2 engine, various adjustments must be made.
Details
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 42 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 51 x 40 |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Hole spacing inlet | 31 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
