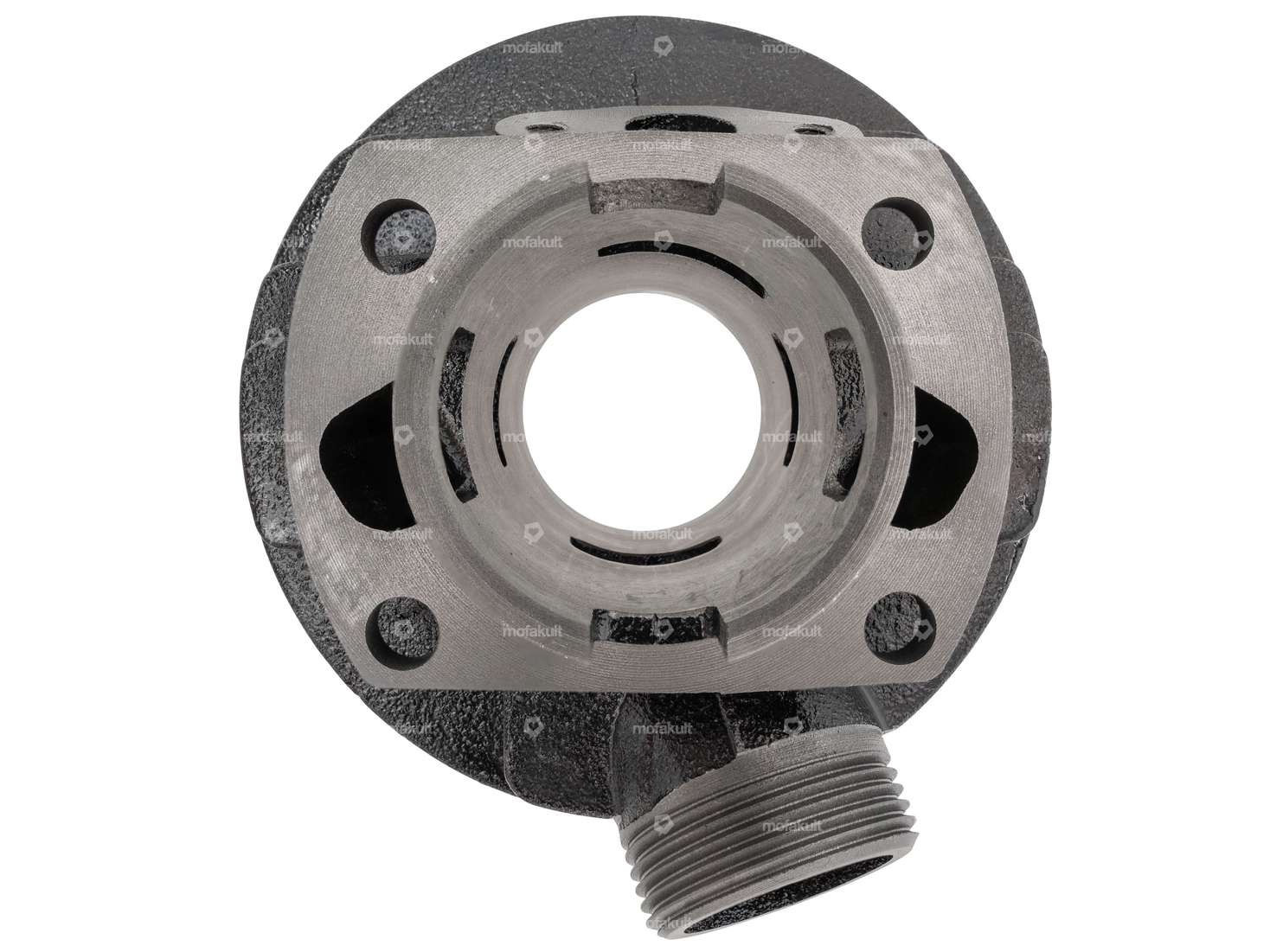

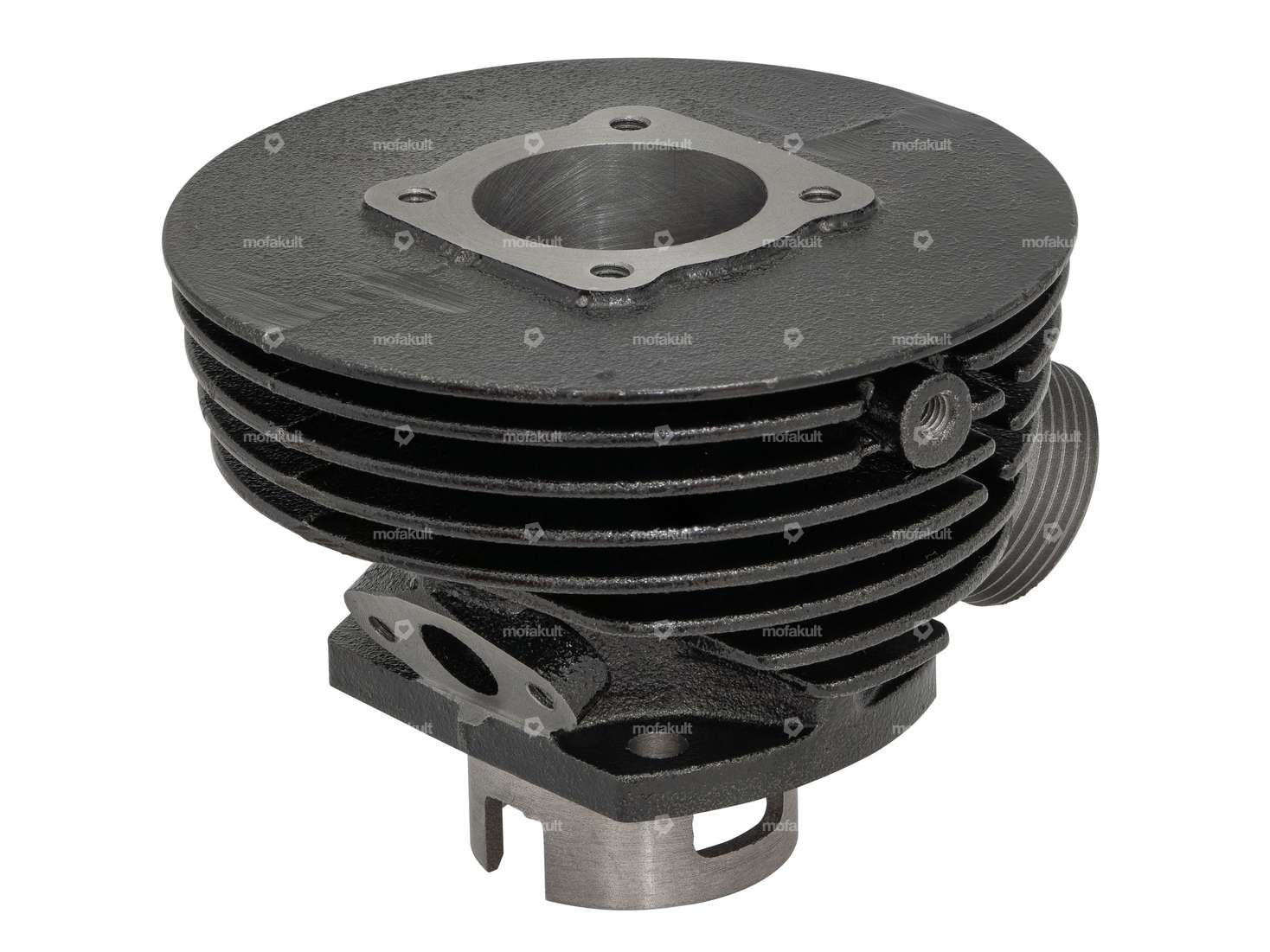

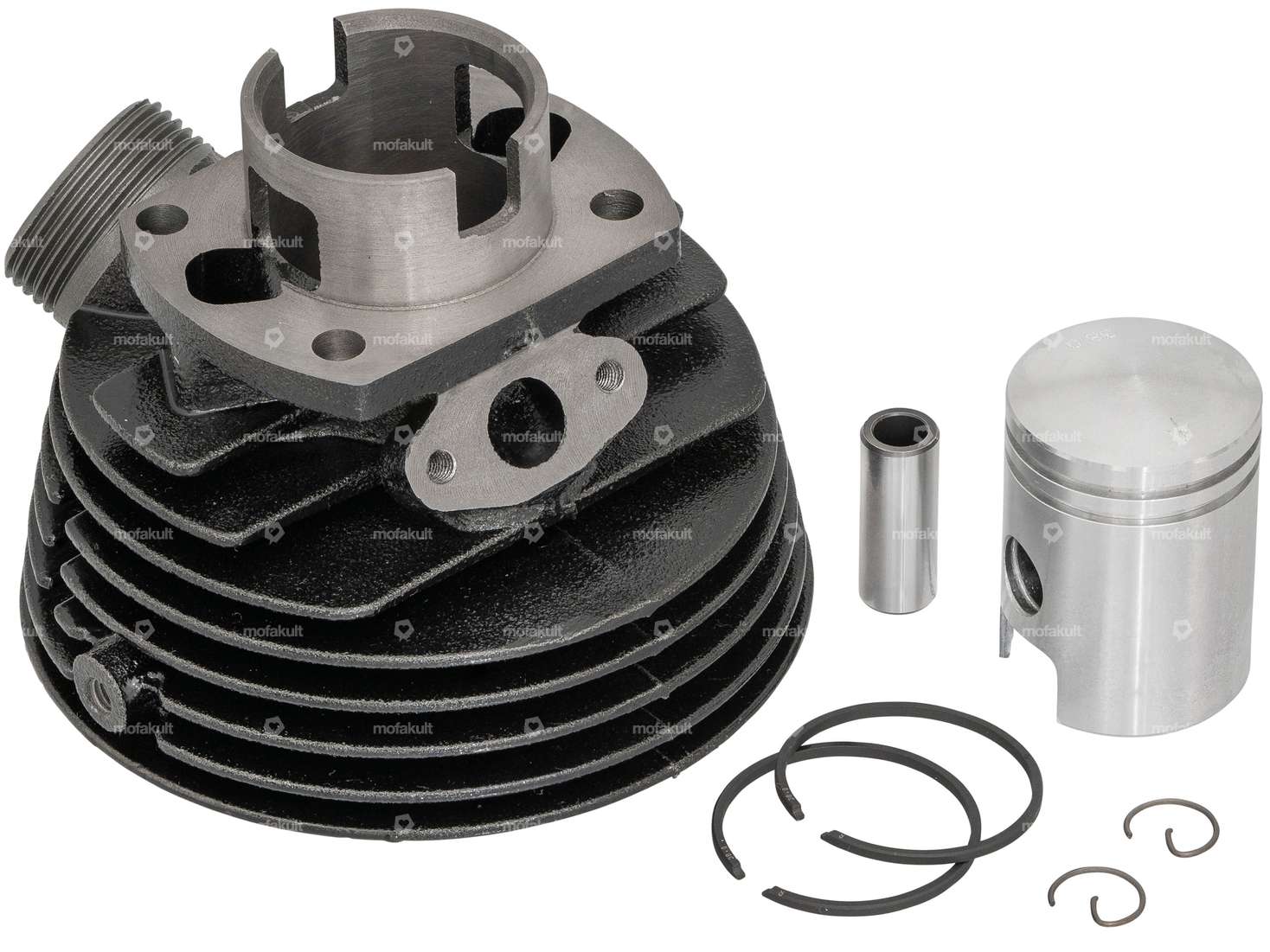

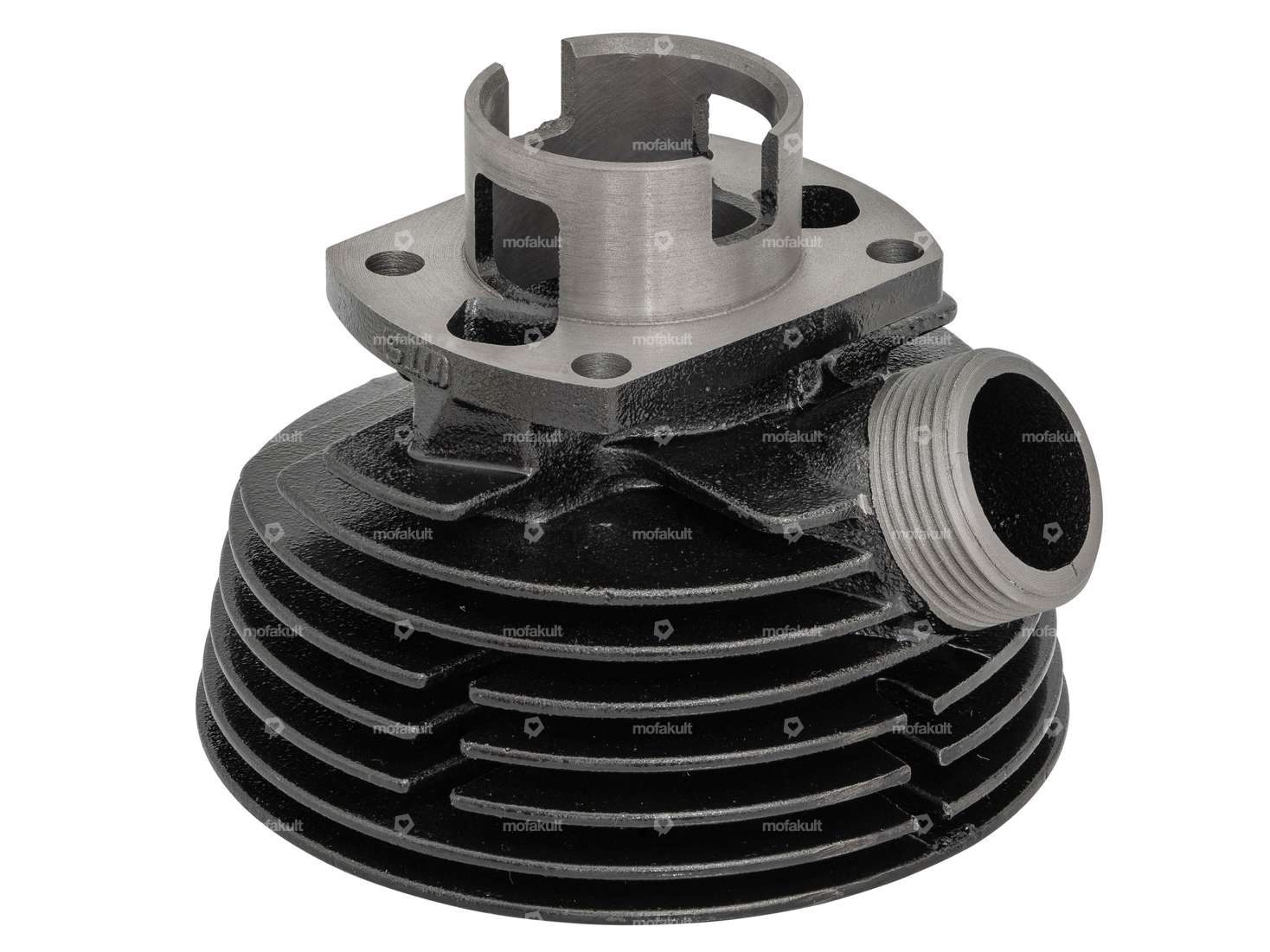

Complete cylinder kit for Sachs 3- and 4-speed engines with foot shift.

For flame tube mounting, a union nut with M35x2 thread must be used.
Ø outside: 116 mm

To be able to mount this cylinder on a Sachs 50/2 engine, various adaptations must be made.

Details

Nominal diameter	38 mm
Material	Gray cast iron
Surface	varnished
Displacement	50 ccm
Crankshaft stroke	43 mm
Thread inlet	M5x0.8 (standard thread)
Hole spacing inlet	31 mm
Ø piston pin (B)	12 mm
Outlet type	Union nut
Number of fixing points	4 pcs

Thread outlet	MF40x1.5 (fine pitch thread)
Hole pattern [mm]	51 x 40
Camouflaged	No
Area of application	Tuning

Suitable for the following models

Sachs

50/3

50/4 - MLFB (2.6 PS), LKH (4.5 PS)
